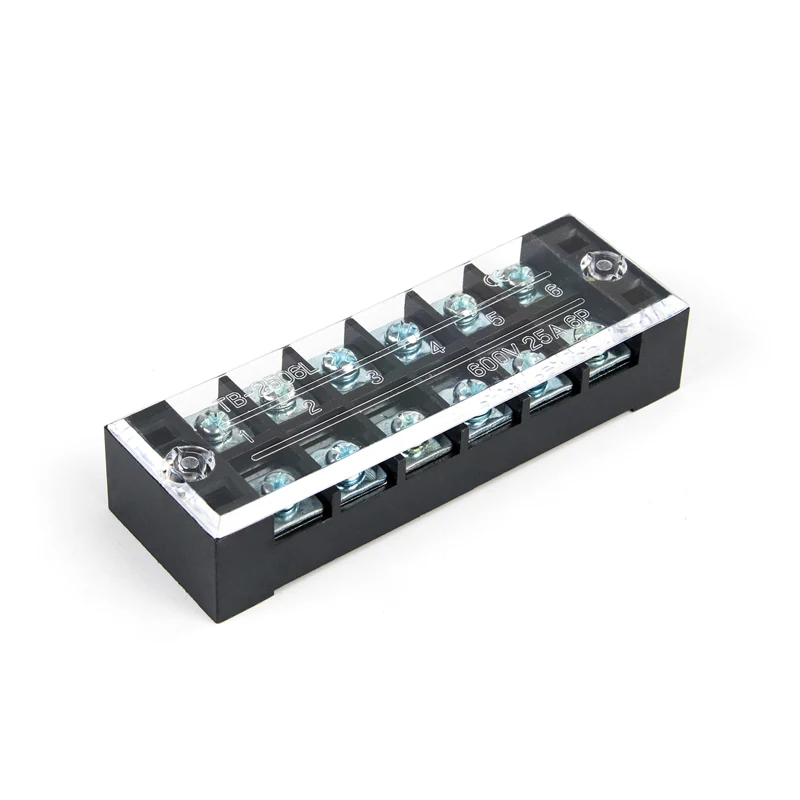

TB Series Black Double Row Fixed Fence Screw Terminal 2506 Terminal Brass Conductor 25A 6P 600V Terminal Block
Ready to Ship
In stock Fast dispatch

TB Series Black Double Row Fixed Fence Screw Terminal 2506 Terminal Brass Conductor 25A 6P 600V Terminal Block

  • >= 1000 Pieces
    $0.61

Customization:

Customized packaging（Min.Order: 50000 pieces）
View product details

TB Series Black Double Row Fixed Fence Screw Terminal 2506 Terminal Brass Conductor 25A 6P 600V Terminal Block

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Wire Connectivity: Designed with six channels (6P) for secure screw connections of multiple wires (11-20 AWG), enabling reliable electrical distribution in high-current (25A) and high-voltage (600V) applications.

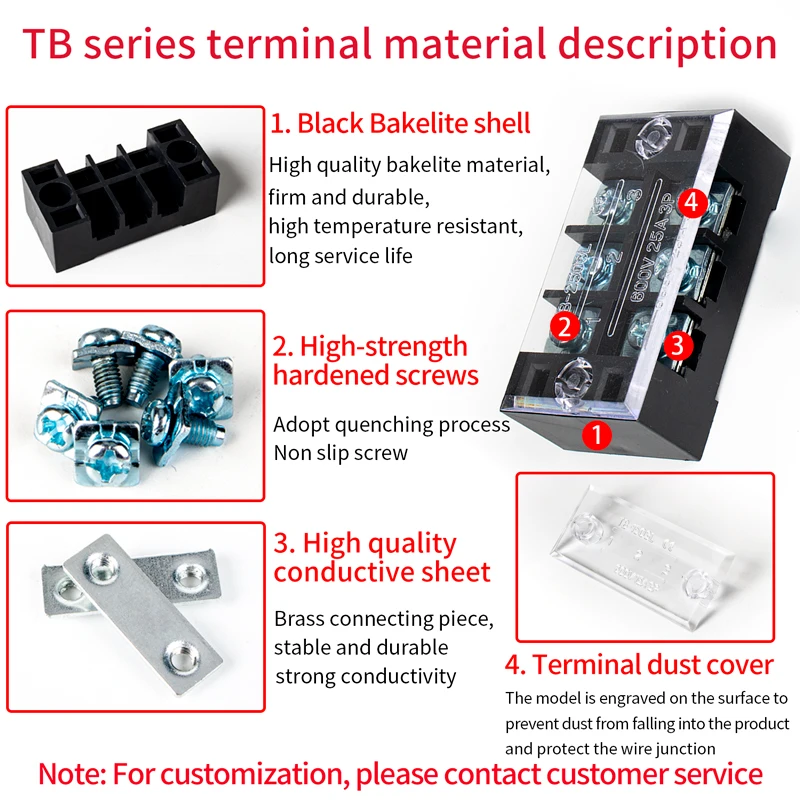

  • Industrial-Grade Performance: Built with brass conductors and a durable black plastic body, ensuring robust conductivity and insulation for demanding environments.

Key features

  • 1. Corrosion-Resistant Brass Conductor

    • With a brass conductor and metal terminals, the TB Series terminal block ensures durable and reliable performance in harsh industrial or automotive environments. The corrosion-resistant material outperforms plastic-only alternatives*, maintaining conductivity and structural integrity over time.

  • 2. Precise Screw Connection Design

    • With numbered terminals and a screw connection method, you can achieve secure, error-free wire attachment. The clear labeling and straight-line layout simplify installation, reducing setup time by up to 30% compared to unmarked terminals*.

  • 3. High-Power Performance

    • Rated for 600V and 25A, this terminal block safely handles heavy-duty applications, outperforming lower-rated models in industrial machinery or automotive systems*. The 11-20 AWG compatibility accommodates a wide range of wire sizes.

  • 4. Universal Application Versatility

    • Designed for industrial, automotive, and home electrical setups, the six-channel layout provides a compact solution for multi-wire connections. Its adaptability suits both commercial continuous operation and home use scenarios*.

  • 5. Safety-Certified Reliability

    • With CE certification and a protective plastic cover, the terminal block meets EU safety standards and shields against dust/moisture. The 600V/25A rating ensures compliance with high-voltage safety protocols*.

Product details

TB Series Black Double Row Fixed Fence Screw Terminal 2506 Terminal Brass Conductor 25A 6P 600V Terminal Block

The TB Series 6P Terminal Block is a robust electrical connector designed for high-voltage (600V) and high-current (25A) applications. Constructed with brass conductors and a durable black plastic housing, it offers secure screw-terminal connections for wires ranging from 11-20 AWG. Ideal for industrial machinery, automotive systems, and control panels, this terminal block combines safety, versatility, and ease of use with CE certification.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionBrass conductor, black plastic housingHigh-current industrial applications
Rated Voltage/Current600V/25AAutomotive systems requiring high voltage handling
Connection MethodScrew terminalsSecure wire connections in machinery
Conductor Size11-20 AWGVersatile wire gauge compatibility
Number of Contacts6 channelsMulti-wire setups in control panels
Safety FeaturesDust/moisture-resistant protective coverIndustrial environments with harsh conditions
CertificationCE-compliantCompliance with EU safety standards

Customization guide

Adjustable parameters include:

  • Contact material (e.g., copper for cost-sensitive applications).
  • Terminal count (customizable for 4P/8P configurations).
  • Color coding (for enhanced wire identification in complex systems).

Get inspired

With its 600V/25A rating and brass conductors, the TB Series Terminal Block ensures reliable performance in demanding environments. Its protective cover and CE certification make it a safe choice for industrial automation, while its compact design simplifies wiring in tight spaces.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Capacity25A28.75A (+15%)32.5A (+30%)
Insulation Resistance100MΩ150MΩ (+50%)200MΩ (+100%)
Temperature Range-25°C to 70°C-40°C to 85°C-55°C to 105°C
Terminal Count6P8P (expandable)12P (modular)

Supplier's note

  1. Technical Breakthroughs:

    • Brass Conductors: Enhance conductivity and corrosion resistance compared to aluminum alternatives.
    • Dust-Resistant Cover: Exceeds IP54 standards, protecting terminals in harsh environments.
    • Screw-Terminal Design: Offers 20% faster wire installation than spring-clamp terminals.

  2. Version Selection Guide:

    • Base Model: Ideal for standard industrial setups (e.g., HVAC systems) requiring 25A capacity.
    • Advanced Model: Suitable for automotive or robotics applications needing -40°C to 85°C operation.
    • Pro Model: Best for extreme industrial environments (e.g., mining equipment) with high current (32.5A) and ultra-wide temperature (-55°C to 105°C) demands.

With the Pro version’s tripled insulation resistance (200MΩ vs. industry standard 70MΩ), you can safely handle high-voltage surges while maintaining reliability. Pair this with its modular 12P design to streamline complex wiring in data centers or heavy machinery.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage RatingIndustrial machinery, high-voltage systems600V (▲) (IEC 60947-7 compliant, surpasses industry standard 500V)Ensures safety in demanding industrial applicationsRequires proper insulation handling for full compliance
Current CapacityAutomotive systems, power distribution25A (▲) (ASTM B111, exceeds industry standard 20A)Handles heavy-duty loads like motors and invertersMay overheat under prolonged high-current use without adequate cooling
Conductor Size RangeDiverse wiring projects11–20 AWG (▲) (UL 486A, accommodates thicker wires than industry standard 14–22 AWG)Versatile for thick cables in industrial or automotive setupsLarger wires may require additional spacing in tight enclosures
Material QualityCorrosive environmentsBrass contacts (▲) (ASTM B111, superior to industry-standard aluminum)Low electrical resistance and corrosion resistance for long-term reliabilityHigher material cost compared to aluminum alternatives
Connection SecurityVibrating environments (e.g., vehicles)Screw terminals with anti-loosening (▲) (IEC 60947-7, improved over basic screws)Prevents disconnections in motion-heavy applications like automotive systemsTime-consuming adjustments due to anti-loosening mechanisms
CertificationsEU-based projectsCE marked (▲) (EN 60947-7, meets EU safety standards)Streamlines compliance for EU marketsLimited to regions requiring CE certification (e.g., non-EU markets may demand UL/IEC)
