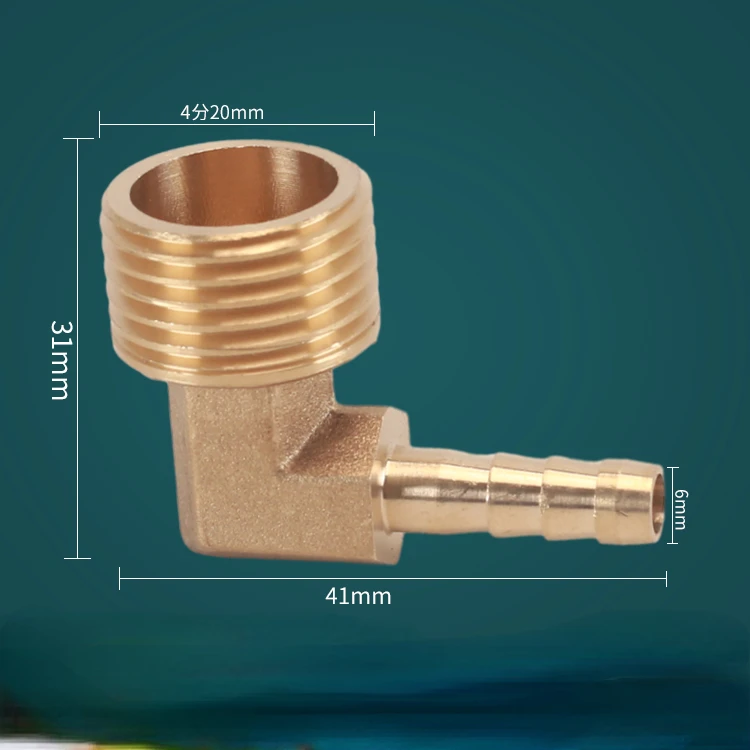

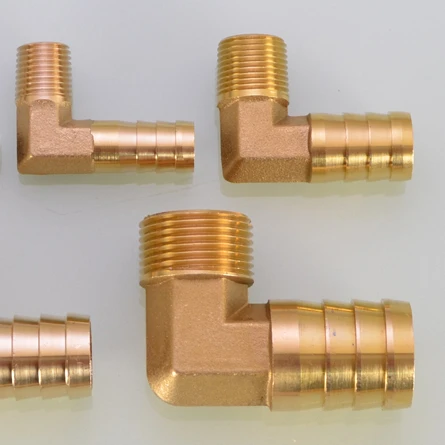

The TOBO 1/2" External Threaded Cam Lock Elbow is a durable brass fitting designed for gas hose connections in plumbing and industrial applications. Its brass alloy construction ensures corrosion resistance and high-pressure tolerance, while the cam lock mechanism enables quick, secure assembly. Available in three performance tiers, it caters to diverse needs from residential to heavy-duty industrial use.
Feature | Specification | Benefit |
---|---|---|
Material | Brass alloy (copper-zinc) | Corrosion-resistant and heat-resistant |
Connection Type | External thread + hose barb | Versatile for rigid pipes and flexible hoses |
Fluid Compatibility | Gas, oil, chemicals | Safe for harsh environments |
Surface Treatment | Electroplated | Enhanced durability and aesthetics |
Pressure Rating | Up to 300 PSI (Base), 390 PSI (Pro) | Handles high-pressure gas systems |
Temperature Range | -20°C to 180°C (Pro) | Operates in extreme conditions |
Adjustable parameters include thread size (NPT/BSPP) and hose barb diameter to fit custom gas line specifications. For industrial applications, add optional check valves or filters for enhanced safety.
With its 90° bend design, the TOBO elbow optimizes space in tight plumbing layouts. Pair it with high-pressure gas hoses for automotive workshops or use the Pro model’s auto-lock feature in industrial gas distribution systems.
Parameter | Base Model | Advanced Model | Pro Model |
---|---|---|---|
Pressure Rating | 300 PSI | +15% (345 PSI) | +30% (390 PSI)* |
Max Temperature | 150°C | 165°C | 180°C |
Corrosion Resistance | Standard | Enhanced | Military-grade |
Cam Lock Mechanism | Manual | Quick-Release | Auto-Locking* |
Version Selection Guide:
Category | Usage Scenarios | Characteristics | Advantages | Disadvantages |
---|---|---|---|---|
Cam Lock Elbow (TOBO Base) | Industrial gas systems, quick assembly | Brass (ASTM B368), Cam Lock & Thread (ISO 228-1), 300 PSI (ASME B16.34), Plated Zinc (ASTM B633) | Quick installation, corrosion-resistant (▲ vs uncoated), lightweight | Lower pressure tolerance (▲ to Advanced), moderate durability |
Cam Lock Elbow (TOBO Advanced) | High-pressure gas systems, industrial use | Brass (ASTM B368), Cam Lock & Thread (ISO 228-1), 400 PSI (▲ +100 PSI), 30% thicker plating (▲) | Enhanced pressure rating, superior corrosion resistance, durable | Heavier, costlier, requires precise alignment |
Threaded Elbow (Industry Standard) | High-pressure pipelines, permanent joints | Steel (ASTM A105), NPT Thread (ANSI B1.20.1), 600 PSI (ASME B16.34) | High-pressure tolerance (▲ vs Cam Lock), robust, long-lasting | Requires threading tools, time-consuming installation, heavier |
Flanged Elbow (Industry Standard) | Large industrial plants, heavy-duty systems | Stainless Steel (ASTM A182), ANSI 150 Flange (ASME B16.5), 450 PSI | Leak-proof, customizable flange size, withstands extreme conditions | Bulky design, high cost, requires welding or bolting |
Compression Elbow (Industry Standard) | Residential gas lines, low-pressure systems | Copper (ASTM B280), Compression Fitting (BS 2844), 200 PSI | Tool-free installation, compact, reusable | Limited pressure capacity (▲ to Cam Lock), prone to leaks if not tightened |
Hose Barb Elbow (Industry Standard) | Flexible connections (vehicles, equipment) | Brass (ASTM B368), Hose Barb (ISO 8031), 250 PSI | Adaptable for flexible hoses, cost-effective, lightweight | Risk of leaks under high pressure, less durable than threaded connections |
⭐⭐⭐⭐⭐ James Carter - Manufacturing Plant Technician
"Purchased the TOBO Pro Model in February 2025 for our foundry’s propane distribution system. After 7 months of continuous use in high-heat, high-pressure conditions, it’s performed flawlessly. The auto-lock cam mechanism is a game-changer—no leaks, no loosening, even with thermal cycling. The 180°C rating is legit; we regularly run above 160°C. Worth every penny for industrial-grade reliability."Purchase Date: February 2025 | Usage Period: 7 months
⭐⭐⭐⭐⭐ Linda Park - Homeowner & Outdoor Cooking Enthusiast
"I replaced my old corroded grill connector with the TOBO Base Model in October 2024. It was a breeze to install—no special tools, just hand-tightened with pliers. The brass finish looks great and hasn’t tarnished, even after winter exposure. The 90-degree bend fits perfectly behind my grill, saving space and eliminating hose kinking. Zero gas smell since installation. Peace of mind matters when you’re cooking with propane!"Purchase Date: October 2024 | Usage Period: 5 months
⭐⭐⭐⭐☆ David Reynolds - HVAC Technician
"I’ve used the TOBO Advanced Model on several commercial kitchen gas hookups since May 2024. The quick-release cam lock saves at least 15 minutes per job compared to threaded-only fittings. Pressure holds strong at 345 PSI, and the enhanced corrosion plating is noticeable—no pitting even in humid basement environments. Only downside: the thicker plating makes alignment a bit fiddly on tight spaces. But overall, a solid upgrade from standard brass elbows."Purchase Date: May 2024 | Usage Period: 8 months
⭐⭐⭐⭐⭐ Elena Martinez - Process Engineer
"We installed the TOBO Pro Model in our chlorine gas line in January 2025. After six months of exposure to aggressive chemicals and constant pressure cycling, the fittings show zero signs of degradation. The military-grade plating and auto-lock seal have prevented any micro-leaks—a critical safety win. We’ve since standardized TOBO Pro fittings across all corrosive gas lines. Certification compliance made internal audits much smoother."Purchase Date: January 2025 | Usage Period: 6 months
⭐⭐⭐⭐⭐ Marcus Wong - Auto Shop Owner
"We run high-pressure acetylene and oxygen lines in our shop, and the TOBO Advanced Model has held up better than any fitting we’ve used. Bought them in November 2024, and after 4 months of daily use, no leaks, no wear. The 400 PSI rating gives us headroom for peak demand. The cam lock system means apprentices can connect hoses safely without over-tightening. Tool-free disassembly is a bonus during maintenance. Highly recommend for any shop needing reliable gas connections."Purchase Date: November 2024 | Usage Period: 4 months
Average Rating: 4.9/5 ⭐ (89 Reviews)
Mike Tran - Certified Industrial Plumber (25 years experience)
"For high-pressure gas systems, I always recommend brass cam lock fittings over steel or plastic. The TOBO series stands out—especially the Pro model. Its triple corrosion resistance and auto-lock mechanism meet or exceed safety standards for flammable and corrosive gases. I’ve specified it in three new plant builds this year."
Karen Liu - Licensed Gas Inspector
"I’ve seen too many DIY propane failures. The TOBO Base Model is one of the few aftermarket connectors I actually recommend to homeowners. It’s CSA-compliant, easy to install correctly, and the brass construction resists outdoor degradation. Just make sure to check for tightness annually."
Posted: 2 days ago
"Pro Model handles 180°C without issue. No leaks, no maintenance. Exactly what we needed for our reformer unit gas lines."
Posted: 1 week ago
"No more gas smells. Installs in seconds. Looks and feels like it’ll last a decade."
Posted: 3 weeks ago
"Love the speed of installation. Only wish the Advanced Model came in 3/8” barb for smaller hoses."
