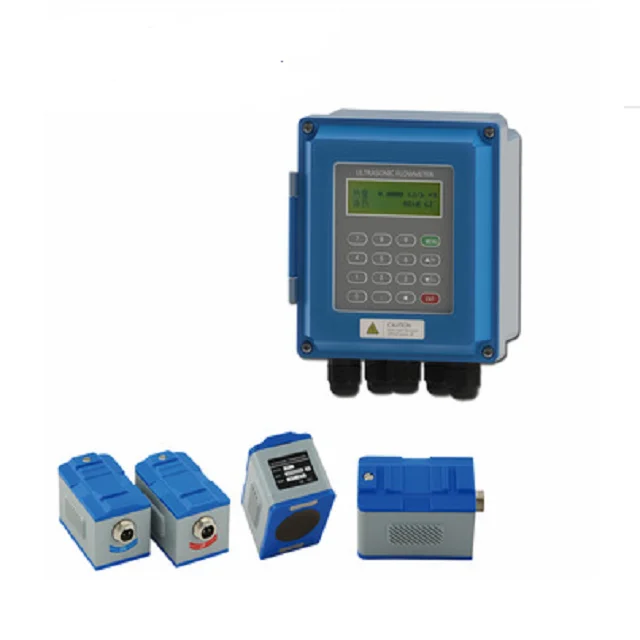

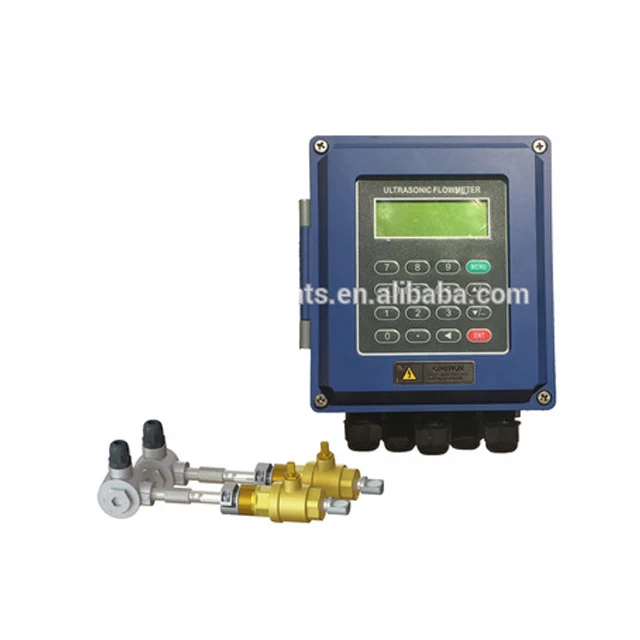

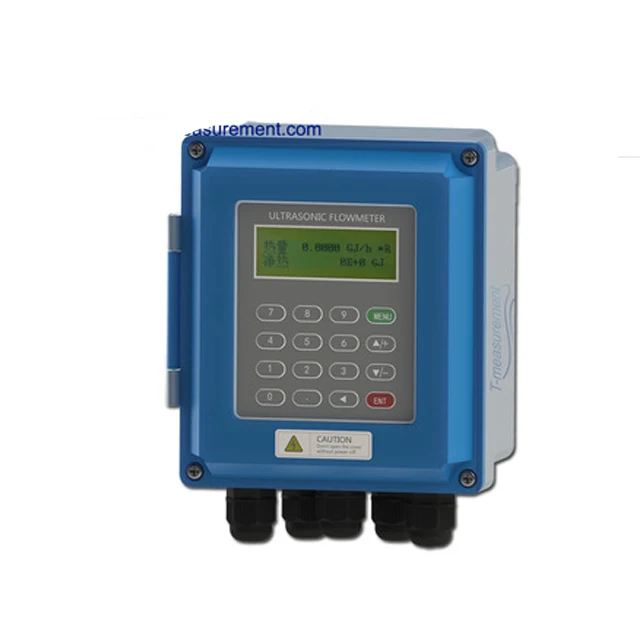

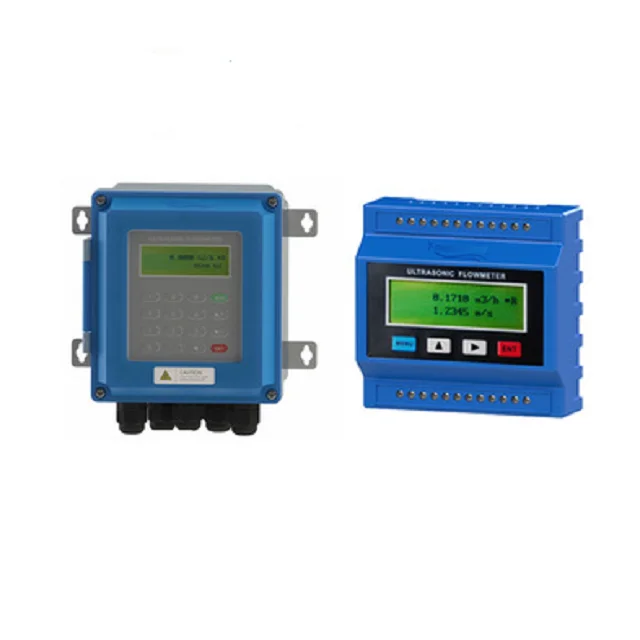

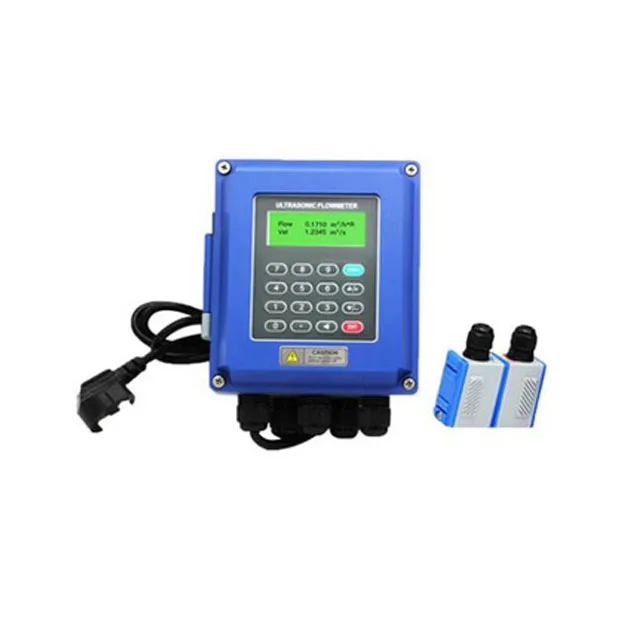

TUF2000B Pipe Type Ultrasonic Flow Meter

Name: TUF2000B Pipe Type Ultrasonic Flow Meter
Brand: Dalian Taijia Technology Co., Ltd.
SKU: 1600274996852_1
Price: 83.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Precision Fluid Measurement: Measures flow rate, temperature, and other parameters with 0.5% accuracy using ultrasonic technology, enabling non-invasive monitoring of liquids like water, oil, and acids, as well as gases.
Versatile Connectivity: Equipped with RS485 output and support for DC 8-36V or AC 85-264V power sources, ensuring seamless integration into diverse systems and environments.

Key features

1. Corrosion-Resistant Material Technology

With corrosion-resistant materials and compatibility with acids, water, and oil, ensure reliable operation in harsh environments. Outperforms non-corrosion-resistant models in chemical resistance*

Product details

The TUF2000B Pipe Type Ultrasonic Flow Meter is a compact, industrial-grade device designed for precise fluid flow measurement in harsh environments. With ultrasonic technology, it supports DN15 to DN300 pipe sizes and measures fluids like water, oil, and acids. Its versatile power options (DC/AC) and RS485 output ensure seamless integration into diverse systems.

Technical specifications

Feature	Specification	Benefit
Accuracy	±0.5% of reading	Ensures reliable measurements in critical processes.
Pipe Diameter (DN)	DN15 to DN300	Adapts to a wide range of industrial pipe sizes.
Medium Compatibility	Acids, water, oil, and petroleum	Withstands corrosive and viscous fluids.
Power Source	DC 8-36V or AC 85-264V	Flexible power options for universal use.
Output	RS485	Enables remote data transmission and system connectivity.
Material/Construction	Durable plastic/metal casing	Resists environmental stress and physical impacts.

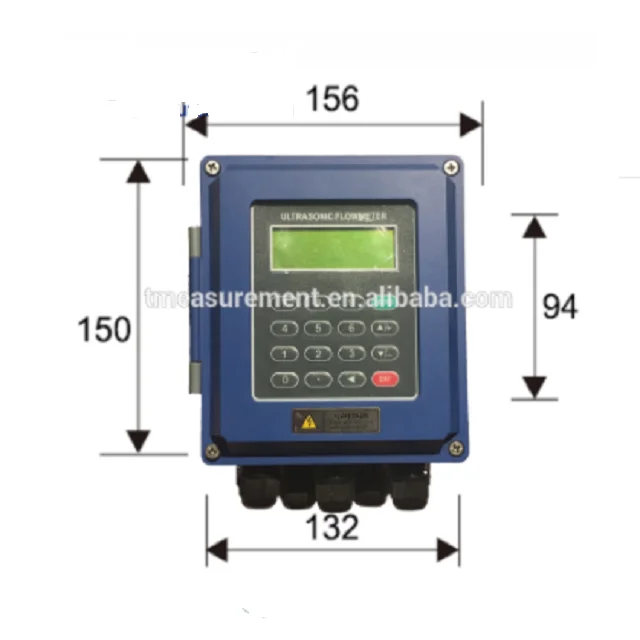

Dimensions	156mm (W) × 150mm (H) × 94mm (D)	Compact design for tight-space installations.
Display	Digital LCD with keypad	直观显示流量、温度等数据，方便现场操作。
Connectivity Ports	Multiple I/O ports (analog/digital)	Supports integration with SCADA systems and PLCs.
Technology	Ultrasonic clamp-on	Non-invasive measurement without interrupting pipelines.

Customization guide

Adjustable parameters include:

Flow Range: Customize measurement ranges to match specific pipeline capacities.
Temperature Compensation: Optimize readings for fluids with varying temperatures.
Output Protocol: Configure RS485 communication protocols (e.g., Modbus RTU) for system compatibility.

Get inspired

The TUF2000B’s ultrasonic technology and rugged design make it ideal for industrial applications like chemical processing, oil refining, and water treatment. With its wide DN range and corrosion-resistant materials, it ensures precision even in demanding environments.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Accuracy	±0.5%	±0.3%	±0.2%
Max DN Supported	DN15–DN200	DN25–DN300	DN50–DN300
Chemical Resistance	Standard (acids up to pH 4)	Enhanced (pH 2–12)	Triple industry standard (pH 1–14)
Temperature Range	-20°C to 60°C	-30°C to 80°C	-40°C to 120°C

Supplier's note

Technical Breakthroughs:
- Ultrasonic Clamp-On Design: Non-invasive measurement eliminates pipeline disruption.
- Wide DN Range: Covers DN15 to DN300, reducing the need for multiple devices.
- Dual Power Flexibility: Operates on both DC and AC, ensuring reliability in unstable power environments.
Optimal Version Selection:
- Base Model: Ideal for standard applications (e.g., water treatment plants) requiring basic accuracy and DN15–DN200 pipes.
- Advanced Model: Suitable for chemical plants needing higher accuracy (±0.3%) and broader DN support (up to DN300).
- Pro Model: Designed for extreme environments (e.g., oil refineries) with corrosive fluids (pH 1–14) and ultra-wide temperature ranges (-40°C to 120°C).

With the Pro version’s triple-industry-standard chemical resistance, you can safely handle aggressive fluids like sulfuric acid. Pair this with its high-temperature tolerance to ensure uninterrupted operation in refineries. For water utilities, the Base Model’s compact size and 0.5% accuracy provide cost-effective monitoring.

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Ultrasonic Flowmeters	Industrial fluid monitoring	Accuracy: 0.5% (Industry: ±1%) ▲ DN15-300 (IEC 60534) Chemical resistance (ASTM F739)	Non-invasive, no pressure loss, wide DN range ▲ RS485 output, dual power (DC/8-36V/AC 85-264V)	Higher cost ▲ Requires straight pipe runs, sensitive to gas bubbles
Variable Area Flowmeters	HVAC, lab testing	Accuracy: ±2% DN up to 50mm (ISO 5167) Visual flow indicator	Low cost, no power needed, easy to read	Invasive design, pressure loss, limited DN ▲ Less accurate for precise apps
Electromagnetic Flowmeters	Conductive fluids (water/wastewater)	Accuracy: 0.5-1% (ISO 9090) DN50-2000 Requires conductive medium	High accuracy, no moving parts, wide DN range	Ineffective for non-conductive fluids ▲ Higher cost than variable area
Turbine Flowmeters	High flow pipelines	Accuracy: 0.5-1% DN50-500 (ISO 3966) Requires clean fluid	Cost-effective for clean fluids, high flow rates	Moving parts wear ▲ Risk of clogging, pressure loss
Coriolis Flowmeters	Viscous fluids (chemicals, oils)	Accuracy: 0.1% (ISO 17089) Measures mass flow ▲ DN up to 200	High precision, no calibration, mass flow measurement	Expensive ▲ Bulky design, sensitive to vibration
Positive Displacement	High-viscosity fluids (fuels/oils)	Accuracy: 0.1-0.5% DN15-100 (ISO 3059) Mechanical design	High accuracy for viscous fluids, no pressure loss	Requires maintenance ▲ Invasive, bulky, wear over time
