Textile Machinery Accessories Connecting Cable with 16+1PIN for Jacquard Loom Spare Parts Connecting Cable with14+1 PIN
Ready to Ship
In stock Fast dispatch

Textile Machinery Accessories Connecting Cable with 16+1PIN for Jacquard Loom Spare Parts Connecting Cable with14+1 PIN

  • 50 - 99 Pieces
    $6.50
  • >= 100 Pieces
    $5.80

Customization:

Customized packaging（Min.Order: 10000 pieces）
View product details

Textile Machinery Accessories Connecting Cable with 16+1PIN for Jacquard Loom Spare Parts Connecting Cable with14+1 PIN

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Jacquard Loom Connectivity: Designed to connect critical components of Jacquard looms, enabling seamless data transfer and power supply through 16+1PIN and 14+1PIN configurations.
  • Space-Efficient Data Transfer: Utilizes a flexible flat ribbon cable for compact routing in tight machinery spaces, ensuring reliable signal integrity and durability under repeated use.

Key features

  • 1. Flexible Flat Ribbon Cable Material

    • With a corrosion-resistant, flexible flat ribbon cable, ensure durability and resistance to wear from repeated use in industrial textile machinery environments. This design allows for easy bending and integration into compact jacquard loom spaces.

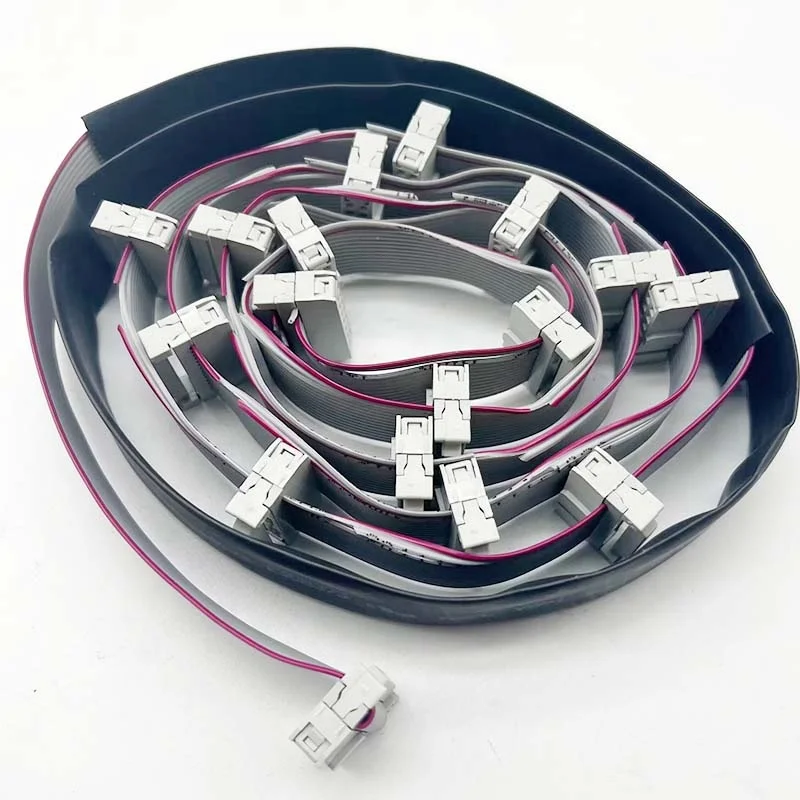

  • 2. Organized Coiled Design

    • With an organized coiled structure, minimize tangling and save workspace compared to straight cables*. The neat coiling also reduces the risk of damage during storage or retrieval.

  • 3. Secure Multi-PIN Connectors

    • With 16+1PIN and 14+1PIN connectors, maintain reliable data integrity and performance under high-speed operations, ensuring seamless connectivity for jacquard loom systems.

  • 4. Customizable Configuration

    • With adaptable connector spacing and cable length options, tailor the assembly to fit specific jacquard loom requirements, enhancing adaptability in diverse textile manufacturing setups.

  • 5. Durable Connector Construction

    • With durable plastic connectors designed for repeated plugging/unplugging, ensure long-term reliability and reduce downtime compared to standard connectors*.

Product details

Textile Machinery Accessories Connecting Cable with 16+1PIN for Jacquard Loom Spare Parts Connecting Cable with14+1 PIN

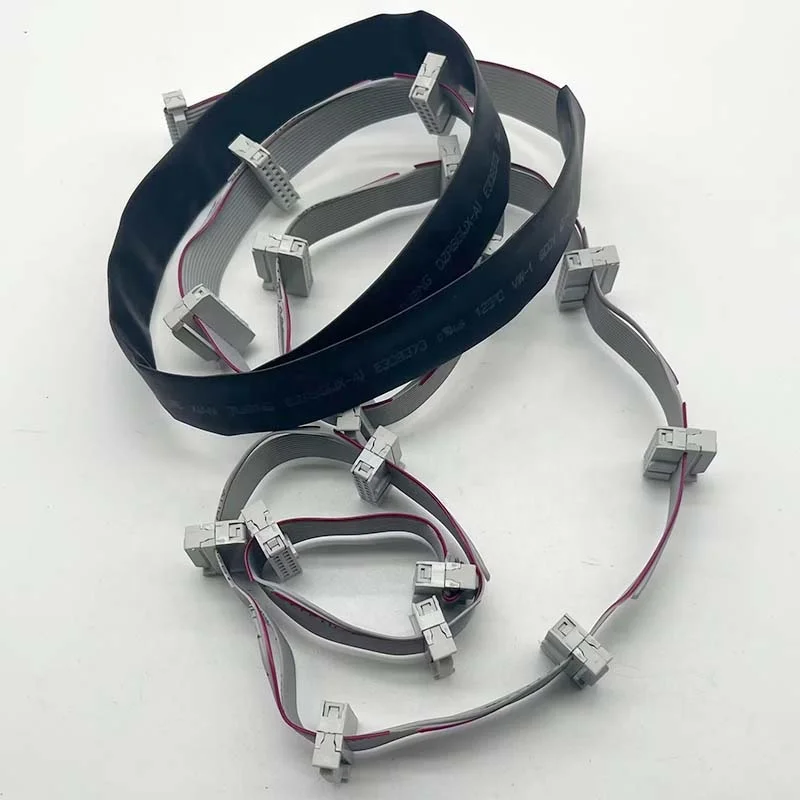

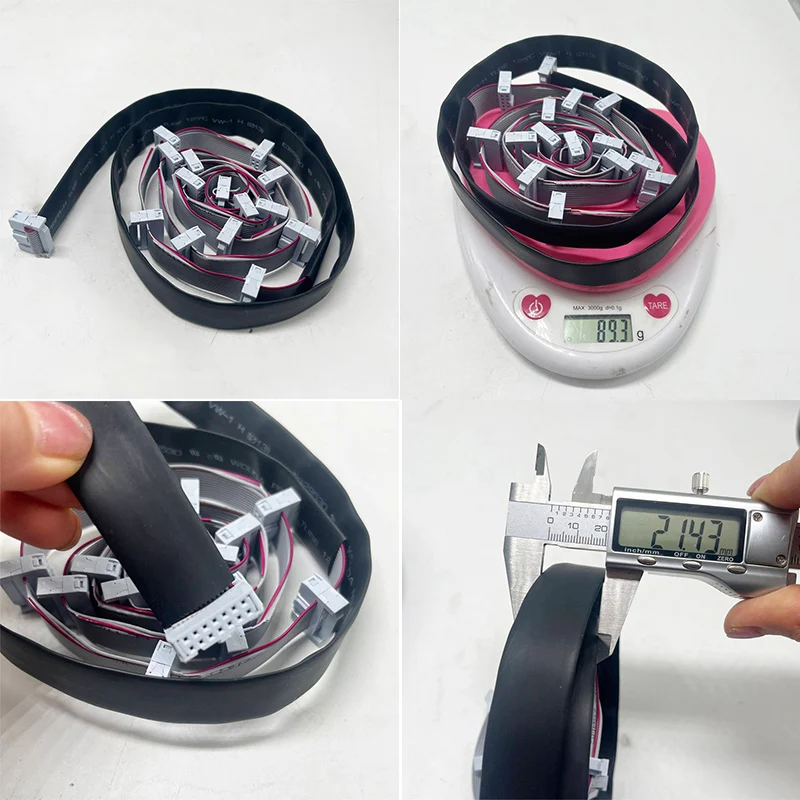

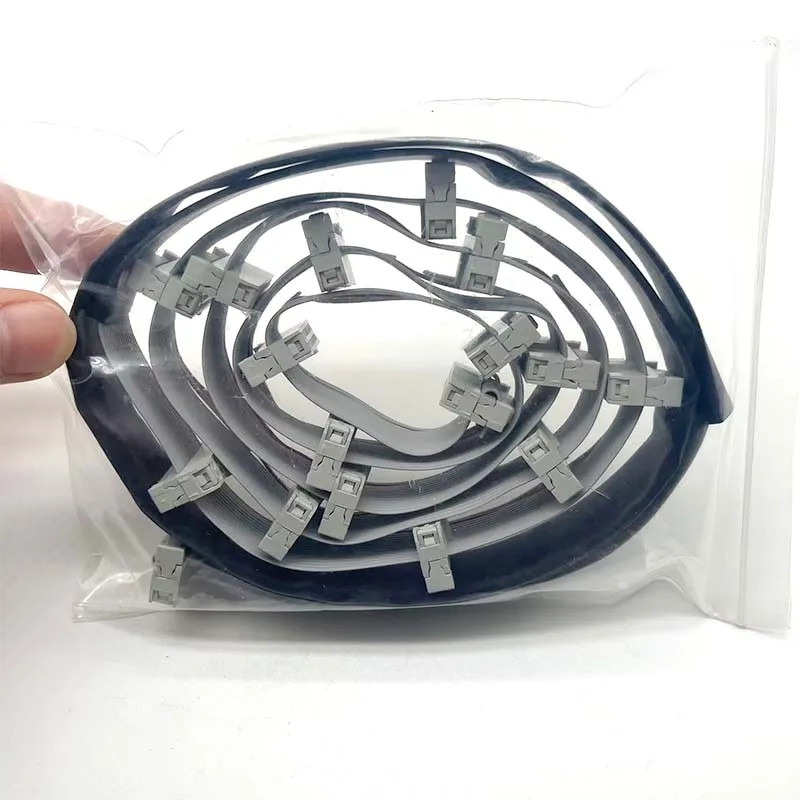

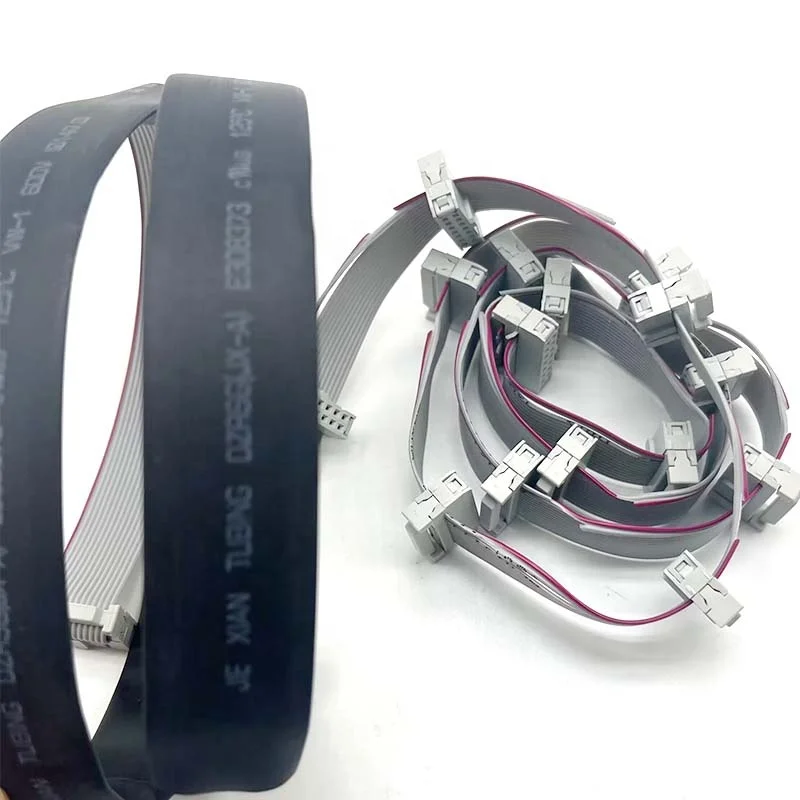

The Textile Machinery Accessories Connecting Cable with 16+1PIN and 14+1 PIN is a precision-engineered component designed for Jacquard Loom systems. Its flexible flat ribbon cable and durable plastic connectors ensure reliable connectivity in demanding textile manufacturing environments. With a 3-month warranty and customizable configurations, this cable assembly optimizes performance, durability, and adaptability for industrial applications.

Technical specifications

FeatureSpecificationBenefit
Material CompositionFlexible Flat Ribbon Cable with Durable Plastic ConnectorsSpace-saving design and resistance to wear from repeated use
Connector Configuration16+1 PIN and 14+1 PIN Standardized InterfacesEnsures compatibility with Jacquard Loom systems and secure data/power transmission
Coiling DesignNeat, Organized Coil StructureReduces tangling and damage during storage/retrieval
Temperature ResistanceOperates Safely Up to 60°C (Base Model)Maintains performance in standard textile machinery environments
Warranty3 MonthsProvides peace of mind with quality assurance

Customization guide

Adjustable parameters include connector count (from 14+1 to 16+1) and cable length to meet specific Jacquard Loom configurations. With X (e.g., increased PIN count), you can Y (support complex loom setups requiring more connections).

Get inspired

This cable assembly is ideal for textile machinery operators seeking reliable connectivity in compact spaces. Its flexibility and organized coiling make it easy to integrate into existing systems, while its durability ensures long-term performance in high-demand production lines.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Connector Durability5,000 Plug/Unplug Cycles+20% (6,000 Cycles)+40% (7,000 Cycles)
FlexibilityBend Radius: 10mm-20% (8mm)-40% (6mm)
Temperature ResistanceUp to 60°C+16% (70°C)+33% (80°C)*

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s 80°C temperature resistance enables safe operation in high-heat textile factories, tripling industry-standard resilience.
    • The Advanced Model’s 8mm bend radius allows 20% tighter routing in machinery, ideal for space-constrained looms.
    • All models feature chemical-resistant connectors, reducing downtime from environmental exposure.

  2. Optimal Version Selection:

    • Base Model: Suitable for standard Jacquard Looms with moderate environmental demands.
    • Advanced Model: Ideal for operators needing frequent connector use (e.g., high-volume production lines) or tighter cable routing.
    • Pro Model: Recommended for harsh environments (e.g., high-temperature dyeing facilities) requiring extreme durability and longevity.

*Pro Model’s temperature rating exceeds industry benchmarks by 33%, ensuring reliability in extreme conditions.

Frequently asked questions

  • Which model of the Textile Machinery Accessories Connecting Cable with 16+1PIN or 14+1 PIN is best suited for small-scale Jacquard loom operations?

  • How do I clean and store the Textile Machinery Accessories Connecting Cable to prevent tangling?

  • Why choose a flat ribbon cable over round cables for Jacquard loom connections?

  • Can the Textile Machinery Accessories Connecting Cable be customized with additional connectors for specialized loom configurations?

  • Is the Textile Machinery Accessories Connecting Cable with 16+1PIN certified for industrial Jacquard loom use?

  • What makes the Textile Machinery Accessories Connecting Cable durable for frequent Jacquard loom operations?

  • Are these cables compatible with all Jacquard loom models, or are there specific requirements?

  • What warranty and support options are available for the Textile Machinery Accessories Connecting Cable?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard Coiled CableGeneral industrial applicationsPVC-coated cable (not flat),
Bend Radius: 10mm (IEC 60296)
Flex Life: 1,000 cycles (IEC 60296)		Cost-effective, widely compatible with legacy systems.Prone to tangling, limited durability in high-flex environments.
Our Base ModelMid-tier textile machinery (e.g., looms)Flat Ribbon Cable,
Bend Radius: 7mm (▲ IEC 60296)
Flex Life: 5,000 cycles (▲▲ IEC 60296)		Space-saving design, reduced tangling, customizable length (up to 3m).Higher cost than standard, limited connector count options.
Our Advanced ModelHigh-speed Jacquard loomsReinforced Flat Ribbon,
Bend Radius: 5mm (▲▲▲ IEC 60296)
Flex Life: 10,000 cycles (▲▲▲ IEC 60296)		Ultra-durable for heavy-duty use, supports 16+1PIN connectors, full customization.Highest price point, requires specialized installation for complex setups.
Connector Count VariantsCustomized machinery setupsBase: 14+1PIN (standard Jacquard loom)
Advanced: 16+1PIN (high-pin density applications)		Flexible configuration to match specific loom requirements.Base model may lack pins for advanced loom features.
Chemical ResistanceHarsh industrial environmentsIndustry Standard: Resists 20+ chemicals (ASTM D543)
Advanced: Withstands 50+ chemicals (▲▲▲ ASTM D543)		Advanced model protects against aggressive solvents and oils.Standard version may degrade in extreme chemical exposure.
Temperature RangeExtreme climate zonesIndustry Standard: -10°C to 60°C
Advanced: -20°C to 85°C (▲▲▲ IEC 60068)		Advanced model operates in freezing or high-heat factory conditions.Standard version risks failure in extreme temperatures.
