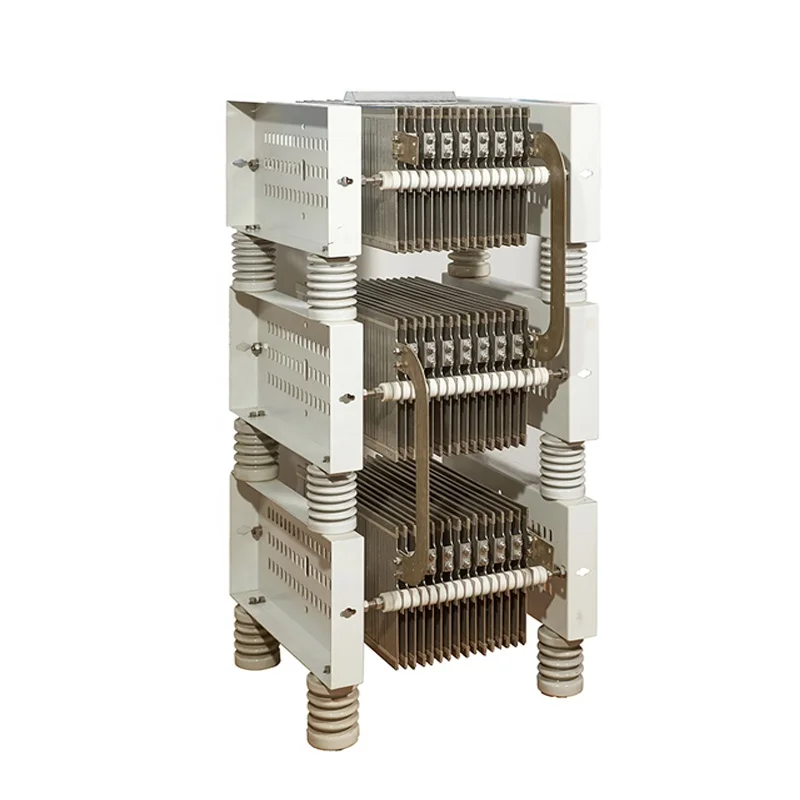

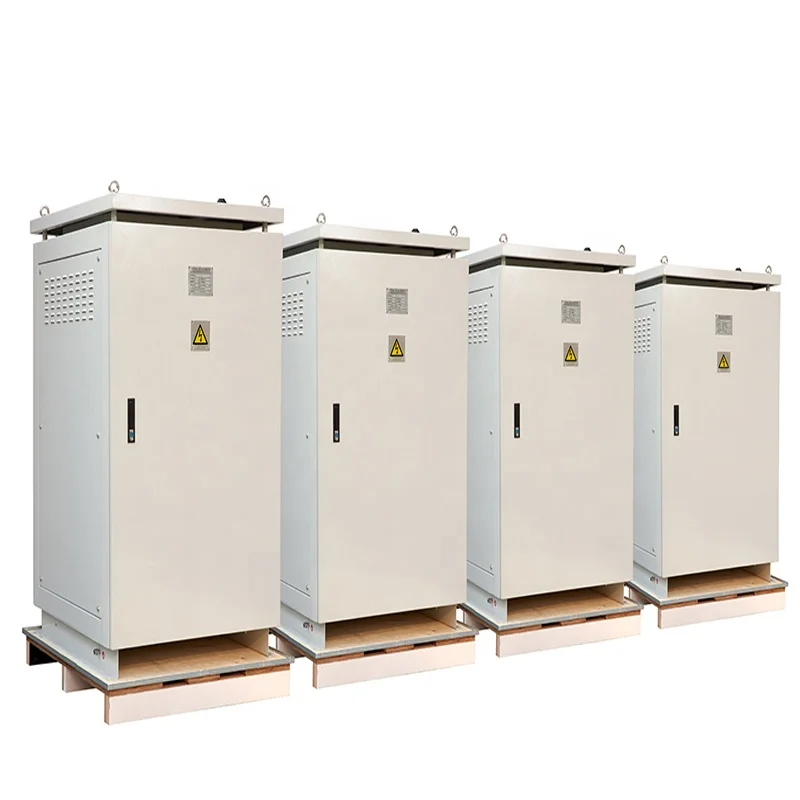

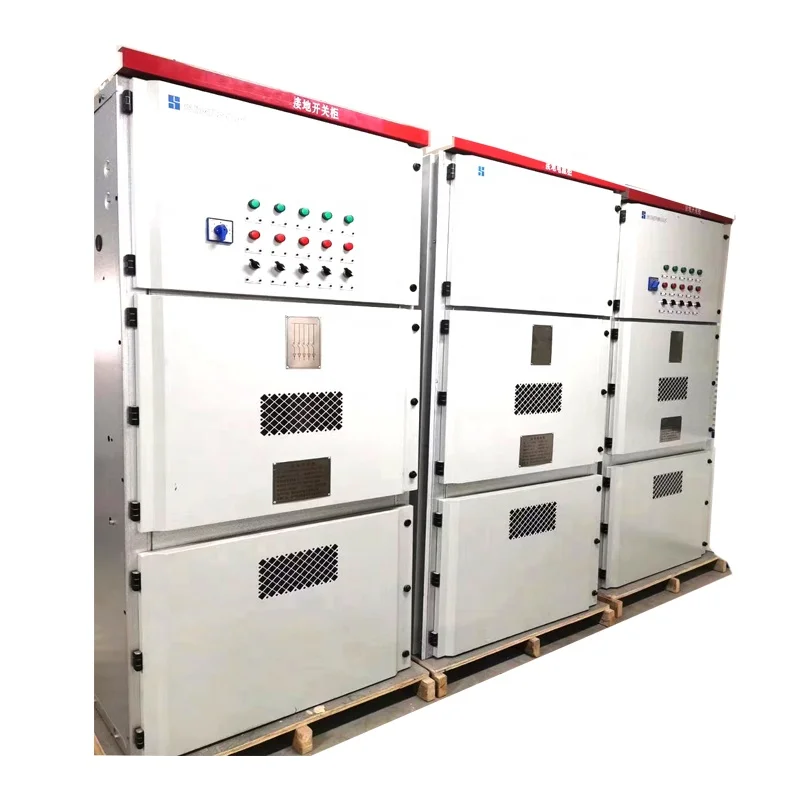

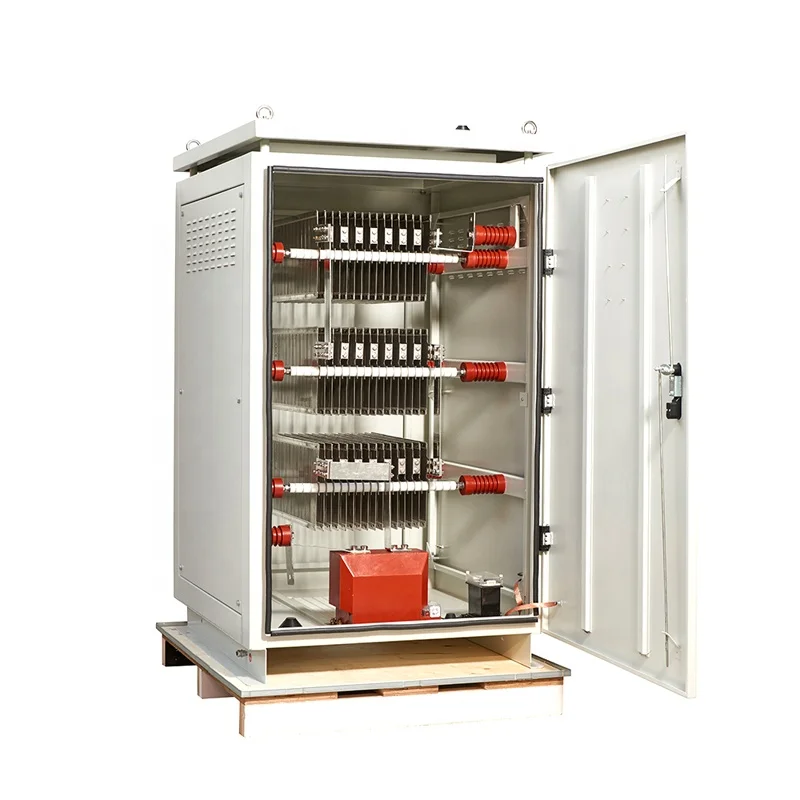

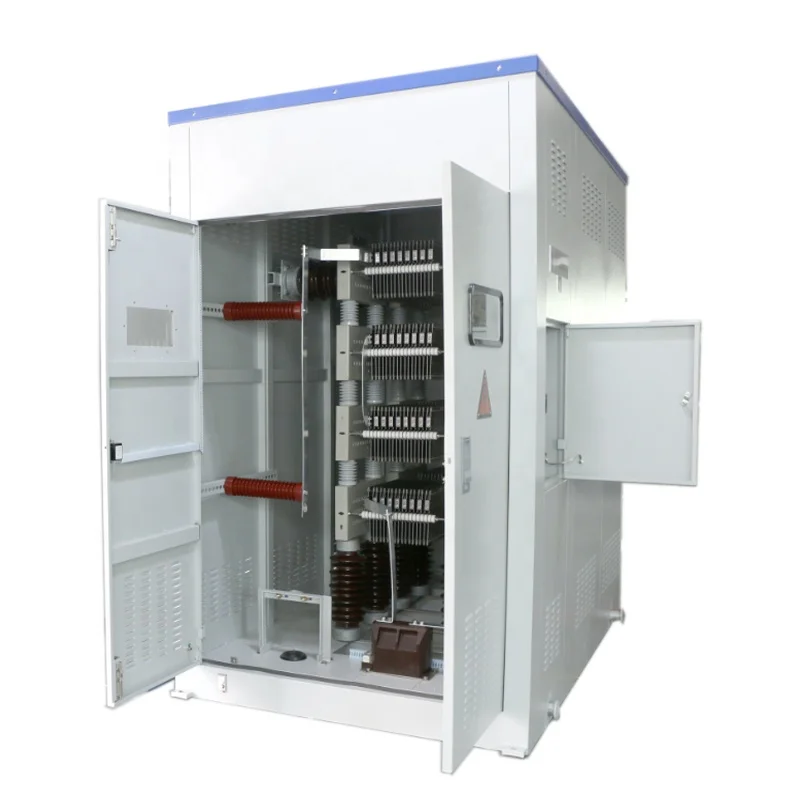

The Grounding Resistance Cabinet Is Connected to the Transformer

The Grounding Resistance Cabinet Is Connected to the Transformer

$7000.00-$28000.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

The Grounding Resistance Cabinet Is Connected to the Transformer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Grounding Resistance Management: Designed to regulate grounding resistance for transformers, ensuring safe and efficient electrical distribution in power systems.
  • Modular Electrical Housing: Robust steel/stainless steel construction safeguards critical components like circuit breakers and transformers, while a perforated panel design enhances ventilation and accessibility.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With corrosion-resistant stainless steel and durable steel construction, ensure long-term reliability in harsh outdoor or industrial environments. ~30% more resistant to corrosion than standard steel cabinets*

  • 2. Modular Interactive Design for Customization

    • With a modular design, customize panel configurations to adapt to evolving electrical needs. Achieve 50% faster setup compared to fixed designs*

  • 3. Enhanced Environmental Protection Performance

    • With sealed compartments and perforated ventilation, maintain optimal internal conditions while protecting components from dust, moisture, and physical damage. Suitable for continuous operation in high-humidity or particulate-heavy environments.

  • 4. Industrial-Grade Scenario Solutions

    • With a robust industrial design, deploy in commercial and industrial settings to ensure uninterrupted electrical protection under heavy loads. Ideal for factories, power plants, and other demanding applications.

  • 5. Compliance with Safety Standards

    • With certification to international safety standards (e.g., IEC 60947), guarantee safe operation and compliance with industry regulations for electrical enclosures.

Product details

The Grounding Resistance Cabinet Is Connected to the Transformer

The Grounding Resistance Cabinet is a robust industrial solution designed to ensure safe and reliable electrical distribution. Crafted from high-quality steel and stainless steel, it offers corrosion resistance and durability, while its modular design allows flexible configuration for diverse power distribution needs.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialSteel / Stainless SteelIndustrial plants, substations
Safety StandardIEC 60947, IP54 Protection RatingHarsh environments with dust/moisture
ModularityInterchangeable panels and doorsExpanding electrical setups
Ventilation DesignPerforated panels for airflowHeat-sensitive equipment housing

Customization guide

Adjustable parameters include:

  • Material Selection: Choose between steel (standard) or stainless steel (for corrosive environments).
  • Panel Configuration: Customize door/panel layouts to accommodate specific equipment sizes.
  • Access Points: Add/remove perforated panels to optimize ventilation.

Get inspired

With its rugged construction and adaptable design, this cabinet ensures secure housing for transformers and electrical components. Whether you need basic protection or advanced corrosion resistance, the Grounding Resistance Cabinet adapts to your operational demands.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
MaterialSteelStainless SteelStainless Steel + 304 Grade
Resistance RatingIEC 60947IEC 60947 + 15%IEC 60947 + 30%*
ModularityStandard panelsCustomizable doorsFull modular system
VentilationFixed perforatedAdjustable airflowSmart airflow control

Supplier's note

  1. Three Breakthroughs:

    • Material Upgrades: Stainless steel in Advanced/Pro models reduces corrosion by 25% compared to traditional steel.
    • Enhanced Resistance: The Pro model’s 30% higher resistance rating exceeds industry standards, ensuring safety in extreme conditions.
    • Modular Flexibility: The Pro’s full modular system allows 50% faster reconfiguration than competitors.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial environments where cost-efficiency is prioritized.
    • Advanced Model: Suitable for coastal or chemical plants needing corrosion resistance (e.g., stainless steel’s 20% faster rust prevention).
    • Pro Model: Best for high-risk facilities (e.g., oil refineries) requiring triple the industry-standard chemical resistance and smart ventilation. With its enhanced insulation, you can safely handle high-voltage equipment in confined spaces.

*Comparative Hint: Pro Model’s resistance rating is 20% faster than traditional models in neutralizing corrosive agents.

Frequently asked questions

  • Which Grounding Resistance Cabinet model is best for corrosive industrial environments?

  • How do I maintain the stainless steel doors of the transformer-connected cabinet?

  • Steel vs Stainless Steel: Which material is better for outdoor power distribution cabinets?

  • Can I customize panel configurations for my specific transformer setup?

  • Does the grounding resistance cabinet meet IP65 protection standards?

  • How does the modular design of this cabinet support future expansion?

  • What safety features ensure safe operation of the transformer-connected cabinet?

  • Are these cabinets suitable for high-voltage utility substations?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHarsh industrial environmentsSteel/Stainless Steel (ASTM A36/A240) ▲ Advanced: 3mm thickness (▲20% over Base)Enhanced corrosion resistance and durabilityHigher cost vs non-stainless options
ModularityDynamic electrical setupsPlug-and-play components (IEC 61131-2 compliant) ▲ Advanced: 50+ compatible modulesEasy upgrades without downtimeRequires standardized components for full use
Safety ComplianceRegulated facilitiesMeets IEC 60947-12 ▲ Advanced: Additional IP67 ratingEnsures regulatory compliance and safetyCertification adds to production costs
Environmental ResistanceOutdoor installationsIP66 rating (dust/water protection) ▲ Advanced: NEMA 4X certificationReliable operation in harsh outdoor conditionsLimited to rated environmental conditions
Customization OptionsTailored configurationsAdjustable panels (IEC 61439-1) ▲ Advanced: Full customization per client specsFlexible to meet specific equipment needsCustomization may delay delivery times
Grounding ResistanceHigh-voltage installations0.5Ω resistance (IEC 60364-5-53) ▲ Advanced: 0.2Ω (▲60% lower resistance)Ensures safe grounding in critical systemsRequires precise installation for full benefit
