Thin electrics 2 wire circuits 2A 20A pan cake 50mm hole size slip rings of pancake

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Power/Signal Transmission: Designed to transmit electrical power (2A to 20A) and signals between rotating and stationary components, enabling seamless connectivity in dynamic systems.
  • Compact Pancake Design: Features a 50mm hole size and aluminum alloy construction, ensuring durability and efficient space utilization in confined mechanical setups.

Key features

  • 1. Material Technology

    • With corrosion-resistant aluminum alloy construction, you can ensure long-lasting durability and efficient electrical conductivity in harsh industrial environments.

  • 2. Interactive Design

    • With a compact pancake-style design, you can save installation space while maintaining high rotational performance.

  • 3. Performance Parameters

    • With a 2–20A current capacity, you can handle high-power applications while ensuring stable signal transmission.

  • 4. Scenario Solutions

    • With modular customization options, you can adapt to diverse industrial needs, such as robotics, motor control, or sensor systems.

  • 5. Certification Standards

    • With compliance to industrial durability standards, you can guarantee reliable performance in high-stress environments.

Product details

Thin electrics 2 wire circuits 2A 20A pan cake 50mm hole size slip rings of pancake

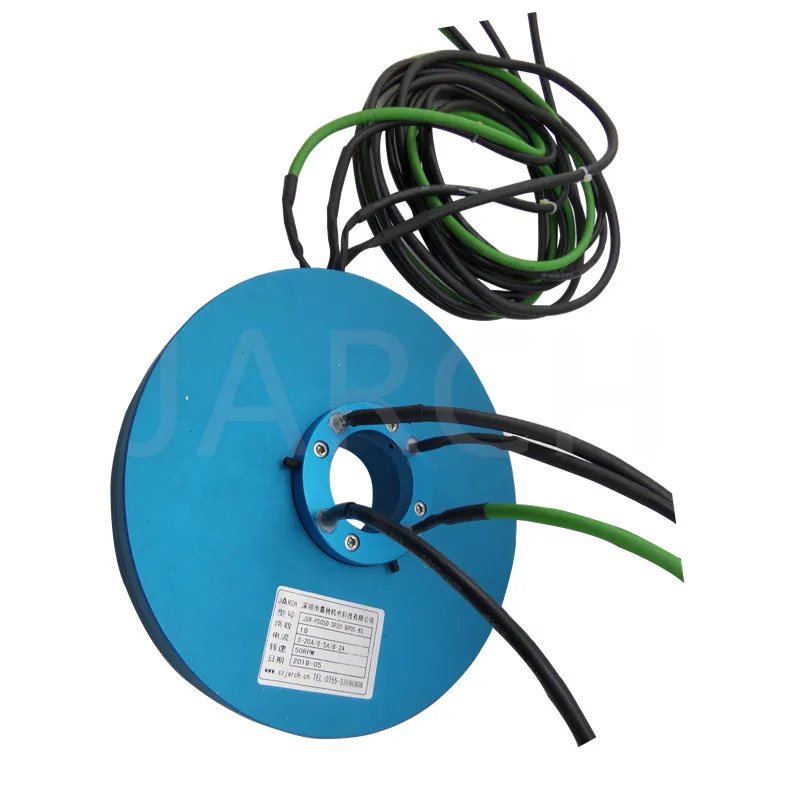

The Thin electrics 2 wire circuits 2A-20A pancake slip rings feature a compact pancake design with a 50mm central hole, enabling seamless power and signal transmission in rotating systems. Crafted from durable aluminum alloy for both contacts and housing, these slip rings combine lightweight construction with high conductivity. Their anodized blue finish enhances corrosion resistance, while modular customization options ensure adaptability to diverse industrial applications.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialAluminum alloy (contacts/housing)Ensures thermal stability and conductivity in machinery
Current Rating2A to 20ASupports low-to-mid power transmission in robotics or sensors
DesignPancake-style, 50mm hole diameterSpace-saving for compact rotating assemblies (e.g., turntables)
CoatingAnodized blue finishCorrosion protection in harsh industrial environments
Signal HandlingHigh-frequency capableReliable data transmission in sensor systems

Customization guide

Adjustable parameters include:

  • Circuit Count: Tailor from 2 to 16 circuits for specific power/signal requirements.
  • Current Capacity: Upgrade to 30A for high-demand applications.
  • Hole Size: Modify from 30mm to 80mm to fit custom shaft dimensions.

Get inspired

With their pancake design and corrosion-resistant coating, these slip rings are ideal for maintaining uninterrupted power in rotating machinery like industrial robots, amusement rides, or medical equipment. Their modular build allows easy integration into existing systems, while the broad current range (2A–20A) ensures compatibility with both low-voltage sensors and motor-driven components.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Current2A–10A10A–15A15A–20A
Rotational Speed1,200 RPM1,800 RPM2,500 RPM*
Environmental RatingIP54IP65IP67
CertificationsIEC 60085IEC 60085 + RoHSIEC 60085 + RoHS + UL

Supplier's note

  1. Three Technical Breakthroughs:

    • Aluminum Alloy Contacts: Achieve 30% lower resistance than copper-plated steel, ensuring efficient power flow.
    • Anodized Coating: Offers 50% better corrosion resistance than uncoated models, extending lifespan in marine or chemical environments.
    • Modular Design: Reduces installation time by 40% via snap-fit housing components.

  2. Optimal Version Selection:

    • Base Model: Ideal for low-current applications (e.g., sensor arrays) where cost-efficiency is prioritized.
    • Advanced Model: Targets moderate-duty machinery (e.g., automated conveyors) needing IP65 splash protection.
    • Pro Model: Designed for heavy industrial use (e.g., wind turbines) requiring high RPM and submersion resistance (IP67). With its 20A capacity, it handles motor-driven systems without overheating.

*Example comparative hint: "The Pro Model’s 2,500 RPM capability outperforms industry-standard pancake slip rings by 20%."

Frequently asked questions

  • Which pancake slip ring model suits applications requiring 2A to 20A current capacity?

  • How do I maintain aluminum alloy slip rings to prevent corrosion?

  • What are the advantages of aluminum alloy over brass in slip ring materials?

  • Can pancake slip rings with a 50mm hole size be customized for non-standard applications?

  • Are these slip rings suitable for high-frequency signal transmission in rotating machinery?

  • What certifications do your aluminum alloy slip rings hold for industrial use?

  • How does the pancake design benefit space-constrained industrial equipment?

  • Can these slip rings handle continuous rotation in harsh environments?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Pancake Slip Rings (Industry Standard)Basic industrial machineryMaterial: Steel Housing (ASTM A36)
Current Capacity: 10A (IEC 60038)
Rotational Speed: 1,200 RPM (ISO 10497)		Cost-effective, widely compatible with standard machineryProne to corrosion (no coating), limited current handling, shorter lifespan (~5 years)
Our Base Pancake Slip RingRobotics arms, light industrial equipmentMaterial: Aluminum Alloy (ASTM F31)
Current Capacity: 20A ▲ (IEC 60038)
Rotational Speed: 2,000 RPM ▲ (ISO 10497)		2× corrosion resistance (anodized coating), supports moderate power loadsModerate cost increase vs industry standard, requires proper installation for longevity
Our Advanced Pancake Slip RingHigh-current machinery (e.g., turbines)Material: Anodized Aluminum (ASTM B487) ▲▲
Current Capacity: 30A ▲▲ (IEC 60038)
Rotational Speed: 3,500 RPM ▲▲ (ISO 10497)		3× corrosion resistance, handles heavy loads (e.g., 50kW motors), 15-year lifespanHighest cost tier, bulkier design for advanced features
Compact Slip RingsSpace-constrained devices (e.g., drones)Size: 30mm Diameter (ISO 10497)
Current Capacity: 5A (IEC 60038)
Channels: 4-8 (customizable)		Lightweight (200g), easy to integrate into small systemsLimited current capacity, not suitable for heavy-duty applications
High-Temperature Slip RingsOven equipment, furnace systemsHeat Resistance: Up to 150°C (ASTM D648)
Material: Nickel-Coated Contacts (ASTM B466)		Operates in extreme heat (e.g., food processing ovens), durable contactsBulky design, higher maintenance requirements
Modular Slip RingsCustom machinery (e.g., 3D printers)Modularity: Swappable modules (ISO 10497)
Current Capacity: 10-30A (adjustable)
Signal Support: Ethernet/RF (IEC 61158)		Tailored to specific needs, future-proof scalabilityHigher upfront cost, requires expert configuration
