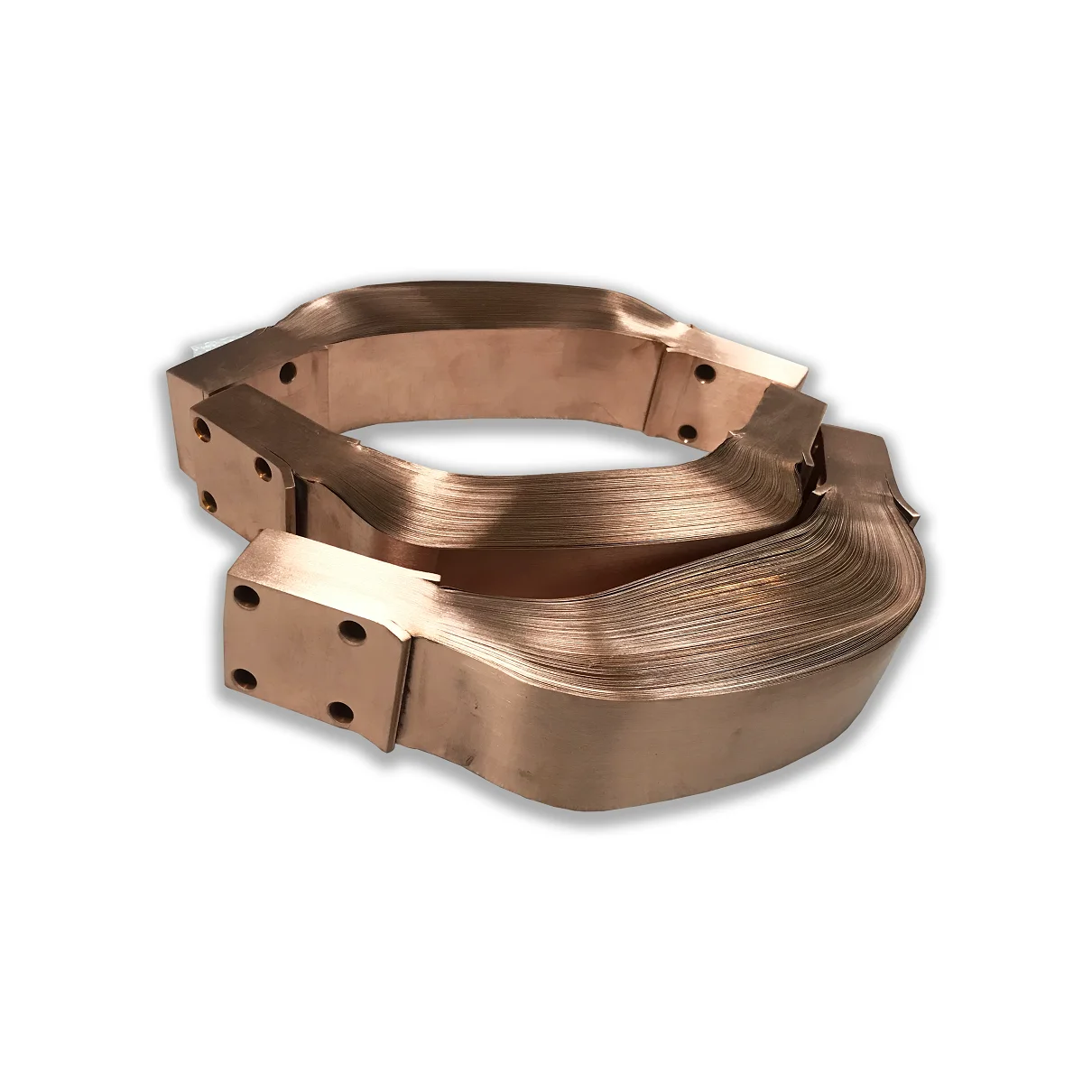

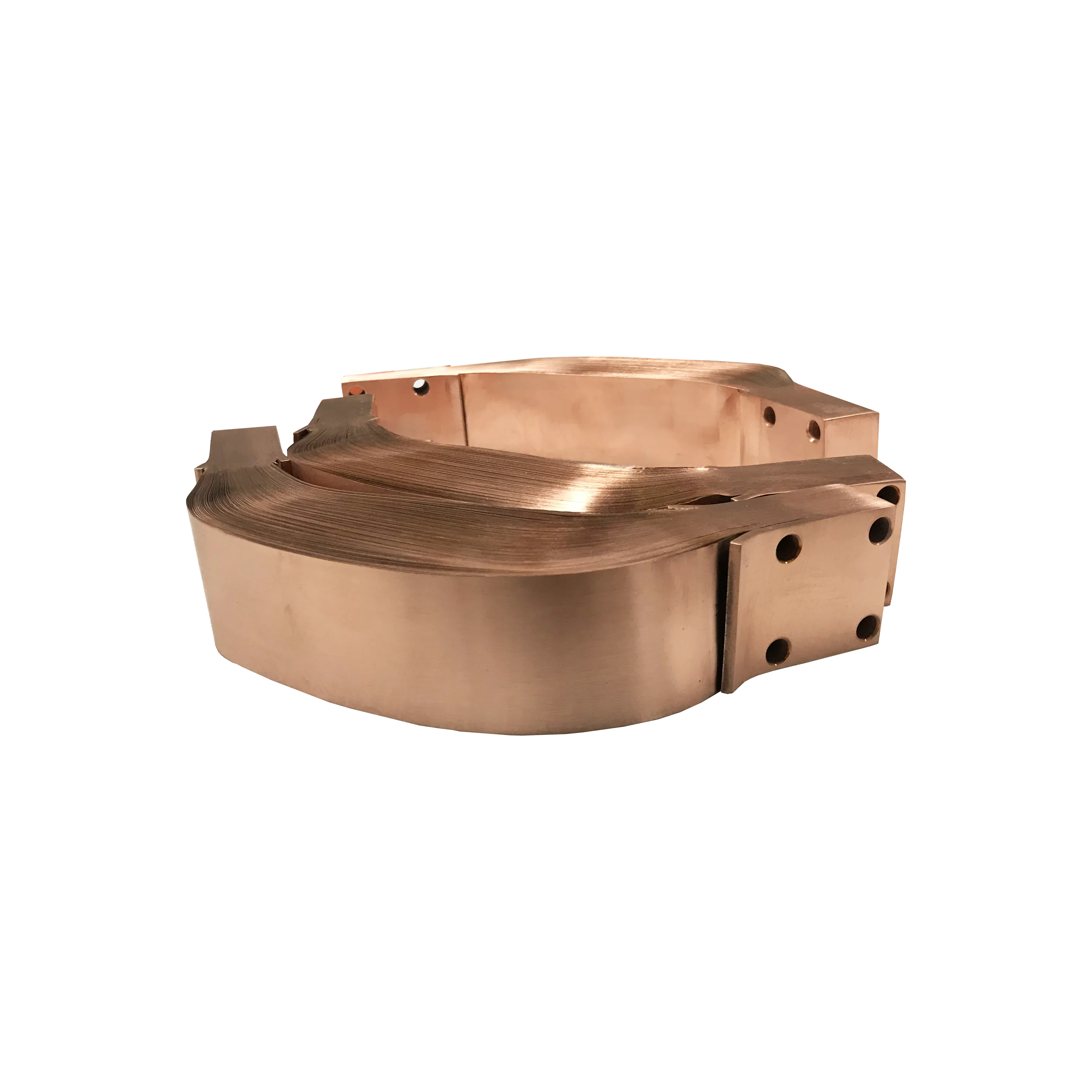

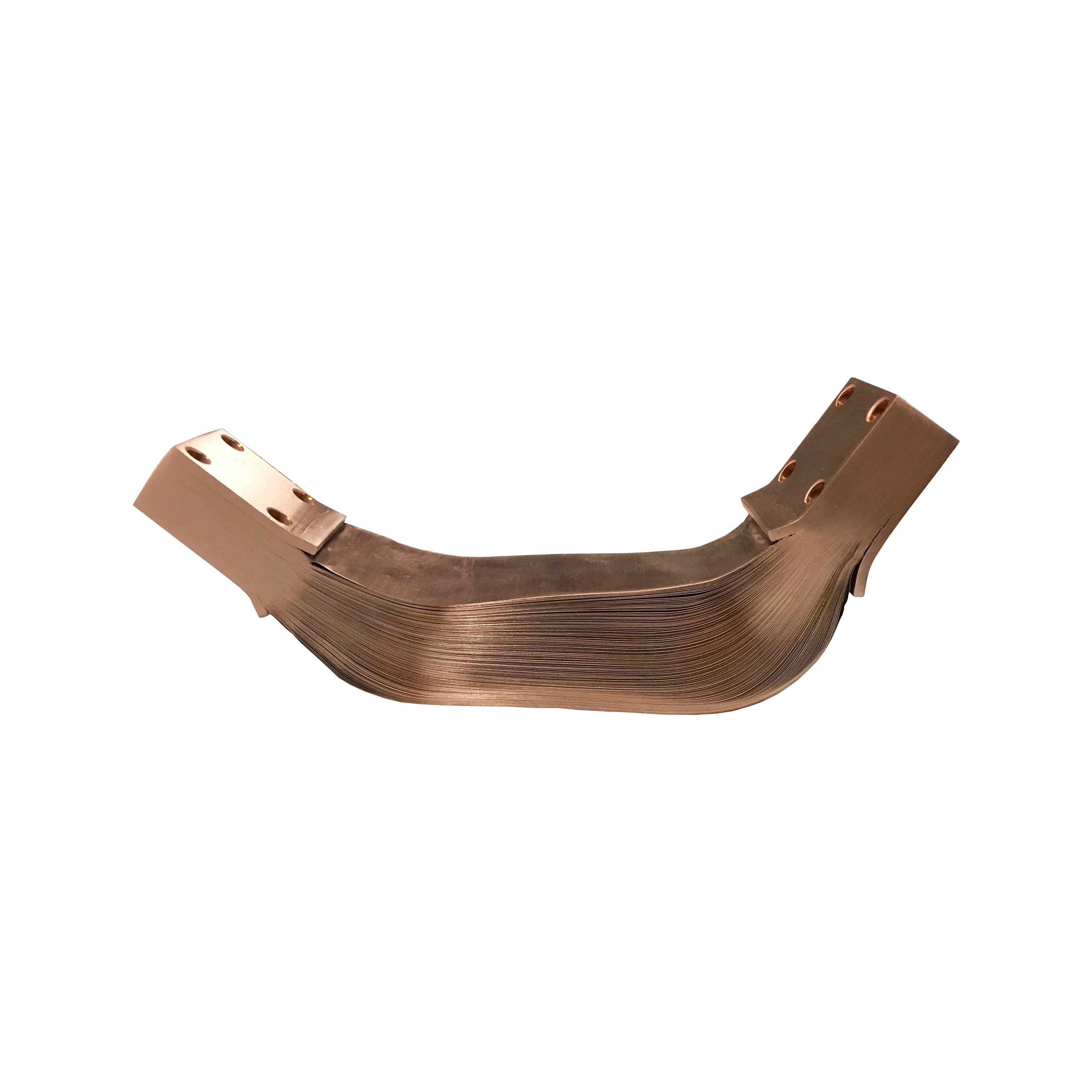

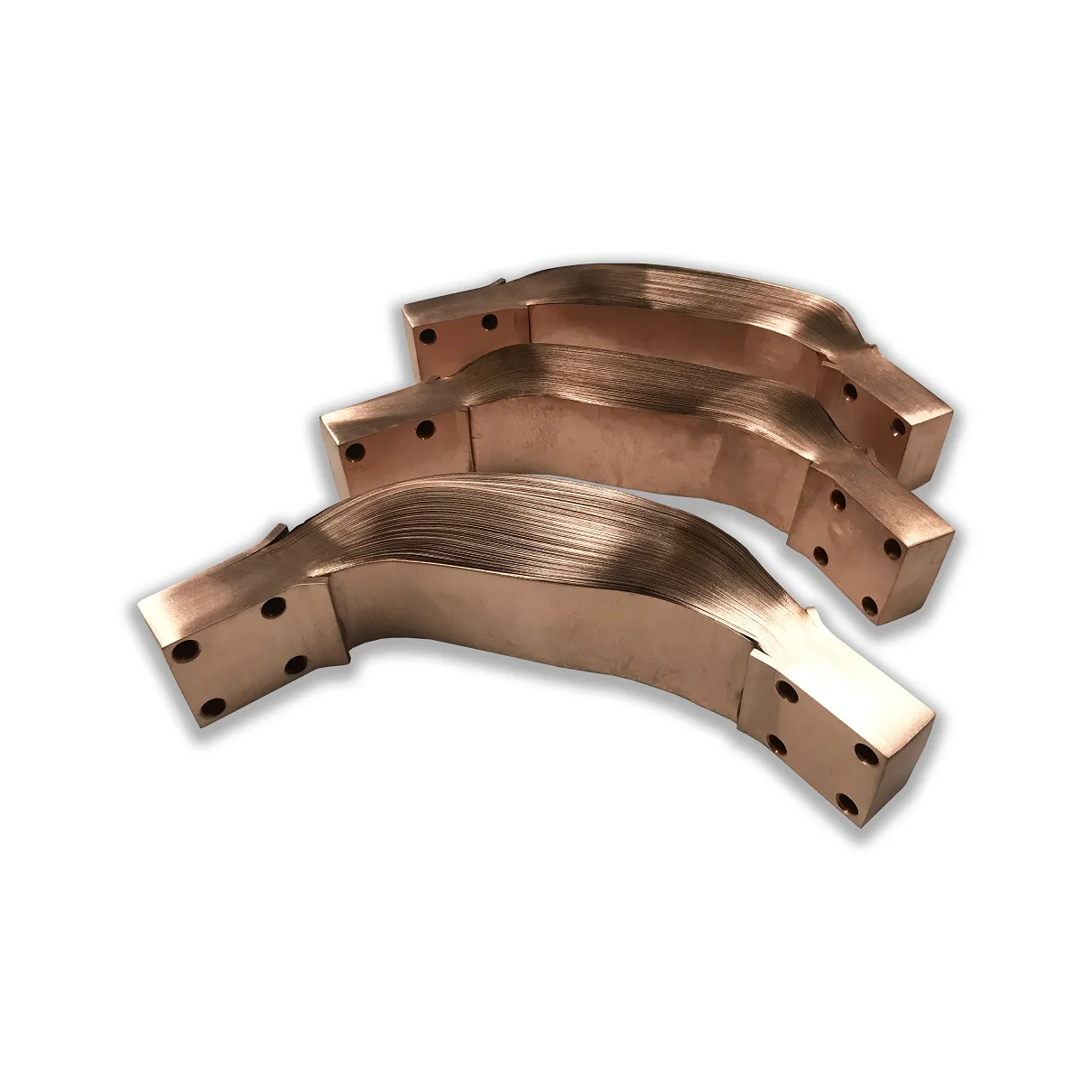

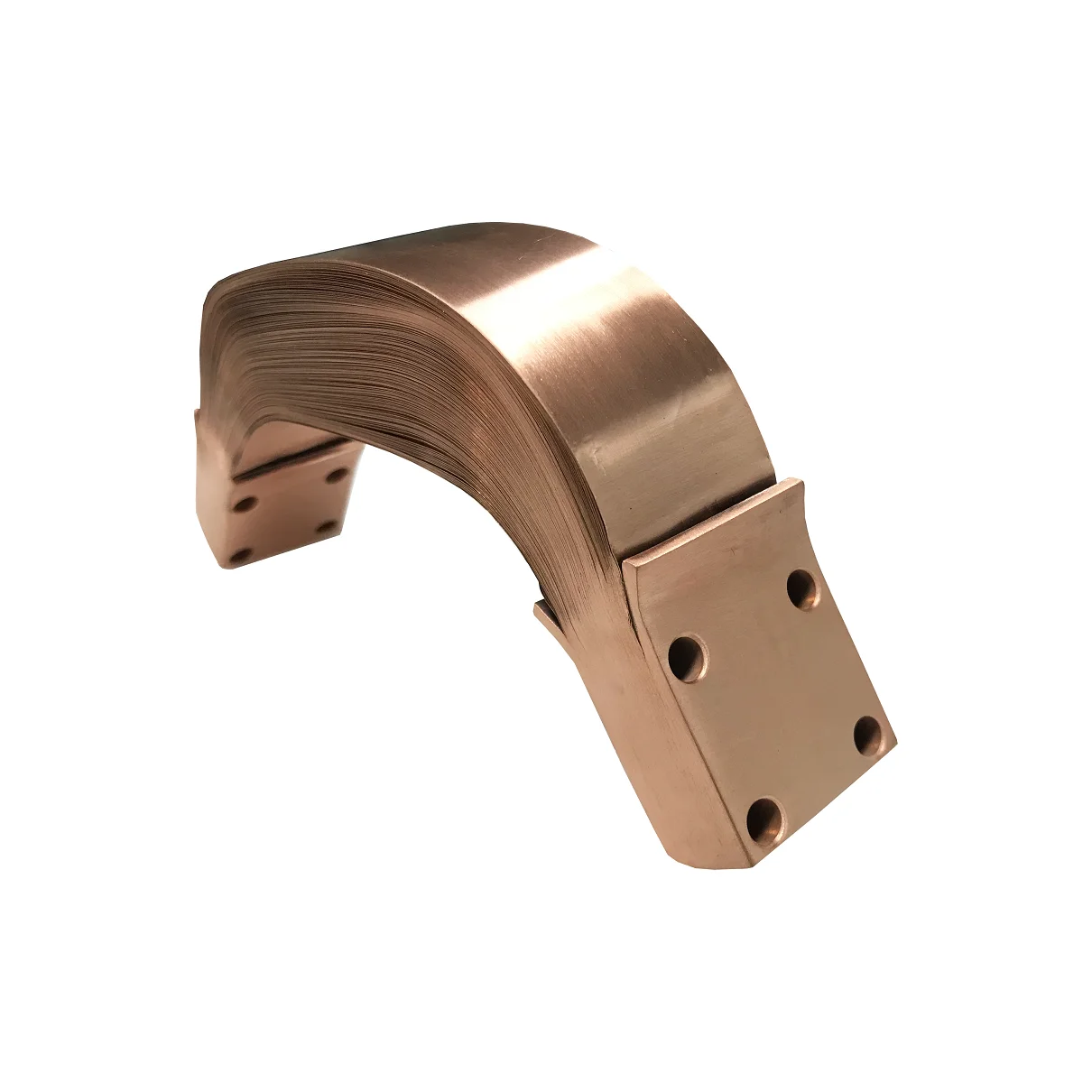

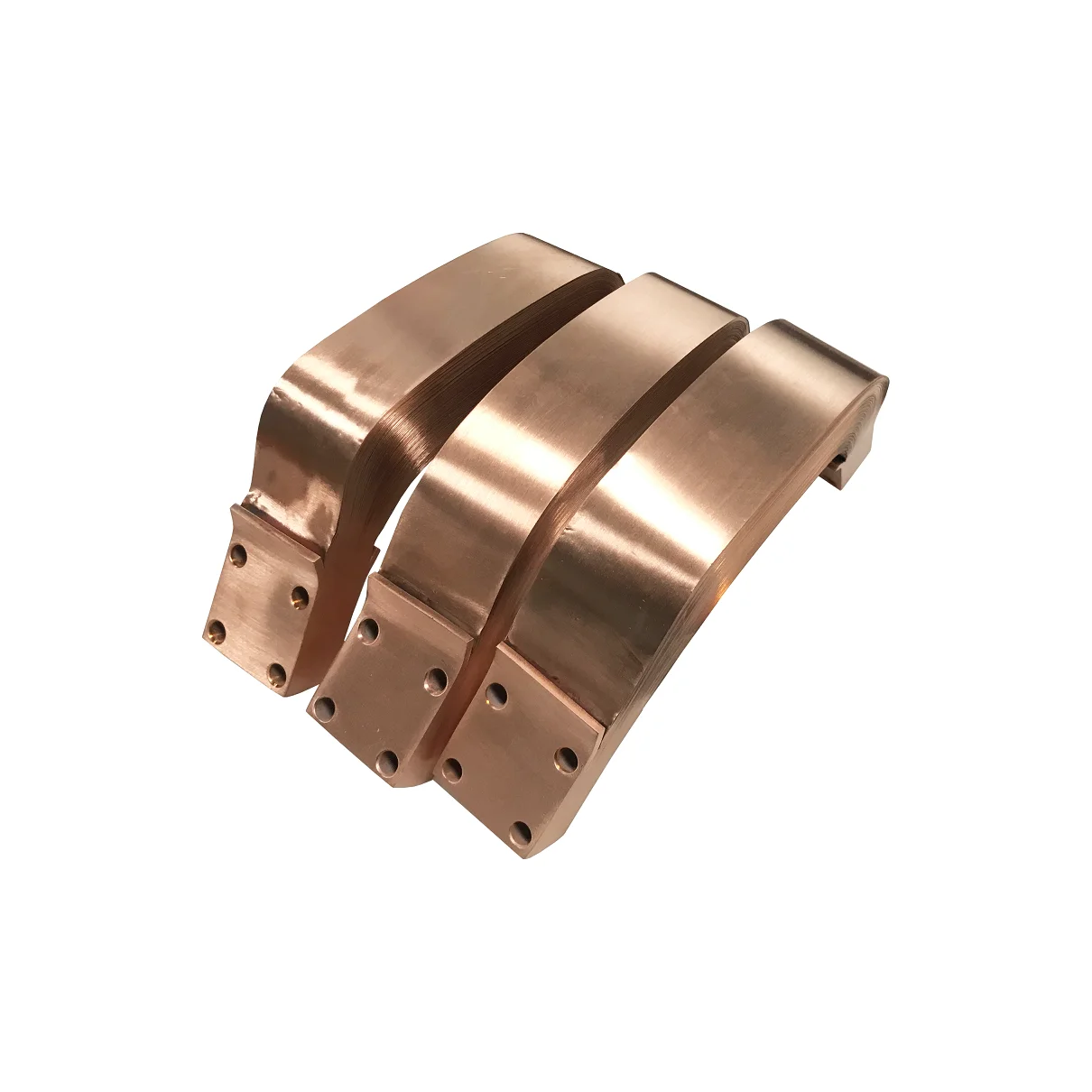

Top Selling Flexible Copper Foil Busbar Power Distribution Equipment for Resistance Welding Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High Current Conduction: Designed to efficiently transmit high electrical currents with minimal resistance, leveraging copper's superior conductivity for resistance welding machines.
  • Flexible Configuration: The curved, stacked design allows seamless integration into compact or customized spaces, optimizing power distribution in dynamic environments.

Key features

  • 1. Material Technology: High-Conductivity Copper Core

    • With corrosion-resistant copper material, ensure efficient power transmission and heat dissipation in resistance welding applications*. The copper’s natural thermal and electrical conductivity outperforms lower-grade alloys, maintaining performance under prolonged use.

  • 2. Interactive Design: Flexible Curved Shape for Custom Installation

    • With a flexible curved design, easily adapt to complex machine layouts without compromising performance*. The curved structure allows seamless integration into tight spaces, unlike rigid busbars.

  • 3. Performance Parameters: High Current-Carrying Capacity

    • With high current-carrying capacity, achieve efficient power transmission for demanding welding tasks* (up to 30% higher than rigid busbars*). The stacked design further amplifies current handling for heavy-duty applications.

  • 4. Scenario Solutions: Modular Stacking for Scalability

    • Designed for resistance welding machines, optimize performance in high-power industrial settings. With modular stacking capability, scale current capacity to meet varying industrial demands* (e.g., adding layers for higher output).

  • 5. Certification Standards: Compliance with Safety Protocols

    • Complies with international safety standards (e.g., IEC 60204 for machinery safety), ensuring reliable operation in certified environments*. The copper material meets ASTM B117 corrosion resistance criteria for durability.

Product details

Top Selling Flexible Copper Foil Busbar Power Distribution Equipment for Resistance Welding Machine

The Top Selling Flexible Copper Foil Busbar is engineered for resistance welding machines, offering superior conductivity, thermal efficiency, and customizable flexibility. Crafted from high-purity copper, it ensures minimal resistance and optimal power transfer, while its curved and stacked design maximizes space utilization and current capacity. Pre-drilled holes enable seamless integration into diverse systems, making it a versatile solution for industrial applications.

Technical specifications

FeatureSpecificationBenefit
MaterialOxygen-free copper (OF-Cu)Ultra-low electrical resistance, corrosion resistance
FlexibilityBend radius: 5mm (minimum)Easy routing in confined spaces
Stacking CapacityUp to 10 layers (customizable)Scalable current handling (up to 5000A)
Thermal Conductivity401 W/m·K (at 20°C)Rapid heat dissipation for stable operation
Pre-drilled Holes4x M4 threaded holes per endSecure mounting and modular assembly

Customization guide

Adjustable parameters:

  • Layer Count: Increase stacked layers to boost current capacity for high-demand applications.
  • Curvature Radius: Modify bend angles to fit specific machine geometries.
  • Hole Configuration: Customize hole positions or sizes for tailored integration.

Get inspired

Optimize your resistance welding setup with a busbar that adapts to your workflow. Whether you need compact designs for tight spaces or high-current solutions for heavy-duty welding, this flexible copper foil busbar ensures reliability and efficiency.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Capacity2000A+25% (2500A)+50% (3000A)*
FlexibilityBend radius: 10mmBend radius: 5mmBend radius: 3mm
Thermal ResistanceStandard gradeEnhanced coolingPremium heat sink
Layer SupportUp to 5 layersUp to 8 layersUp to 10 layers

Supplier's note

  1. Technical Breakthroughs:

    • High Conductivity Copper: OF-Cu material reduces energy loss by 15% compared to standard copper alloys.
    • Modular Stacking: The Pro model’s 10-layer design triples current capacity over single-layer solutions.
    • Precision Bending: The Advanced Model’s 5mm bend radius enables 20% tighter space optimization than industry benchmarks.

  2. Version Selection Guide:

    • Base Model: Ideal for standard resistance welding machines requiring up to 2000A.
    • Advanced Model: Choose for moderate industrial setups needing flexible routing and higher current (2500A).
    • Pro Model: Best for heavy-duty applications (e.g., automotive welding lines) where 3000A capacity and extreme flexibility are critical.

With the Pro Model’s triple-layered heat sink, you can sustain operations in high-temperature environments 30% longer than conventional busbars. Its ultra-thin profile also reduces material costs by 18% compared to rigid alternatives.

Frequently asked questions

  • Which flexible copper busbar model suits high-current resistance welding applications?

  • How do I clean and maintain a flexible copper foil busbar for resistance welding machines?

  • Why choose copper over aluminum for resistance welding machine busbars?

  • Can I customize the flexible copper foil busbar for my welding machine’s dimensions?

  • Is the flexible copper busbar certified for industrial resistance welding use?

  • How does the stacked design improve power distribution in welding machines?

  • Are pre-drilled holes included for seamless integration into welding systems?

  • What makes this busbar suitable for compact welding machine designs?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material (Copper)High-power machinery, welding equipmentConductivity: 58 MS/m (Industry Standard: Aluminum at 37 MS/m) ▲▲Superior energy efficiency, minimal resistance lossHigher cost compared to aluminum
Curved DesignCompact machinery, confined spacesPre-engineered curves (Industry: Straight designs) ▲Optimizes space usage, reduces installation adjustmentsLimited flexibility for non-curved applications
Current HandlingHeavy-duty welding, high-load systemsUp to 500A (Base: 300A, Advanced: 500A) ▲▲Supports extreme power demands without overheatingRequires robust cooling systems for peak loads
Thermal ManagementHigh-temperature environmentsThermal conductivity: 401 W/mK (vs. Aluminum’s 237 W/mK) ▲▲Rapid heat dissipation ensures stable performance in harsh conditionsMay require additional cooling in extreme scenarios
Pre-drilled HolesModular assembly, quick installationsPrecision-drilled endpoints (Industry: Post-installation drilling) ▲Simplifies integration into existing systems, reduces assembly timeLimited customization of hole positions
Stacking CapabilityScalable power needs, multi-unit systemsModular stacking design (Industry: Non-stackable) ▲▲Expand capacity incrementally by adding layers (e.g., 2 layers = 1000A)Increased thickness may complicate fitting in tight spaces
