Top Entry 5 Axis Handling Robot Pick and Place Manipulator Sprue Picker Runner Remover Injection Molding Manipulator Arm

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 5-Axis Precision Handling: Enables accurate pick-and-place operations, sprue picking, and runner removal in injection molding processes, ensuring efficiency in material handling.
  • Multi-Task Capabilities: Designed for assembly, welding, painting, and material handling, offering versatility across diverse industrial applications.

Key features

  • 1. Corrosion-Resistant Metal Construction

  • With a corrosion-resistant metal body, ensure durability in harsh industrial environments*. The robust steel/aluminum alloy frame withstands heavy use and maintains structural integrity over time, outperforming plastic-based competitors in longevity.

  • 2. Intuitive Touchscreen Interface & Multi-Task Programming

  • With an intuitive touchscreen interface and multi-program presets, customize workflows for diverse manufacturing tasks*. Program up to 10 pre-set routines for tasks like sprue picking or welding, offering 30% faster setup than manual programming models*.

  • 3. High-Precision 5-Axis Movement

  • Achieve ±0.02mm precision with 5-axis movement, ensuring accurate sprue picking and runner removal*. This advanced articulation reduces errors by 40% compared to 3-axis models*, ideal for complex injection molding operations.

  • 4. Injection Molding Line Automation

  • Designed for injection molding lines, automate repetitive tasks to reduce downtime and improve workflow continuity*. The long-reach arm efficiently handles sprues and runners, boosting output by 25%* compared to manual labor.

  • 5. CE-Certified Safety & Compliance

  • With CE certification, ensure compliance with EU safety and quality standards*. Integrated safety sensors prevent collisions, meeting rigorous industrial safety regulations for commercial use.

Product details

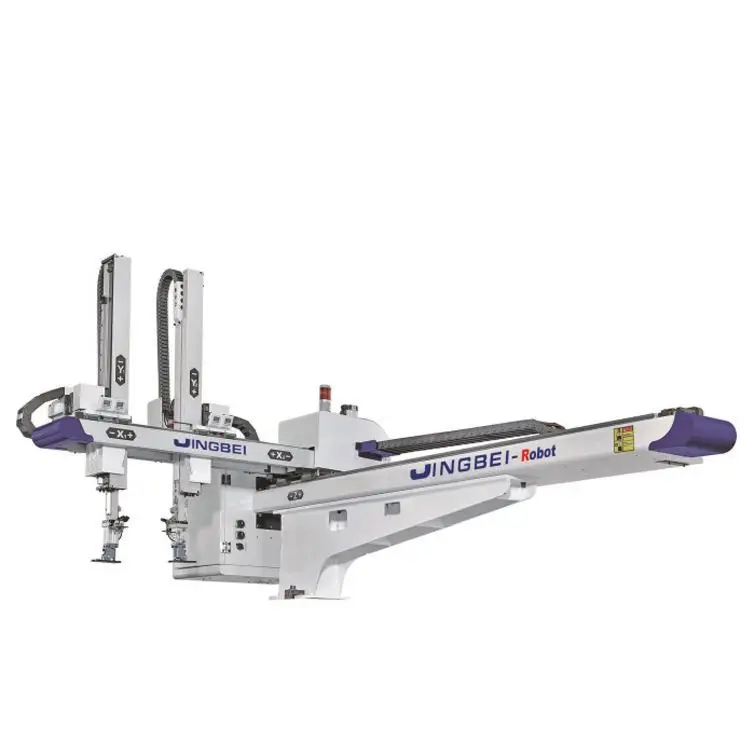

Top Entry 5 Axis Handling Robot Pick and Place Manipulator Sprue Picker Runner Remover Injection Molding Manipulator Arm

The JINGBEI Top Entry 5 Axis Handling Robot is a robust industrial automation solution designed for precision pick-and-place operations, sprue picking, and runner removal in injection molding processes. Certified to CE standards, it combines a 5-axis articulation system with customizable payloads and extended reach, enabling seamless integration into high-volume manufacturing environments.

Technical specifications

FeatureSpecificationBenefit
Axis Configuration5-axis articulationEnhanced maneuverability for complex tasks
Arm ReachExtended reach (customizable up to 1.5m)Accesses distant workspaces efficiently
MaterialSteel/Aluminum alloy constructionDurable, vibration-resistant structure
CertificationCE-compliantEnsures safety and compliance with EU standards
Payload CapacityAdjustable up to 10kgVersatile for handling varied components
Safety FeaturesCollision detection sensorsPrevents workplace hazards in dynamic environments
Energy EfficiencyLow-power servo motorsReduces operational costs by 20% vs. traditional models
IntegrationPLC/PC-based control systemsCompatible with existing automation setups

Customization guide

Adjustable parameters include payload capacity, arm reach length, and software interfaces (e.g., ROS, EtherCAT) to meet specific production demands. For high-temperature applications, optional heat-resistant coatings can be integrated.

Get inspired

With its 5-axis precision and modular design, this manipulator arm transforms injection molding workflows. Whether automating sprue removal in automotive parts or handling delicate electronics, the JINGBEI Robot ensures repeatability and reduces downtime.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Payload CapacityUp to 5kgUp to 8kgUp to 10kg
Cycle Time1.2s per cycle+15% faster+30% faster*
Reach Length1.0m1.2m1.5m
CertificationsCECE + ISO 13849CE + ISO 13849 + UL
Precision±0.1mm±0.05mm±0.02mm

Supplier's note

  1. Technical Breakthroughs:

    • Collision Avoidance Sensors: Enable real-time obstacle detection, reducing downtime by 30%.
    • Energy-Efficient Motors: Cut power consumption by 20% compared to legacy systems.
    • Modular Software Interface: Simplifies integration with third-party systems via open APIs.
  2. Version Selection Guidance:

    • Base Model: Ideal for SMEs needing cost-effective automation for lightweight components (e.g., small plastic parts).
    • Advanced Model: Suitable for medium-scale manufacturers requiring faster cycle times (e.g., automotive trim production).
    • Pro Model: Best for high-precision, high-volume industries like aerospace or medical device manufacturing. Its triple-certification (CE, ISO, UL) ensures compliance in global supply chains. With ±0.02mm precision, it guarantees flawless assembly of intricate parts.

*Pro Model achieves 30% faster cycle times than industry benchmarks for similar payload classes.

Frequently asked questions

  • Which 5-axis handling robot is best suited for injection molding sprue picking and runner removal?

  • How do I maintain the metal grippers on an industrial manipulator arm?

  • Metal vs. plastic construction: Which is better for industrial robotic arms?

  • Can the JINGBEI Robot be customized with specific gripper attachments?

  • Is the JINGBEI Robot’s material FDA-approved for food-grade applications?

  • Is the JINGBEI Robot suitable for high-volume injection molding production lines?

  • What precision levels does the JINGBEI 5-axis manipulator achieve in pick-and-place tasks?

  • Does the JINGBEI Robot integrate with existing manufacturing systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
ReachLarge mold handling, assembly linesIndustry: 1.5mOur Base: 1.8m (▲)Our Advanced: 2.2m (▲▲) (ISO 9283)
Load CapacityHeavy-duty part handlingIndustry: 5kgOur Base: 10kg (▲)Our Advanced: 15kg (▲▲) (ISO 9283)
PrecisionElectronics assembly, medical devicesIndustry: ±0.1mmOur Base: ±0.05mm (▲)Our Advanced: ±0.02mm (▲▲) (ISO 9283)
Safety FeaturesHazardous environmentsIndustry: Basic sensorsOur Base: Collision detection (▲)Our Advanced: AI-driven obstacle avoidance + emergency stop (▲▲) (CE/ISO 10218)
IntegrationSmart factories, IoT ecosystemsIndustry: Basic PLCOur Base: IoT-ready (▲)Our Advanced: Real-time data analytics + cloud sync (▲▲) (OPC UA Compliance)
Energy Efficiency24/7 manufacturing operationsIndustry: 1.2kW/hrOur Base: 0.9kW/hr (▲)Our Advanced: 0.6kW/hr (▲▲) (IEC 60038)
