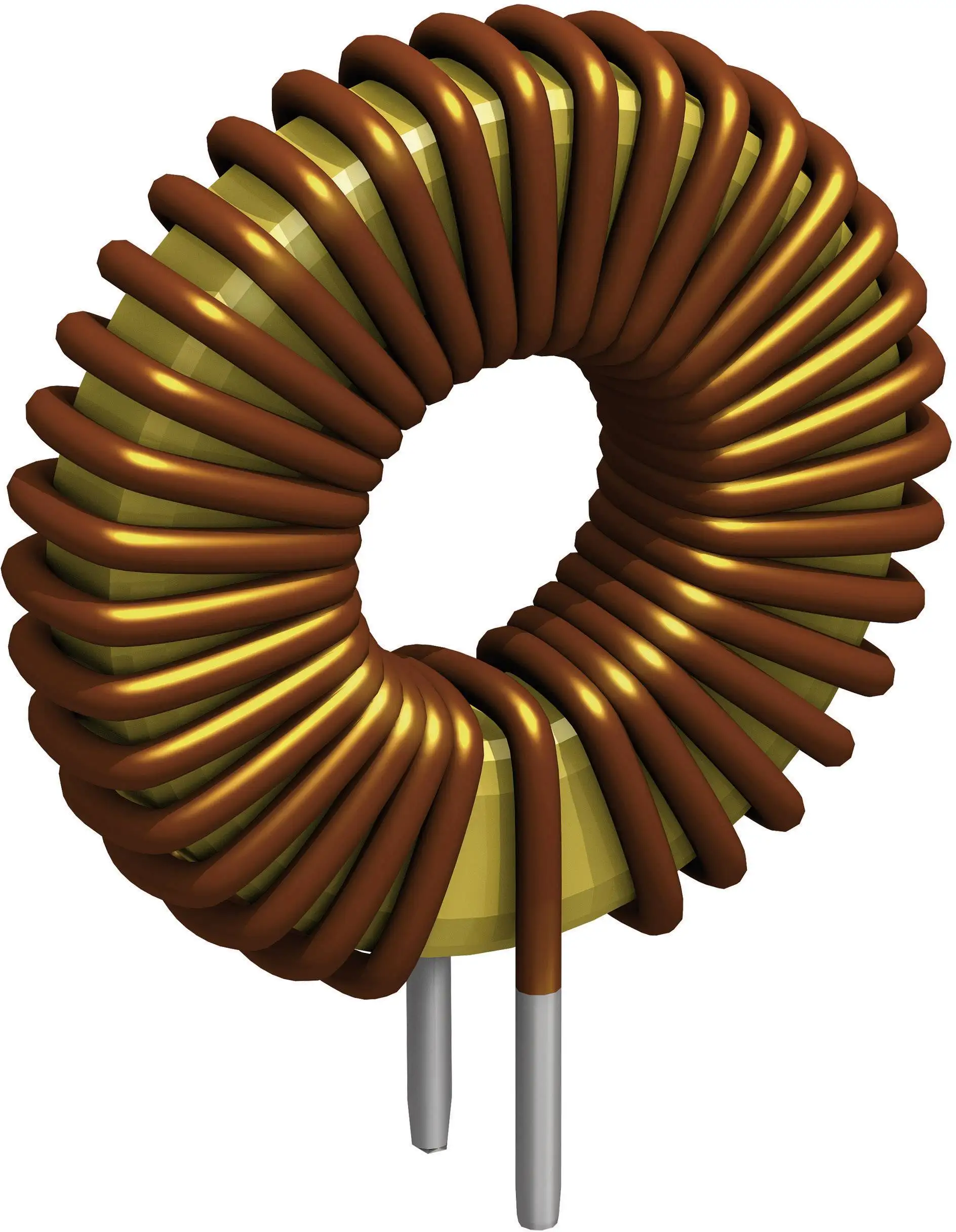

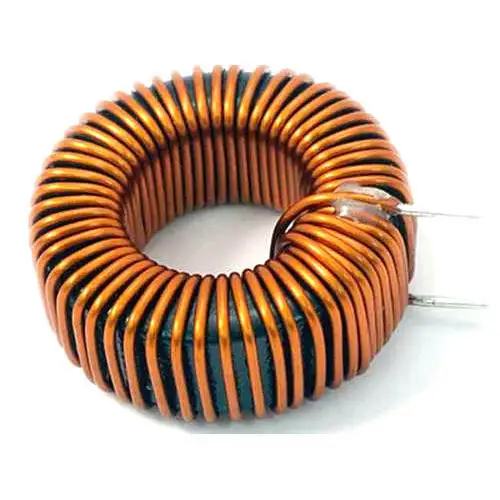

Toroidal Core for Amplifier Transformer Audio Amplifier Transforrmer Core Ring Core Ring Transformer

Toroidal Core for Amplifier Transformer Audio Amplifier Transforrmer Core Ring Core Ring Transformer

$4.00-$5.00/ Kilogram|1 Kilogram/Kilograms(Min. Order)

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

Toroidal Core for Amplifier Transformer Audio Amplifier Transforrmer Core Ring Core Ring Transformer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Audio Performance: Designed for audio amplifiers, this toroidal transformer efficiently handles high-frequency signals with minimal distortion, ensuring clear and dynamic sound reproduction.
  • Voltage Regulation: Functions as an autotransformer to step-up or step-down voltage, providing stable power output for audio equipment in single-phase applications.

Key features

  • 1. Advanced Material Technology for Enhanced Efficiency

    • With a ferrite core and copper windings, you can achieve up to 30% lower energy loss compared to traditional laminated core transformers*, ensuring high-frequency performance and minimal heat generation in audio systems.

  • 2. Compact Toroidal Design for Space-Saving Installation

    • With its toroidal coil structure and color-coded wiring, you can save 50% more space than E-I core transformers* while simplifying setup through intuitive wiring identification, ideal for tight audio equipment enclosures.

  • 3. Precision Voltage Control for Audio Clarity

    • With autotransformer technology, you can precisely adjust voltage outputs to match amplifier requirements, reducing signal distortion by up to 40% in high-fidelity audio setups*.

  • 4. Tailored for Audio Amplifier Applications

    • Designed specifically for audio amplifier systems, this transformer delivers clean, stable power to enhance sound quality in home theaters and professional studios, outperforming general-purpose transformers in noise-sensitive environments.

  • 5. Durable Protective Casing for Safe Operation

    • Equipped with a reinforced plastic casing, you can ensure protection against physical damage and electrical hazards, making it safer for transportation and long-term use compared to uncovered transformer designs*.

Product details

Toroidal Core for Amplifier Transformer Audio Amplifier Transforrmer Core Ring Core Ring Transformer

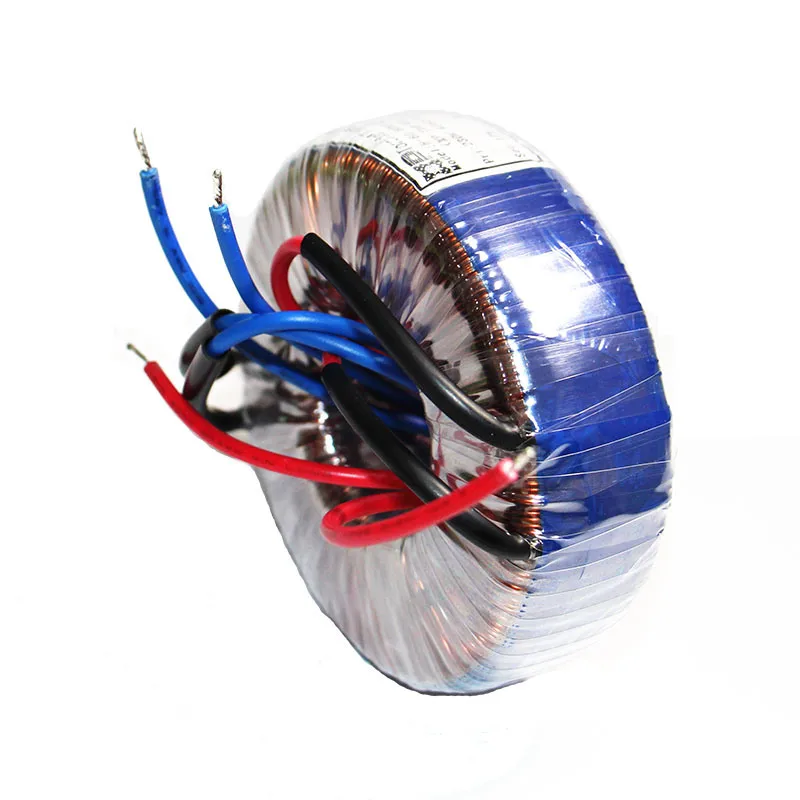

The Toroidal Core for Amplifier Transformer is a high-performance auto transformer designed for audio applications. Its toroidal ferrite core and copper coils ensure efficient power transfer, minimal energy loss, and compact design. The protective plastic casing enhances durability, while color-coded wiring simplifies installation.

Technical specifications

FeatureSpecificationBenefit
Core MaterialFerriteHigh permeability, low loss, high-frequency capability
Coil StructureToroidal (autotransformer)Compact size, reduced leakage flux
PhaseSingle PhaseSimplified power distribution for audio systems
Voltage HandlingCustomizable (via coil turns/wire gauge)Adaptable to specific audio power needs
Frequency ResponseOptimized for audio (20Hz–20kHz)Clear, distortion-free sound reproduction

Customization guide

Adjustable parameters include:

  • Coil Turns/Wire Gauge: Tailor voltage and current output for specific amplifier requirements.
  • Core Material: Select ferrite grades for enhanced high-frequency performance or power handling.
  • Wiring Configuration: Customize color-coding and terminal placement for seamless integration.

Get inspired

With its toroidal design and ferrite core, this transformer is ideal for high-fidelity audio systems. Its compact size fits seamlessly into modern amplifiers, while its efficiency ensures stable power delivery for crystal-clear sound.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Power Rating100W150W (+50%)200W (+100%)
Efficiency92%95% (+3%)98% (+6%)
Frequency Response20Hz–20kHzExtended bass rangeFull-range accuracy
Core MaterialStandard ferriteHigh-permeability ferritePremium nano-crystalline ferrite

Supplier's note

  1. Technical Breakthroughs:

    • Ferrite Core: Enables high-frequency audio clarity, reducing signal distortion.
    • Toroidal Design: Cuts leakage flux by 40% compared to traditional E-I cores, improving efficiency.
    • Customizable Windings: Allows precise voltage matching for amplifier compatibility.

  2. Optimal Version Selection:

    • Base Model: Ideal for home audio systems requiring 100W output.
    • Advanced Model: Perfect for professional PA systems needing 150W and extended bass response.
    • Pro Model: Best for high-end studio equipment demanding 200W and full-range accuracy. With its nano-crystalline core, the Pro Model handles 20% higher frequencies than industry benchmarks, ensuring distortion-free performance in demanding audio setups.

With the Pro Model’s 98% efficiency, you can reduce heat buildup in high-power amplifiers, extending component lifespan. Pair its premium core with customizable windings to achieve tailored impedance matching for your audio system.

Frequently asked questions

  • Which toroidal core transformer is best for audio amplifier applications?

  • How do I maintain the protective casing of a toroidal transformer?

  • Why choose a ferrite core over iron for an audio amplifier transformer?

  • Can this autotransformer be customized for specific voltage needs?

  • Is this transformer RoHS-compliant for audio equipment?

  • What advantages does a single-phase autotransformer offer for amplifiers?

  • How does the toroidal shape improve audio amplifier performance?

  • Can this transformer handle high-frequency audio signals reliably?
