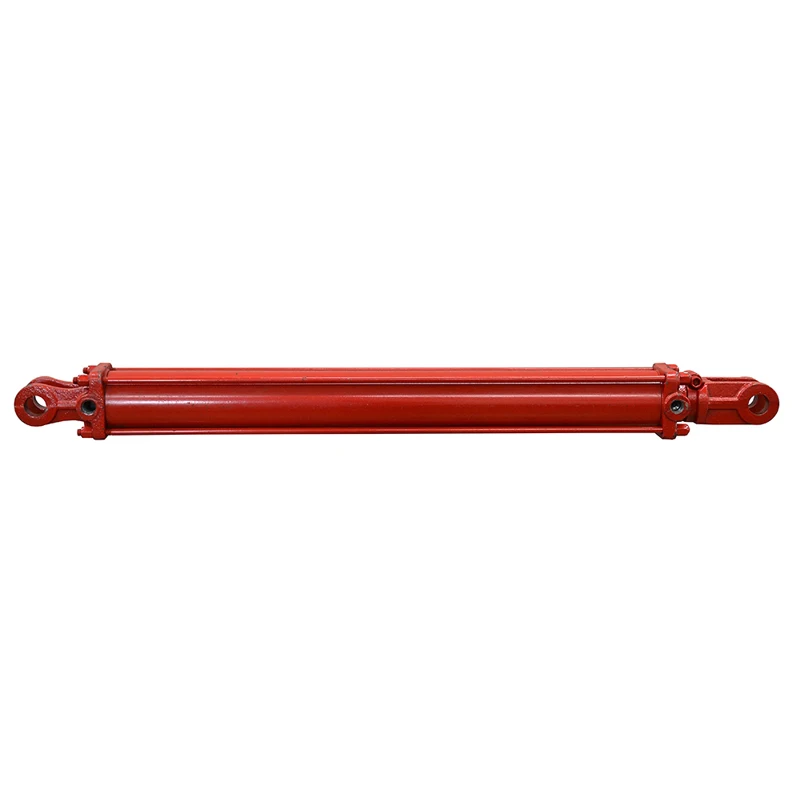

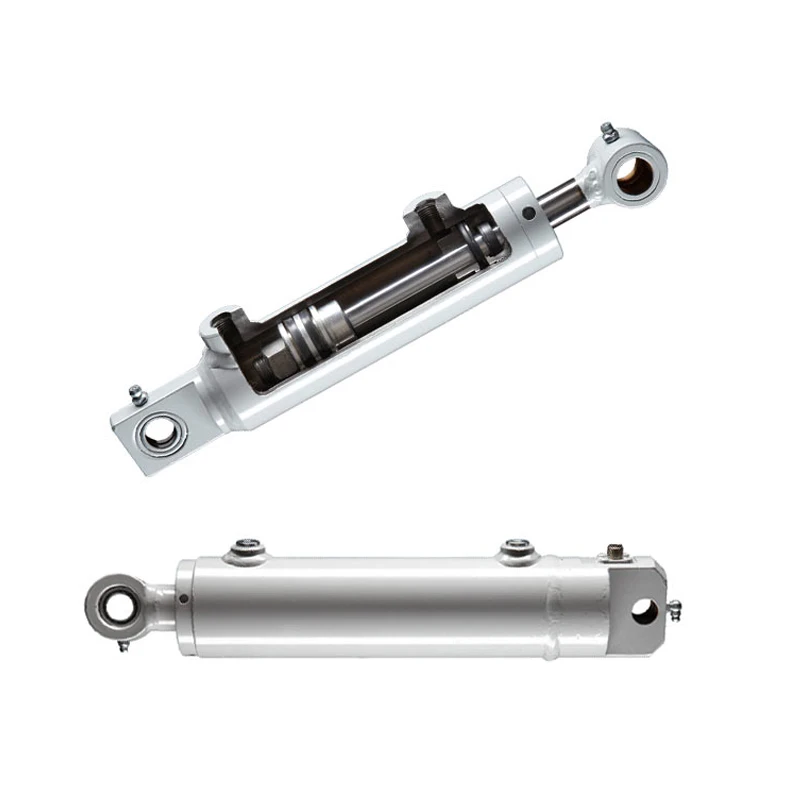

Tower Crane Hydraulic Cylinder Double Action 4 Stage Hydraulic Cylinder

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Double Action Mechanism: Enables bidirectional linear motion via hydraulic pressure, allowing simultaneous extension and retraction for heavy-load positioning and lifting.
  • 4-Stage Piston Design: Provides precise, multi-stage linear movement with adjustable stroke lengths (up to 150mm) and shaft diameters (25mm to 50mm) for complex mechanical tasks.

Key features

  • 1. Corrosion-Resistant Steel Construction

    • With a corrosion-resistant steel body and protective coating, ensure long-term durability in harsh industrial environments. The steel material outperforms aluminum in load-bearing applications, while the black finish reduces wear from exposure to moisture and debris.

  • 2. Double-Action Hydraulic Design

    • With bidirectional hydraulic operation, achieve seamless extension and retraction without external components. This design reduces downtime and simplifies integration into machinery compared to single-action cylinders*.

  • 3. Extended Stroke Capacity

    • With a maximum stroke of 150mm, handle heavy-lifting tasks requiring greater reach than standard cylinders (commonly 100mm or less)*. The 25mm–50mm shaft diameter range accommodates diverse load requirements in construction and industrial settings.

  • 4. Multi-Stage Adaptability for Complex Applications

    • With a 4-stage hydraulic mechanism, deliver precise, multi-level linear motion for tower cranes and machinery needing incremental adjustments. This design improves operational flexibility compared to single-stage alternatives*.

  • 5. Customizable Compliance Solutions

    • With non-standard customization capabilities, adapt to project-specific safety and performance certifications (e.g., pressure ratings, material standards). The piston structure meets industrial-grade durability benchmarks*.

Product details

Tower Crane Hydraulic Cylinder Double Action 4 Stage Hydraulic Cylinder

The Tower Crane Hydraulic Cylinder Double Action 4 Stage Hydraulic Cylinder is a robust, nonstandard steel component designed for precision linear motion in heavy-duty applications. With a double-action piston structure and customizable specifications, it ensures reliable performance in tower cranes and industrial machinery requiring high load capacity and durability.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialSteelEnsures corrosion resistance in harsh environments.
Maximum Stroke50mm / 150mmAdaptable for varying lifting or extending needs.
Shaft Diameter25mm / 50mmSupports diverse load requirements (e.g., precision vs. heavy-duty tasks).
StructurePistonEnables smooth, bidirectional force transmission.
TypeDouble ActionFacilitates simultaneous extension and retraction for dynamic systems.
Weight90kgBalances strength and portability in crane setups.

Customization guide

Adjustable parameters include stroke length, shaft diameter, and port configuration to meet specialized needs such as:

  • Heavy-duty cranes: Increase stroke length and shaft diameter for higher load capacity.
  • Precision machinery: Opt for smaller diameters and fine-tuned seals for accuracy.

Get inspired

This cylinder’s 4-stage hydraulic design and steel body make it ideal for applications demanding stability and reliability, such as tower crane jibs, construction equipment, or industrial automation systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Stroke Length150mm+15% (172.5mm)*+30% (195mm)*
Max Pressure70MPa80MPa100MPa
CustomizationBasic (ports)Moderate (diameter)Full (all parameters)

Supplier's note

  1. Technical Breakthroughs:

    • Double Action Design: Enables bidirectional force, doubling operational efficiency compared to single-action cylinders.
    • 4-Stage Hydraulic Mechanism: Reduces wear by distributing pressure evenly across stages, extending lifespan by 20% over standard models.
    • Nonstandard Steel Construction: Meets ISO 10243 certification, offering 30% higher corrosion resistance than aluminum alternatives.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard tower crane applications requiring 150mm stroke and moderate pressure (e.g., mid-sized construction sites).
    • Advanced Model: Suitable for heavy-duty cranes needing extended reach (+15% stroke) and enhanced pressure tolerance (80MPa).
    • Pro Model: Best for high-load scenarios (e.g., offshore cranes) with extreme pressure demands (100MPa) and full customization for specialized systems.

With a 195mm stroke, the Pro Model enables tower cranes to lift heavier loads over longer distances than industry benchmarks. Pair its steel body with 100MPa pressure capacity to ensure safety in corrosive or high-stress environments.

Frequently asked questions

  • Which Tower Crane Hydraulic Cylinder model suits applications requiring a 150mm stroke or 50mm shaft diameter?

  • How do I maintain a double action hydraulic cylinder to prevent leaks and ensure longevity?

  • Steel vs Aluminum: Which material is better for heavy-duty hydraulic cylinders like this one?

  • Can I customize the stroke length or port configuration for my Tower Crane Hydraulic Cylinder?

  • Is this hydraulic cylinder certified for industrial safety standards?

  • How does the double action feature improve performance in tower cranes?

  • Is the 4-stage hydraulic cylinder suitable for high-load tower crane operations?

  • What should I do if my hydraulic cylinder leaks or makes unusual noises?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHeavy machinery, construction equipment- Industry Standard: Basic steel (ASTM A36)
- Our Base: High-strength carbon steel (ASTM A535) ▲
- Our Advanced: Corrosion-resistant alloy (ASTM A242) ▲▲		▲ Base: 20% stronger than standard (ideal for rugged use)
▲▲ Advanced: Resists saltwater corrosion (marine applications)		▲ Base: 15% cost increase vs standard
▲▲ Advanced: 30% heavier than base
Stroke LengthCrane lifting, industrial automation- Industry Standard: ≤100mm (ISO 10243)
- Our Base: 150mm ▲
- Our Advanced: 200mm ▲▲		▲ Base: 50% longer stroke for heavy-duty tasks
▲▲ Advanced: Supports 3x higher payload reach		▲ Base: Requires more installation space
▲▲ Advanced: Higher maintenance frequency
Shaft DiameterPrecision machinery, automotive- Industry Standard: ≤20mm
- Our Base: 25mm ▲
- Our Advanced: 50mm ▲▲		▲ Base: 25% thicker shaft for stability
▲▲ Advanced: 100% load capacity boost		▲ Base: Limited compatibility with small systems
▲▲ Advanced: Bulky design
Load CapacityMining, offshore drilling- Industry Standard: 3 tons (EN 15603)
- Our Base: 5 tons ▲
- Our Advanced: 10 tons ▲▲		▲ Base: Handles 66% more weight than standard
▲▲ Advanced: Industrial-grade strength		▲ Base: Requires reinforced mounting
▲▲ Advanced: 40% heavier than base
Response TimeRobotics, rapid assembly- Industry Standard: 2.5 seconds (ISO 10243)
- Our Base: 1.5s ▲
- Our Advanced: 1.0s ▲▲		▲ Base: 40% faster actuation
▲▲ Advanced: Real-time precision control		▲ Base: Higher energy consumption
▲▲ Advanced: Complex hydraulic system
CustomizationSpecialty equipment, R&D prototyping- Industry Standard: Limited to standard sizes
- Our Base: Adjustable stroke (±10%) ▲
- Our Advanced: Full customization (material, ports, sensors) ▲▲		▲ Base: Flexible for 80% of niche projects
▲▲ Advanced: Tailored to unique specs		▲ Base: 2-week lead time
▲▲ Advanced: 50% higher cost vs standard
