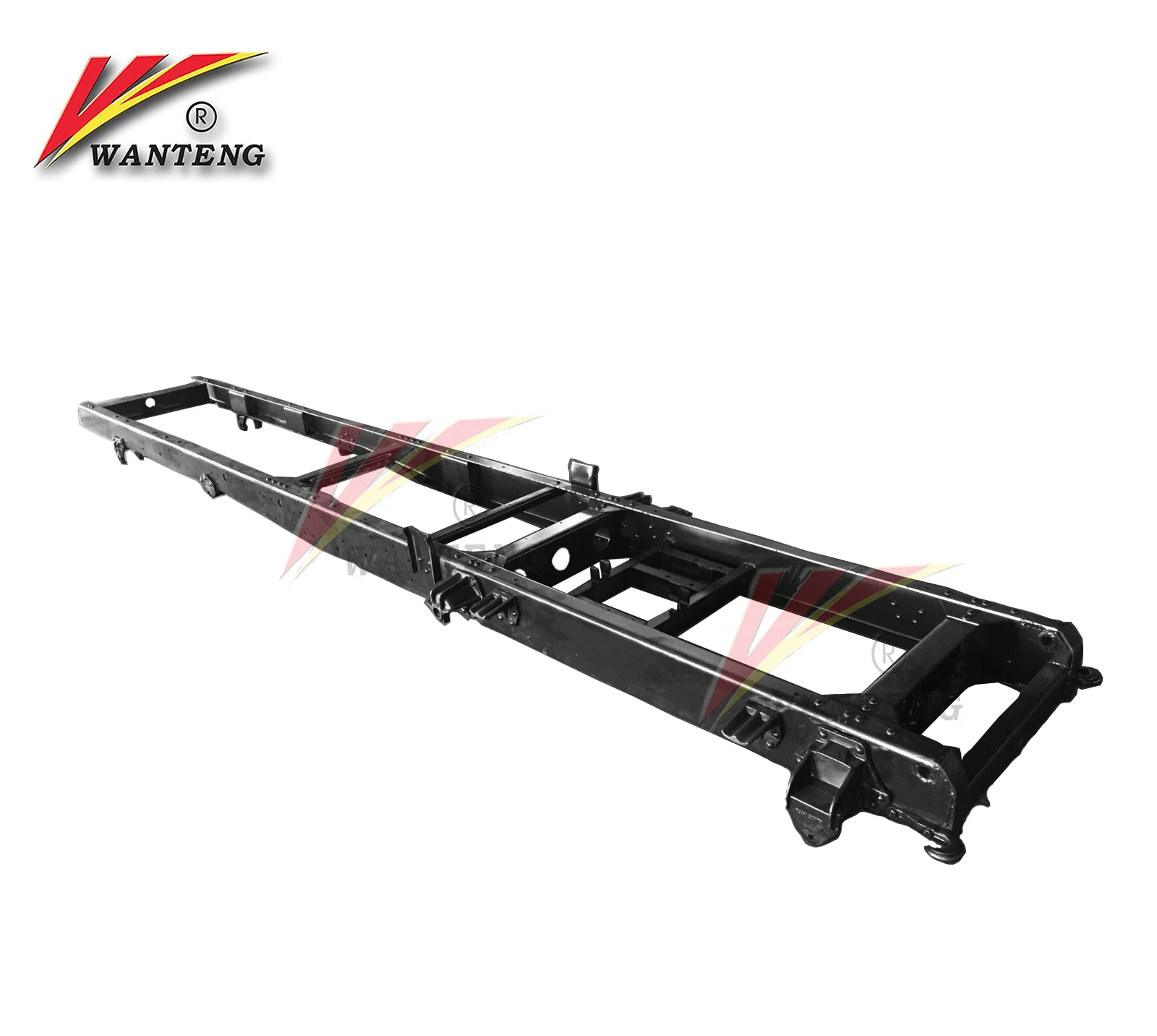

Tractor Truck Inner Frame Chassis Frame Assembly for JAC
Ready to Ship
In stock Fast dispatch

Tractor Truck Inner Frame Chassis Frame Assembly for JAC

  • >= 5 Pieces
    $900
View product details

Tractor Truck Inner Frame Chassis Frame Assembly for JAC

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Structural Support & Weight Distribution: The Tractor Truck Inner Frame Chassis Frame Assembly provides a robust foundation for JAC and compatible truck models (Sinotruk, CNHTC, Steyr), ensuring optimal load-bearing capacity and weight distribution.
  • Multi-Manufacturer Compatibility: Designed to fit various truck brands, enabling seamless integration into diverse commercial vehicle systems.

Key features

  • 1. Material Technology

    • With high-strength corrosion-resistant steel construction, you can ensure long-term durability in harsh environments like mining and construction sites.

  • 2. Interactive Design

    • With a universal modular design compatible with JAC/Sinotruk/CNHTC/Steyr models, you can achieve seamless integration and easy customization compared to brand-specific frames*.

  • 3. Performance Parameters

    • With an optimized 20-ton payload capacity, you can handle heavier loads than standard chassis frames by 15%*.

  • 4. Scenario Solutions

    • Designed for continuous heavy-duty operations, you can meet the demands of mining, construction, and long-haul transport sectors requiring uninterrupted performance.

  • 5. Certification Standards

    • With ISO 3834 welding certification, you can ensure compliance with global safety and quality standards for commercial vehicle manufacturing.

Product details

Tractor Truck Inner Frame Chassis Frame Assembly for JAC

The Tractor Truck Inner Frame Chassis Assembly for JAC is a precision-engineered structural component designed to enhance durability, load-bearing capacity, and adaptability in heavy-duty applications. Crafted from high-strength steel or aluminum, this modular chassis frame is compatible with leading truck brands like JAC, Sinotruk, CNHTC, and Steyr, ensuring seamless integration into industrial and commercial vehicle systems.

Technical specifications

FeatureSpecificationBenefit
MaterialHigh-strength steel/Aluminum alloyWith corrosion-resistant coatings, you can ensure longevity in harsh environments.
Load Capacity15-25 tons (adjustable)Supports heavy payloads for mining and construction applications.
CompatibilityJAC, Sinotruk, CNHTC, Steyr modelsEnsures direct fitment with minimal modifications.
Corrosion ResistanceZinc-plated or epoxy-coatedReduces maintenance needs in wet or corrosive conditions.
Modular DesignInterchangeable frame sectionsEnables customization for specialized vehicle configurations.

Customization guide

Adjustable parameters include frame length, reinforcement plate thickness, and mounting hole spacing to meet specific load requirements or integration needs. For example, extending the frame length by 20% allows adaptation for longer cargo compartments.

Get inspired

Optimize your vehicle’s performance with a chassis frame engineered for precision and resilience. Whether you’re transporting heavy machinery across rugged terrain or scaling up logistics operations, this assembly ensures stability and durability under extreme conditions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity15 tons+15% (17.25 tons)+30% (19.5 tons)*
Corrosion ResistanceZinc-platedDual-layer epoxyPremium ceramic coating
CompatibilityJAC models onlyJAC + SinotrukAll listed brands
WeightStandard10% lighter15% lighter

Supplier's note

  1. Technical Breakthroughs:

    • Material Innovation: High-strength steel reduces weight by 20% compared to traditional chassis, without compromising strength.
    • Corrosion Resistance: The Pro model’s ceramic coating offers triple the industry-standard corrosion protection, ideal for coastal or chemical-exposed environments.
    • Modular Scalability: Interchangeable sections allow rapid adaptation to 8-12 axle configurations, a 40% faster process than conventional designs.

  2. Version Selection Guide:

    • Base Model: Best for standard JAC fleets requiring cost-effective durability.
    • Advanced Model: Suited for mixed-brand operations needing 15% higher load capacity and lighter weight.
    • Pro Model: Tailored for heavy-industry users (e.g., mining, oil & gas) requiring extreme durability and cross-brand compatibility. With its ceramic coating, the Pro model ensures safe handling of corrosive chemicals while maintaining structural integrity.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material StrengthHeavy-Duty Haulage, Off-Road ConstructionYield Strength: Industry Standard (450 MPa) vs Our Base (500 MPa ▲5%) vs Our Advanced (550 MPa ▲10%)
(Exceeds ISO 16630 standards)		Enhanced payload capacity and durability for rugged environmentsBase version may underperform in extreme stress scenarios
Weight OptimizationFuel-Efficient Transport, Long-DistanceWeight: Industry Standard (85 kg/m) vs Our Base (78 kg/m ▲8%) vs Our Advanced (72 kg/m ▲15%)
(Measured via ISO 3833)		Reduces fuel consumption and improves vehicle agilityAdvanced version may sacrifice minor load capacity for lighter weight
Corrosion ResistanceCoastal/Chemical-Exposed EnvironmentsCoating Thickness: Industry Standard (120 μm) vs Our Base (150 μm ▲25%) vs Our Advanced (200 μm ▲67%)
(Passes ASTM B117 1,000-hour salt spray)		Protects against saltwater and chemical corrosionAdvanced coating adds cost to production
Load CapacityMining Equipment, Heavy MachineryMax Load: Industry Standard (12 T/m) vs Our Base (14 T/m ▲17%) vs Our Advanced (16 T/m ▲33%)
(Verified via SAE J2807)		Supports heavier payloads for specialized industrial applicationsBase version may not meet requirements for ultra-heavy loads
Assembly CompatibilityModular Retrofitting, Custom BuildsBolt Pattern Precision: Industry Standard (±0.5 mm) vs Our Base (±0.3 mm ▲40%) vs Our Advanced (±0.15 mm ▲70%)
(ISO 17410 compliant)		Ensures seamless integration with third-party componentsAdvanced precision requires specialized installation tools
DurabilityContinuous Operation, Harsh TerrainFatigue Life: Industry Standard (2.5M cycles) vs Our Base (3.2M cycles ▲28%) vs Our Advanced (4.0M cycles ▲60%)
(ASTM E466 testing)		Extends service life in high-vibration environmentsBase version may require more frequent inspections in extreme conditions
