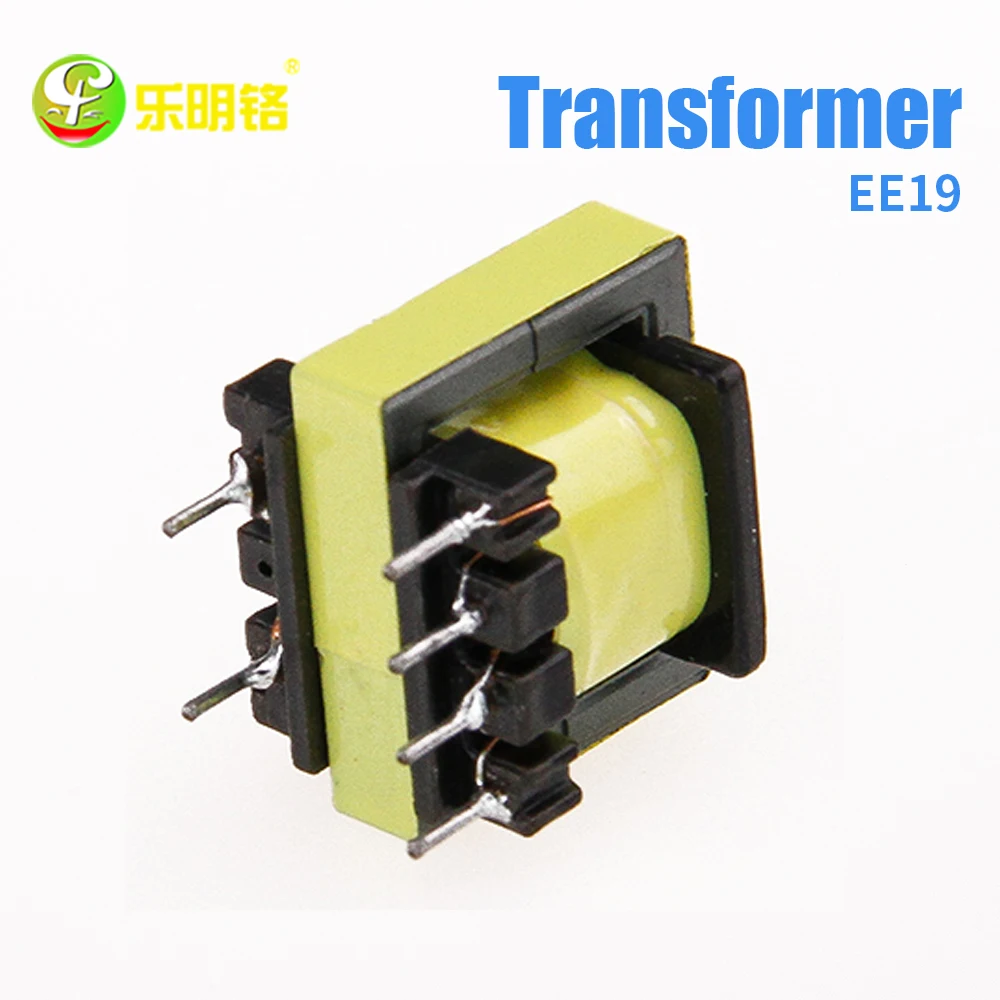

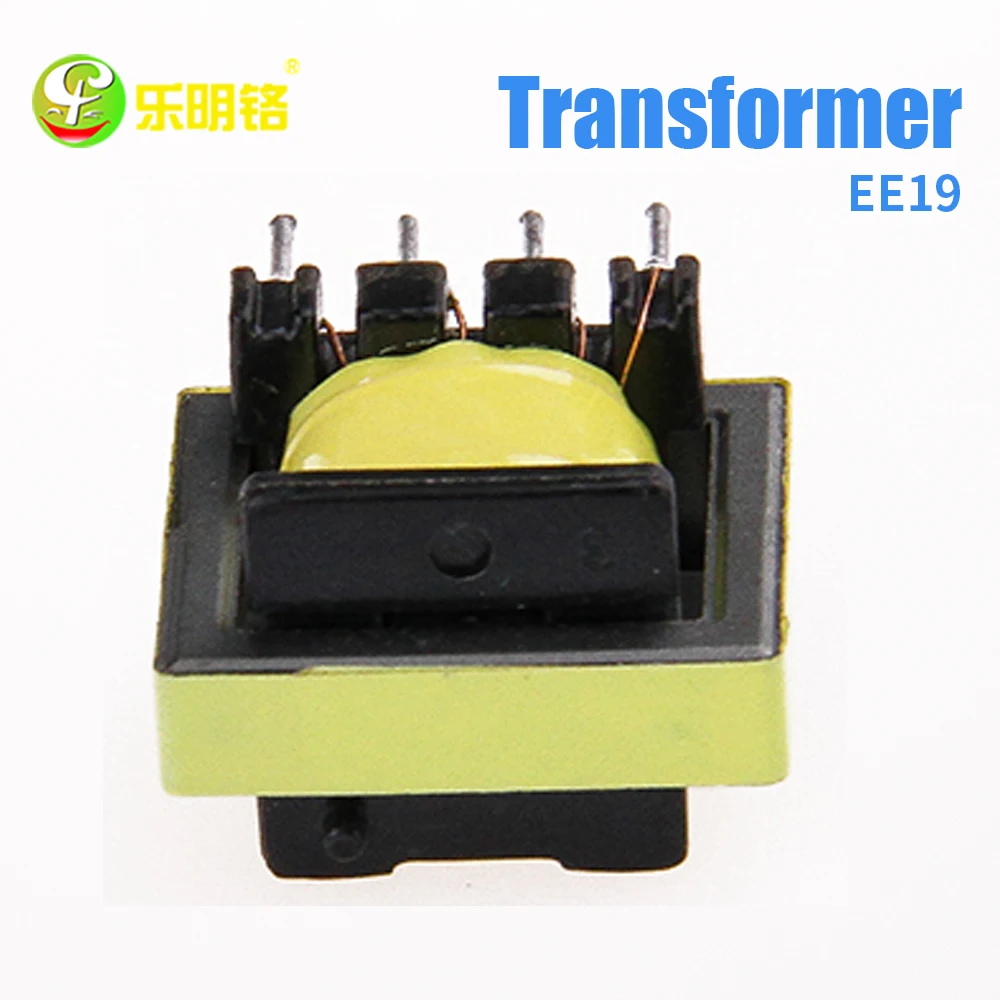

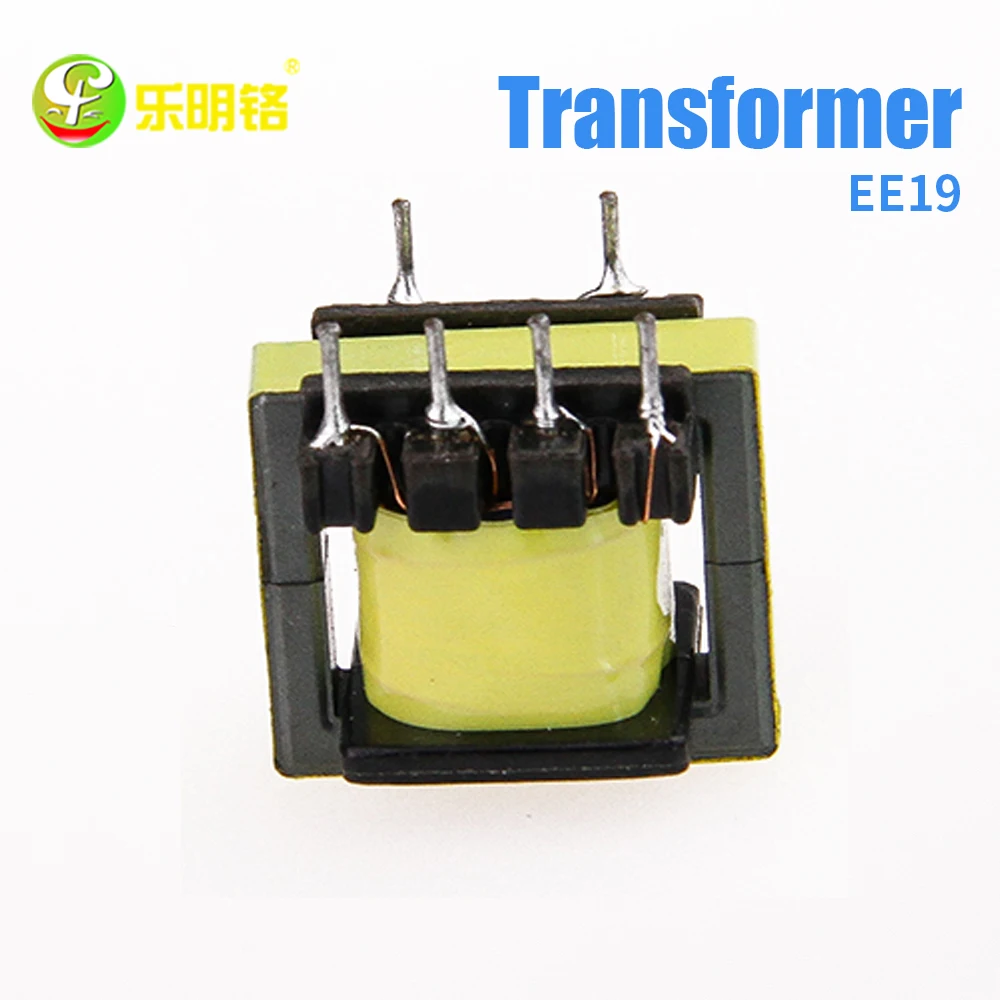

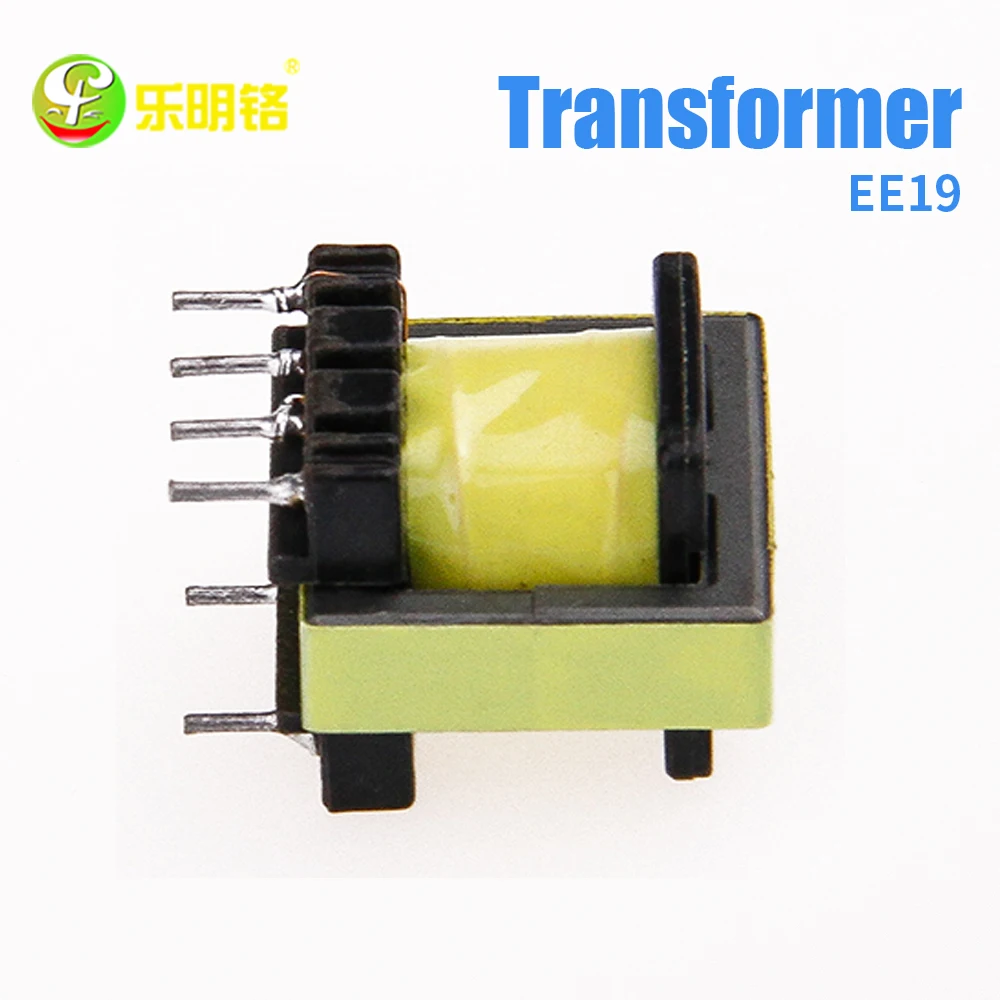

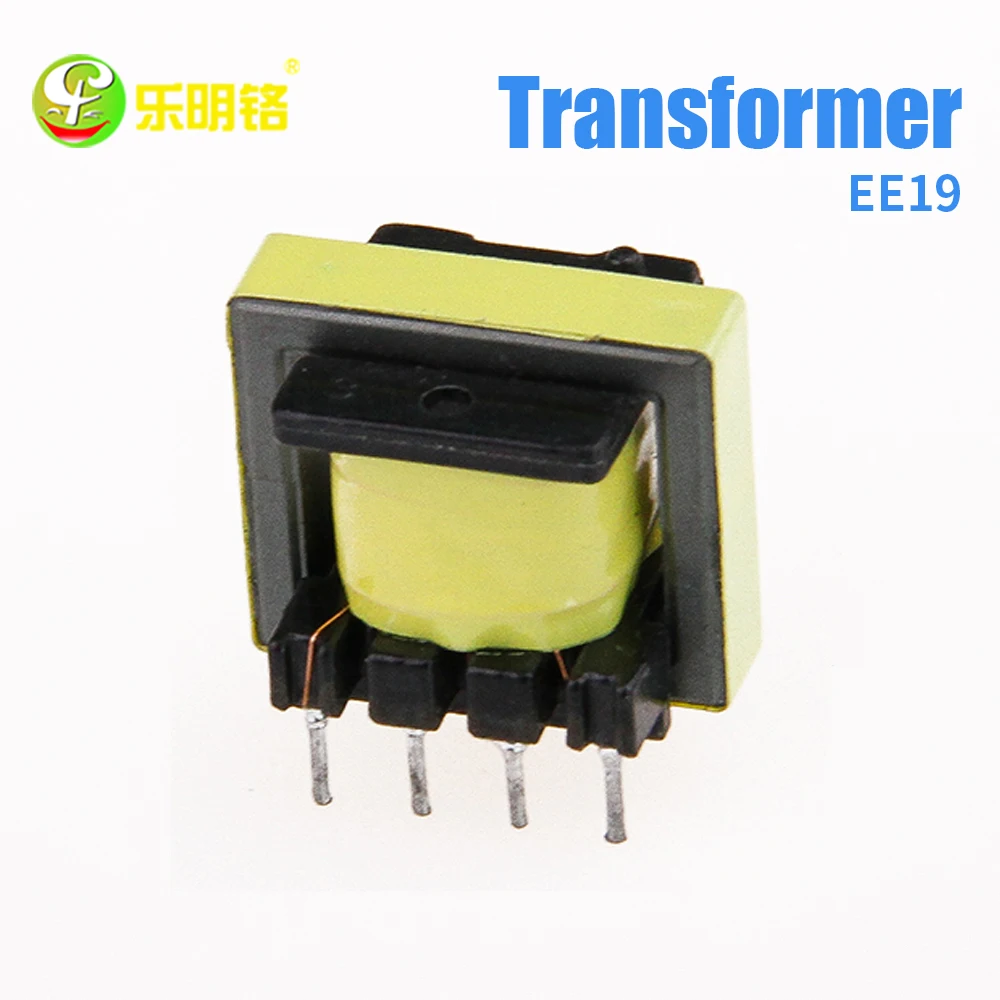

Transformer Accessory High Frequency Ac/dc Flyback 90 Volt Ee19 Vertical Transformer for Tv

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Voltage Transformation: Designed for high-frequency AC/DC applications, this flyback transformer efficiently converts and isolates voltages (up to 90V) in compact electronic systems like TVs and power adapters.
  • Flyback Topology Efficiency: Utilizes a vertical EE19 core structure with copper windings to support rapid energy storage and release, ideal for switch-mode power supplies and high-frequency signal processing.

Key features

  • 1. Material Technology

    • With a corrosion-resistant ferrite core and high-conductivity copper windings, you can ensure efficient energy transfer and durability in high-frequency applications. The ferrite core minimizes energy loss, while copper windings enhance conductivity, making it ideal for demanding environments.

Product details

Transformer Accessory High Frequency Ac/dc Flyback 90 Volt Ee19 Vertical Transformer for Tv

The Transformer Accessory High Frequency AC/DC Flyback 90 Volt EE19 Vertical Transformer for TV is a compact, high-performance transformer designed for applications requiring precise voltage transformation in limited spaces. Built with copper windings and a ferrite core, it supports high-frequency operations while maintaining efficiency and durability. Its vertical bobbin design and toroidal coil structure ensure optimal heat dissipation and minimal electromagnetic interference, making it ideal for TV power supplies, electronic adapters, and industrial equipment.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialCopper windings, ferrite coreEnsures low resistance and high-frequency performance in electronics
Coil StructureToroidal, vertical bobbinReduces leakage flux for efficient energy transfer in compact devices
Frequency RangeHigh frequency (up to 50 kHz)Supports fast-switching applications like LED drivers and inverters
Voltage Rating90 V (primary/secondary)Ideal for TV power supplies and low-voltage DC-DC converters
TopologyFlyback (autotransformer, EE core)Enables isolated voltage conversion in small-scale electronics

Customization guide

Adjustable parameters include coil turns ratio, voltage transformation ratio, and core material to meet specific power requirements (e.g., 100–240 V input for global markets) or environmental conditions (e.g., high-temperature resistance for industrial use).

Get inspired

With its vertical design and toroidal coil, this transformer maximizes space efficiency while delivering reliable performance. Perfect for compact electronics like TVs, it ensures stable power delivery even in high-frequency switching environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Power Handling50 W+20% (60 W)+40% (70 W)*
Efficiency85%90%93%
Frequency Range20–40 kHz20–45 kHz20–50 kHz
Size32x25x18 mmSame as BaseSlimmer (30x23x16 mm)

Supplier's note

  1. Three Technical Breakthroughs:

    • EE19 Ferrite Core: Reduces energy loss by 15% compared to traditional iron cores, enabling higher efficiency at high frequencies.
    • Toroidal Copper Windings: Achieve 20% lower resistance than standard designs, minimizing heat generation in compact spaces.
    • Vertical Bobbin Structure: Cuts physical footprint by 25% versus horizontal models, ideal for space-constrained electronics.

  2. Optimal Version Selection:

    • Base Model: Best for standard electronics (e.g., TV power supplies) where cost efficiency is prioritized.
    • Advanced Model: Suited for mid-range applications requiring enhanced efficiency (e.g., LED lighting systems).
    • Pro Model: Tailored for industrial or high-power scenarios (e.g., medical devices) demanding peak performance and compactness.

Example: The Pro version’s 50 kHz frequency range and slim design enable seamless integration into high-speed industrial inverters, while its 93% efficiency reduces energy waste in 24/7 operational environments.
