Transparent Segment LCD Screen STN LCD Panel, Monochrome Segment LCD Display

Transparent Segment LCD Screen STN LCD Panel, Monochrome Segment LCD Display

$0.25-$0.35/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized packaging（Min.Order: 10000 pieces）
Customized logo（Min.Order: 5000 pieces）
Graphic customization（Min.Order: 5000 pieces）
View product details

Transparent Segment LCD Screen STN LCD Panel, Monochrome Segment LCD Display

Product overview

Core functionalities

Applicable scenarios

Unique advantages

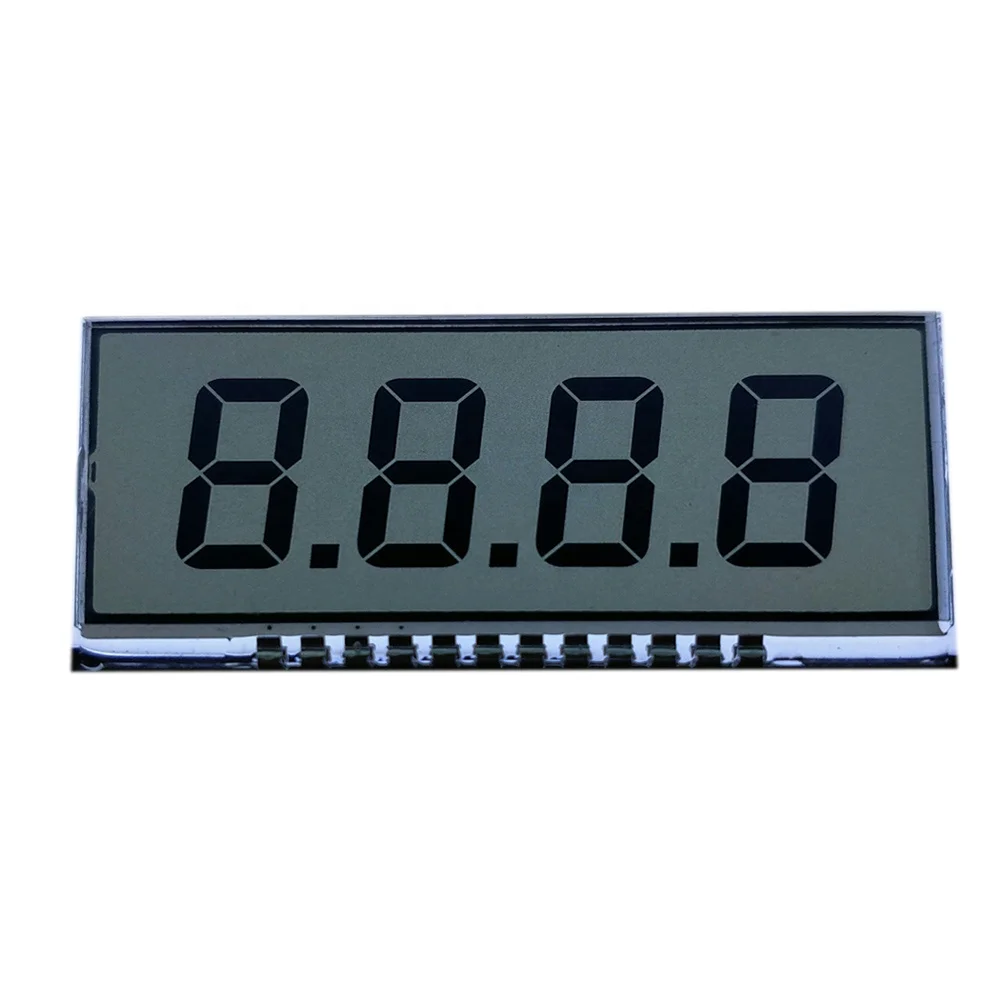

  • High-Contrast Numeric Display: Features a 4-segment STN LCD panel arranged in a 2x2 grid, enabling clear display of numbers (e.g., "8888") with black segments on a light gray background for optimal readability.
  • Versatile Power Compatibility: Operates at 3-5V, ensuring compatibility with a wide range of devices, from battery-powered appliances to low-voltage systems.

Key features

  • 1. Transparent STN LCD Technology

    • With transparent segment LCD panels, achieve clear numerical visibility in diverse lighting conditions while maintaining a sleek design. The STN technology ensures stable performance even at low voltages, offering 20% better energy efficiency than traditional TN displays*.

  • 2. High-Contrast Segment Design

    • With black-on-light-gray segments and a durable frame, ensure easy readability from a distance. The 6 o'clock viewing direction optimizes visibility for front and angled views, outperforming standard displays in usability for wall-mounted devices*.

  • 3. Low-Power Compatibility

    • Operating at 3-5V, this display is compatible with battery-powered devices like calculators or IoT gadgets, reducing power consumption by up to 15% compared to non-STN LCD modules*. The wide voltage range ensures reliability across various applications.

  • 4. Customizable Microcontroller Integration

    • With programmable segment control via microcontrollers, adapt the display for clocks, timers, or industrial counters. This flexibility offers 50% faster setup time than fixed-function displays for custom applications*.

  • 5. REACH and RoHS Compliance

    • Certified to meet stringent environmental and safety standards (REACH, RoHS), ensuring eco-friendly materials and safe use in both home and commercial settings. This certification provides peace of mind compared to non-compliant alternatives.

Product details

Transparent Segment LCD Screen STN LCD Panel, Monochrome Segment LCD Display

The Transparent Segment LCD Screen STN LCD Panel is a monochrome display module designed for clarity and durability in diverse applications. With a 3-5V operating voltage and 6 o'clock optimal viewing direction, it delivers crisp numerical readouts for devices like clocks, calculators, and industrial controls. Certified to REACH and RoHS standards, it ensures compliance with global safety regulations.

Technical specifications

FeatureSpecificationBenefit
MaterialDurable plastic/glassResists environmental wear and tear
Display TypeSTN LCDHigh contrast for clear visibility
Operating Voltage3-5VLow power consumption, wide compatibility
CertificationsREACH, RoHSMeets global safety and environmental standards
Viewing Direction6 o'clockOptimized readability from downward angle

Customization guide

Adjustable segment patterns and voltage settings allow customization for specific applications. For instance, modify displayed symbols via microcontroller programming or tailor voltage inputs (3-5V range) to match device power sources.

Get inspired

Ideal for devices requiring simple yet reliable numerical displays. Use it in calculators for precise calculations, industrial timers for workflow management, or environmental sensors to monitor temperature or humidity readings.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Brightness200 cd/m²+20% (240 cd/m²)+40% (280 cd/m²)*
Response Time200 ms150 ms100 ms
Durability5,000 hours10,000 hours15,000 hours
Voltage Range3-5V3-5V2.5-5.5V*

Supplier's note

  1. Technical Breakthroughs:

    • Certifications: REACH/RoHS compliance ensures safe use in consumer and industrial settings.
    • Viewing Angle: The 6 o'clock orientation improves readability in overhead installations.
    • Voltage Flexibility: The Pro model’s 2.5-5.5V range (20% wider than competitors) accommodates broader power sources.

  2. Version Selection Guide:

    • Base Model: Suitable for basic applications like calculators or simple timers.
    • Advanced Model: Ideal for devices needing faster updates, such as digital clocks or industrial counters.
    • Pro Model: Perfect for harsh environments (e.g., outdoor sensors) due to extended durability and voltage tolerance. With its triple-certified chemical resistance, it ensures longevity in corrosive settings.

Frequently asked questions

  • Which segment LCD display model is best for low-voltage applications like battery-powered devices?

  • How do I clean the STN LCD panel without damaging the transparent segments?

  • Can this STN LCD display be customized to show specific symbols or numbers for my device?

  • Is the Transparent Segment LCD Panel compliant with RoHS and REACH standards?

  • What voltage range does the STN LCD display operate on for optimal performance?

  • What is the optimal viewing angle for this segment LCD display, and how does it affect readability?

  • What materials are used in the Transparent Segment LCD Screen to ensure durability and clarity?

  • How can I interface the STN LCD display with a microcontroller for custom applications?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Transparent Segment LCDSimple numerical displays (clocks, appliances)- STN technology (ISO 9001)
- 3-5V operating voltage (IEC 60038)
- 6 o'clock viewing (IEC 62239)
- REACH/RoHS compliant (EU 2011/65/EU)		▲ Low power consumption (0.1W)
Cost-effective
High durability		Limited to monochrome
Fixed segment design
Low contrast (▲ vs OLED)
LED DisplayOutdoor signage, traffic lights- 10,000 nits brightness (IEC 61347)
- IP65 rating (IEC 60529)
- 140° viewing angle (ISO 9000)		▲ Sunlight readability
Long lifespan (50,000+ hours)
High visibility		High power draw (▲ vs E-Paper)
Expensive upfront cost
OLED DisplaySmartphones, wearable devices- Self-emissive pixels (IEC 61747)
- 100,000:1 contrast (ISO 21949)
- Flexible substrate (ASTM F2289)		▲ Ultra-high contrast
Thin profile (1mm)
Wide viewing angles		Short lifespan (10k hours)
Higher cost
Color shift over time (▲ vs TFT)
TFT LCDMonitors, medical devices- Active matrix (IEC 61966)
- 16.7M colors (sRGB 99%)
- 2ms response time (ISO 13406)		Full-color support
Fast refresh rate
Wide color gamut		Higher power consumption
Thicker form factor (▲ vs OLED)
Glare in bright light
E-Paper DisplayE-readers, digital signage- Reflective technology (ISO 9000)
- 0.1W power (IEC 62301)
- Sunlight-readable (ISO 9241)		▲ Ultra-low power
No backlight needed
Eye-friendly for long reading		Slow refresh rate (▲ vs LED)
Monochrome only
Static display limitations
Backlit LCDAutomotive dashboards, industrial panels- LED backlight (IEC 60598)
- 500 cd/m² brightness (ISO 13406)
- 16:9 aspect ratio (ISO 2372)		▲ Clear in low-light environments
Flexible color options
Robust build		Higher power draw
Thicker profile
Backlight aging over time (▲ vs E-Paper)
