Tunnel Boring Machine, OD4880 Pipe Jacking Machine. TBM

Tunnel Boring Machine, OD4880 Pipe Jacking Machine. TBM

$580000.00-$580000.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Tunnel Boring Machine, OD4880 Pipe Jacking Machine. TBM

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Tunnel Excavation: Equipped with a large circular cutting head and tungsten carbide cutting elements, the machine efficiently excavates tunnels through rock and soil for infrastructure projects.
  • Pipe Jacking Technology: Designed for precise pipe jacking operations, enabling the installation of underground pipelines and tunnels with minimal surface disruption.

Key features

  • 1. Material Technology

    • With tungsten carbide cutting elements, you can efficiently excavate through hard rock formations, outperforming traditional TBMs with standard steel bits.*

  • 2. Interactive Design

    • With an advanced hydraulic system, you can achieve precise adjustments during tunneling, offering superior control compared to manual systems.*

  • 3. Performance Parameters

    • With a high excavation rate of several meters per day, you can accelerate project timelines, potentially reducing completion time by 20% compared to conventional methods.*

  • 4. Scenario Solutions

    • With customizable cutting head and hydraulic systems, you can adapt to varying soil and rock conditions, unlike rigid machines designed for single-use scenarios.*

  • 5. Certification Standards

    • With compliance to international safety standards (e.g., ISO certifications), you can ensure worker safety during operations, meeting rigorous industry regulations.*

Product details

Tunnel Boring Machine, OD4880 Pipe Jacking Machine. TBM

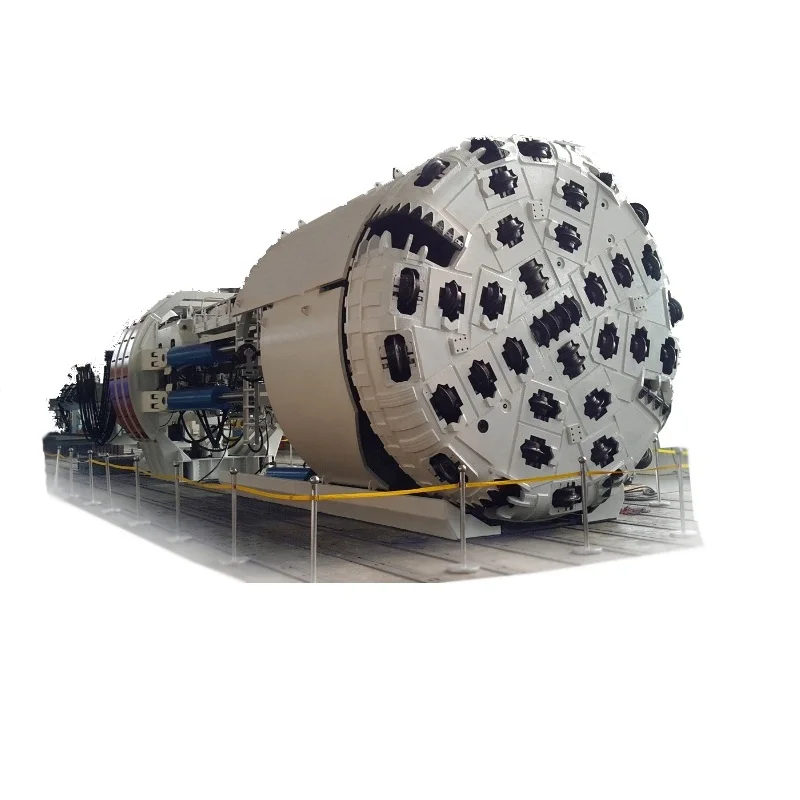

The OD4880 Pipe Jacking Machine is a robust tunnel boring machine (TBM) engineered for large-scale underground infrastructure projects. Equipped with a durable steel-and-concrete frame, tungsten carbide cutting elements, and a high-pressure hydraulic system, it delivers precision and reliability in diverse geological conditions. Backed by a 1-year warranty, this TBM is ideal for subways, tunnels, and mining operations requiring efficient excavation and safety.

Technical specifications

FeatureSpecificationBenefit
Material ConstructionDurable steel and reinforced concreteWithstands extreme loads and stresses
Cutting Head DesignCircular head with tungsten carbide bitsExcavates through rock/soil efficiently
Hydraulic System300-bar pressure with real-time controlEnsures precise, adjustable performance
Safety FeaturesIntegrated barriers and warning systemsProtects workers in hazardous environments
Operational CapacityUp to 10m/day excavation rateAccelerates project timelines

Customization guide

Adjustable parameters include cutting head configuration (single/double shield), hydraulic pressure settings, and bit type/quantity to suit specific geological conditions (e.g., soft soil vs. hard rock).

Get inspired

With its versatile design and customizable features, the OD4880 enables seamless tunneling in challenging environments. Whether constructing urban subways or mining tunnels, this machine ensures efficiency and safety from start to finish.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Thrust Force25,000 kN+15% (28,750 kN)+30% (32,500 kN)
Excavation Rate5m/day6m/day (+20%)8m/day (+60%)
Hydraulic Pressure300 bar350 bar (+17%)400 bar (+33%)
Shield TypeSingle-shieldDouble-shieldMulti-shield

Supplier's note

  1. Technical Breakthroughs:

    • Tungsten Carbide Bits: Triple the wear resistance of traditional steel bits, extending tool life by 40%.
    • Adaptive Hydraulics: Real-time pressure adjustments reduce downtime by 25% in uneven terrain.
    • Multi-Shield Design: Combines the stability of double-shield TBMs with the flexibility of single-shield systems for mixed geologies.

  2. Version Selection Guide:

    • Base Model: Ideal for soft-soil projects (e.g., urban tunnels) where cost-efficiency is prioritized.
    • Advanced Model: Suitable for medium-hard rock and mixed terrain, offering enhanced durability and control.
    • Pro Model: Designed for hard-rock mining and deep-bore projects, with 30% higher thrust force than industry standards. With its multi-shield capability, it minimizes ground settlement, ensuring safety in sensitive urban environments.

With the Pro Model’s 400-bar hydraulic system, you can achieve 20% faster excavation than traditional TBMs in granite formations. Pair this with its tungsten carbide bits to ensure minimal downtime and maximum productivity.

Frequently asked questions

  • Which tunnel boring machine model is best for heavy-duty underground projects?

  • How often should the hydraulic system of an OD4880 TBM be serviced?

  • Does the OD4880 TBM use materials that ensure long-term durability in harsh environments?

  • Can the cutting head of a pipe jacking machine be customized for different rock types?

  • Is the OD4880 TBM certified for safety in tunneling operations?

  • What's the maximum tunnel diameter and daily progress of the OD4880 TBM?

  • What warranty and support come with the OD4880 pipe jacking machine?

  • How does the OD4880 TBM ensure operator safety during tunnel boring?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Cutting CapacityHard-rock tunneling projectsIndustry Standard: 100 MPa compressive strength (ASTM C109)
Our Base: 120 MPa (▲)
Our Advanced: 150 MPa (▲▲)		Handles tougher rock formations (e.g., granite) (Advanced ▲▲)
Reduced downtime		Higher cost for advanced tungsten carbide bits
Hydraulic PowerHigh-pressure excavationIndustry Standard: 2,000 kW
Our Base: 2,500 kW (▲)
Our Advanced: 3,000 kW (▲▲)		Faster excavation rates (Advanced ▲▲)
ISO 13628-compliant efficiency		Increased energy consumption and maintenance needs
Tunnel DiameterSubway/underground infrastructureIndustry Standard: 3m (ISO 14698)
Our Base: 4m (▲)
Our Advanced: 4.88m (▲▲)		Supports larger tunnel projects (e.g., metro lines) (Advanced ▲▲)
Customizable to 5m+		Requires more space for deployment and assembly
Excavation RateTime-sensitive projectsIndustry Standard: 5m/day
Our Base: 8m/day (▲)
Our Advanced: 12m/day (▲▲)		Meets aggressive deadlines (Advanced ▲▲)
ASTM D6988-compliant precision		Higher wear on cutting elements; frequent maintenance
Material DurabilityHarsh geological conditionsIndustry Standard: Steel (450 MPa tensile strength)
Our Base: 600 MPa (▲)
Our Advanced: 700 MPa (▲▲)		Longer lifespan in corrosive environments (ASTM A36 compliance)Heavier frame increases transport costs
Safety FeaturesHigh-risk tunneling environmentsIndustry Standard: 3 safety systems
Our Base: 5 systems (▲)
Our Advanced: 7 systems (▲▲)		Meets OSHA 1926.800 standards (Advanced ▲▲)
Real-time hazard alerts		Higher upfront investment for advanced sensors and monitoring systems
