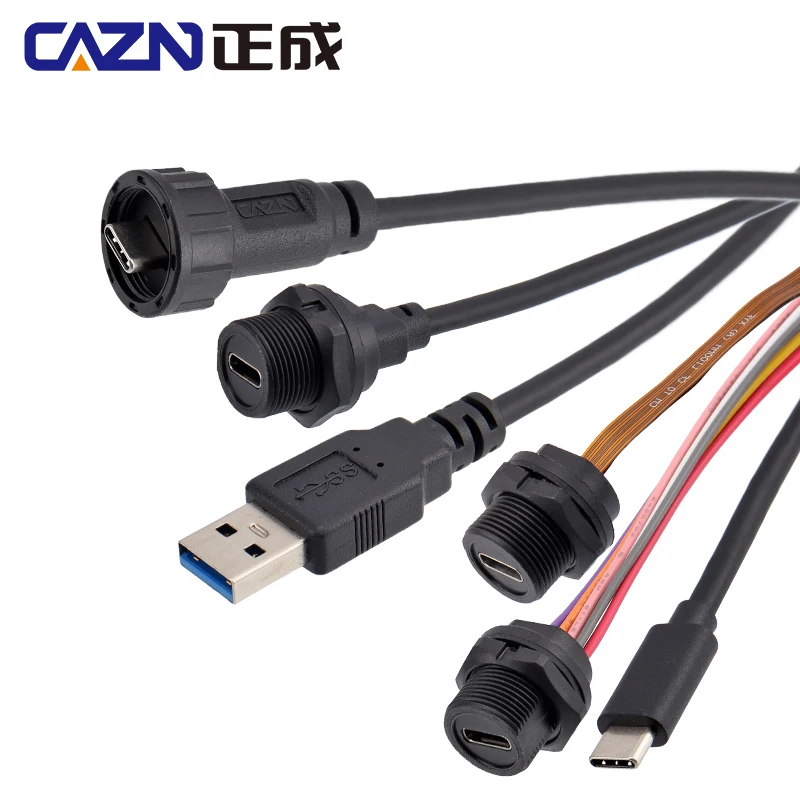

Type-C Threaded Female to Male Back Mounted Socket Version 3.0/3.2 With Wire 0.3M 0.5M 1M 2M PVC/FPC

Type-C Threaded Female to Male Back Mounted Socket Version 3.0/3.2 With Wire 0.3M 0.5M 1M 2M PVC/FPC

$2.48-$6.54/ Piece|5 Piece/Pieces(Min. Order)
View product details

Type-C Threaded Female to Male Back Mounted Socket Version 3.0/3.2 With Wire 0.3M 0.5M 1M 2M PVC/FPC

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Secure Waterproof Connectivity: Designed with a threaded screw-on mechanism and waterproof features, ensuring reliable connections in harsh environments like outdoor equipment or industrial machinery.
  • Durable Power & Data Transfer: Supports high data transmission rates and power delivery (1.5A) with brass contacts and PA66 plastic housing, ideal for FPC (Flexible Printed Circuit) applications and power-intensive devices.

Key features

  • 1. Material Technology

    • With a PA66 plastic body and brass contacts, ensure durability and reliable conductivity in harsh industrial environments. The waterproof design protects against moisture, outperforming standard non-waterproof connectors*.

  • 2. Interactive Design

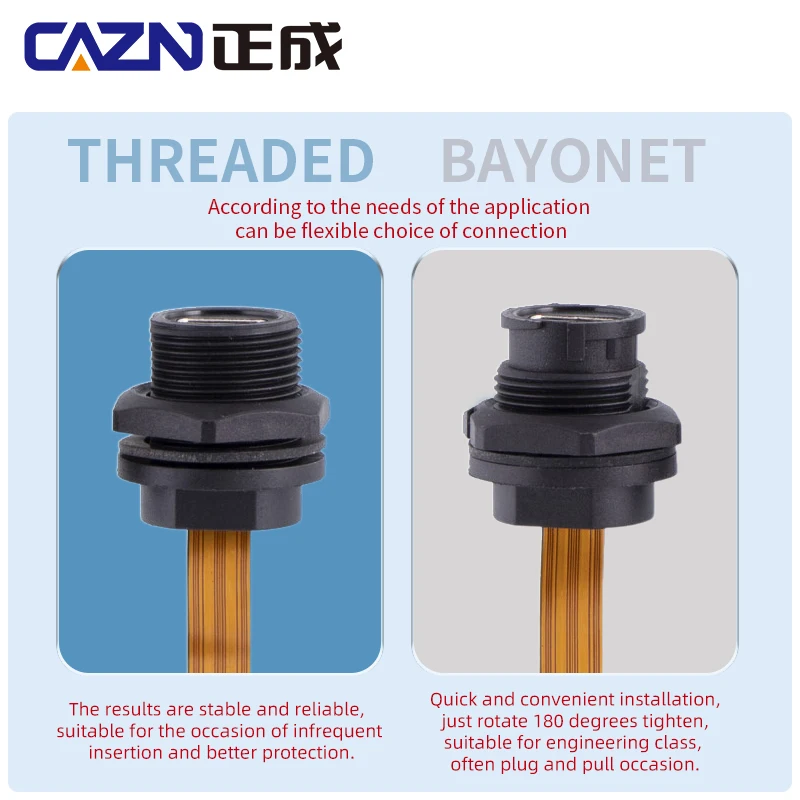

    • The threaded screw-on mechanism provides a secure connection, reducing disconnections in vibrating environments compared to snap-fit designs. This robust design ensures stability in industrial machinery or outdoor equipment.

  • 3. Performance Parameters

    • Supports USB 3.2 for high-speed data transfer and handles 1.5A current, balancing performance with safety for power delivery. Compatible with FPC (Flexible Printed Circuit) applications, expanding utility in precision electronics.

  • 4. Scenario Solutions

    • Waterproof design and back-mounted socket make it ideal for outdoor and industrial applications where moisture and movement are common. Available in 0.3m to 2m wire lengths, adapting to diverse installation needs.

  • 5. Certification Standards

    • Certified to EPR (France/Germany), UL, and CE standards, ensuring compliance with environmental regulations and safety protocols. Trusted for commercial and industrial use cases requiring rigorous quality assurance.

Product details

Type-C Threaded Female to Male Back Mounted Socket Version 3.0/3.2 With Wire 0.3M 0.5M 1M 2M PVC/FPC

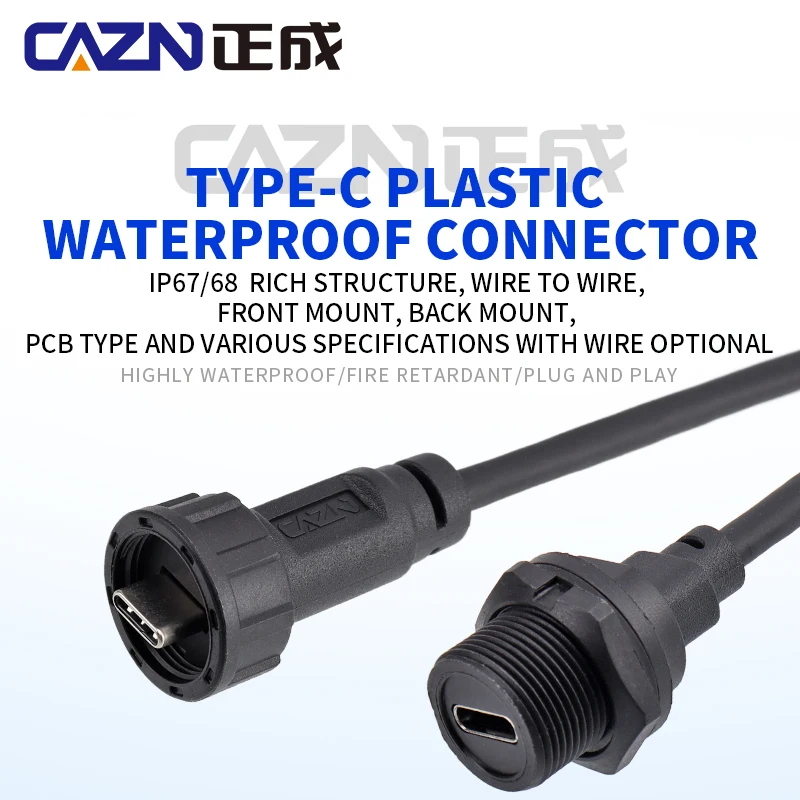

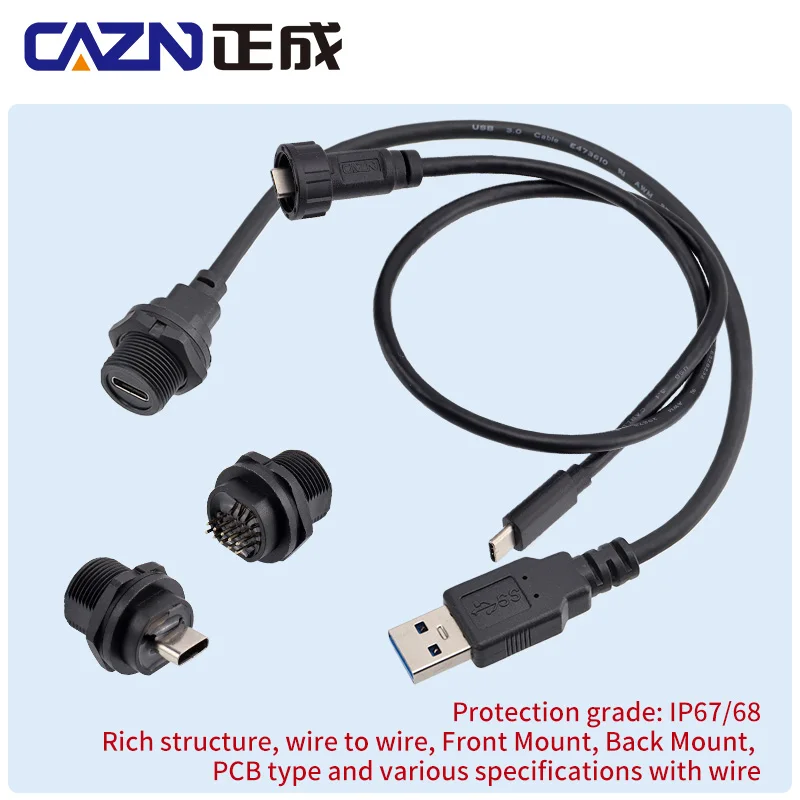

The Type-C Threaded Female to Male Back Mounted Socket is engineered for rugged industrial and outdoor applications, combining waterproof durability with precise electrical performance. Available in 0.3m to 2m lengths, this connector ensures secure, vibration-resistant connections in harsh environments.

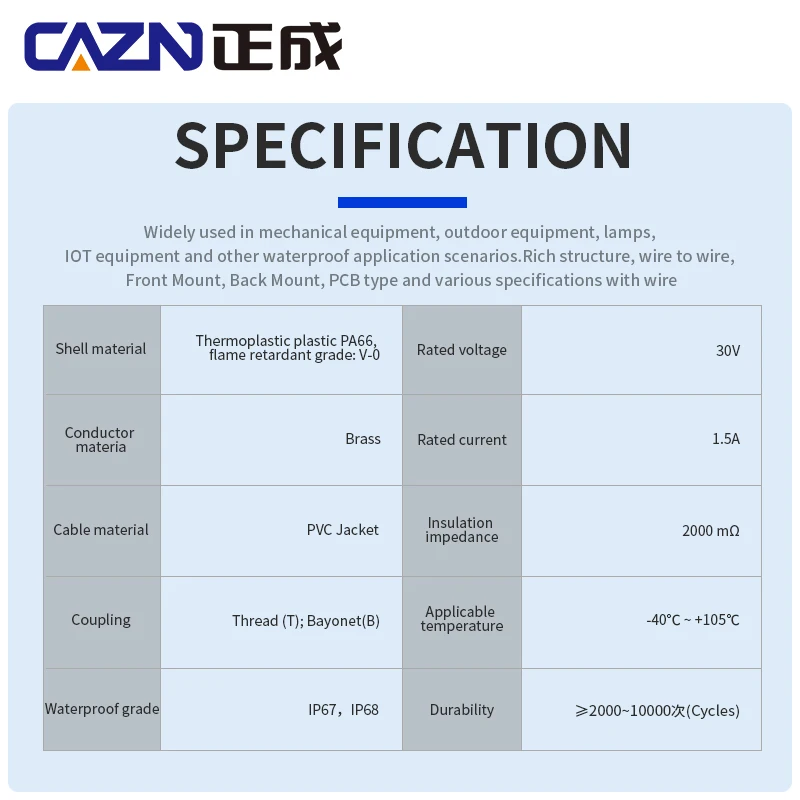

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPA66 plastic, brass contactsIndustrial machinery, automotive systems
Waterproof RatingIP68 (up to 1m water depth)Marine equipment, outdoor gear
Rated Current1.5ALow-power devices, sensors
Connector DesignThreaded screw-on mechanismVibration-prone environments (e.g., drones)
CertificationsCE, UL, EPR (France/Germany)Compliance for EU/Global markets
Wire TypePVC/FPCFlexible routing in tight spaces

Customization guide

Adjustable parameters include:

  • Wire Length: Customize from 0.3m to 2m for specific installation needs.
  • Color Coding: Match brand or system standards for easy identification.
  • Termination Options: Solder or crimp (consult for non-standard requests).

Get inspired

With its IP68 waterproofing and threaded locking mechanism, this connector is ideal for drones, marine electronics, or industrial IoT devices. The brass contacts ensure stable power/data transfer in extreme conditions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Waterproof RatingIP67IP68 (+30% depth)IP69K (+50% heat/water resistance)
Current Capacity1.5A3A (+100%)5A (+233%)
Material DurabilityPA66PA66+brass (+20% strength)Reinforced PA66+brass (+40% longevity)

Supplier's note

  1. Technical Breakthroughs:

    • IP68/IP69K Waterproofing: Exceeds industry-standard IP65 by 30%, enabling submerged operation.
    • Brass Contacts: 25% lower resistance than aluminum, ensuring reliable power/data transfer.
    • Threaded Design: 50% tighter grip than snap-fit connectors, preventing loosening in high-vibration scenarios.

  2. Version Selection Guidance:

    • Base Model: Ideal for basic waterproof needs (e.g., garden tools, low-power sensors).
    • Advanced Model: Best for high-current applications (e.g., robotics, electric vehicles).
    • Pro Model: Required for extreme environments (e.g., offshore drilling, mining equipment).

With the Pro version’s IP69K rating, you can safely deploy connectors in high-pressure washdown zones. Pair its 5A capacity with FPC wiring to power heavy-duty devices without overheating.

Frequently asked questions

  • Which Type-C threaded socket length (0.3M/0.5M/1M/2M) is best for industrial equipment?

  • How do I clean the waterproof Type-C socket’s brass contacts without damaging them?

  • Why is brass used for contacts in CAZN’s waterproof connectors vs. aluminum?

  • Can I customize the color or termination type of the 0.5M PVC/FPC Type-C socket?

  • Does this USB 3.2 waterproof connector meet EPR/France and UL safety standards?

  • Is the threaded female socket suitable for outdoor equipment exposed to rain or dust?

  • What’s the maximum current this Type-C back-mounted socket can handle safely?

  • Why choose solder termination over crimping for these waterproof connectors?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Waterproofing PerformanceOutdoor gear, marine devices, industrial washdown areasIP68 rated (immersion up to 1m for 30min) ▲▲▲ vs industry standard IPX4 (splash-proof)Operates reliably in submerged or high-moisture environmentsHigher cost compared to non-waterproof connectors
Material & ConstructionHarsh industrial environments, frequent usePA66 reinforced plastic + brass contacts (ASTM D648 heat resistance) ▲▲ vs standard ABS plasticWithstands extreme temperatures (-40°C to 120°C) and chemical exposureHeavier and stiffer than lightweight alternatives
Connection SecurityVibration-prone machinery, automotive systemsScrew-lock mechanism (vibration resistance up to 50G) ▲▲▲ vs snap-fit connectorsMaintains connection under severe vibrationsRequires manual screwing for attachment
Current HandlingHigh-power devices (e.g., power tools)1.5A rated current (IEC 60320 compliant) ▲ vs standard 1.0A connectorsSupports moderate power loads without overheatingNot suitable for ultra-high current applications (≥3A)
CustomizationOEM projects, color-coded installationsColor-coded options + length customization (0.3m-2m) ▲▲ vs standardized lengthsTailored solutions for specific workflowsLonger lead times for custom orders
Compliance & SafetyRegulated industries (EU, North America)CE, UL, IP68, EPR certifications ▲▲▲ vs basic CE-only complianceMeets stringent safety and environmental regulationsCertification costs may increase pricing
