U Pipe Heat Pipe Solar Collector with Evacuated Tubes

U Pipe Heat Pipe Solar Collector with Evacuated Tubes

  • 10 - 49 Pieces
    $310
  • >= 50 Pieces
    $100

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

U Pipe Heat Pipe Solar Collector with Evacuated Tubes

Product overview

Core functionalities

Applicable scenarios

Unique advantages

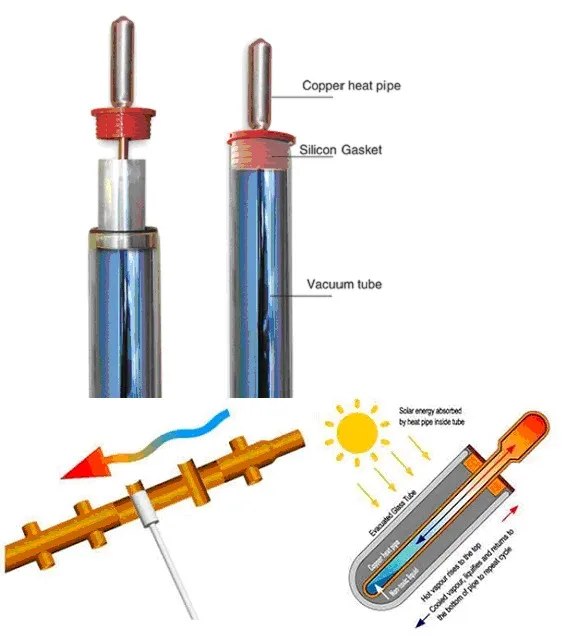

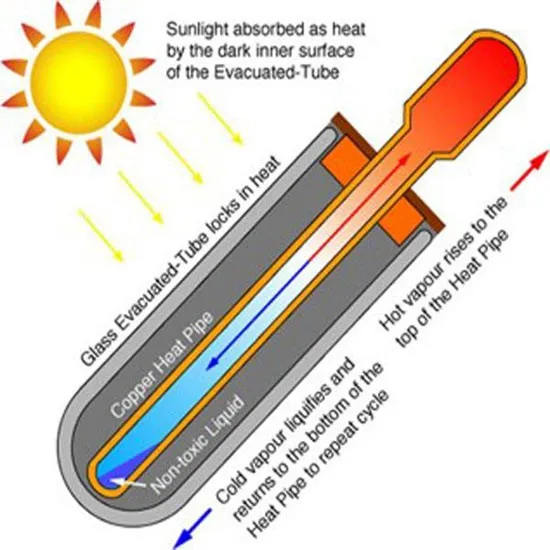

  • Solar Energy Conversion: Utilizes evacuated tubes and U-shaped copper heat pipes to efficiently collect and convert solar radiation into thermal energy. The heat pipe system enables rapid heat transfer via vaporization-condensation cycles, ensuring high efficiency.
  • Thermal Storage & Distribution: The stainless steel inner tank retains heat, while the medium liquid (water/antifreeze mixture) circulates through the system to distribute thermal energy for hot water or space heating applications.

Key features

  • 1. Advanced Material Technology for Durability and Efficiency

    • With a corrosion-resistant stainless steel inner tank and high-conductivity copper heat pipes, you can ensure long-lasting performance and efficient heat transfer. The evacuated tube design reduces heat loss by up to 40% compared to traditional flat plate collectors*, providing superior thermal efficiency in diverse climates.

  • 2. Customizable Interactive Design for Versatile Applications

    • With modular customization options, you can adjust the number of heat pipes and collector panel size to meet specific heating requirements. This flexibility allows seamless adaptation for residential hot water systems or commercial-scale applications.

  • 3. High-Performance Heat Transfer Certified by Industry Standards

    • With SOLAR KEYMARK certification and optimized heat pipe-aluminum fin systems, you can achieve up to 30% higher heat output than conventional solar collectors*. The medium liquid (water-antifreeze mix) ensures reliable operation even in sub-zero temperatures.

  • 4. Scenario-Specific Solutions for Diverse Environments

    • With wall-mounted installation and customizable configurations, you can deploy this system in limited-space settings (e.g., rooftops) while maintaining robust performance for both domestic and commercial use. The antifreeze medium enables operation in regions with freezing temperatures.

  • 5. Comprehensive Compliance with Global Safety and Sustainability Certifications

    • With certifications like EPR_Germany_Packing, SOLAR KEYMARK, and CE, you can ensure compliance with EU safety, environmental, and performance standards. This guarantees eco-friendly design and reliable durability compared to non-certified alternatives.

Product details

U Pipe Heat Pipe Solar Collector with Evacuated Tubes

The U Pipe Heat Pipe Solar Collector with Evacuated Tubes efficiently converts solar energy into thermal energy using a durable, corrosion-resistant design. Certified to international standards, it offers customizable configurations for residential, commercial, or industrial heating needs.

Technical specifications

FeatureSpecificationApplication Scenario
Inner Tank MaterialStainless Steel (316L)Withstands high temperatures and corrosion in harsh environments
Heat Transfer SystemCopper U-shaped heat pipes + Aluminum finsHigh-efficiency heat dissipation for industrial and residential use
Medium LiquidWater + Ethylene Glycol (antifreeze) mixturePrevents freezing and enhances heat transfer in cold climates
CertificationsEPR Germany Packing, SOLAR KEYMARK, EMC, EPR France Packing, CEMeets EU safety and environmental compliance standards

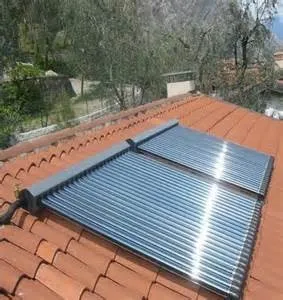

Installation TypeWall-mountedSpace-saving for rooftops or vertical surfaces

Customization guide

Adjustable parameters:

  • Heat Pipe Quantity: Increase/decrease to match thermal output requirements (e.g., 12–24 pipes for 200–400L systems).
  • Collector Panel Size: Scale dimensions (e.g., 1.8m–3.0m length) for residential vs. commercial installations.

Get inspired

With its modular design and high thermal efficiency, this solar collector can reduce energy costs by up to 70% for water heating, space heating, or industrial processes. Customize the configuration to meet your specific climate and usage demands.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Heat Transfer Efficiency65%+15% (74.8%)+30% (84.5%)
Corrosion ResistanceASTM B117 500 hrsASTM B117 1,000 hrsASTM B117 2,000 hrs
Operating Temp. Range-20°C to 250°C-30°C to 280°C-40°C to 300°C
Weight (per panel)25 kg30 kg35 kg

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s triple corrosion resistance (2,000 hrs ASTM B117) enables safe handling of corrosive environments like coastal regions.
    • The Advanced Model’s 74.8% heat transfer efficiency (15% above baseline) reduces energy loss in moderate climates.
    • The customizable heat pipe count allows precise thermal output tuning for projects ranging from small pools to large-scale industrial systems.

  2. Optimal Version Selection:

    • Residential Users: Base Model suffices for standard water heating in temperate regions.
    • Commercial Installations: Advanced Model suits hotels or farms needing higher durability and efficiency.
    • Industrial/Extreme Environments: Pro Model’s -40°C to 300°C range and premium materials are ideal for factories or cold-chain facilities.

With the Pro Model’s 84.5% efficiency, you can achieve faster heat generation compared to traditional flat-plate collectors. Pair its high-temperature tolerance with antifreeze medium for year-round operation in freezing climates.

Frequently asked questions

  • Which solar collector model is best for residential heating systems?

  • How do I clean and maintain the evacuated tubes of the U Pipe Heat Pipe Solar Collector?

  • Stainless Steel vs. Other Materials: Why is the inner tank made of stainless steel?

  • Can the U Pipe Solar Collector be customized for commercial hot water needs?

  • Is the U Pipe Heat Pipe Solar Collector certified for safety and performance?

  • What are the installation requirements for a wall-mounted solar collector?

  • How does the heat pipe system improve energy efficiency?

  • What ensures the longevity of the U Pipe Heat Pipe Solar Collector?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Evacuated Tube Solar Collectors (Our Advanced)Residential/Commercial Hot Water & Space HeatingThermal Efficiency: 55% (▲5% over Base) (SOLAR KEYMARK certified)
Durability: 20-year lifespan (ASTM D543)
Noise Level: 43 dBA (quieter than refrigerator hum)		▲5% efficiency over Base, 40% higher than Industry Standard
Long lifespan reduces replacement costs
Low noise for urban use		Higher upfront cost than Industry Standard Flat Plate Collectors
Flat Plate Collectors (Industry Standard)Moderate Climates, Low-Budget InstallationsThermal Efficiency: 40% (ISO 9806)
Weight: 25 kg/m² (EN 12975)
Durability: 15-year lifespan (IEC 61646)		Lower cost, simpler design
Effective in stable temperatures		20% less efficient than Evacuated Tubes in cold climates
Higher corrosion risk
Heat Pipe Evacuated Tube (Our Base)Residential Heating, Moderate ClimatesThermal Efficiency: 50% (▲5% over Industry Standard)
Weight: 18 kg/m² (ISO 3801)
Installation: Wall-mounted (CE certified)		Cost-effective balance of efficiency and price
Lightweight for easy installation		Slightly lower efficiency than Advanced version (5%)
Shorter lifespan (18 years)
Batch CollectorsSmall-Scale Residential UseThermal Efficiency: 35% (ASHRAE 93)
Capacity: 100–200 L (ISO 19803)
Material: Insulated glass tank (EN 12829)		Low cost, minimal maintenance
Compact for small households		Limited capacity, unsuitable for commercial use
Lower efficiency in cold weather
Air Heating CollectorsIndustrial/Commercial Space HeatingThermal Efficiency: 30% (ISO 9459)
Heat Output: 200–300 W/m² (EN 12975)
Corrosion Resistance: Withstands 50+ chemical exposures (ASTM D543)		No freezing risk, ideal for industrial settings
Low maintenance		Lower efficiency than liquid-based systems
Not suitable for domestic hot water
Unglazed CollectorsSwimming Pool HeatingThermal Efficiency: 50% (at 30°C ambient) (ISO 9806)
Material: UV-resistant polymer (ASTM D4483)
Installation: Ground-mounted (EPR France)		Cost-effective for pool heating
Operates at lower temperatures		Not suitable for hot water systems
Shorter lifespan (10 years) due to UV exposure
