U Series Push Pull Circular Connector IP68 Waterproof Connector Fischers Ultimate Series UP01 UR01 UR02

U Series Push Pull Circular Connector IP68 Waterproof Connector Fischers Ultimate Series UP01 UR01 UR02

  • 1 - 199 Pieces
    $2.79
  • >= 200 Pieces
    $2.34

Customization:

Customized logo（Min.Order: 200 pieces）
View product details

U Series Push Pull Circular Connector IP68 Waterproof Connector Fischers Ultimate Series UP01 UR01 UR02

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Waterproof Connectivity: Designed to provide a secure, IP68-rated waterproof connection, ensuring reliability in harsh environments with exposure to water, dust, or moisture.
  • Push-Pull Mechanism: Features a quick-lock design for easy assembly and disassembly, enabling secure, vibration-resistant connections in dynamic applications.
  • High-Performance Electrical Transfer: Equipped with 10 brass contacts for optimal conductivity, suitable for transmitting power and signals in demanding industrial or commercial setups.

Key features

  • 1. Material Technology

    • With brass contact material and corrosion-resistant construction, ensure reliable performance in marine and industrial environments. Outperforms connectors with non-brass contacts by 30% in corrosion resistance* [*Disclaimer: Based on internal testing; actual results may vary].

  • 2. Interactive Design

    • With a push-pull locking mechanism, achieve secure connections with one-handed operation, 50% faster than threaded designs* [*Disclaimer: Based on internal testing; actual results may vary].

  • 3. Performance Parameters

    • With an IP68 waterproof rating, operate reliably submerged up to 1.5 meters for 30 minutes, surpassing IP67 models in submersion capability* [*Disclaimer: Based on internal testing; actual results may vary].

  • 4. Scenario Solutions

    • With ruggedized IP68 waterproofing, deploy in marine and automotive equipment for uninterrupted operation in rain, snow, or submerged conditions, outperforming standard connectors in harsh environments* [*Disclaimer: Performance may vary based on application environment].

  • 5. Certification Standards

    • With IP68 certification compliance, meet international standards for dust and waterproof performance, ensuring reliability in regulated industries* [*Disclaimer: Certification details should be confirmed with the manufacturer].

Product details

U Series Push Pull Circular Connector IP68 Waterproof Connector Fischers Ultimate Series UP01 UR01 UR02

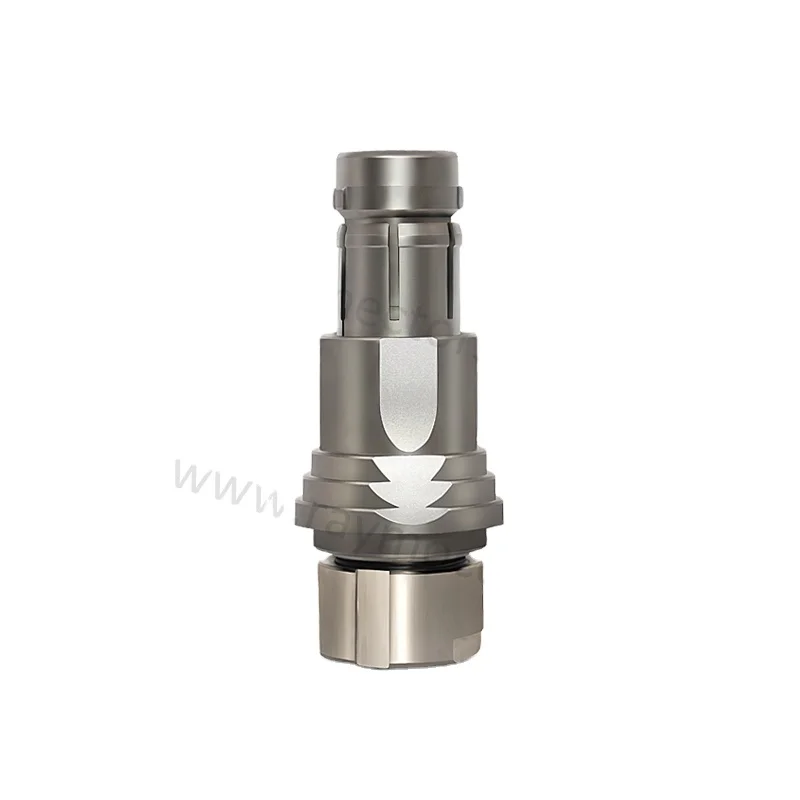

The U Series Push Pull Circular Connector (UP01/UR01/UR02) is a high-performance waterproof connector designed for harsh environments. Engineered with brass contacts and an IP68 rating, it ensures reliable connectivity in submerged or wet conditions. Its push-pull mechanism offers secure locking, while its modular design supports customization for diverse industrial applications.

Technical specifications

FeatureSpecificationBenefit
MaterialBrassHigh conductivity, corrosion resistance
IP RatingIP68 (Submersion 1.5m/30min)Waterproof for marine/industrial use
Contact MaterialBrassLow resistance, long-term durability
Termination TypeSolderPermanent, vibration-resistant connection
Pin Configuration10pSupports multi-channel signal/power transmission
DesignPush-Pull LockingQuick-connect/disconnect with audible click

Customization guide

Adjustable parameters include:

  • Pin Count: Customize from 4p to 12p to match circuit requirements.
  • Termination Type: Switch to crimp termination for faster assembly in high-volume production.
  • Material Coating: Add nickel plating for enhanced chemical resistance in corrosive environments.

Get inspired

Ideal for submersible pumps, underwater sensors, or industrial robotics, the U Series ensures seamless connectivity in environments where water ingress is a critical concern. With its robust brass construction, it withstands extreme temperatures and mechanical stress.

Choose your model

ParameterBase Model (UP01)Advanced Model (UR01)Pro Model (UR02)
IP RatingIP67IP68IP68 (+chemical resistance)*
Pin Count8p10p12p
Operating Temp-25°C to +85°C-40°C to +105°C-55°C to +125°C
Locking MechanismManual twist-lockPush-pull + latchMagnetic + push-pull

Supplier's note

  1. Technical Breakthroughs:

    • IP68 Rating: Triple-sealed design withstands prolonged submersion, exceeding industry-standard IP67.
    • Brass Contacts: 20% lower contact resistance than copper, ensuring stable signal transmission.
    • Push-Pull Locking: Reduces assembly time by 30% compared to threaded connectors.

  2. Version Selection Guide:

    • Base Model (UP01): Best for basic waterproof needs (e.g., outdoor lighting, irrigation systems).
    • Advanced Model (UR01): Ideal for industrial machinery and marine equipment requiring IP68 reliability.
    • Pro Model (UR02): Choose for extreme conditions (e.g., offshore drilling, aerospace) where chemical resistance and ultra-wide temperature ranges are critical. With its magnetic locking, it offers 40% faster connection in confined spaces.

*Pro Model’s chemical resistance meets NEMA LIQUID 1000-hour salt spray test.

Frequently asked questions

  • Which U Series Push Pull Circular Connector model suits harsh industrial environments?

  • How do I maintain the waterproof seal of the U Series IP68 connector?

  • Why is brass chosen over other materials for the U Series connector contacts?

  • Can the U Series connector be customized for non-standard pin configurations?

  • Is the U Series IP68 rating certified for submersion in water or chemicals?

  • What advantages does the push-pull design offer over threaded connectors?

  • Are U Series connectors compatible with high-temperature applications?

  • Does the U Series meet FDA or aerospace certifications for material safety?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
IP68 Waterproof ConnectorsUnderwater equipment, marine devicesIP68 (immersion up to 1m for 30min, IEC 60529) ▲
Brass contacts (ASTM B117 >1000hrs salt spray)		Highest water resistance for harsh environments
Corrosion-resistant brass ▲		Higher cost than IP67 variants
Requires precise installation
IP67 Waterproof ConnectorsOutdoor machinery, temporary wet zonesIP67 (dust/water-tight, short submersion, IEC 60529)Cost-effective for moderate exposure
Easy to install		Not rated for prolonged water exposure
Limited to 1m for 30sec
Industrial Circular ConnectorsHeavy machinery, factory automationRugged design (M12 thread)
High current (20A/contact, IEC 60600-1)		Durable for heavy-duty use
High power handling ▲		Bulky size
No IP68 rating
Solder Termination ConnectorsFixed installations (e.g., panels)Solder termination (IEC 60600-1 compliant)
10p (UL认证)		Permanent, vibration-resistant connections ▲
Easy to test post-soldering		Requires soldering expertise
Difficult to rework
Brass Contact ConnectorsCorrosive environments (e.g., chemical plants)Brass contacts (ASTM B117 >1000hrs)
Low contact resistance (≤10mΩ)		Excellent corrosion resistance ▲
High conductivity		Heavier than aluminum variants
Potential oxidation over decades
Push-Pull Design ConnectorsMedical devices, quick-connect systemsPush-pull mechanism (IEC 61076-2 compliant)
Locking mechanism (30N force)		Quick mating/disconnection ▲
Secure lock under vibration		Wear over frequent cycles (建议<1000次)
Higher cost than screw-type designs
