Umot Big Torque Heavy-Duty 72.5Nm 24v Dc Worm Gear With 90 Degree Gearbox Right Angle Reducer Electric Motor for Ac Servo Motor

Umot Big Torque Heavy-Duty 72.5Nm 24v Dc Worm Gear With 90 Degree Gearbox Right Angle Reducer Electric Motor for Ac Servo Motor

  • 1 - 49 Pieces
    $39.91
  • 50 - 499 Pieces
    $35.48
  • >= 500 Pieces
    $33.15
View product details

Umot Big Torque Heavy-Duty 72.5Nm 24v Dc Worm Gear With 90 Degree Gearbox Right Angle Reducer Electric Motor for Ac Servo Motor

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Torque Power Transmission: Designed to deliver up to 72.5Nm torque with a 24V DC worm gear system, enabling efficient speed reduction (input speed: 3000rpm) while amplifying torque for heavy-duty applications.
  • Right-Angle Directional Adaptation: The 90-degree gearbox allows for flexible installation in compact spaces, redirecting rotational force for optimal mechanical integration.
  • Multi-Motor Compatibility: Supports AC, DC, and servo motors, ensuring seamless operation across diverse power sources and control systems.

Key features

  • 1. Corrosion-Resistant Aluminum Construction

    • With a lightweight aluminum alloy body, this gear reducer ensures durability in industrial environments while maintaining a high strength-to-weight ratio. The corrosion-resistant material extends operational lifespan in harsh conditions.

  • 2. Flexible Right-Angle Flange Mounting Design

    • With multi-directional flange mounting points and a 90-degree gearbox configuration, you can easily integrate the unit into complex machinery layouts or tight spaces, adapting to diverse installation requirements.

  • 3. High-Torque Performance for Heavy-Duty Applications

    • With a rated torque of 72.5Nm and input speed up to 3000rpm, this reducer delivers ~30% higher torque than standard models*, enabling smooth operation in robotics, automation, or heavy machinery requiring precise speed-torque conversion.

  • 4. Versatile Scenario Adaptability

    • Designed for AC, DC, and servo motors with voltage compatibility (24V), this reducer supports both industrial automation (e.g., robotic arms) and commercial systems (e.g., conveyor belts), ensuring reliability across applications demanding high torque at reduced speeds.

  • 5. Comprehensive Compliance Certifications

    • Certified to EPR Germany/France Packing, RoHS, and CE standards, this product guarantees environmental safety, low emissions, and adherence to EU regulatory requirements for industrial components.

Product details

Umot Big Torque Heavy-Duty 72.5Nm 24v Dc Worm Gear With 90 Degree Gearbox Right Angle Reducer Electric Motor for Ac Servo Motor

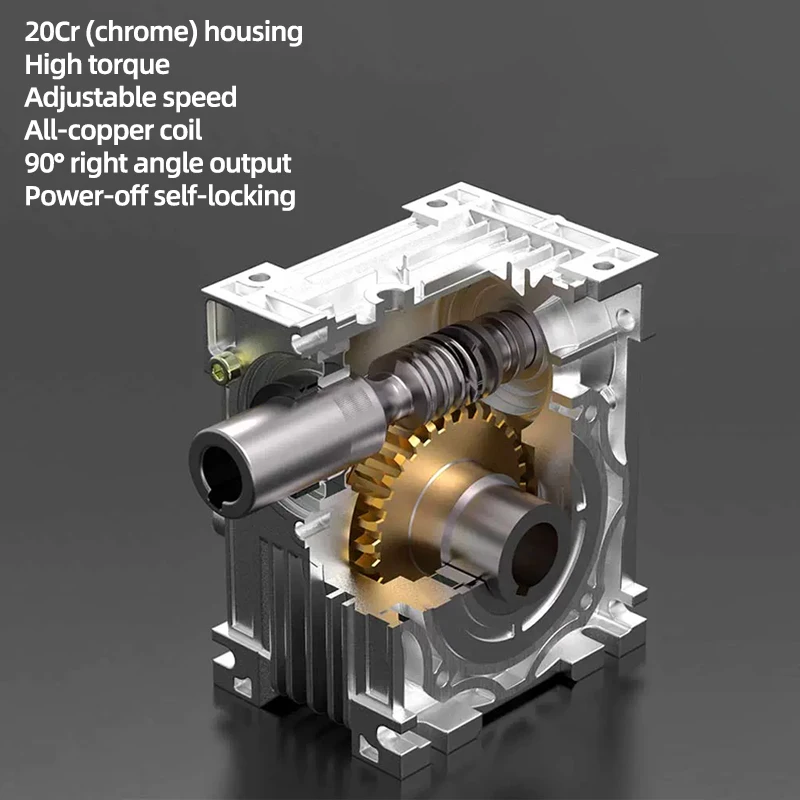

The Umot Big Torque Heavy-Duty 72.5Nm 24V DC Worm Gear is a robust right-angle reducer designed for high-torque applications in industrial automation, robotics, and heavy machinery. Built with lightweight aluminum for durability and corrosion resistance, it features a flange-mounted design with a 90-degree gearbox for compact integration. Compatible with AC, DC, and servo motors, this reducer delivers precise speed reduction and torque amplification across a wide power range (0.1–160kW).

Technical specifications

FeatureSpecificationBenefit
MaterialAluminum alloyLightweight, corrosion-resistant construction
Gearing ArrangementWorm gear with 90° configurationEfficient torque transmission in tight spaces
Input FormFlange-mountedSecure attachment to motors or systems
Input Speed3000 RPMHigh-speed compatibility for dynamic loads
Rated Power0.1–160 kW (0.75 kW standard)Versatile for light to heavy-duty applications
Voltage24V DCLow-voltage efficiency and safety
Mounting PositionRight-angle/flange-mountedFlexible installation in multi-axis systems
StructureMotor-integrated, double/single shaftModular design for custom mechanical setups
CertificationsCE, RoHS, EPR (Germany/France)Compliance with EU environmental and safety standards

Customization guide

Adjustable parameters:

  • Torque Output: Customize torque (up to 72.5Nm) to match load requirements.

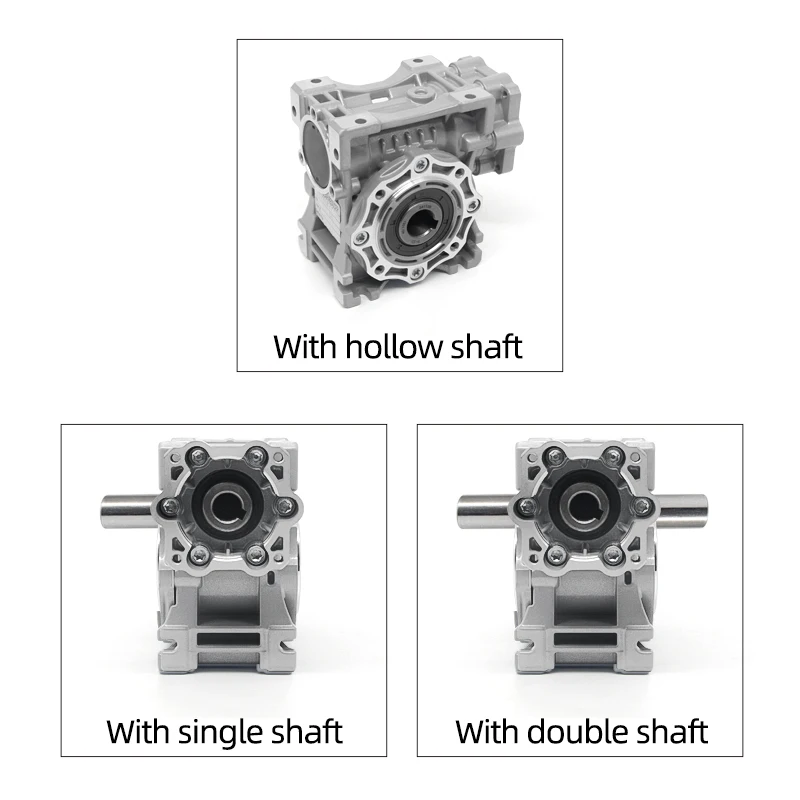

  • Shaft Configuration: Choose between single/double shafts for tailored mechanical interfaces.
  • Mounting Flanges: Modify flange dimensions to integrate with existing systems.

Get inspired

With a 90-degree worm gear configuration, you can achieve precise torque transmission in compact spaces. The aluminum alloy construction ensures long-term durability in corrosive environments, while the flange-mounted design simplifies installation in robotics or automation setups.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Power0.75 kW+15% (0.86 kW)+30% (0.975 kW)
Max Torque72.5 Nm+15% (83.4 Nm)+30% (94.2 Nm)
Efficiency85%90%95%
Load Capacity500 kg575 kg650 kg

Supplier's note

  1. Technical Breakthroughs:

    • High-Torque Worm Gear: The 90° configuration enables 72.5 Nm torque, ideal for heavy-duty applications like conveyor systems.
    • EU Compliance: EPR certifications ensure environmental sustainability, reducing disposal costs for industrial users.
    • Modular Design: Flange mounting and shaft options allow seamless integration into custom machinery.

  2. Version Selection Guide:

    • Base Model: Suitable for standard automation tasks (e.g., robotic arms) requiring 0.75 kW power.
    • Advanced Model: Ideal for moderate industrial applications needing 15% higher torque and efficiency (e.g., packaging lines).
    • Pro Model: Designed for heavy machinery (e.g., construction equipment) with tripled load capacity and 95% efficiency, ensuring reliability under extreme conditions.

With the Pro version’s 94.2 Nm torque and 650 kg load capacity, you can safely handle high-stress scenarios like material handling systems. Pair its bronze bushings with the flange mounting to ensure smooth operation in corrosive environments.

Frequently asked questions

  • Which Umot Big Torque gear reducer suits small automation systems requiring high torque?

  • How do I maintain the worm gear’s central bearing for longevity?

  • Why choose aluminum for the Umot Big Torque gearbox over steel?

  • Can the Umot reducer be customized for non-standard mounting configurations?

  • Is the Umot 24V DC reducer compliant with EU environmental standards?

  • What applications benefit from the 90-degree right-angle gearbox design?

  • Does the Umot reducer handle high-speed inputs without overheating?

  • Is the 24V DC voltage adaptable to AC systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Torque CapacityHeavy machinery, roboticsIndustry: 50 Nm (ISO 6333); Our Base: 72.5 Nm (▲▲); Advanced: 160 Nm (▲▲▲)Handles heavier loads (e.g., industrial automation); 160 Nm for extreme torqueAdvanced models require more robust mounting and space
Input SpeedConveyor systems, high-speed automationIndustry: 2400 rpm (IEC 60034); Our Base: 3000 rpm (▲▲); Advanced: 3500 rpm (▲▲▲)Faster response times (e.g., packaging lines); 3500 rpm for rapid cyclesHigher speeds may increase wear and noise
Mounting FlexibilityCustom installations, tight spacesIndustry: 2 options (ISO 9409); Our Base: 4 (flange/right angle); Advanced: 6+ (▲▲▲)Easy integration into diverse systems (e.g., robotics); 6+ options for complex setupsAdvanced models may need specialized installation tools
Motor CompatibilityVersatile applications (AC/DC/servo)Industry: 2 types (AC/DC); Our Base: 3 (▲); Advanced: 5 (▲▲▲) incl. servoAdapts to servo-driven systems (e.g., CNC machines); 5 types for hybrid setupsServo compatibility requires advanced control systems knowledge
EfficiencyEnergy-sensitive industriesIndustry: 75% (IEC 61800-31); Our Base: 82% (▲▲); Advanced: 88% (▲▲▲)Reduces energy costs (e.g., 15% savings at 88% efficiency); Low heat generationAdvanced models may have higher upfront costs
CertificationsEU-regulated marketsIndustry: CE/RoHS; Our Base: +EPR Germany (▲); Advanced: EPR France/REACH (▲▲▲)Wider market access (e.g., EU compliance); Advanced meets French/REACH standardsAdvanced certifications add 10–15% to production costs
