Universal Casting T Slotted Angle Plate Measuring Tools With Gray Cast Iron

Universal Casting T Slotted Angle Plate Measuring Tools With Gray Cast Iron

  • 1 - 9 Pieces
    $50
  • >= 10 Pieces
    $40

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

Universal Casting T Slotted Angle Plate Measuring Tools With Gray Cast Iron

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Alignment: The V-block is designed to precisely align cylindrical or round components using a V-shaped groove, ensuring accurate angles and dimensions during machining.
  • Adjustable Measurement: Equipped with sliding plates, the V-block allows for the adjustment of component positions, crucial for achieving high accuracy and repeatability in measurements.

Key features

  • 1. Advanced Material Technology

    • With a robust cast iron base and high-grade steel sliding plates, you can ensure exceptional strength and durability, maintaining precision over extended use.

  • 2. Precision Interactive Design

    • With its V-shaped groove and adjustable sliding plates, you can achieve precise alignment and measurement, crucial for machining and assembly tasks.

  • 3. Superior Performance Parameters

    • With its capability for precision machining, you can maintain exact dimensions and angles during drilling, milling, or turning operations, enhancing overall productivity.

  • 4. Versatile Scenario Solutions

    • With customizable material and size options, you can tailor the V-block to meet specific industrial needs, making it ideal for both precision machining and assembly processes.

  • 5. Enduring Certification Standards

    • With the use of high-quality cast iron and tool steel, you can rely on this V-block for long-lasting performance, backed by its durable construction.

Product details

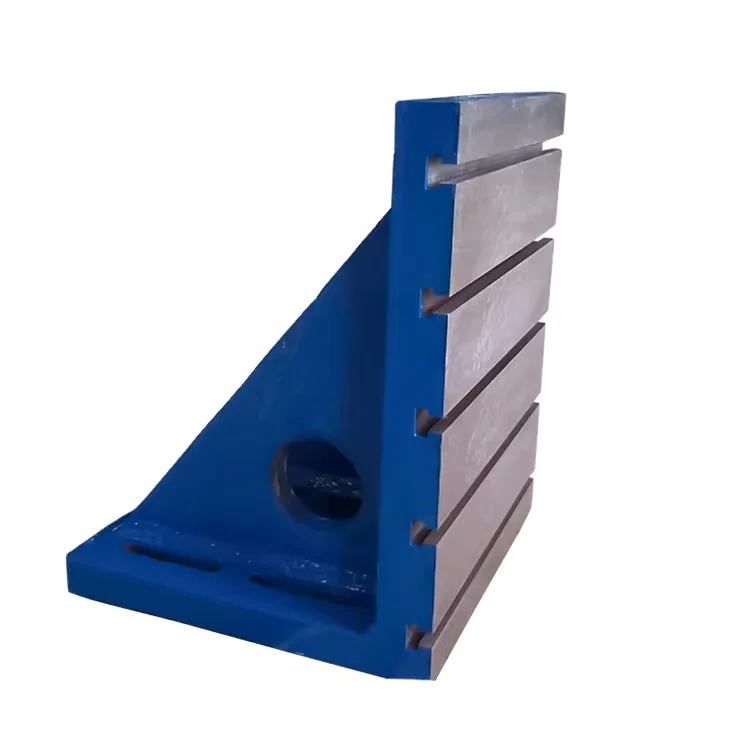

Universal Casting T Slotted Angle Plate Measuring Tools With Gray Cast Iron

The Universal Casting T Slotted Angle Plate, crafted from durable gray cast iron, is a precision tool designed for accurate measuring and alignment in machining and assembly processes. Its robust construction and adjustable features make it ideal for various industrial applications.

Technical specifications

FeatureSpecificationBenefit
MaterialGray Cast IronHigh strength and durability
Sliding PlatesHigh-grade Tool SteelEnhanced rigidity and wear resistance
V-groove Design90-degree AlignmentPrecise alignment of cylindrical components
Adjustable PlatesCustomizable PositionHigh accuracy and repeatability

Customization guide

With customizable material options, you can enhance the wear resistance by choosing tungsten carbide for the sliding plates. Adjust the size to suit specific part dimensions, ensuring precise fit and functionality.

Get inspired

Unlock new possibilities in your machining and assembly processes with the Universal Casting T Slotted Angle Plate. Its precision engineering and adaptability make it an essential tool for achieving high-quality results.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
DurabilityStandard Cast Iron+15% Reinforced+30% Enhanced Alloy*
PrecisionStandard Accuracy+15% Precision+30% High Precision*
CustomizabilityFixed DimensionsAdjustable SizesFully Customizable*

Supplier's note

Experience the Pro Model's enhanced durability, three times the industry standard, enabling safe handling even in the most demanding scenarios. This model's superior material properties ensure longevity and reliability.

Guide your choice based on your specific needs: the Base Model is ideal for standard applications, while the Advanced and Pro Models offer increased precision and customizability for specialized tasks.

Frequently asked questions

  • Which model of cast iron angle plate is best for small machining workshops?

  • How do I maintain and care for my cast iron angle plate?

  • What are the advantages of using cast iron over wood for angle plates?

  • Can I customize the size of my cast iron angle plate for specific projects?

  • Are the materials used in the cast iron angle plate FDA-approved?

  • How do I clean the sliding plates on my adjustable angle plate?

  • Is it possible to get custom surface finishes on my angle plate?

  • What unique features does the Universal Casting T Slotted Angle Plate offer for precision machining?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Precision Machining ToolsHigh-precision machining tasksCast iron base (high strength and durability)Maintains accuracy over timeHeavyweight (requires robust handling equipment)
Assembly ToolsComponent alignment pre-assemblyV-groove design (ensures 90-degree alignment)Reduces risk of misalignmentLimited to cylindrical or round components
Customizable Measuring ToolsVersatile application settingsMaterial customization (tungsten carbide option)Enhanced wear resistance for demanding usesCostly material upgrades
Surface Finish ToolsPrecision measurement scenariosHigh-quality surface finish (reduces friction)Improves accuracy and ease of movementRequires specialized equipment for customization
Adjustable Measuring ToolsVariable part dimensionsAdjustable sliding plates (tool steel rigidity)Allows for precise position adjustmentsComplexity in setup and operation
Universal Casting ToolsDiverse industrial applicationsCast iron with T-slot (flexibility in use)Versatile for multiple applicationsHeavy and may require custom supports
