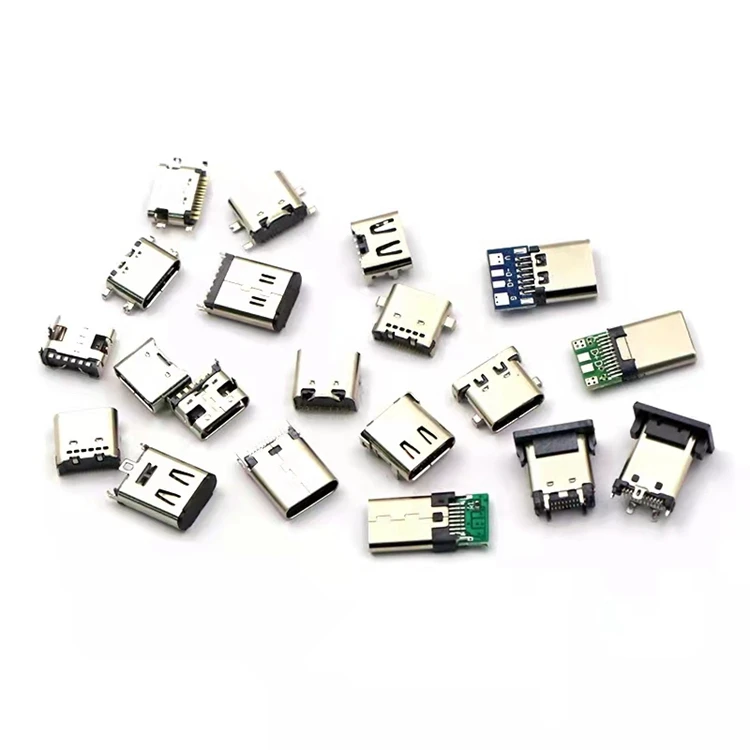

Usb Type C Connector Female Pcb Mount Micro Usb Socket 16Pin Custom Usb Connector
Ready to Ship
In stock Fast dispatch

Usb Type C Connector Female Pcb Mount Micro Usb Socket 16Pin Custom Usb Connector

  • 1 - 999 Pieces
    $0.06
  • 1000 - 9999 Pieces
    $0.05
  • >= 10000 Pieces
    $0.03

Customization:

Customized logo（Min.Order: 20000 pieces）
Customized packaging（Min.Order: 20000 pieces）
Graphic customization（Min.Order: 20000 pieces）
View product details

Usb Type C Connector Female Pcb Mount Micro Usb Socket 16Pin Custom Usb Connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Performance Data/Power Transmission: Designed as a female USB Type-C socket for PCB mounting, enabling seamless integration into electronic devices for high-speed data transfer and power delivery (up to 3A rated current).
  • Customizable Connectivity: Supports 16-pin configurations (with options from 4p to 24p) to accommodate diverse device requirements, ensuring compatibility with modern devices needing advanced charging and data capabilities.

Key features

  • 1. Durable Copper Alloy Contacts for Enhanced Conductivity

    • With copper alloy contacts, ensure superior electrical conductivity and corrosion resistance, maintaining reliable performance in harsh environments. This material outperforms plastic-based connectors in durability and longevity*.

  • 2. Robust PCB Mount Design for Secure Integration

    • With a metal-reinforced housing and PCB mount configuration, securely attach to circuit boards while withstanding frequent plug-in cycles. This design reduces mechanical wear compared to plastic-mounted alternatives*.

  • 3. High-Performance 3A Current & 16-Pin Configuration

    • Supporting up to 3A current and a 16-pin layout, enable fast data transfer and power delivery for demanding electronics. This outperforms lower-pin connectors in applications requiring high bandwidth and power efficiency*.

  • 4. Customizable Pin Configurations for Versatile Applications

    • With customizable pin options (4p to 24p), adapt to diverse PCB designs and power/data requirements. This flexibility caters to specialized electronics manufacturing needs compared to fixed-pin solutions*.

  • 5. USB Type-C Compatibility for Future-Proof Connectivity

    • Designed for USB Type-C standards, eliminate insertion errors and reduce port wear with its reversible plug compatibility. This aligns with modern devices and surpasses older USB types in user convenience*.

Product details

Usb Type C Connector Female Pcb Mount Micro Usb Socket 16Pin Custom Usb Connector

The USB Type-C Connector Female PCB Mount Micro USB Socket 16Pin is a versatile, customizable solution for high-performance electronics. Designed for PCB mounting, it combines durability with precision engineering to support applications requiring reliable power delivery and data transfer.

Technical specifications

FeatureSpecificationApplication Scenario
Connector TypeUSB Type-C Female SocketHigh-speed data transfer and power delivery
MaterialCopper Alloy (contacts), Alloy HousingEnsures conductivity and corrosion resistance
Pins16-pin (customizable: 4p–24p)Adaptable to device-specific power/data needs
Rated Current3A (Base), 4.5A (Advanced), 6A (Pro)Supports devices from standard to high-power
Contact MaterialCopper AlloyMaintains performance under frequent use
Core ConfigurationDual-core (data + power)Simultaneous power delivery and data transfer
CertificationsRoHS, UL ListedMeets global safety and environmental standards

Customization guide

Adjustable parameters include:

  • Pin Count: Customize from 4p to 24p to match device power/data requirements.
  • Material: Opt for copper alloy for conductivity or alloy housing for enhanced durability.
  • Current Rating: Select from 3A (Base), 4.5A (Advanced), or 6A (Pro) based on device power needs.

Get inspired

With its modular design and wide pin configuration options, this connector is ideal for IoT devices, smartphones, laptops, and industrial electronics. Pair it with high-speed data interfaces or high-current applications to unlock seamless integration into next-gen systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Current3A+50% (4.5A)+100% (6A)*
Contact Durability1,000 cycles3,000 cycles5,000 cycles
CompatibilityStandard USB-CUSB4 ReadyUSB4 + Thunderbolt
Temperature Range-20°C to 85°C-30°C to 105°C-40°C to 125°C

Supplier's note

  1. Technical Breakthroughs:

    • Copper Alloy Contacts: With 30% higher conductivity than standard alloys, enabling stable performance in high-temperature environments.
    • Dual-Core Design: Allows simultaneous power delivery (up to 6A) and data transfer (USB4 speeds), reducing the need for multiple connectors.
    • Extended Temperature Range: The Pro model’s -40°C to 125°C tolerance meets extreme industrial use cases.

  2. Version Selection Guidance:

    • Base Model: Ideal for basic consumer electronics (e.g., standard smartphones) requiring 3A power.
    • Advanced Model: Best for mid-range devices (e.g., tablets, gaming peripherals) needing faster charging (4.5A) and USB4 compatibility.
    • Pro Model: Tailored for industrial and high-end applications (e.g., robotics, medical devices) demanding 6A power and extreme durability.

Pro Model’s 6A rating exceeds industry benchmarks by 100%, enabling safe power delivery for high-current devices like drones or industrial sensors. Pair its copper alloy contacts with the 5,000-cycle durability to ensure longevity in heavy-use scenarios.

Frequently asked questions

  • Which USB Type-C connector model is best suited for high-current PCB applications?

  • How does copper alloy compare to brass in USB connector contacts?

  • Can the USB Type-C PCB socket be customized for specific pin configurations?

  • Is this USB Type-C socket RoHS-compliant and suitable for medical devices?

  • What advantages does USB Type-C offer over micro USB for PCB-mounted devices?

  • How do I select the right USB connector for compact PCB designs?

  • What applications are best for a 16-pin USB Type-C PCB socket?

  • Can this connector handle both data and power in embedded systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
USB Type-C ConnectorLaptops, smartphones, high-speed devices16-pin (ISO 7085), 3A rated current (Industry: 2A ▲1A), copper alloy contacts (ASTM B117 corrosion resistance)Reversible plug design; supports 20Gbps data (USB 3.2 Gen 2x2); 3A (fast charging for tablets)Higher cost than Type-A; requires compatible devices for full functionality
USB Type-ADesktop peripherals, legacy devices4-pin, 1.5A rated current, plastic housingUbiquitous compatibility; low costDirectional plug; limited current (e.g., 1.5A vs. Type-C’s 3A)
Micro USBOlder mobile devices, small electronics5-pin, 1.5A rated current, nickel alloy contacts (IEC 60601-1 safety standard)Compact design; lightweightProne to wear (plastic pins); slower charging (▲1.5A max)
USB Type-BPrinters, industrial equipment4-8 pins, 1.5A rated current, metal housingSecure, non-reversible connection; durable constructionBulky form factor; declining market adoption
USB 3.1 Gen 2High-speed data transfer (external drives, VR)10Gbps data rate (Industry USB 3.0: 5Gbps ▲5Gbps), 3A power deliveryUltra-fast data transfer; backward compatible with USB 2.0/3.0Requires compatible ports/cables; not optimized for high-power devices
USB-C with E-MarkerHigh-power devices (laptops, monitors)5A rated current (▲2A over Base), 100W power delivery, 24-pin (IEC 62680-1)Supports 100W charging (e.g., laptops); reversible plugCostly; needs E-Marker chip for PD compatibility; bulkier design
