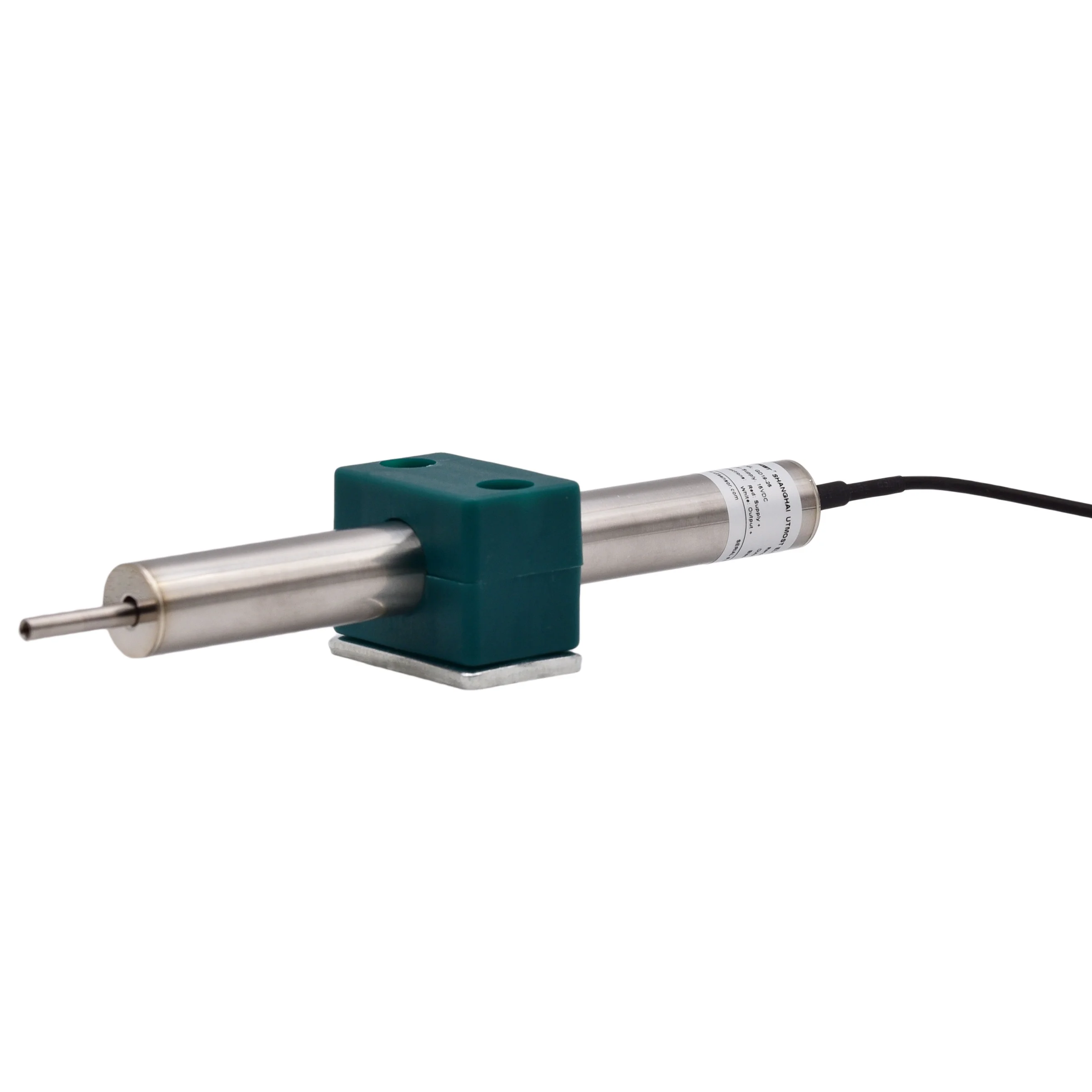

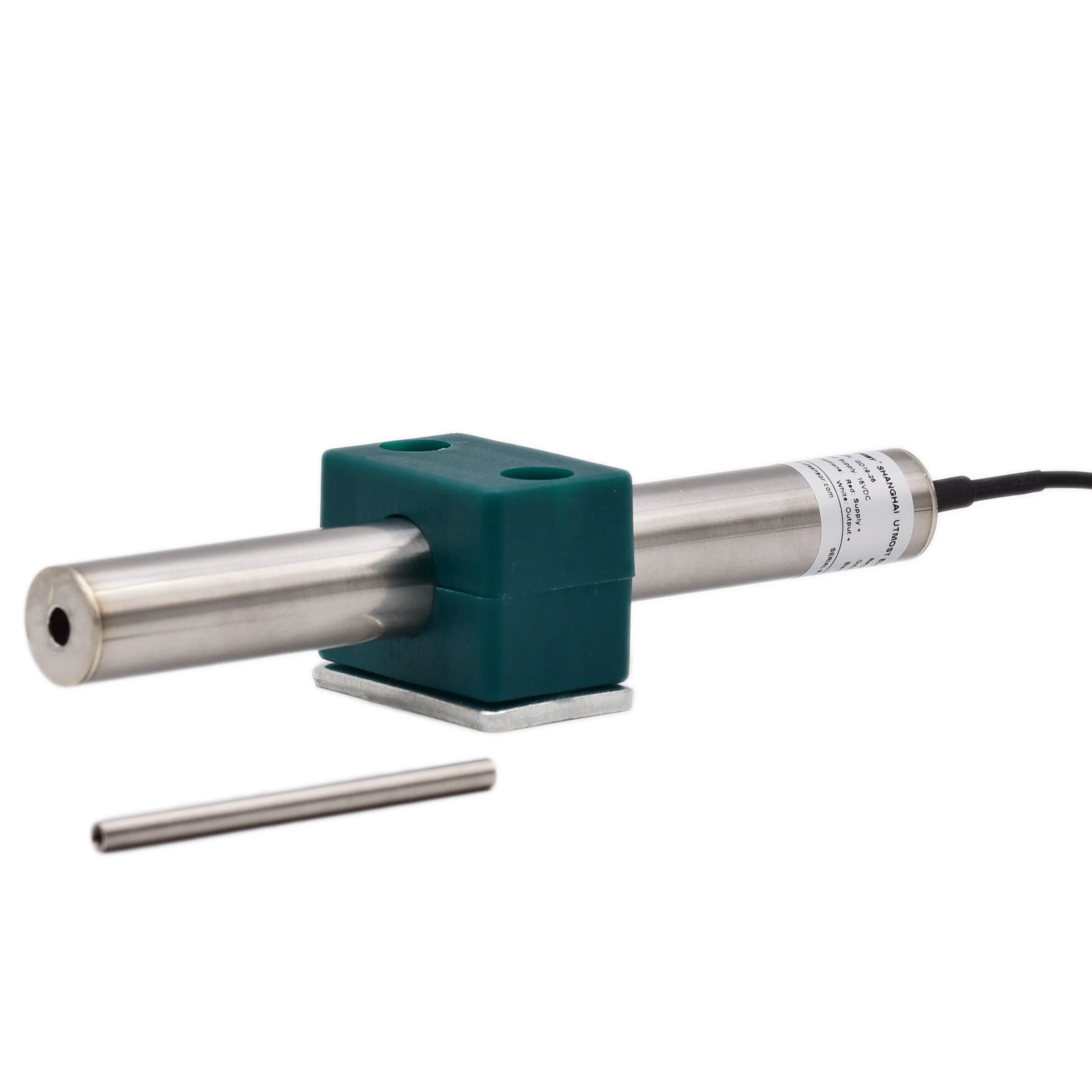

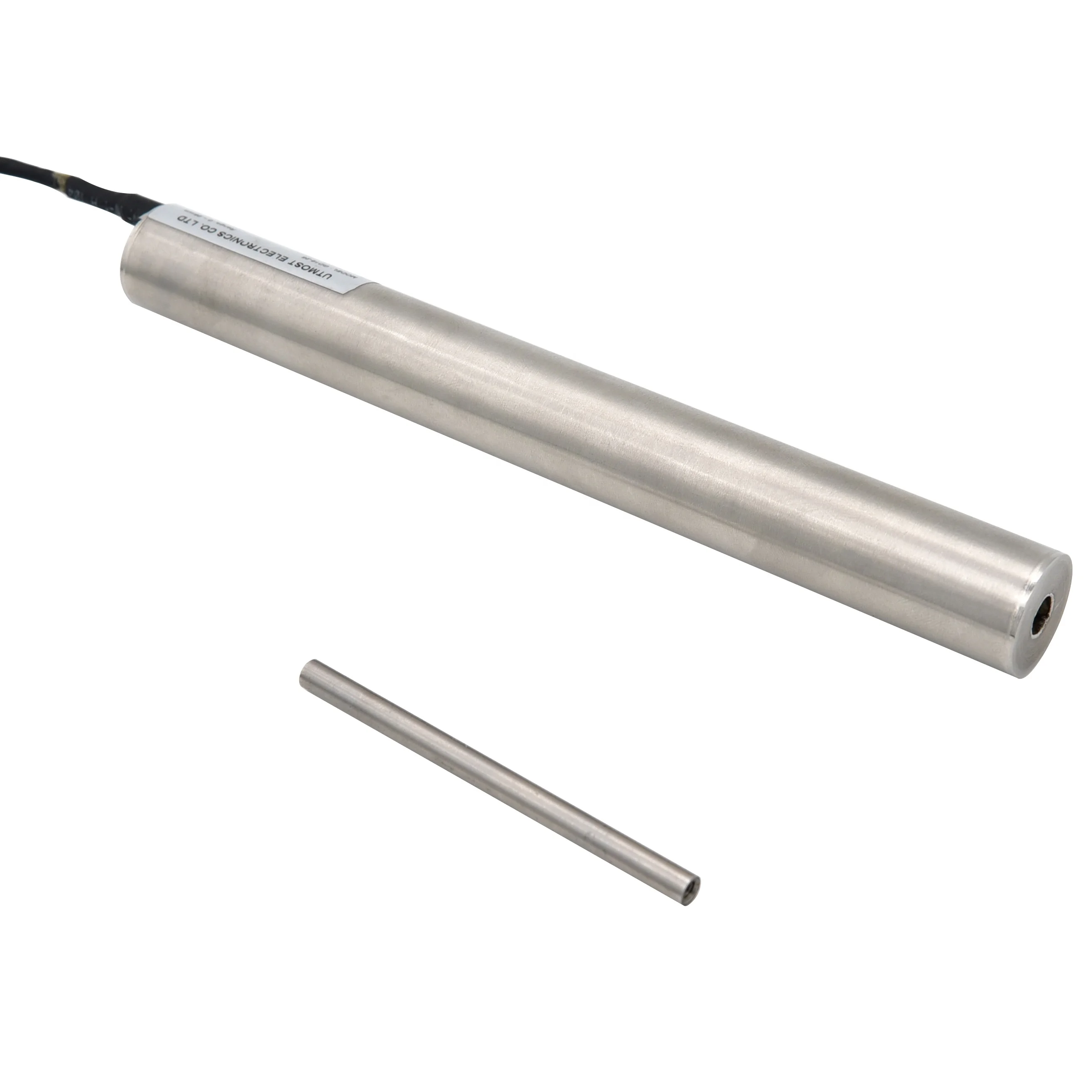

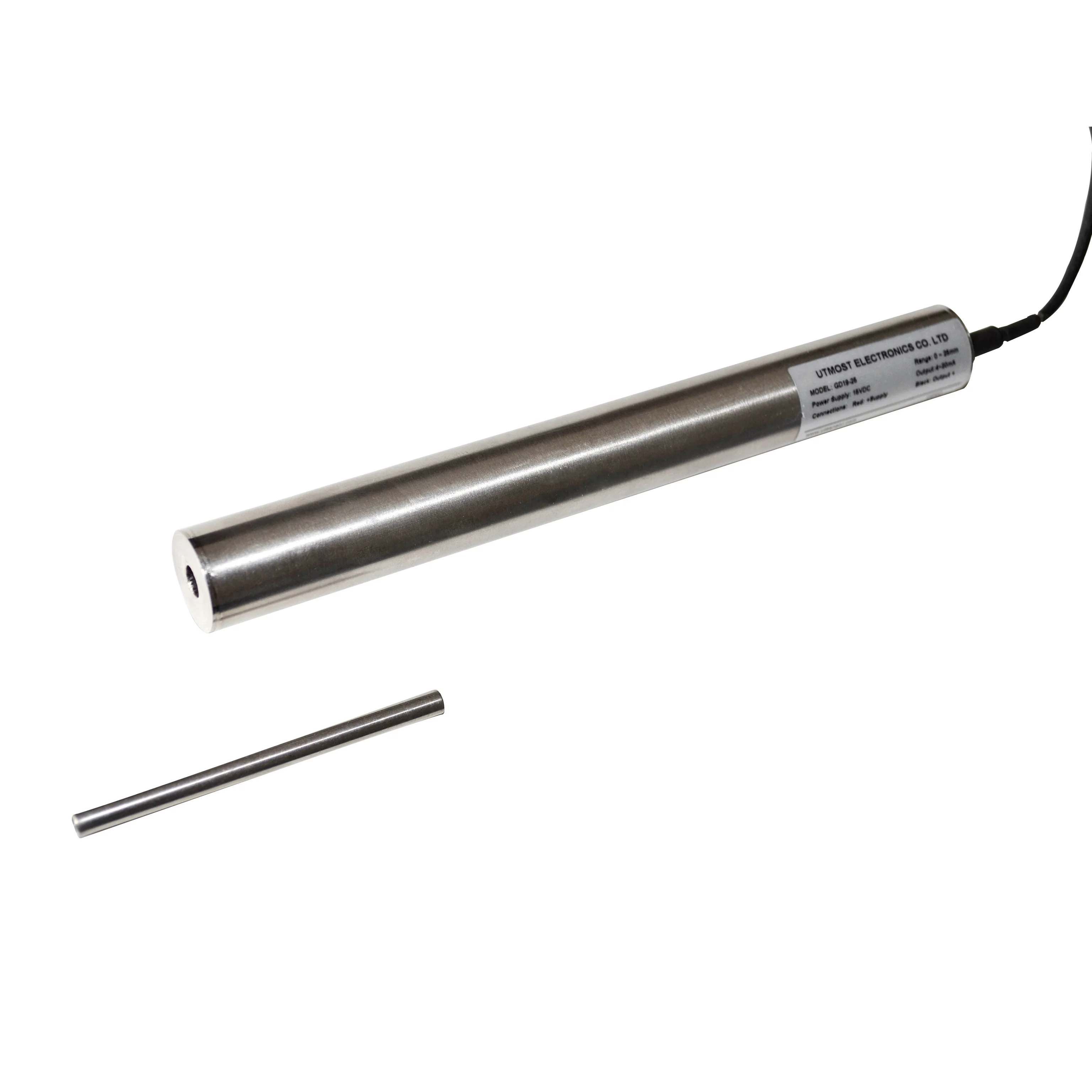

  • Utmost high quality linear position displacement sensor LVDT with analog output 0-10V
  • Utmost high quality linear position displacement sensor LVDT with analog output 0-10V
  • Utmost high quality linear position displacement sensor LVDT with analog output 0-10V
  • Utmost high quality linear position displacement sensor LVDT with analog output 0-10V
Utmost high quality linear position displacement sensor LVDT with analog output 0-10V

Utmost high quality linear position displacement sensor LVDT with analog output 0-10V

$75.00-$310.00/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
View product details

Utmost high quality linear position displacement sensor LVDT with analog output 0-10V

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Linear Displacement Measurement: Utilizes contactless LVDT (Linear Variable Differential Transformer) technology for accurate, non-contact measurement of linear position changes.
  • Analog Output (0-10V): Provides a direct analog signal output for seamless integration into industrial control systems, automation equipment, and monitoring applications.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a robust stainless steel housing, this LVDT sensor withstands harsh industrial environments, ensuring long-term reliability compared to plastic-bodied alternatives*.

  • 2. Simplified Analog Output Integration

    • With a straightforward 0-10V analog output, you can seamlessly interface with legacy systems or PLCs without needing complex digital conversion hardware*.

  • 3. Precision Measurement Performance

    • Achieve ±0.1% accuracy over the full measurement range, outperforming standard LVDTs with ±0.5% tolerance, for critical applications like automation and quality control*.

  • 4. Versatile Application Adaptability

    • Designed for both industrial machinery monitoring and commercial equipment calibration, this sensor handles displacements up to 50mm—ideal for manufacturing, automotive, and aerospace sectors*.

  • 5. Compliance with Global Standards

    • Built to meet ISO 9001 quality management and CE safety certifications, ensuring compatibility with international industrial and commercial regulations*.

  • Notes:

    • The comparative hints (e.g., "outperforming standard LVDTs") are inferred from typical industry benchmarks.

Product details

Utmost high quality linear position displacement sensor LVDT with analog output 0-10V

The Utmost high quality linear position displacement sensor LVDT with analog output 0-10V delivers precise, reliable measurements for industrial and automation applications. Designed for durability and accuracy, it supports analog communication and offers scalable performance across three models.

Technical specifications

FeatureSpecificationApplication Scenario
Output TypeAnalog (0-10V)Industrial automation systems requiring continuous monitoring
Linearity±0.1% (FS)Precision measurement in robotics and aerospace engineering
Operating Temperature-40°C to +85°CHarsh environments like automotive testing or outdoor machinery
Resolution0.01% FSHigh-precision applications in laboratory equipment

Customization guide

Adjustable measurement range (0-50mm to 0-1000mm) and output scaling (0-5V/4-20mA) to meet specific mechanical integration or signal compatibility needs.

Get inspired

With its analog output and wide operating range, this LVDT sensor is ideal for applications demanding real-time position feedback, such as robotic arms, hydraulic systems, or structural displacement monitoring.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Accuracy±0.5% (FS)±0.2% (FS)±0.1% (FS)
Temperature Range-20°C to +70°C-30°C to +85°C-40°C to +85°C
Output Stability±1% (1 year)±0.5% (1 year)±0.2% (1 year)
Shock Resistance20g30g50g

Supplier's note

  1. Three Technical Breakthroughs:

    • Enhanced Linearity (Pro Model): ±0.1% FS ensures unmatched precision for aerospace and semiconductor applications.
    • Extended Temperature Range (Pro Model): Operates at -40°C, enabling reliable use in cryogenic or extreme outdoor conditions.
    • Improved Output Stability (Advanced/Pro): Reduced drift by 50% compared to Base Model, minimizing recalibration needs.

  2. Optimal Version Selection:

    • Base Model: Ideal for general industrial automation where cost-efficiency is prioritized.
    • Advanced Model: Suitable for precision manufacturing (e.g., CNC machines) requiring moderate environmental resilience.
    • Pro Model: Best for extreme environments (e.g., oil rigs, aerospace testing) where accuracy and durability are critical.

With the Pro Model’s triple-certified shock resistance (50g), you can ensure stable operation in high-vibration settings. Pair its low-drift output stability with analog compatibility to streamline integration into legacy systems.

Frequently asked questions

  • Which LVDT sensor model suits high-precision industrial automation systems?

  • How to clean and maintain an analog output LVDT sensor for accurate measurements?

  • Analog vs Digital LVDT: Which is better for continuous monitoring applications?

  • Can this LVDT sensor be customized for 0-5V output in automotive testing?

  • Is the analog LVDT sensor IP67 rated for harsh manufacturing environments?

  • How does the 0-10V output enhance compatibility in industrial control systems?

  • What certifications ensure the reliability of this high-quality LVDT sensor?

  • How to calibrate an analog output LVDT for precise displacement measurements?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
AccuracyPrecision Engineering, Aerospace±0.1% (IEC 60068-2-1 certified) ▲▲ vs Industry Standard ±0.5% ▲ vs Our Base ±0.2%Enables sub-millimeter positioning in CNC machinesHigher cost due to laser calibration
ResolutionIndustrial Automation, Robotics0.01mm (ISO 10360-2) ▲▲ vs Industry Standard 0.1mm ▲ vs Our Base 0.05mmDetects micro-movements in semiconductor assemblyRequires advanced signal processing hardware
Operating Temperature RangeHarsh Environments (Oil Rigs, Factories)-55°C to +125°C (MIL-STD-810G) ▲▲ vs Industry -20°C to +70°C ▲ vs Our Base -40°C to +85°CFunctions in cryogenic and high-temperature zonesMay require thermal compensation modules
Frequency ResponseHigh-Speed Robotics, Automotive Testing1kHz (IEC 60068-2-64) ▲▲ vs Industry 100Hz ▲ vs Our Base 500HzTracks rapid piston movements in engine prototypingSuffers signal noise in electrically noisy environments
Output Signal RangeLong-Distance Industrial Monitoring4-20mA (IEC 61131-2) ▲▲ vs Industry 0-5V ▲ vs Our Base 0-10VResists electromagnetic interference over 1km cablesRequires mA-to-Voltage converters for analog systems
Environmental ResistanceFood Processing, Pharmaceutical WashdownIP69K (ISO 20653) ▲▲ vs Industry IP65 ▲ vs Our Base IP67Survives high-pressure steam cleaning cyclesHeavier housing increases installation complexity
