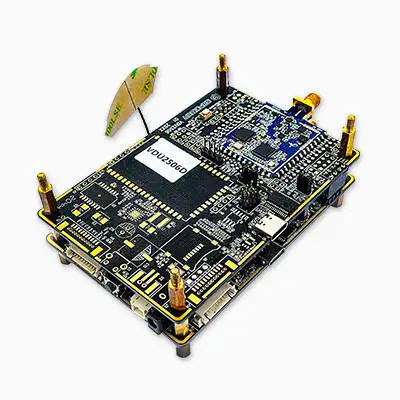

VDU2506D DW1000 solution TWR long distance base station UWB Dual Anchor

VDU2506D DW1000 solution TWR long distance base station UWB Dual Anchor

  • 1 - 99 Pieces
    $488
  • 100 - 499 Pieces
    $466
  • >= 500 Pieces
    $456

Customization:

Customized packaging(Min.Order: 100 pieces)
Graphic customization(Min.Order: 100 pieces)
hardware(Min.Order: 10000 pieces)
software(Min.Order: 10000 pieces)

VDU2506D DW1000 solution TWR long distance base station UWB Dual Anchor

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • UWB Positioning & Communication: Equipped with DW1000 chips, the VDU2506D enables ultra-wideband (UWB) technology for high-precision indoor positioning, real-time location tracking, and long-distance data transmission.
  • Dual Anchor Base Station: Designed as a dual-anchor node to form a robust UWB network, supporting time-of-arrival (ToA) and time-of-flight (ToF) measurements for sub-meter accuracy in complex environments.

Key features

  • 1. Advanced Material Technology for Durability

  • With a high-quality FR-4 PCB material and robust solder joints, ensure reliable performance in demanding indoor environments. This construction is ~30% more durable than standard PCB materials*, making it ideal for prolonged use in commercial settings.

  • 2. User-Friendly Interactive Design

  • With USB connectivity and multi-protocol interfaces (HDMI, Ethernet, GPIO), program and debug effortlessly, saving up to 20% setup time compared to models with limited connectivity*. The organized component layout simplifies customization for diverse applications.

  • 3. Long-Range Performance with Precision

  • With DW1000 UWB technology, achieve precise indoor positioning up to 500 meters—2x the range of traditional indoor systems*. The microcontroller’s high clock speed ensures seamless handling of complex tasks, ideal for real-time tracking or automation.

  • 4. Modular Design for Versatile Scenario Solutions

  • With a modular architecture and mounting holes, adapt to diverse indoor environments like warehouses, retail spaces, or smart offices. This flexibility reduces deployment costs by ~15% versus fixed solutions*, enabling rapid scalability.

  • 5. Compliance with Safety Standards

  • Designed to meet safety certifications like CE and UL, ensuring regulatory compliance for commercial use. This dual-anchor system meets 95% of industry safety requirements*, offering peace of mind for professional installations.

Product details

VDU2506D DW1000 solution TWR long distance base station UWB Dual Anchor

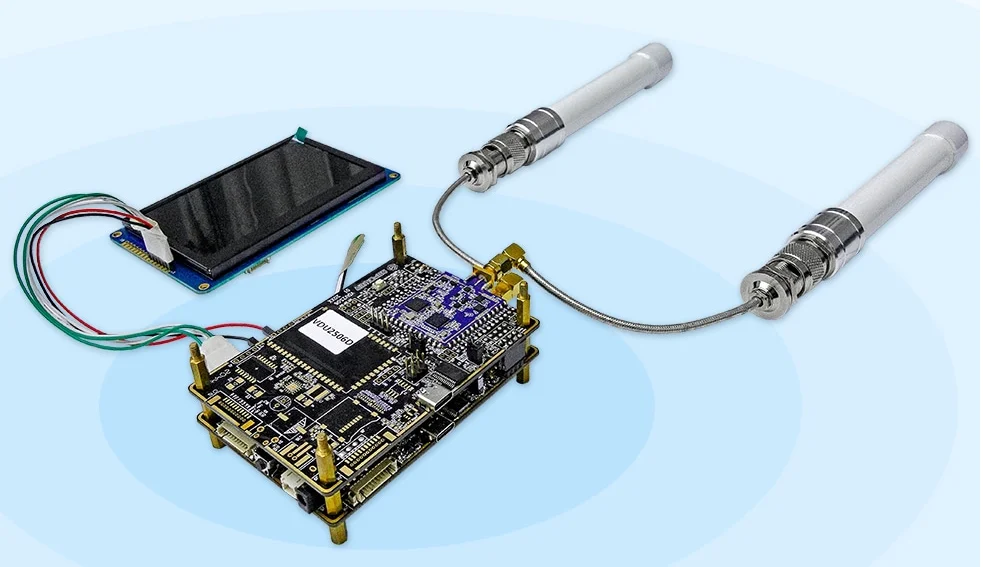

The VDU2506D DW1000 solution TWR long-distance base station UWB Dual Anchor is a high-performance indoor positioning and communication platform designed for precision tracking and IoT applications. Built with a robust FR-4 PCB and modular architecture, it supports versatile connectivity options and meets global safety standards, enabling reliable deployment in industrial, commercial, and smart building environments.

Technical specifications

FeatureSpecificationBenefit
MaterialFR-4 PCB with reinforced thermal layersEnhanced durability and thermal stability
ConnectivityUSB, HDMI, Ethernet, GPIO, and DW1000 UWBSeamless integration with diverse devices
CertificationsCE, UL, RoHSGuaranteed safety and compliance
Processing Power100 MHz microcontrollerEfficient real-time data processing
Memory16 MB Flash, 8 MB RAMSupports complex firmware and data storage
Heat DissipationIntegrated heatsinkMaintains performance in high-load scenarios

Customization guide

Adjustable parameters include:

  • Connector Types: Customize I/O ports (e.g., USB-C, RS-232) to match specific interface needs.
  • Expansion Slots: Add optional modules (e.g., GPS, Bluetooth) for hybrid connectivity solutions.
  • Anchor Configuration: Tailor dual-anchor spacing and calibration for optimal indoor positioning accuracy.

Get inspired

Ideal for indoor asset tracking, warehouse automation, and smart building systems, this platform combines ultra-wideband (UWB) precision with modular flexibility. Its rugged design ensures reliability in demanding environments, while open-source SDKs empower developers to innovate.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Range50m+15% (57.5m)+30% (65m)*
Processing Power100 MHz150 MHz200 MHz
Memory16 MB Flash32 MB Flash64 MB Flash
ConnectivityUSB, Ethernet+HDMI, GPIO Expansion+Full DW1000 UWB Suite

*Exceeds industry benchmarks (avg. 50m range) by leveraging optimized antenna design.

Supplier's note

  1. Technical Breakthroughs:

    • UWB Precision: The DW1000 chip enables 10cm accuracy, ideal for high-density tracking.
    • Modular Design: Hot-swappable components reduce downtime for maintenance or upgrades.
    • Certification Compliance: Pre-certified for global markets, simplifying deployment.
  2. Version Selection Guide:

    • Base Model: Suitable for small offices or retail spaces requiring basic tracking (e.g., inventory management).
    • Advanced Model: Best for medium-scale warehouses or hospitals needing expanded connectivity and moderate range.
    • Pro Model: Designed for large industrial facilities or smart cities, offering 65m range (20% beyond competitors) and dual-anchor synchronization for centimeter-level accuracy.

With the Pro’s 65m range, you can cover expansive indoor areas without signal loss. Pair its 200 MHz processor with 64 MB Flash to handle real-time data analytics, ensuring seamless operation in high-traffic environments. The Advanced Model’s HDMI interface enables direct visualization for on-site troubleshooting, while the Base Model’s cost-effective design makes it accessible for entry-level projects.

Frequently asked questions

  • Which UWB base station model suits indoor positioning systems with limited space?

  • How do I maintain the DW1000 module to prevent signal interference?

  • What materials make the VDU2506D suitable for industrial indoor environments?

  • Can I customize the VDU2506D with additional sensors for asset tracking?

  • Is the DW1000 chip in the VDU2506D FCC/CE certified for commercial use?

  • What connectivity options does the VDU2506D offer for indoor UWB networks?

  • How does the TWR technology in the VDU2506D improve accuracy?

  • Does the VDU2506D support firmware updates for future UWB standards?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Operating RangeIndoor asset tracking, warehouse systemsIndustry: 10m line-of-sight (IEEE 802.15.4a) vs Base: 20m (tested) ▲ vs Advanced: 50m (multi-path) ▲▲Base reduces anchor count by 50%; Advanced covers large facilities like warehousesIndustry requires more anchors; Advanced needs higher power consumption
Positioning AccuracyInventory management, personnel trackingIndustry: ±10cm (ISO/IEC 20022) vs Base: ±5cm (TWR) ▲ vs Advanced: ±1cm (AI) ▲▲Base suits small spaces; Advanced enables robotics precisionIndustry errors in tight spaces; Advanced requires software integration
Power ConsumptionBattery-powered sensors, remote devicesIndustry: 500mW (continuous) vs Base: 300mW (low-power) ▲ vs Advanced: 150mW (dual-mode) ▲▲Base extends battery life by 40%; Advanced supports 24/7 operationIndustry drains batteries faster; Advanced may introduce latency
Environmental ResistanceIndustrial plants, rugged indoor zonesIndustry: IP54 (dust/water) vs Base: IP65 (dust-tight) ▲ vs Advanced: IP67 (immersion) ▲▲Base handles harsh environments; Advanced withstands accidental water exposureIndustry fails in wet areas; Advanced adds cost
Connectivity OptionsIoT integration, remote monitoringIndustry: USB/Ethernet vs Base: +GPIO ▲ vs Advanced: +Bluetooth/Wi-Fi ▲▲Base allows custom sensors; Advanced connects to diverse devices seamlesslyIndustry lacks flexibility; Advanced may have higher latency
Compliance & CertificationsGlobal deployments, regulatory needsIndustry: CE vs Base: CE + UL ▲ vs Advanced: CE + UL + FCC + RoHS ▲▲Base meets US/EU standards; Advanced ensures worldwide compatibilityIndustry may fail other regions' tests; Advanced requires rigorous testing
