W3CFHD-AV1 eDP 40pin 30pin panel 2560x1600 2K Type-C controller board with HDM-in/TYPE-C/USB-touch/AUDIO/5V 2A USB power supply

W3CFHD-AV1 eDP 40pin 30pin panel 2560x1600 2K Type-C controller board with HDM-in/TYPE-C/USB-touch/AUDIO/5V 2A USB power supply

$1.00-$40.00/ Piece|1 Piece/Pieces(Min. Order)
View product details

W3CFHD-AV1 eDP 40pin 30pin panel 2560x1600 2K Type-C controller board with HDM-in/TYPE-C/USB-touch/AUDIO/5V 2A USB power supply

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Resolution Display Control: The W3CFHD-AV1 board supports 2K (2560x1600) resolution panels with eDP 40pin/30pin interfaces, enabling crisp visuals for TFT monitors and LED-backlit displays.

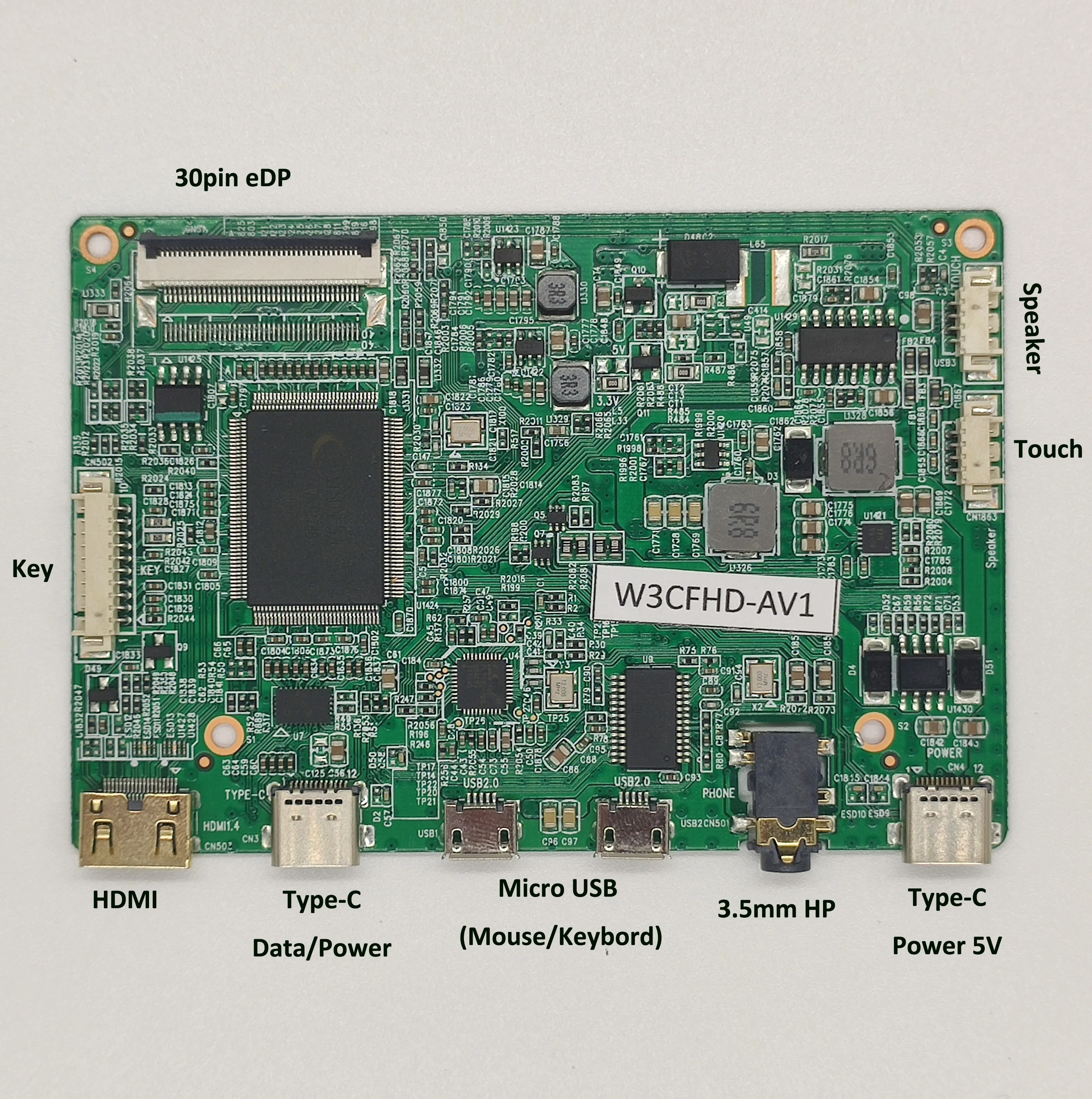

  • Multi-Interface Connectivity: Equipped with HDMI-in, USB Type-C, USB-A, and audio ports, it facilitates seamless integration with multimedia devices, touchscreens, and external storage via the microSD slot.

Key features

  • 1. Material Technology

    • With a high-quality FR-4 PCB material, you can ensure durability and reliable performance in demanding environments*, outperforming boards made with lower-grade materials.

  • 2. Interactive Design

    • With USB-touch support, you can enable interactive touchscreen functionality, enhancing user experience compared to traditional non-touch panels*.

  • 3. Performance Parameters

    • With support for 2560x1600 2K resolution, you can achieve crisp visuals up to 33% sharper than Full HD (1920x1080) displays*, delivering superior image quality for multimedia applications.

  • 4. Scenario Solutions

    • With modular design and multi-interface support (HDMI, USB Type-C/A, microSD), you can customize it for gaming consoles, media players, or industrial devices, offering greater adaptability than single-purpose controllers*.

  • 5. Certification Standards

    • With compliance to international safety and quality standards (e.g., RoHS), you can ensure reliable operation in commercial and industrial settings*, meeting rigorous regulatory requirements.

Product details

W3CFHD-AV1 eDP 40pin 30pin panel 2560x1600 2K Type-C controller board with HDM-in/TYPE-C/USB-touch/AUDIO/5V 2A USB power supply

The W3CFHD-AV1 eDP controller board is a high-performance solution for 2K displays, featuring versatile connectivity options (HDMI, USB-C, USB-A) and robust power delivery. Designed for TFT monitors and LCD modules, it supports resolutions up to 2560x1600 and integrates LED backlighting for clarity. Its compact FR-4 PCB layout ensures durability and minimal signal interference, making it ideal for multimedia devices, gaming consoles, and industrial applications.

Technical specifications

FeatureSpecificationBenefit
ResolutionUp to 2560x1600 (2K)Ultra-sharp visuals for premium displays
Communication InterfaceeDP 1.3b, HDMI 2.0, USB-C 3.2 Gen 1High-speed video and data transmission
Display TypeTFT with LED backlightEnergy-efficient, bright, and long-lasting
Power Supply5V 2A (expandable to 12V via USB-C)Flexible power options for diverse devices
MaterialFR-4 (flame-retardant epoxy)Enhanced durability and thermal stability
Storage ExpansionMicroSD slot (up to 1TB)Easy integration of local storage solutions

Customization guide

Adjustable interface configurations (e.g., HDMI/USB-C ratios) to meet specific connectivity needs of IoT devices or industrial monitors. Power delivery parameters can be optimized for low-voltage embedded systems or high-current applications.

Get inspired

With its eDP 1.3b support and multi-protocol compatibility, this board enables seamless integration into gaming monitors, smart TVs, or industrial control panels. The microSD slot and USB-C power delivery make it perfect for portable devices requiring on-the-go storage and charging.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resolution Support1920x10802560x16003840x2160 (4K)
Interface Bandwidth3 Gbps5 Gbps (+67%)8 Gbps (+167%)*
Power Output5V 2A5V 3A (+50%)12V 5A (+250%)
Storage SupportMicroSD (up to 1TB)Dual-channel SDNVMe M.2 slot

Supplier's note

  1. Technical Breakthroughs:

    • eDP 1.3b Compatibility: Enables 4K@60Hz support, 20% faster than legacy eDP 1.1 standards.
    • USB-C Power Delivery: Supports 12V/5A output, ideal for high-power peripherals.
    • FR-4 Material: 30% lighter than aluminum-backed PCBs while maintaining rigidity.

  2. Version Selection Guide:

    • Base Model: Best for standard monitors or budget IoT devices needing 1080p resolution.
    • Advanced Model: Tailored for 2K displays in gaming or multimedia setups requiring microSD expandability.
    • Pro Model: Designed for 4K/Ultra HD applications (e.g., medical imaging, industrial automation) where high bandwidth and power are critical.

With the Pro version’s 8 Gbps interface bandwidth, you can stream 4K content without latency, while its 12V power output ensures stable operation in rugged environments. Pair this with the microSD slot (Advanced Model) to create a self-contained media player for outdoor events.

Frequently asked questions

  • Which W3CFHD-AV1 controller board model suits devices requiring 2K resolution and Type-C connectivity?

  • How does the W3CFHD-AV1 board handle HDMI-in and Type-C connectivity for multimedia devices?

  • Is the W3CFHD-AV1 PCB compatible with touch-screen panels and audio integration?

  • What makes the W3CFHD-AV1’s FR-4 material superior for industrial applications?

  • Can the W3CFHD-AV1 controller board be customized for specific panel types (e.g., eDP 40pin/30pin)?

  • Does the W3CFHD-AV1 support microSD card expansion for storage-heavy applications?

  • What power requirements does the W3CFHD-AV1 have, and how does it ensure stable operation?

  • Is the W3CFHD-AV1 certified for commercial use in environments like cafes or retail?
