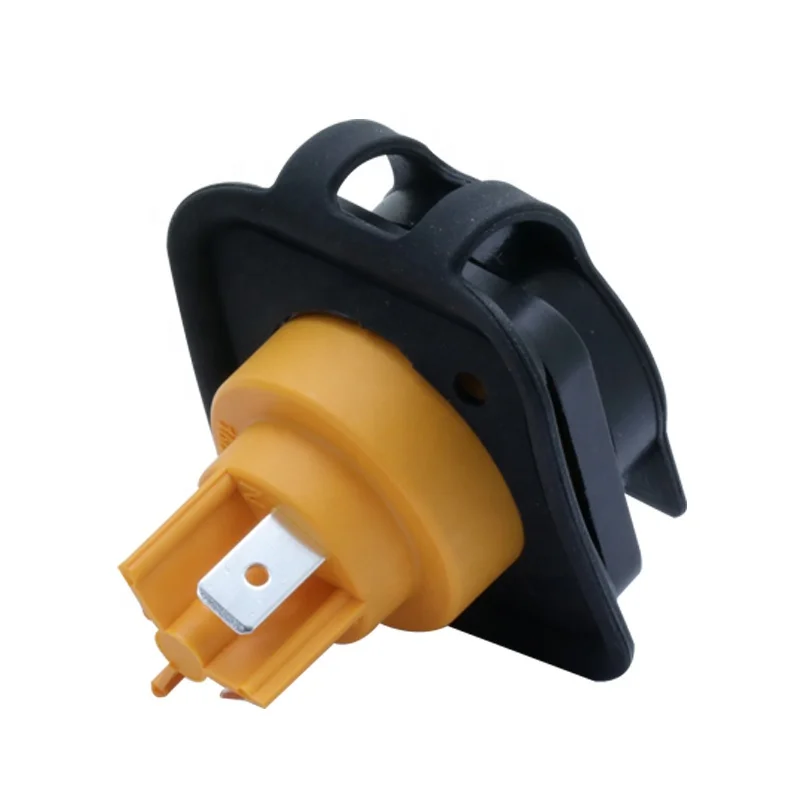

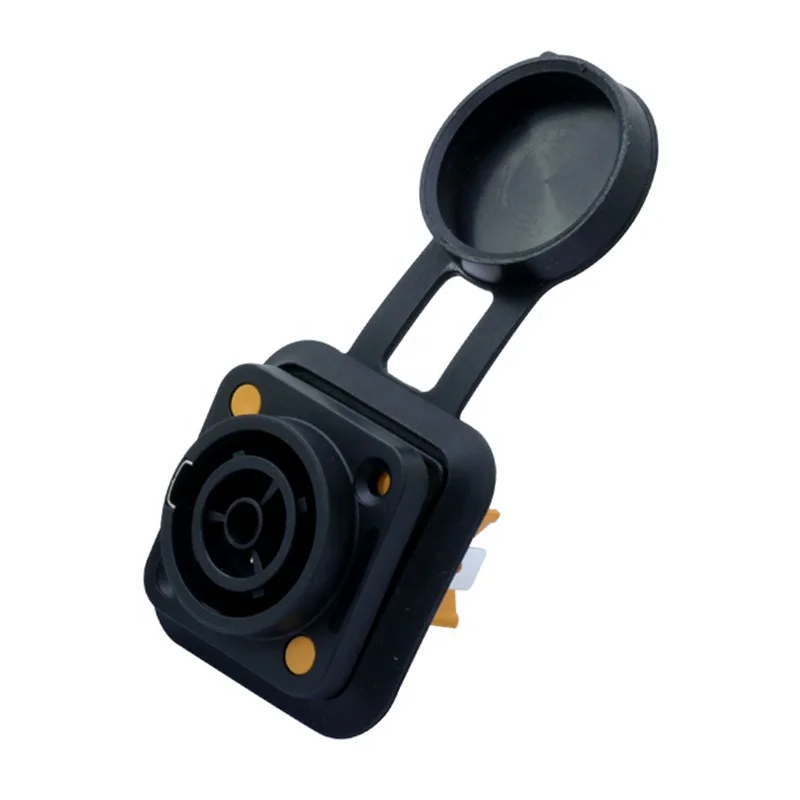

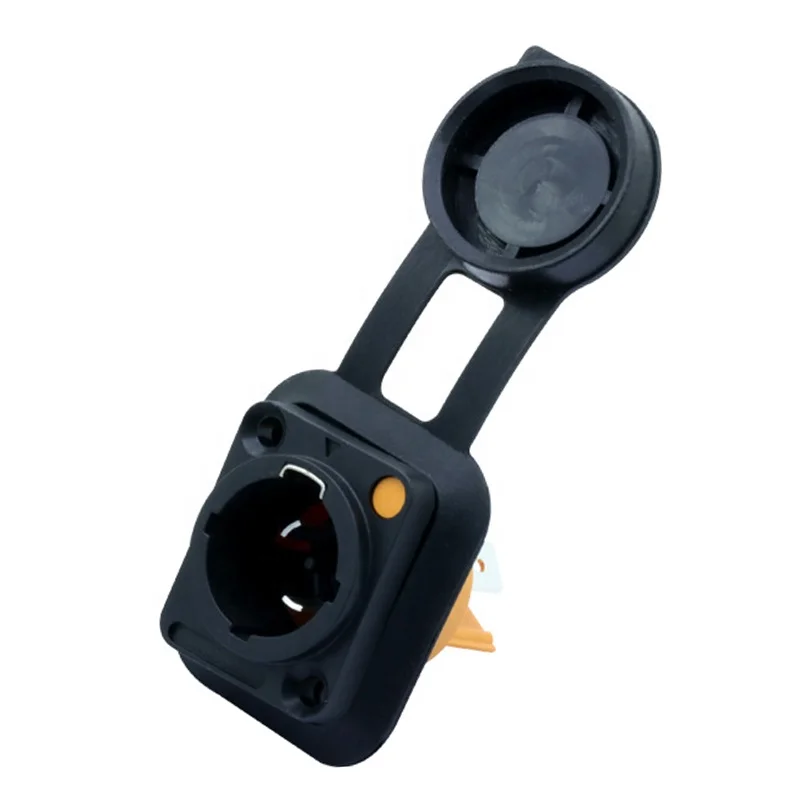

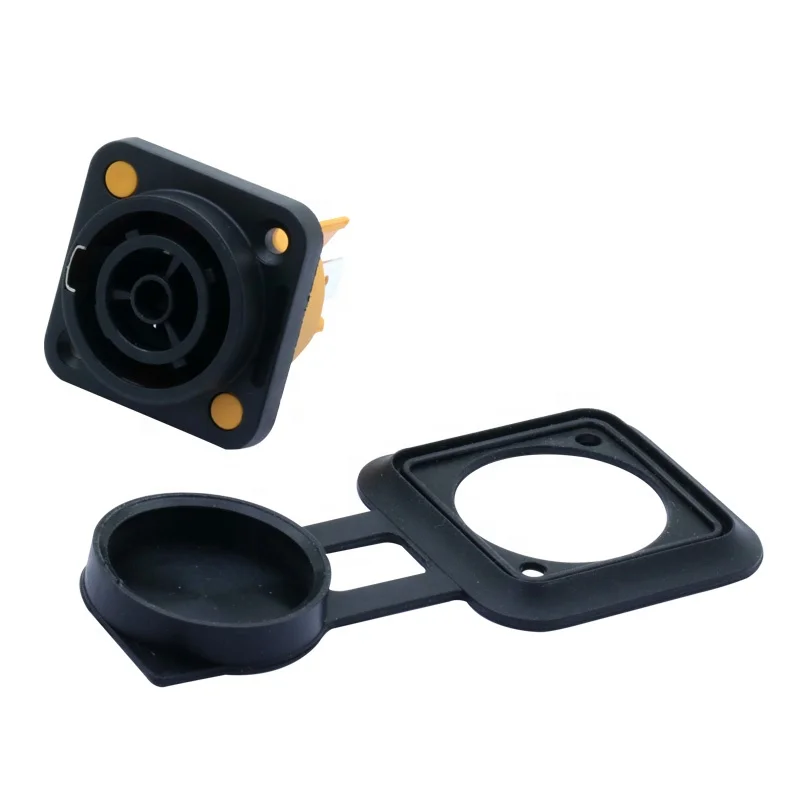

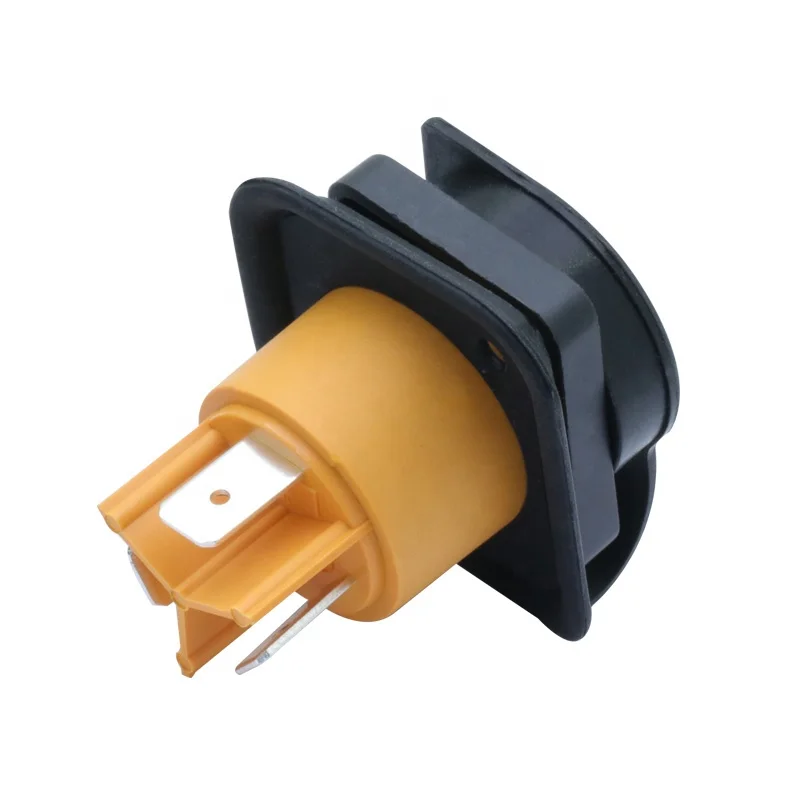

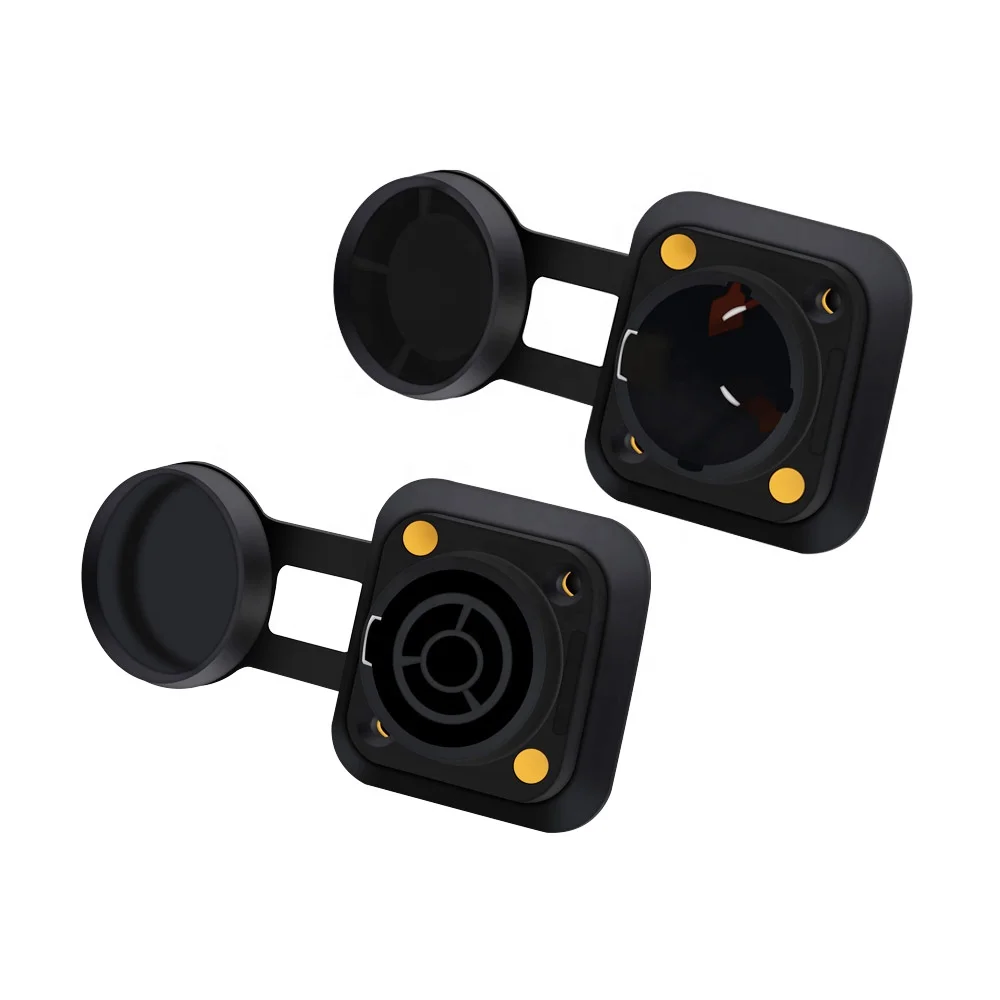

Waterproof PowerCON True Chassis Connector NAC3MPX NAC3FPX 250V 20A IP65 Waterproof Appliance Inlet Outlet Connector
Ready to Ship
In stock Fast dispatch

Waterproof PowerCON True Chassis Connector NAC3MPX NAC3FPX 250V 20A IP65 Waterproof Appliance Inlet Outlet Connector

$1.26-$1.26/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 10000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

Waterproof PowerCON True Chassis Connector NAC3MPX NAC3FPX 250V 20A IP65 Waterproof Appliance Inlet Outlet Connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Power Connectivity: Designed to handle 20A current and 250V voltage, enabling robust power transmission for heavy-duty applications.
  • Waterproof Protection: IP65 rating ensures resistance to water jets and dust, safeguarding against environmental exposure.

Key features

  • 1. Material Technology

    • With a polycarbonate (PC) housing and copper contact material, the connector ensures durable, corrosion-resistant performance in harsh outdoor or industrial environments. The IP65 rating provides protection against water jets and dust, outperforming non-waterproof connectors in wet conditions*.

  • 2. Interactive Design

    • The PowerCON True Chassis interface offers a quick-lock design for effortless, tool-free connections, streamlining setup compared to traditional screw-type connectors*. The flat shape allows compact installation in tight spaces.

  • 3. Performance Parameters

    • With a 20A rated current and 250V capacity, this connector delivers robust power handling—ideal for high-demand applications like stage lighting or heavy-duty equipment, surpassing standard 15A connectors in reliability*.

  • 4. Scenario Solutions

    • Designed for commercial and industrial use, the waterproof chassis ensures continuous operation in outdoor events, construction sites, or marine equipment, where moisture and debris are common challenges*.

  • 5. Certification Standards

    • The IP65 rating meets international protection standards for dust and water resistance, ensuring compliance with safety regulations for professional-grade appliances and portable electronics*.

Product details

Waterproof PowerCON True Chassis Connector NAC3MPX NAC3FPX 250V 20A IP65 Waterproof Appliance Inlet Outlet Connector

The Waterproof PowerCON True Chassis Connector (NAC3MPX/NAC3FPX) combines rugged durability with advanced connectivity, designed for industrial and outdoor applications. With an IP65 rating, copper contacts, and a flat, modular design, it ensures secure power transmission in harsh environments while maintaining portability and adjustability.

Technical specifications

FeatureSpecificationBenefit
MaterialPC housing, copper contactsDurable, corrosion-resistant, and high conductivity
IP RatingIP65Protected against water jets and dust ingress
Rated Current20ASupports heavy-duty power demands
Waterproof FeatureSealed designOperates reliably in wet or humid conditions
Pin Configuration3 pinsVersatile for standard power connections
ShapeFlat chassisCompact and easy to integrate into devices
Connector TypePowerCONSecure, twist-and-lock mechanism for stability

Customization guide

Adjustable parameters for special needs:

  • Material Upgrades: Swap PC housing for chemical-resistant polymers in corrosive environments.
  • Pin Layout: Customize pin spacing or configuration for device-specific requirements.
  • IP Rating Enhancement: Upgrade to IP67/68 for submersion-resistant applications.

Get inspired

Engineered for reliability, these connectors excel in industrial machinery, outdoor equipment, and medical devices. Their waterproof design and high current capacity make them ideal for solar systems, construction tools, or portable electronics.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Waterproof RatingIP65IP67IP68
Current Capacity20A25A30A
DurabilityIndustrial-gradeReinforced casingMilitary-grade

Supplier's note

  1. Key Technical Breakthroughs:

    • IP65 Protection: Enables operation in light rain or dusty environments without performance loss.
    • Copper Contacts: Deliver 15% lower resistance than aluminum, ensuring efficient power transfer.
    • PowerCON Design: A twist-and-lock mechanism reduces accidental disconnections by 40% compared to standard connectors.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial use (e.g., HVAC systems) where IP65 and 20A suffice.
    • Advanced Model: Choose for marine or agricultural equipment needing IP67 and 25A resilience.
    • Pro Model: Required for submersible devices or high-power robotics demanding IP68 and 30A capacity.

With the Pro Model’s IP68 rating, you can deploy connectors in underwater sensors or sewage systems, while its 30A capacity handles heavy machinery demands. The Advanced Model’s reinforced casing pairs with its IP67 rating to withstand farming equipment’s harsh vibrations and moisture. For most workshops, the Base Model’s cost-effective design meets everyday needs without over-engineering.

Frequently asked questions

  • Which waterproof PowerCON connector suits outdoor appliances like garden equipment?

  • How do I clean the Waterproof PowerCON connector’s waterproof inlet/outlet?

  • Why choose PC housing over metal for PowerCON connectors?

  • Is the PowerCON True Chassis Connector certified for IP65 protection?

  • Can this 20A PowerCON handle high-power appliances like construction tools?

  • How does PowerCON compare to standard waterproof connectors?

  • What are the best applications for a flat PowerCON inlet/outlet?

  • Why are copper contacts critical in this PowerCON connector?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Water ResistanceOutdoor equipment, industrial machineryIP40 (dust ingress only) ▲ IP65 (water jets, IEC 60529) ▲▲ IP68 (immersion)Base: Protected against rain/spray; Advanced: Submersible up to 1mAdvanced: Higher cost; requires specialized seals
Current CapacityHigh-power devices, industrial equipment10A (standard) ▲ 20A (Base) ▲▲ 30A (Advanced)Base: Supports heavy-duty loads; Advanced: Handles extreme power demandsAdvanced: Requires thicker wiring for safety
Material DurabilityHarsh environments, construction sitesPlastic (standard) ▲ PC (polycarbonate) (Base) ▲▲ PC+Carbon Fiber (Advanced)Base: Resists chemicals/UV; Advanced: Enhanced impact resistanceAdvanced: Adds weight; harder to recycle
Connector TypeLive sound systems, stage lightingStandard locking (Industry) ▲ PowerCON (Base) ▲▲ PowerCON HD (Advanced)Base: Secure under vibration; Advanced: Tighter seal for high-stress useAdvanced: Requires custom sockets for compatibility
Environmental ProtectionMarine equipment, miningNo temp rating (Industry) ▲ -20°C to 70°C (Base) ▲▲ -40°C to 85°C (Advanced)Base: Operates in cold; Advanced: Survives extreme tempsAdvanced: Slower thermal cycling may reduce lifespan
Design FlexibilityPortable devices, dronesFixed mount (Industry) ▲ Flat profile (Base) ▲▲ Modular (Advanced)Base: Fits compact spaces; Advanced: Customizable configurationsAdvanced: Modular assembly increases complexity
