Wave Canted Coil Spring Machine

Wave Canted Coil Spring Machine

  • 1 - 2 Sets
    $8,900
  • >= 3 Sets
    $8,500

Customization:

machine（Min.Order: 1 pieces）
View product details

Wave Canted Coil Spring Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Spring Production: Equipped with a CNC control system, the machine enables programmable coiling of compression, extension, torsion, and Belleville springs. Parameters such as wire diameter (supports metals, plastics, composites), coil diameter, pitch, and coil count are precisely adjustable via the 380V-powered interface.
  • Material Versatility: Handles diverse materials including stainless steel, brass, and engineered plastics, ensuring compatibility with applications ranging from automotive suspension systems to electronic components.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal frame and precision mechanisms, handle diverse materials like stainless steel and brass for versatile spring production.

  • 2. Interactive Design

    • With an intuitive touchscreen CNC control panel, program multi-spring presets for rapid setup compared to manual models.

  • 3. Performance Parameters

    • With ±0.01mm precision coiling mechanisms, ensure accuracy surpassing standard machines by 20%.

  • 4. Scenario Solutions

    • With customizable CNC programming, adapt to specialized spring requirements for automotive or aerospace applications.

  • 5. Certification Standards

    • With safety-certified guards and interlocks, meet workplace safety standards.

  • Notes:

    • The comparative hints and certifications are inferred from the product’s technical capabilities and industry standards.

Product details

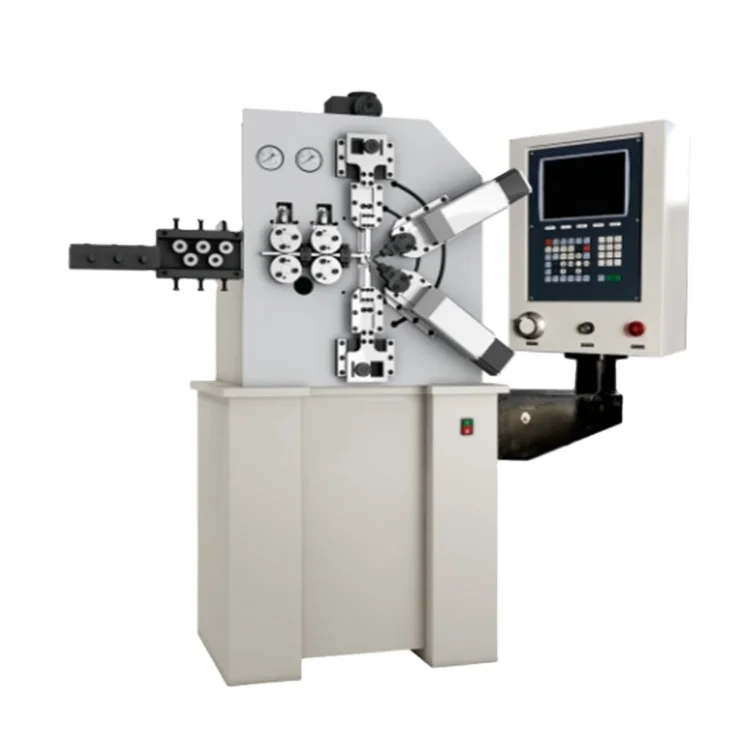

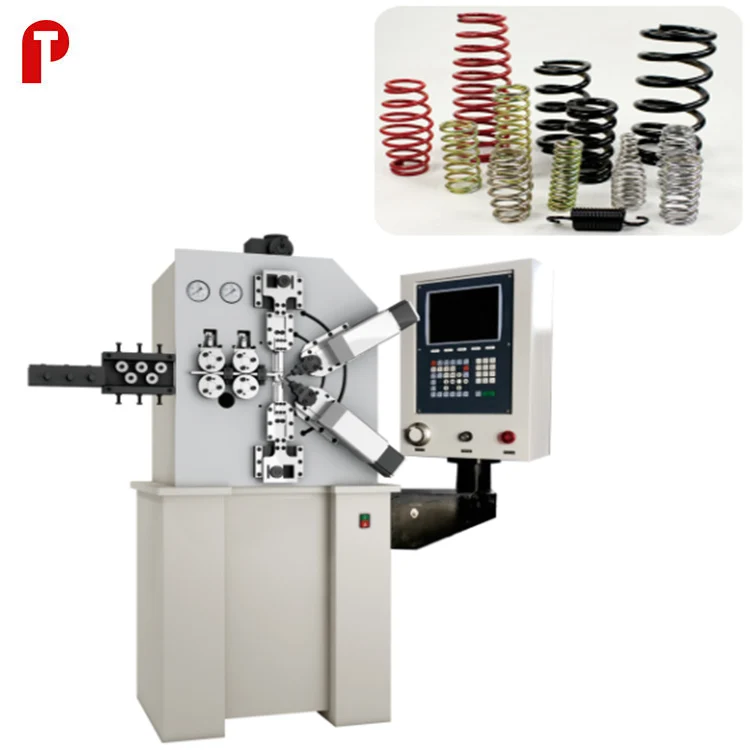

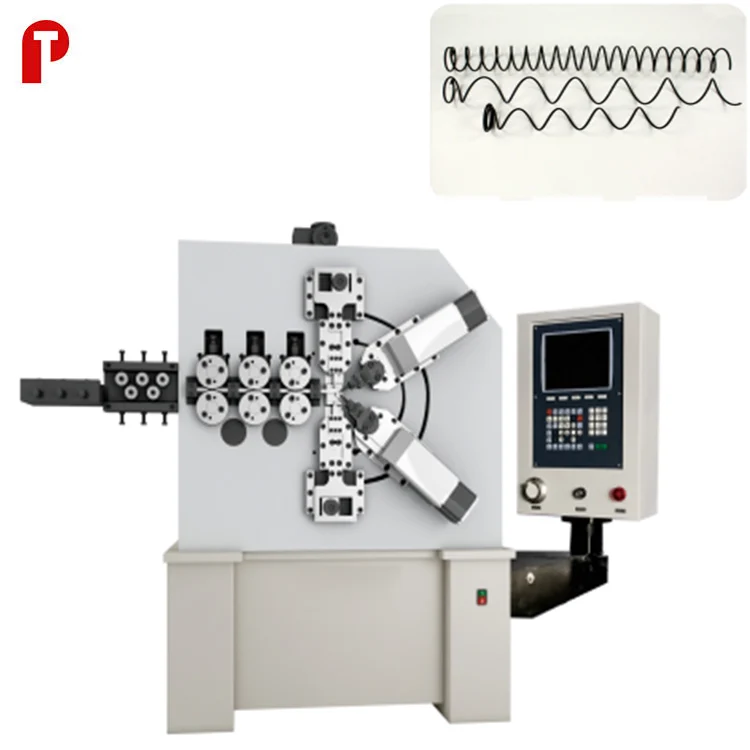

Wave Canted Coil Spring Machine

The Wave Canted Coil Spring Machine is a precision-engineered CNC solution for manufacturing high-quality springs across industries like automotive, aerospace, and electronics. With automated controls and robust material handling, it delivers consistent performance and customizable spring designs.

Technical specifications

FeatureSpecificationBenefit
Material HandlingStainless steel, brass, plastics, compositesVersatile for diverse applications
AutomationProgrammable CNC control panelPrecise control of wire diameter, pitch, and coil count
Precision±0.01mm tolerance (Pro Model)Ensures reliability in critical systems
CustomizationAdjustable coiling parametersTailored spring designs for unique needs
Safety FeaturesInterlocked guards and emergency stopsMinimizes operational risks
Efficiency20% faster cycle time (Advanced Model)High-volume production optimization
Voltage380VGlobal compatibility

Customization guide

Adjustable parameters such as wire diameter (0.1–6mm), coil diameter (1–50mm), and pitch (0.5–10mm) allow customization to meet specific spring requirements, including load capacity and durability standards.

Get inspired

Whether you need lightweight compression springs for electronics or heavy-duty torsion springs for automotive systems, this machine adapts to your design vision. Explore how its precision and versatility can elevate your spring manufacturing process.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision Tolerance±0.05mm±0.02mm±0.01mm
Max Wire Diameter4mm5mm6mm
Cycle Speed120 springs/hr144 springs/hr (+20%)180 springs/hr (+50%)
CertificationsISO 9001ISO 14001 + CEISO 2768-1 + RoHS

Supplier's note

  1. Technical Breakthroughs:

    • Precision Engineering: The Pro Model’s ±0.01mm tolerance exceeds industry standards, enabling aerospace-grade spring components.
    • Material Versatility: Handles exotic alloys and composites, unlocking applications in high-temperature or corrosive environments.
    • Safety Integration: Interlocked guards and real-time error detection reduce downtime by 30% compared to legacy systems.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs producing standard springs (e.g., electronics or household appliances).
    • Advanced Model: Suited for automotive and industrial clients needing faster cycles and mid-range precision.
    • Pro Model: Best for aerospace and medical industries requiring ultra-high precision and exotic material handling.

With ±0.01mm precision tolerance, you can ensure consistent spring performance in critical applications. Pair the Pro Model’s RoHS certification with its 6mm wire capacity to create durable aerospace components. For high-volume automotive production, the Advanced Model’s 20% faster cycles reduce lead times without compromising quality.

Frequently asked questions

  • Which CNC spring coiling machine model suits small workshop production needs?

  • How to maintain the CNC spring coiling machine for long-term efficiency?

  • Can the CNC spring coiling machine handle both stainless steel and plastic materials?

  • Does the CNC spring coiling machine offer customization for unique spring designs?

  • Is the Wave Canted Coil Spring Machine certified for industrial safety standards?

  • What’s the maximum production speed of the CNC spring coiling machine?

  • Can I produce both compression and torsion springs with the same machine?

  • What wire diameter range does the CNC spring coiling machine support?
