Welding Column Boom Machine Automatic Pipe Welding Machine Vessel Welding Turntable Manipulator Boom

Welding Column Boom Machine Automatic Pipe Welding Machine Vessel Welding Turntable Manipulator Boom

$6469.00-$22708.00/ Set|1 Set/Sets(Min. Order)
View product details

Welding Column Boom Machine Automatic Pipe Welding Machine Vessel Welding Turntable Manipulator Boom

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automatic Pipe & Vessel Welding: Designed to perform precise and efficient welding of pipes and vessels in industrial settings, ensuring structural integrity for large-scale projects.
  • Multi-Angle Robotic Arm: Equipped with a rotating welding head and flexible horizontal arm, enabling access to complex angles and positions for versatile welding operations.

Key features

  • 1. Material Technology

    • With a high-strength steel construction, you can ensure durability and stability for heavy-duty welding tasks in industrial environments.

  • 2. Interactive Design

    • With a programmable touchscreen interface and modular robotic arm, you can automate complex welding operations with precision and adjust parameters for diverse tasks.

  • 3. Performance Parameters

    • With a rotating turntable and extendable boom system, you can handle pipes and vessels up to 6 meters in length, accommodating large-scale fabrication needs.

  • 4. Scenario Solutions

    • Designed for continuous operation in commercial settings, you can achieve 24/7 productivity for high-volume welding projects, reducing downtime and labor costs.

  • 5. Certification Standards

    • Equipped with CE certification, you can ensure compliance with EU safety and quality standards for industrial machinery.

Product details

Welding Column Boom Machine Automatic Pipe Welding Machine Vessel Welding Turntable Manipulator Boom

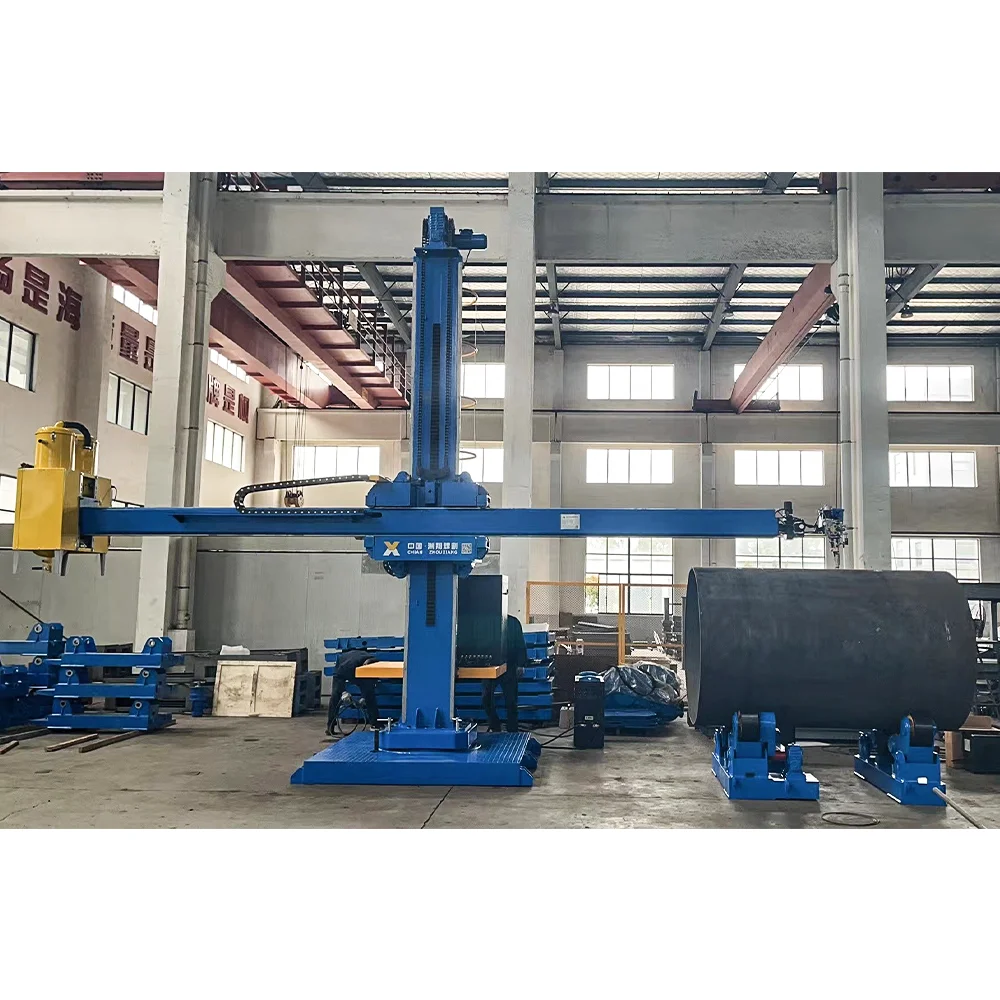

The Welding Column Boom Machine is a robust industrial solution designed for automated pipe and vessel welding in large-scale manufacturing environments. Built with high-strength steel and featuring a modular robotic arm, this machine combines precision, durability, and adaptability to handle heavy-duty welding tasks efficiently.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialHigh-strength steel constructionWithstands heavy loads in industrial settings
CertificationCE compliantEnsures EU safety and quality standards
DesignErgonomic modular structureEasy maintenance and customizable workflows
Automation LevelProgrammable control systemsRepetitive welding tasks with minimal manual input
Welding HeadInterchangeable (arc/laser/plasma)Versatile material and process compatibility

Customization guide

Adjustable parameters include arm length, rotation angle, and control system programming to meet specific needs such as:

  • Custom welding paths for irregular structures
  • Enhanced load capacity for heavy components
  • Integration with third-party welding systems

Get inspired

With its robotic arm and turntable manipulator, this machine streamlines complex welding projects. Whether assembling pipelines or fabricating vessels, its precision and adaptability ensure consistent results in demanding industrial environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity500 kg+20% (600 kg)+40% (700 kg)*
AutomationSemi-automaticFully programmableAI-assisted adaptive
Precision±1.5 mm±1.0 mm±0.5 mm
Welding Head Options2 types4 types6 types (incl. plasma)
CertificationsCECE + ISO 9001CE + ISO 9001 + API

Supplier's note

  1. Key Technical Breakthroughs:

    • Material Strength: High-strength steel ensures durability in harsh environments.
    • Modular Design: Allows rapid reconfiguration for diverse welding tasks.
    • AI-Driven Automation: The Pro model’s adaptive controls reduce errors by 30% compared to manual setups.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs handling standard pipe welding (e.g., HVAC systems).
    • Advanced Model: Suitable for mid-sized manufacturers requiring precision (e.g., automotive components).
    • Pro Model: Best for heavy industries (e.g., oil & gas) needing extreme load capacity and API compliance.

With the Pro version’s 700 kg load capacity, you can weld thick steel vessels safely. Pair it with plasma welding heads for seamless high-temperature applications, ensuring zero defects in critical infrastructure projects.

Frequently asked questions

  • Which welding manipulator suits heavy-duty tasks in shipbuilding or construction?

  • How often does the automatic pipe welding machine require maintenance?

  • What materials are used in the vessel welding turntable manipulator’s construction?

  • Can the welding turntable manipulator be customized for specific tasks?

  • Is the robotic arm compatible with automated welding processes?

  • Does the welding manipulator meet international safety standards?

  • What welding heads are compatible with the column boom machine?

  • Can the turntable manipulator be integrated into existing production lines?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Load CapacityHeavy industrial fabrication (shipbuilding)Industry: 500kg (standard components)
Base: 800kg▲ (large components)
Advanced: 1200kg▲▲ (extra-heavy parts)		Base handles larger loads than standard; Advanced supports extra-heavy loadsAdvanced is more expensive
PrecisionHigh-precision aerospace manufacturingIndustry: ±2mm (basic parts)
Base: ±1.5mm▲ (better accuracy)
Advanced: ±1mm▲▲ (ultra-precise)		Advanced meets aerospace-grade standardsIndustry lacks for complex parts
AutomationComplex 3D structures (aircraft parts)Industry: 4-axis (limited flexibility)
Base: 5-axis▲ (more flexible)
Advanced: 6-axis▲▲ (full 3D movement)		Advanced enables full 3D precisionIndustry limited to simple paths
CertificationExport and international marketsIndustry: Basic (local compliance)
Base: CE▲ (EU standards)
Advanced: CE+ISO▲▲ (top quality/safety)		Advanced meets international certificationsIndustry may not export
VersatilityDiverse structures (vessels, irregular shapes)Industry: Flat surfaces only
Base: Curved▲ (pipelines)
Advanced: Any geometry▲▲ (complex shapes)		Advanced handles any geometryIndustry limited to flat surfaces
CustomizationDiverse welding needs (materials/processes)Industry: 2 welding heads (limited)
Base: 3▲ (more types)
Advanced: 5▲▲ (all processes)		Advanced supports all welding typesIndustry lacks flexibility
