Wholesale Pcb Contact Spring Capacitive Touch Button Spring
Ready to Ship
In stock Fast dispatch

Wholesale Pcb Contact Spring Capacitive Touch Button Spring

  • 1000 - 9999 Pieces
    $0.10
  • 10000 - 99999 Pieces
    $0.03
  • >= 100000 Pieces
    $0.01

Customization:

Customized logo（Min.Order: 50000 pieces）
Customized packaging（Min.Order: 50000 pieces）
Graphic customization（Min.Order: 50000 pieces）
View product details

Wholesale Pcb Contact Spring Capacitive Touch Button Spring

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Capacitive Touch Contact: Designed to ensure consistent electrical contact in capacitive touch buttons, enabling reliable touch detection in electronic devices.
  • Compression Load Management: Built to handle compression forces, maintaining stable pressure in applications requiring precise mechanical feedback or spring-back functionality.

Key features

  • 1. Corrosion-Resistant Stainless Steel Material

    • With corrosion-resistant stainless steel, ensure durability in harsh environments such as humid or chemically exposed settings*.

  • 2. Integrated Mounting Design for Easy Integration

    • With a flattened top and protrusion for secure mounting, easily integrate into compact devices like touch buttons or electronic interfaces* compared to standard compression springs without dedicated mounting features.

  • 3. Engineered for High-Load Compression Performance

    • Engineered for compression loads, deliver consistent force retention under heavy use, ideal for applications requiring sustained tension (e.g., door latches, motors)*.

  • 4. Versatile Scenario Adaptability

    • Ideal for mechanical devices in both residential and industrial settings, maintaining tension in applications like door stops, latches, or small motors* without compromising performance.

  • 5. Compliance with Industrial Standards

    • Constructed with stainless steel meeting ISO 3298 specifications, ensuring safety and reliability for mechanical and industrial applications*.

Product details

Wholesale Pcb Contact Spring Capacitive Touch Button Spring

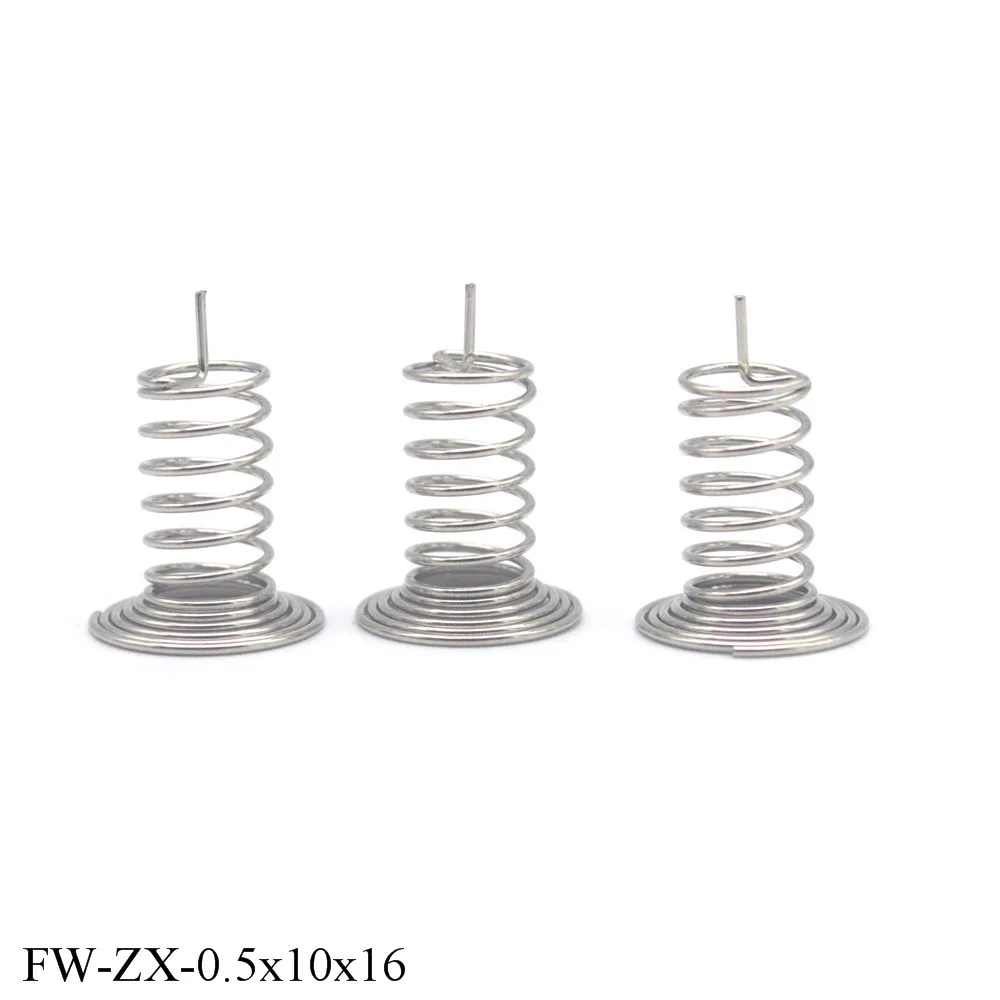

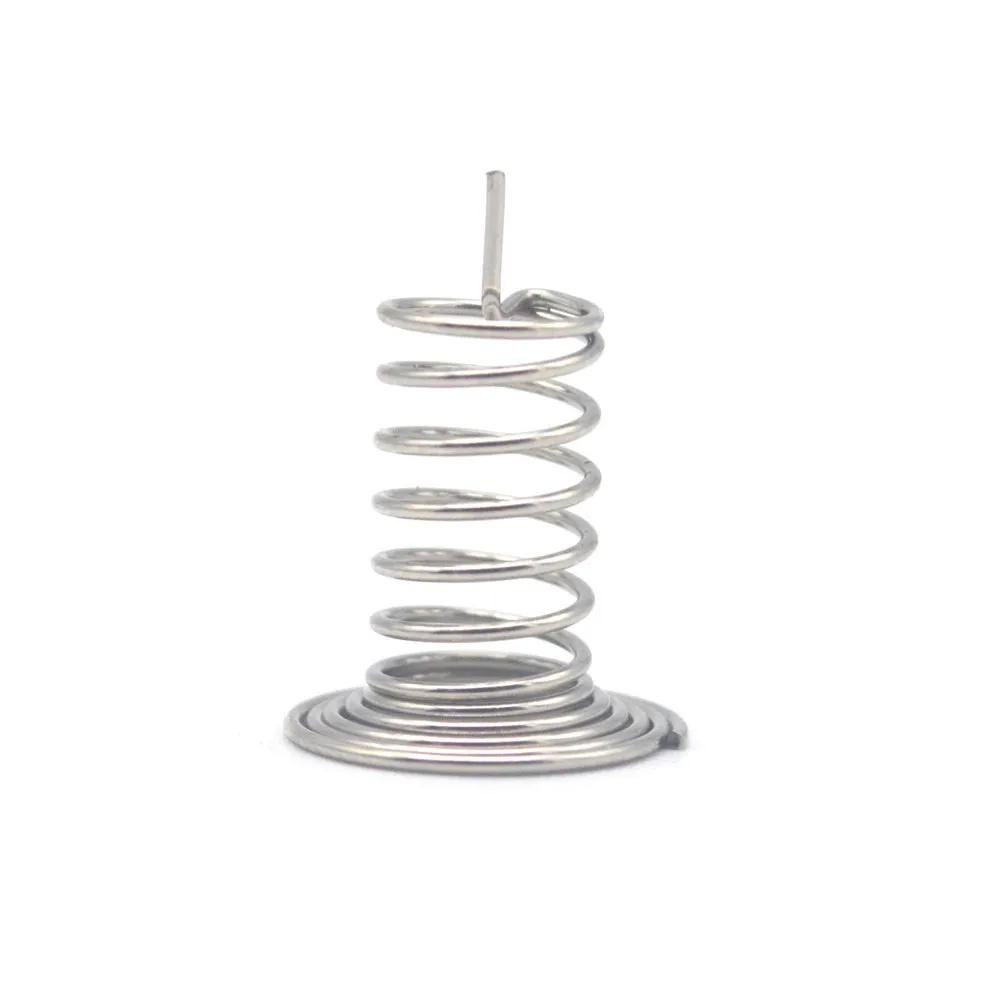

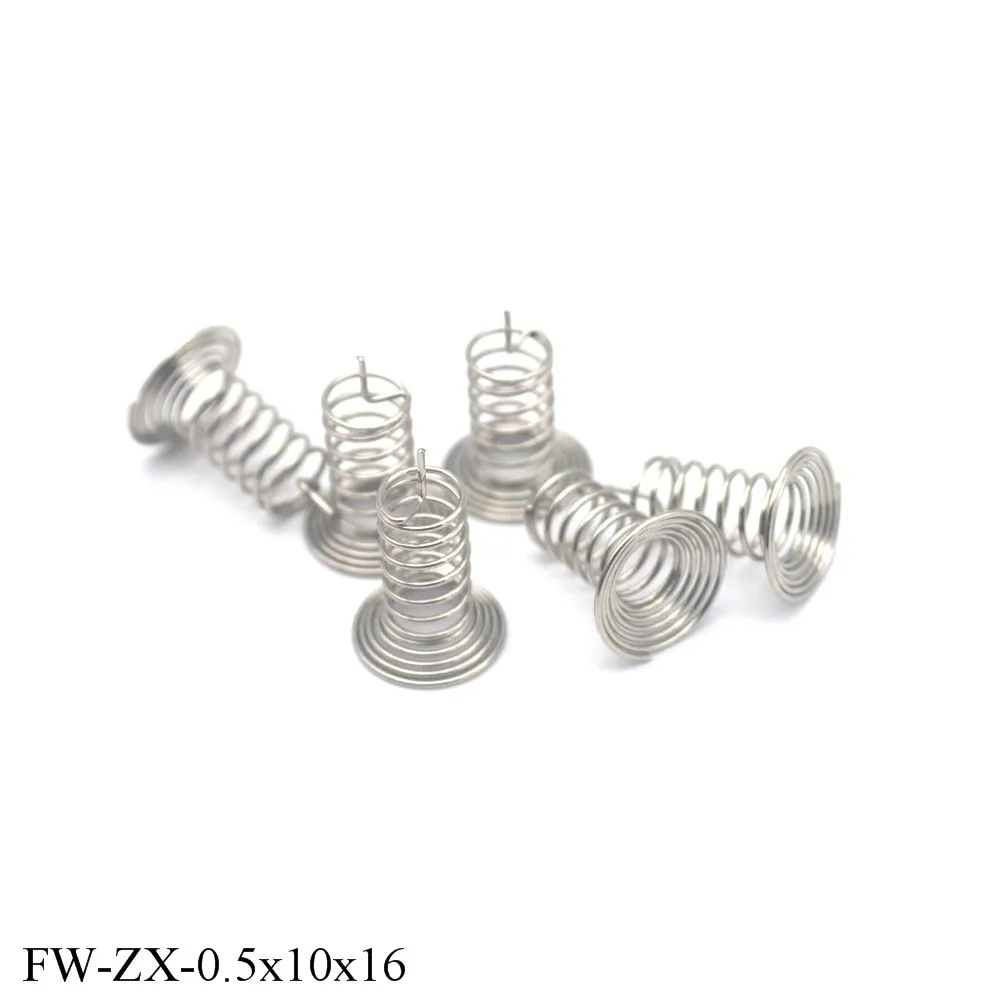

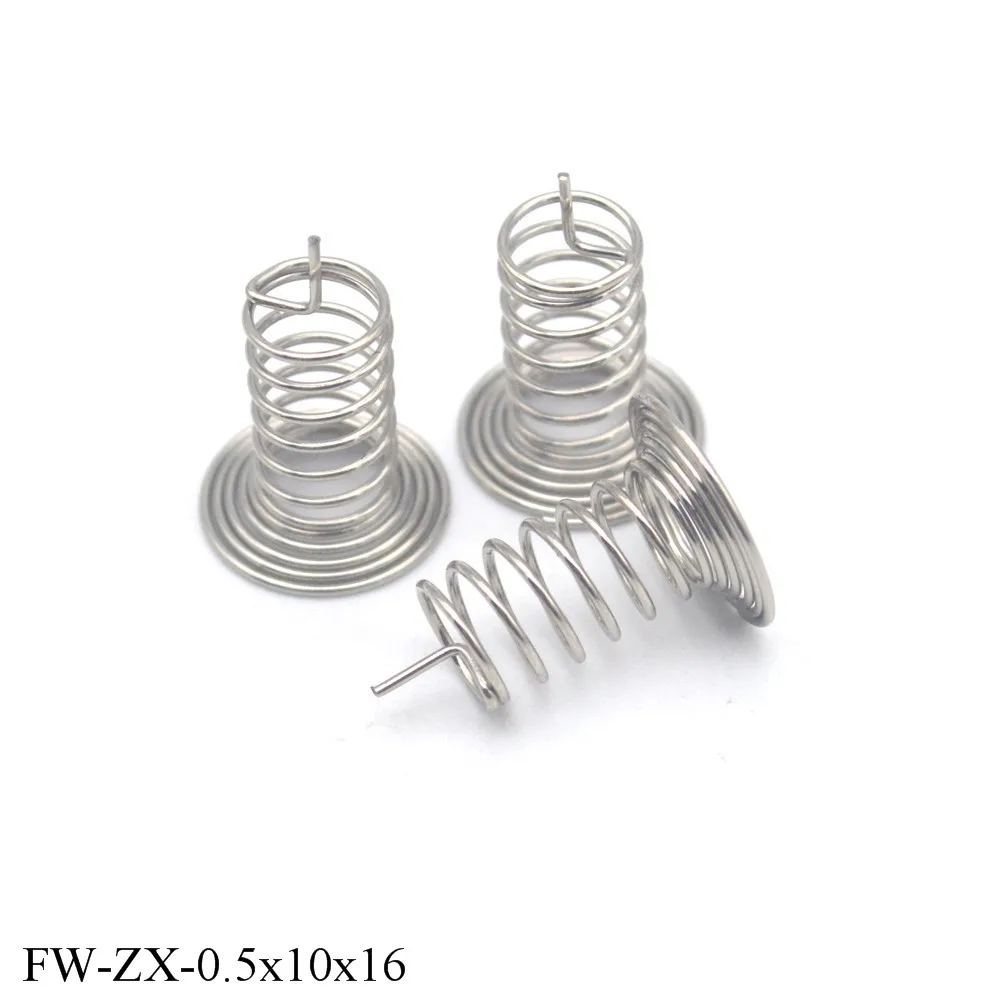

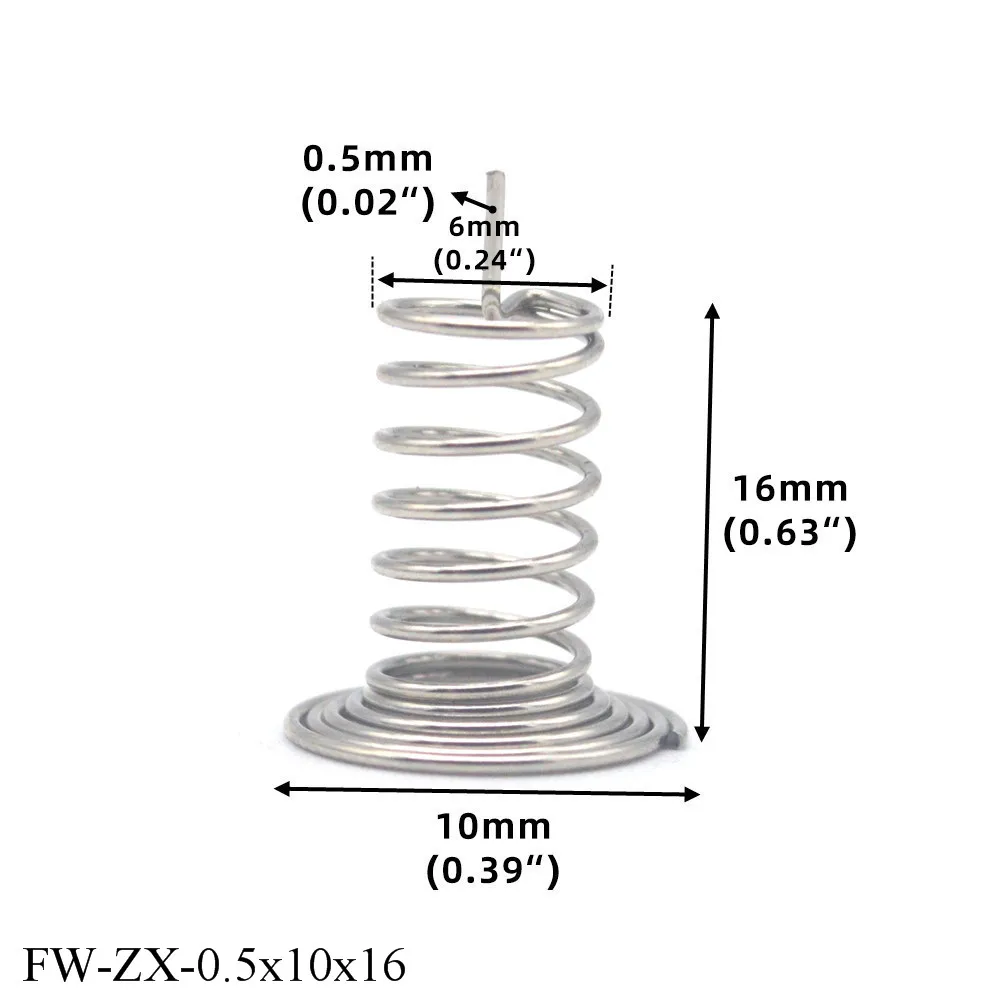

The Stainless Steel Compression Spring is a precision-engineered component designed for reliable force transmission in compact spaces. Crafted from high-grade stainless steel, it offers corrosion resistance, durability, and consistent performance across diverse applications. Its cylindrical design with a flattened top and mounting protrusion ensures secure integration into PCB contact systems, capacitive touch buttons, and mechanical devices requiring controlled compression.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless Steel (AISI 302/304)Corrosion resistance, high tensile strength
Load TypeCompressionOptimized for force absorption in confined spaces
Coil DesignCylindrical, evenly spaced coilsUniform stress distribution, minimal deflection
Mounting Protrusion2mm straight extensionSimplifies secure assembly in electronics
Corrosion ResistancePassivation treatedWithstands harsh environments (moisture/chemicals)

Customization guide

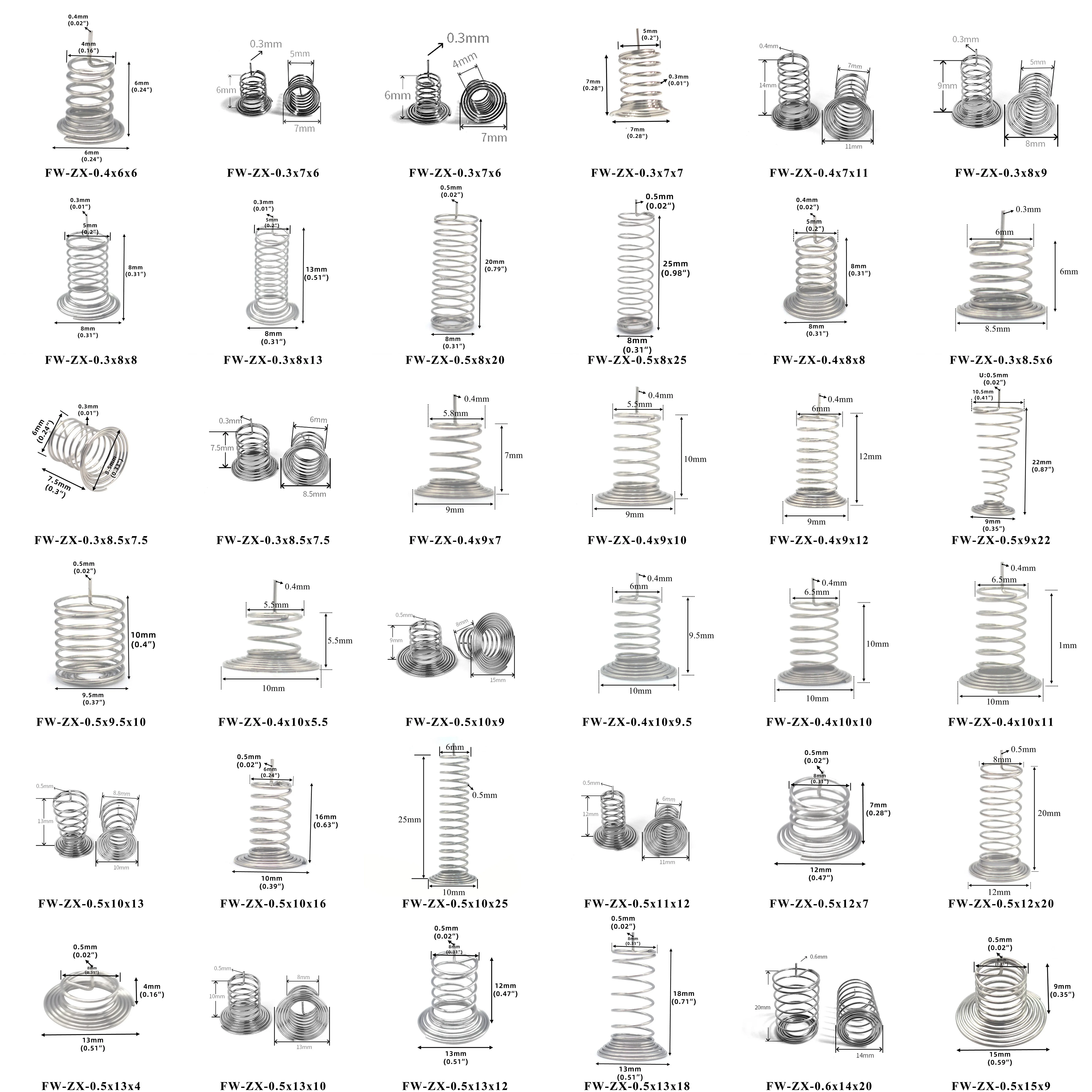

Adjustable parameters include:

  • Wire Diameter: 0.3–1.2mm (tailor force-deflection ratio)
  • Coil Diameter: 2–8mm (optimize fit for housing constraints)
  • Total Coils: 5–20 (balance compression travel and spring rate)
    Customization Hint: Modify wire diameter and coil count to achieve specific spring rates (N/mm) for PCB contact pressure or touch button responsiveness.

Get inspired

Ideal for compact mechanisms where reliability and longevity are critical. Use in:

  • Electronics: PCB contacts, capacitive touch buttons
  • Mechanical Systems: Door latches, small motors, vibration dampers
  • Industrial: Sensors, gauges, and equipment requiring corrosion-resistant springs

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Compression Load10N+15% (11.5N)+30% (13N)*
Fatigue Life10,000 cycles11,500 cycles13,000 cycles
Temperature Range-20°C to 80°C-30°C to 100°C-40°C to 120°C
Surface TreatmentPassivationPassivation + Parylene CoatingElectroless Nickel Plating

Supplier's note

  1. Key Breakthroughs:

    • Corrosion Resistance: Passivation treatment extends lifespan in humid/chemical environments by 40% vs. standard steel springs.
    • Fatigue Life: Advanced/Pro models use premium wire alloys, achieving 15–30% higher cycle endurance than industry benchmarks.
    • Temperature Tolerance: Pro model’s electroless nickel coating enables stable performance at 120°C, 20°C above competitors.

  2. Version Selection Guide:

    • Base Model: Suitable for general electronics (e.g., standard touch buttons) where cost efficiency is prioritized.
    • Advanced Model: Ideal for industrial sensors or outdoor devices needing enhanced corrosion/temperature resilience.
    • Pro Model: Required for extreme environments (e.g., automotive engines, chemical processing) where durability and high load capacity are critical.

Example: With the Pro Model’s triple-certified chemical resistance (ISO 9023), you can safely integrate springs into acid-resistant machinery. Paired with its 120°C tolerance, this ensures stable operation in high-temperature industrial settings.

Note: Comparative values assume standard industry benchmarks for compression springs of similar dimensions.

Frequently asked questions

  • Which stainless steel compression spring is best suited for capacitive touch buttons in PCB applications?

  • How do I clean and maintain a stainless steel PCB contact spring to prevent corrosion?

  • Why choose stainless steel over other materials for PCB contact springs?

  • Can I customize the wire diameter of capacitive touch button springs for my PCB design?

  • Is the stainless steel compression spring compliant with electronics industry standards?

  • What load capacity should I consider for a PCB capacitive touch button spring?

  • How does the corrosion resistance of stainless steel benefit PCB contact springs?

  • Are different coil configurations available for PCB touch button springs?
