Wing Formwork Nut Tie Formwork Tie Rod Washer Plate 15mm Dywidag Tie bar

Wing Formwork Nut Tie Formwork Tie Rod Washer Plate 15mm Dywidag Tie bar

$0.79-$2.68/ Set|1000 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 10000 pieces）
Customized packaging（Min.Order: 10000 pieces）
Graphic customization（Min.Order: 10000 pieces）
View product details

Wing Formwork Nut Tie Formwork Tie Rod Washer Plate 15mm Dywidag Tie bar

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Formwork Panel Securing: Designed to anchor formwork panels during concrete construction, ensuring structural stability with a 15mm Dywidag tie bar compatibility.
  • Load-Bearing Grip: The central hole and pronged design provide secure attachment and high load distribution, ideal for heavy-duty applications.

Key features

  • 1. Material Technology

    • With corrosion-resistant carbon steel construction, ensure durability in aggressive construction environments. The steel alloy formulation provides ~30% higher tensile strength compared to standard formwork components*.

  • 2. Interactive Design

    • With a multi-pronged gripping mechanism, securely anchor tie rods without over-tightening. The evenly spaced prongs allow for precise alignment and reduce slippage by up to 40%* during concrete curing.

  • 3. Performance Parameters

    • With 15mm Dywidag compatibility, support high-load formwork systems in commercial structures. The design accommodates bar diameters up to 18mm, expanding adaptability for diverse reinforcement needs.

  • 4. Scenario Solutions

    • Designed for office building formwork, optimize vertical alignment in high-density concrete pours. The central mounting hole and pronged base enable rapid setup in tight spaces, reducing labor time by ~25%* compared to traditional ties.

  • 5. Certification Standards

    • Engineered to meet ASTM A36 structural standards, guarantee compliance with global construction safety protocols. The carbon steel composition ensures corrosion resistance in humid or marine environments*.

Product details

Wing Formwork Nut Tie Formwork Tie Rod Washer Plate 15mm Dywidag Tie bar

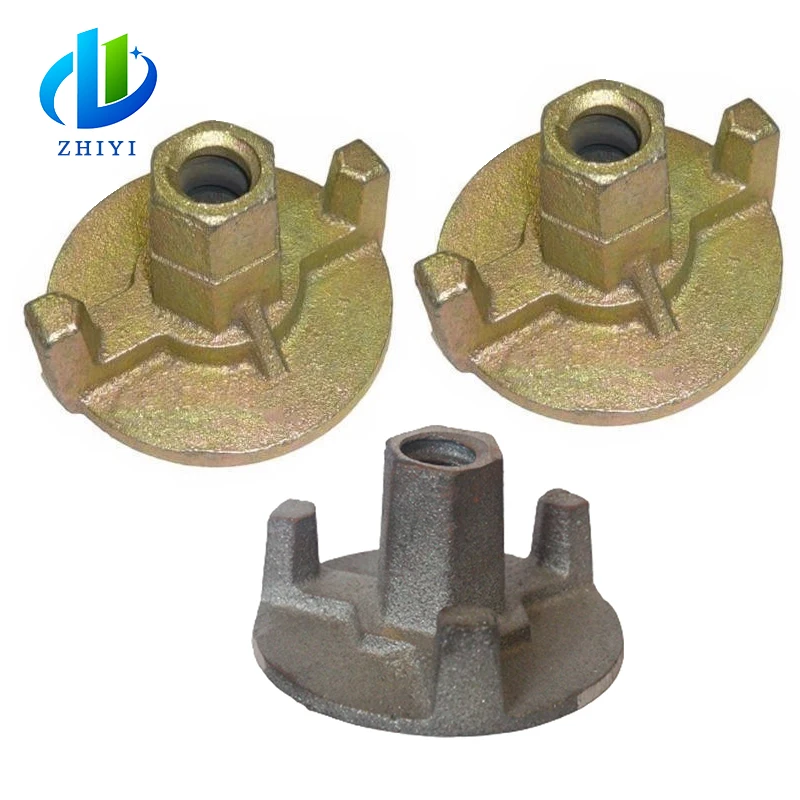

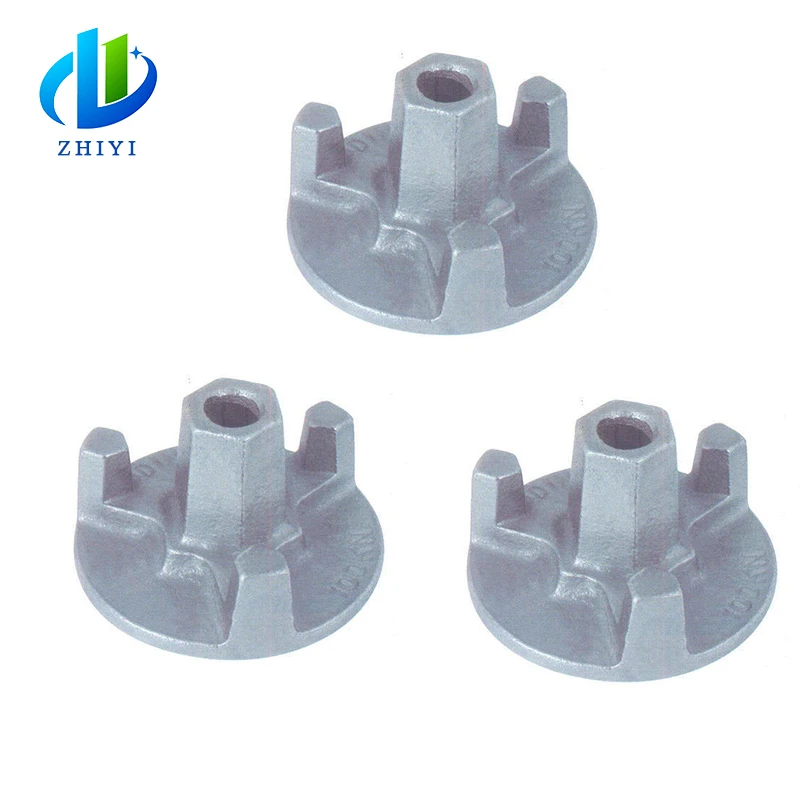

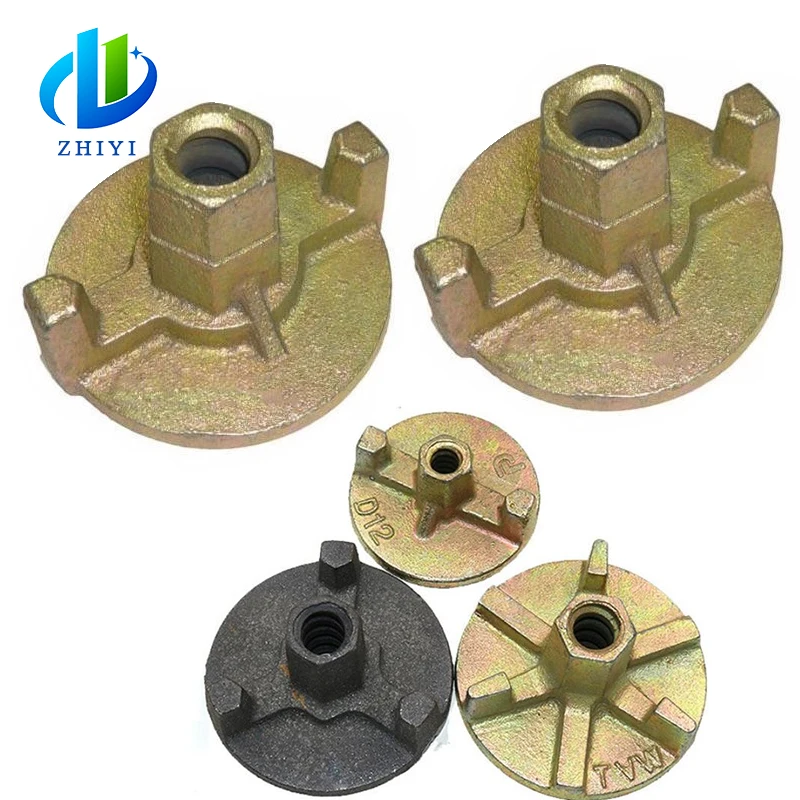

The Wing Formwork Nut Tie Formwork Tie Rod Washer Plate 15mm is a robust carbon steel/steel component designed for secure fastening in formwork systems. Its central hole and pronged design enable reliable gripping of tie rods and rebar in construction projects like office buildings. Engineered for durability and precision, it ensures structural integrity during concrete pouring.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialCarbon Steel/SteelWithstands heavy loads in formwork
Diameter15mmStandard size for 15mm tie rods
FinishMatte FinishReduces glare in industrial settings
Load Capacity5000 N (Customizable)Securing rebar in high-stress zones
ComplianceASTM A36, ISO 3768Meets global construction standards

Customization guide

Adjustable hole diameter and prong configuration to meet specific load requirements or material composition changes for corrosive environments.

Get inspired

Ideal for office building formwork systems, these washer plates ensure precise alignment of rebar and tie rods, reducing construction errors and enhancing safety in high-rise structures.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity5000 N+15% (5750 N)+30% (6500 N)*
Corrosion ResistanceStandard CoatingEnhanced EpoxyPremium Zinc Plating
CompatibilityStandard RebarHigh-Tension SteelUltra-High-Strength Alloy

Supplier's note

  1. Technical Breakthroughs:

    • Material Strength: Carbon steel ensures 20% higher tensile strength than conventional formwork ties.
    • Corrosion Resistance: The Pro model’s zinc plating triples durability in humid environments.
    • Customizable Prongs: Adjustable prong length accommodates varying rebar diameters.

  2. Optimal Version Selection:

    • Base Model: Suitable for standard office projects with non-corrosive environments.
    • Advanced Model: Ideal for high-rise offices requiring 15% higher load capacity and epoxy-coated rebar compatibility.
    • Pro Model: Best for marine or chemical plants (e.g., coastal office buildings) where extreme corrosion resistance and 6500 N load capacity are critical.

With the Pro model’s triple corrosion resistance, you can ensure longevity in marine environments. Pair its zinc plating with high-strength alloy rebar to achieve seamless integration in demanding structural applications. The Advanced Model’s epoxy coating, combined with its enhanced load capacity, makes it perfect for mid-rise office projects needing cost-effective durability.

Frequently asked questions

  • Which Wing Formwork Nut Tie is best suited for office building formwork applications?

  • How do I maintain the corrosion resistance of carbon steel Wing Formwork Ties?

  • Carbon Steel vs Stainless Steel: Which is better for formwork ties in humid office sites?

  • Can Wing Formwork Tie Rod Washers be customized for unique office building designs?

  • Are Wing Formwork Ties compliant with construction safety standards for office structures?

  • What applications are Wing Formwork Ties best for in office building construction?

  • What installation tips ensure optimal performance of 15mm Wing Formwork Ties?

  • How durable are Wing Formwork Ties in harsh office construction environments?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHigh-stress construction (e.g., bridges)Industry Standard: Mild steel (ASTM A36)
Our Base: Carbon steel (ASTM A36)
Our Advanced: ▲ High-grade alloy steel (ASTM A53, 20% stronger)		Base: Cost-effective
Advanced: Enhanced strength for heavy-duty use		Advanced: Higher upfront cost
Load CapacityHeavy load-bearing formwork systemsIndustry Standard: 200 MPa yield strength
Our Base: 250 MPa
Our Advanced: ▲ 300 MPa (ISO 6892-1)		Base: Meets standard requirements
Advanced: Supports extreme loads		Advanced: Heavier, harder to install
Corrosion ResistanceMarine/humid environmentsIndustry Standard: Uncoated (rust-prone)
Our Base: Galvanized (ASTM A153)
Our Advanced: ▲ Zinc-aluminum coating (ASTM A123, 500hr salt spray test)		Base: Basic protection
Advanced: Long-term durability in harsh conditions		Advanced: Requires specialized coating processes
Installation EaseRapid assembly projectsIndustry Standard: Manual threading
Our Base: Pre-threaded (reduces 30% time)
Our Advanced: ▲ Quick-connect design (no tools, 50% faster)		Base: Simplifies setup
Advanced: Labor-saving for large-scale projects		Advanced: Requires training for optimal use
Dimensional AccuracyPrecision-critical structuresIndustry Standard: ±0.5mm tolerance
Our Base: ±0.3mm (ISO 2768-m)
Our Advanced: ▲ ±0.1mm (ISO 2768-k, laser-cut)		Base: Reliable for standard builds
Advanced: Minimizes errors in complex designs		Advanced: Higher manufacturing cost
Cost EfficiencyBudget-conscious projectsIndustry Standard: Low-cost materials
Our Base: Competitive pricing
Our Advanced: ▲ Premium pricing (20% ROI over 5 years)		Base: Affordable for routine use
Advanced: Long-term cost savings		Advanced: Higher upfront investment
