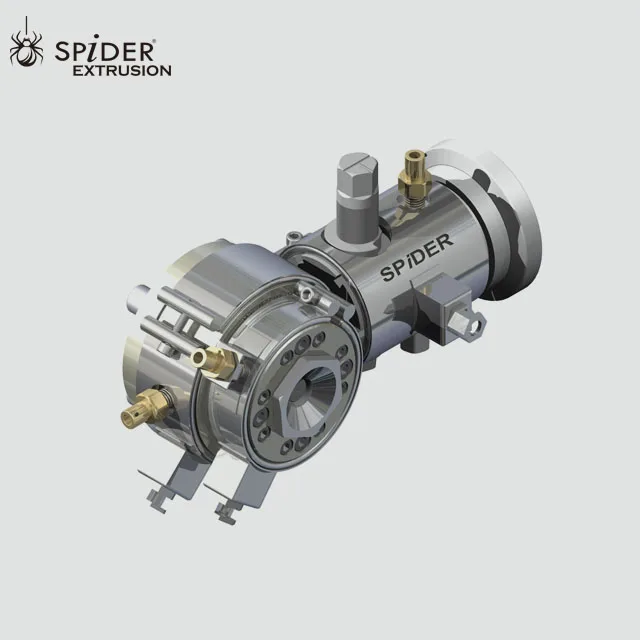

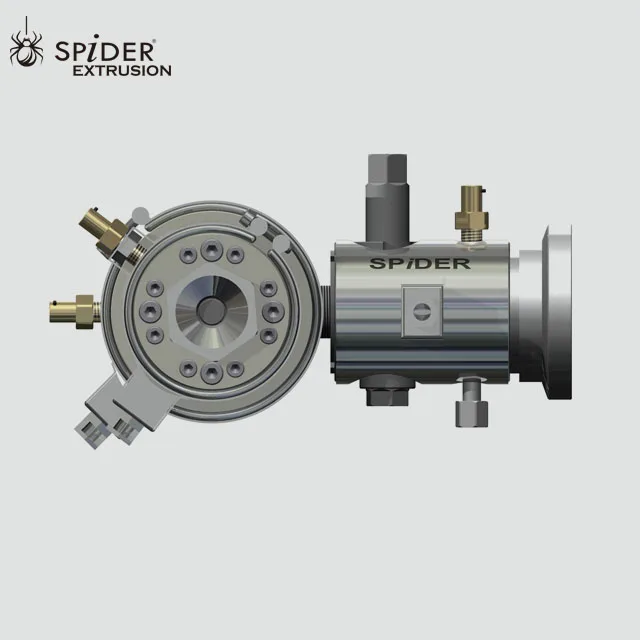

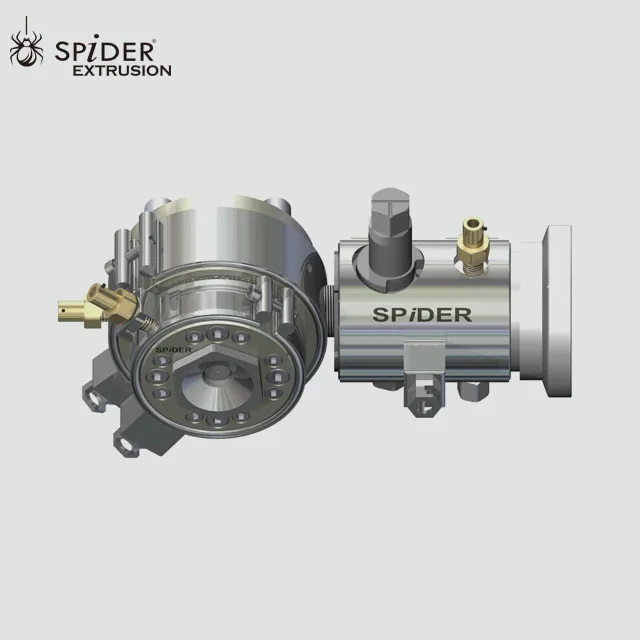

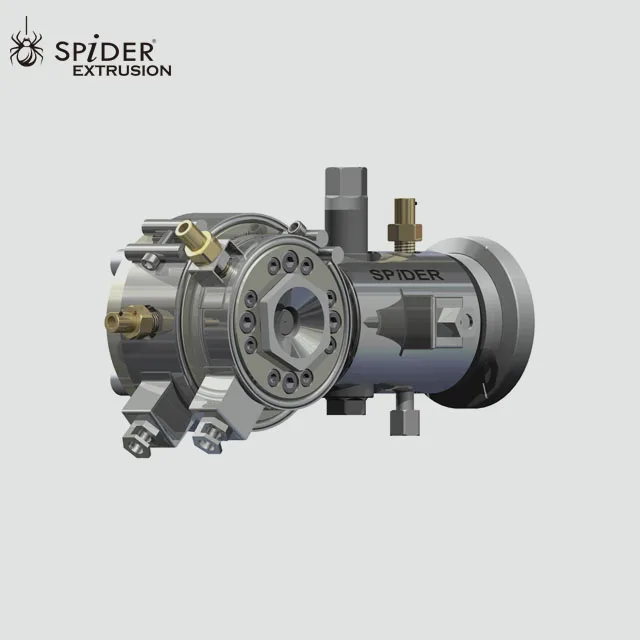

Wire Cable Extruder Key Component Extrusion Crosshead Die Head With Bypass & Flange

Technical specifications

Customization guide

Adjustable port configurations and material ratios (steel/plastic) allow tailoring to specific extrusion requirements. For example:

• Port size/quantity: Customize to match flow rates or material viscosity.
• Material mix: Increase steel proportion for high-pressure applications or plastic for lightweight setups.

Get inspired

With its precision engineering and modular flexibility, this extrusion die head excels in industries demanding accuracy and adaptability. Whether coating electrical wires or shaping medical tubing, its robust design ensures consistent performance under pressure.

Choose your model

Supplier's note

1. Key Technical Breakthroughs:

   • Stainless Steel Core: Triple the corrosion resistance of standard alloys, enabling use in chemical processing.
   • Modular Ports: 50% faster assembly/disassembly compared to monolithic designs, reducing downtime.
   • Precision Polishing: Achieves surface roughness ≤0.8 µm, critical for medical-grade extrusions.

2. Version Selection Guidance:

   • Base Model: Ideal for standard wire coating in low-pressure environments (e.g., automotive cables).
   • Advanced Model: Suitable for food/pharma industries needing 20% higher pressure tolerance and customizable ports.
   • Pro Model: Designed for extreme conditions (e.g., offshore oil rig insulation) where corrosion resistance and 600 psi performance are critical.

With the Pro Model’s marine-grade steel, you can ensure reliability in offshore operations. Pair its high-pressure capacity with polished surfaces to guarantee zero contamination in pharmaceutical extrusion.
