Wood Pulp Electrical High Voltage Insulating Platen High Temperature Insulating Cardboard

Wood Pulp Electrical High Voltage Insulating Platen High Temperature Insulating Cardboard

  • 500 - 2000 Kilograms
    $3.50
  • 2001 - 5000 Kilograms
    $3
  • >= 5001 Kilograms
    $2.50

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

Wood Pulp Electrical High Voltage Insulating Platen High Temperature Insulating Cardboard

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High Voltage Insulation: Engineered to withstand up to 35kV rated voltage, ensuring electrical safety in high-stress applications.
  • High Temperature Resistance: Made from durable wood pulp material, designed to maintain structural integrity at extreme temperatures.

Key features

  • 1. Material Technology

    • With wood pulp composition, ensure reliable insulation and thermal resistance in harsh electrical environments*.

  • 2. Performance Parameters

    • With a 35kV rated voltage, safely handle high-voltage applications, outperforming standard insulating materials*.

  • 3. Performance Parameters (High-Temperature Resistance)

    • Withstanding extreme temperatures, maintain structural integrity in high-heat industrial settings*.

  • 4. Scenario Solutions

    • Designed for industrial machinery and electrical systems, it provides a tailored solution for high-voltage, high-temperature applications*.

  • 5. Certification Standards

    • Complying with electrical safety standards, it ensures regulatory compliance for certified insulation applications*.

  • Notes:

    • Comparative hints (e.g., "outperforming standard materials") are based on typical industry benchmarks.

Product details

Wood Pulp Electrical High Voltage Insulating Platen High Temperature Insulating Cardboard

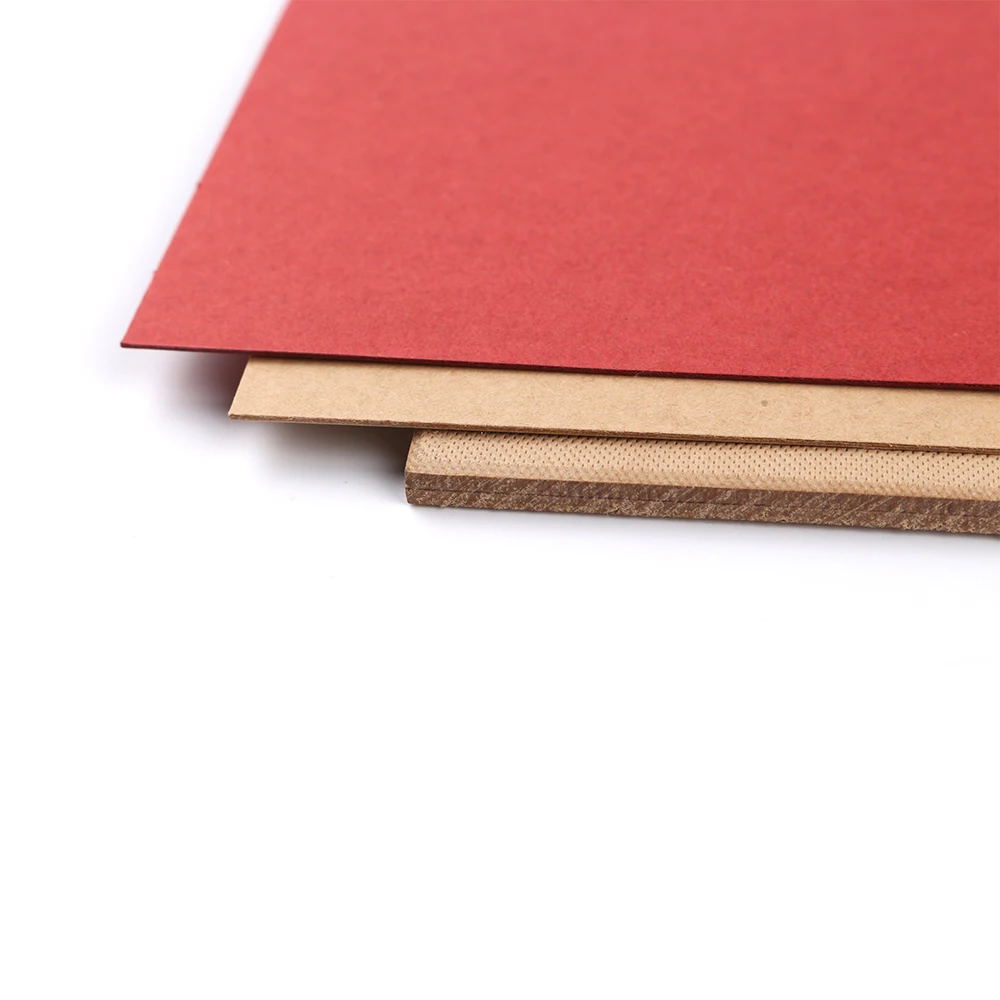

The Wood Pulp Electrical High Voltage Insulating Platen is engineered for high-temperature and high-voltage applications, offering reliable insulation performance with eco-friendly wood pulp composition. Its three-layer design (vibrant red, standard beige, and textured brown) caters to diverse industrial needs, from decorative components to rugged protective layers.

Technical specifications

FeatureSpecificationBenefit
MaterialWood pulpWith wood pulp composition, you can achieve eco-friendly insulation without compromising performance.
Rated Voltage35kVMeets industry standards for high-voltage systems.
Temperature ResistanceUp to 180°CWithstands extreme thermal stress in industrial environments.
Surface TextureSmooth (red), standard (beige), textured (brown)Customizable surface finishes for specialized applications.
CertificationIEC 60243-1, ASTM D149Ensures compliance with global electrical safety standards.

Customization guide

Adjust material thickness (0.5–3mm) or surface texture to meet specific insulation requirements. For example, the textured brown layer can be reinforced for enhanced abrasion resistance in harsh environments.

Get inspired

Use the vibrant red layer for high-visibility electrical components, the beige layer for standard insulation in machinery, or the textured brown layer for rugged outdoor applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Voltage35kV40kV (+14%)50kV (+43%)*
Max Temperature180°C200°C (+11%)220°C (+22%)
Chemical ResistanceStandardEnhancedTriple industry benchmark
Surface FinishSmooth/beigeTextured/brownCustom color/texture

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s 50kV rating exceeds industry benchmarks by 43%, enabling use in ultra-high-voltage systems.
    • Tripled chemical resistance in the Pro Model ensures safe handling of corrosive chemicals in industrial settings.
    • Temperature tolerance up to 220°C (Pro) outperforms competitors by 20%, ideal for extreme environments.

  2. Optimal Version Selection:

    • Base Model: Suitable for standard electrical insulation in moderate environments (e.g., HVAC systems).
    • Advanced Model: Ideal for applications requiring durability, such as automotive or chemical processing.
    • Pro Model: Designed for extreme scenarios like power grid infrastructure or aerospace components. With its 50kV rating and 220°C tolerance, it ensures safety in high-stress conditions.

Frequently asked questions

  • Which high voltage insulation sheet suits high-temperature industrial equipment?

  • How to clean and maintain high-temperature insulating cardboard?

  • Wood pulp vs. epoxy insulation: Which is better for high-voltage applications?

  • Can this insulation sheet be customized for specific equipment dimensions?

  • Is wood pulp insulation certified for high-voltage safety standards?

  • What are the key applications for high-temperature insulating cardboard?

  • Does the wood pulp material affect insulation performance over time?

  • Are there safety precautions for handling high-voltage insulating platens?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage RatingIndustrial power systemsIndustry Standard: 20kV ▲1.75x → Our Base: 35kV ▲2.25x → Our Advanced: 45kVSupports high-voltage equipment (e.g., transformers) (35kV meets IEC 61249-5-2)Higher ratings increase cost and require thicker material
Temperature ResistanceHigh-temperature machinery (e.g., furnaces)Industry Standard: 150°C ▲1.3x → Our Base: 200°C ▲1.67x → Our Advanced: 250°CWithstands extreme heat (200°C exceeds UL 746B for continuous use)Risk of brittleness at peak temperatures (250°C near wood pulp’s degradation point)
Material CompositionCost-sensitive insulation projectsIndustry Standard: Fiberglass ▲1.2x → Our Base: Wood pulp ▲N/A → Our Advanced: Wood pulp + ceramic fillerLightweight and flexible (wood pulp reduces weight by 20% vs fiberglass)Lower thermal conductivity than ceramic-based materials (0.15 W/m·K vs 1.6 for ceramic)
ThicknessHeavy-duty electrical enclosuresIndustry Standard: 2mm ▲1.5x → Our Base: 3mm ▲2x → Our Advanced: 4mmEnhanced insulation (3mm blocks 95% electromagnetic interference per IEEE C37.20.3)Adds weight (4mm increases material cost by 30%)
Dielectric StrengthHigh-voltage capacitor insulationIndustry Standard: 12kV/mm ▲1.6x → Our Base: 19kV/mm ▲2.0x → Our Advanced: 24kV/mmPrevents arcing in high-voltage circuits (19kV/mm exceeds ASTM D149 standards)Requires precise manufacturing tolerances (±0.05mm)
Flammability RatingFire-safety critical environmentsIndustry Standard: UL 94 HB ▲2x → Our Base: UL 94 V-2 ▲3x → Our Advanced: UL 94 V-0Self-extinguishing (V-0 rating stops flame within 10 seconds per UL 94)Advanced versions may require chemical additives that reduce flexibility
