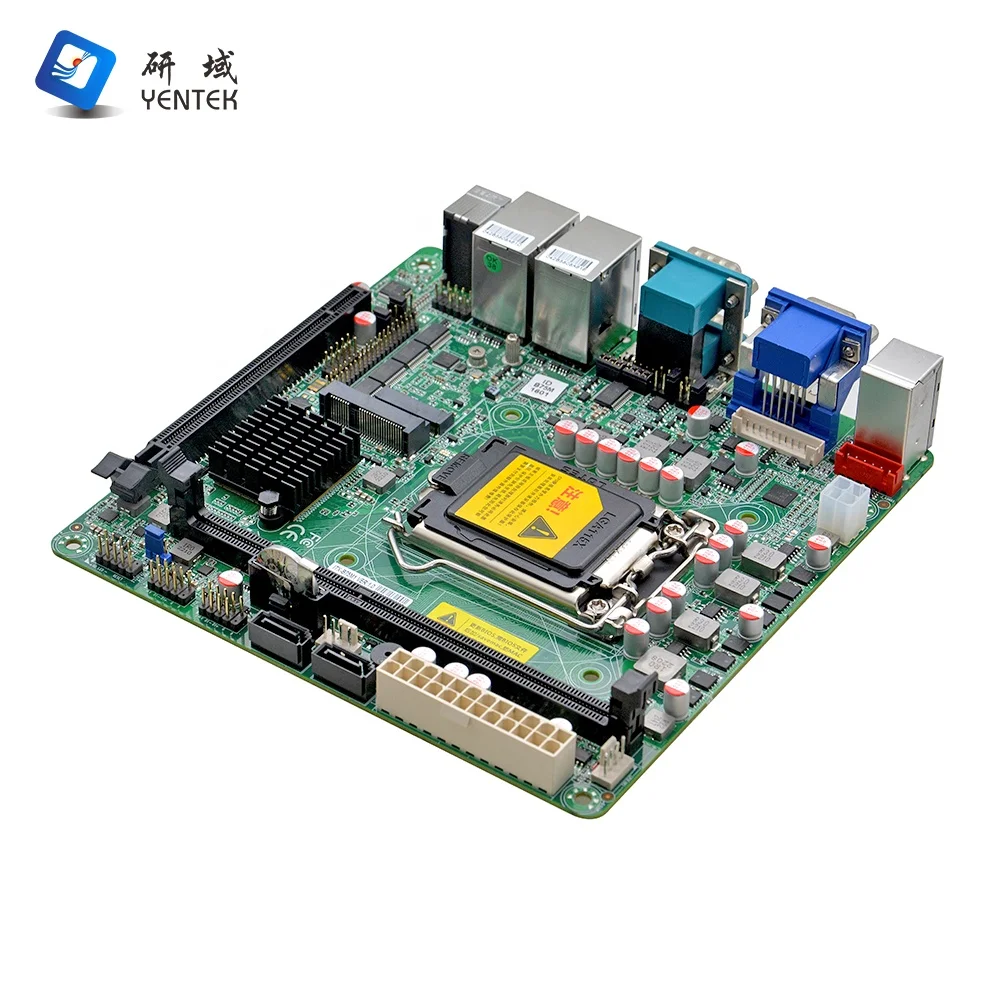

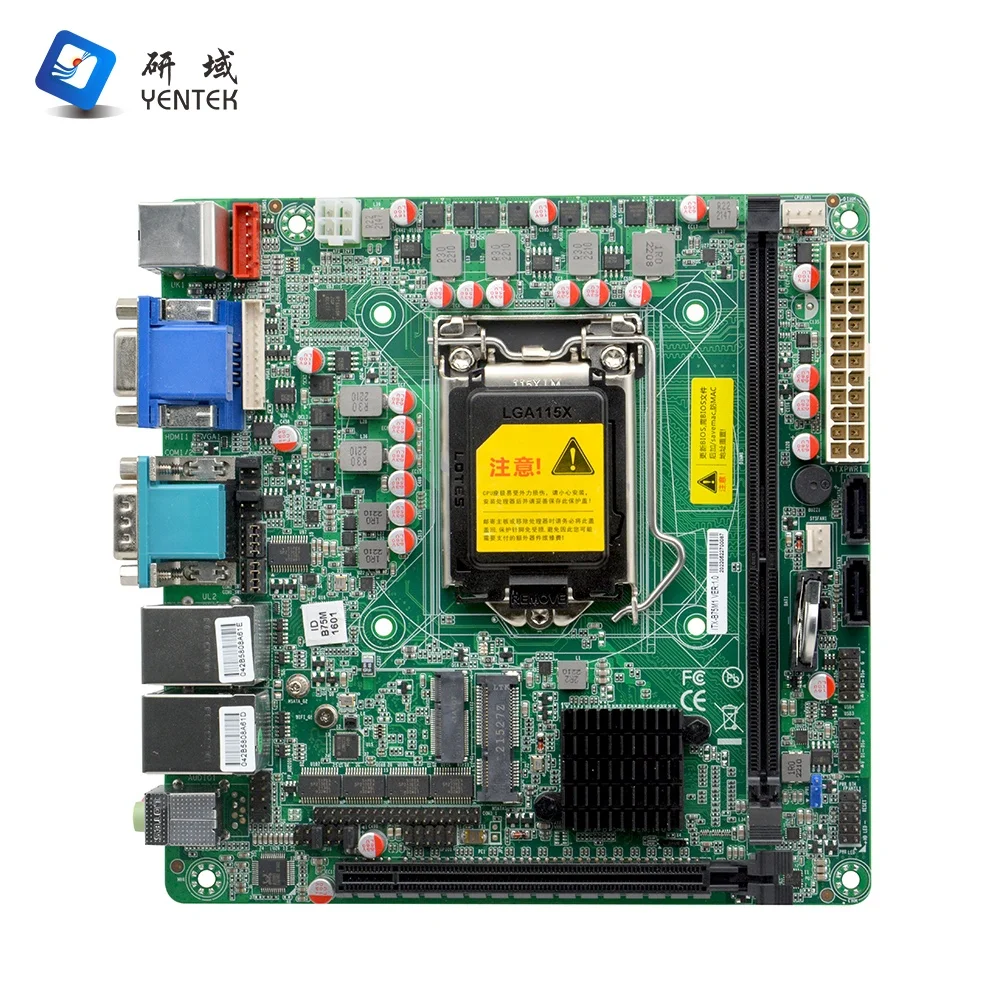

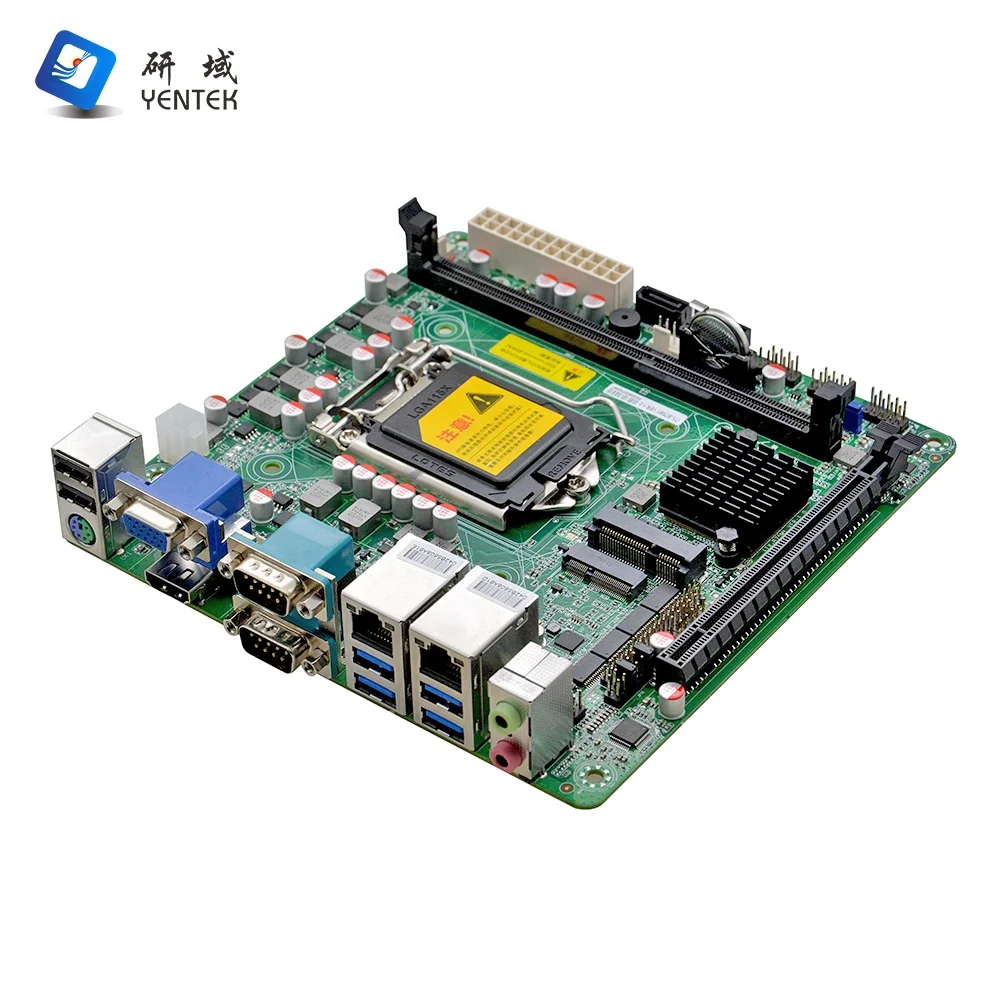

X86 Motherboards Intel I3 I5 I7 LGA1155 Z77 2 DDR3 VGA HD PCIE X16 6 RS232 COM Industrial Mini Itx Motherboard

X86 Motherboards Intel I3 I5 I7 LGA1155 Z77 2 DDR3 VGA HD PCIE X16 6 RS232 COM Industrial Mini Itx Motherboard

$78.00-$86.00/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

X86 Motherboards Intel I3 I5 I7 LGA1155 Z77 2 DDR3 VGA HD PCIE X16 6 RS232 COM Industrial Mini Itx Motherboard

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Performance Computing: Supports Intel Core i3/i5/i7 processors via LGA1155 socket, delivering robust performance for industrial and commercial applications.
  • Compact Expandability: Features a PCIe x16 slot and integrated graphics, enabling versatile hardware configurations for tasks like multimedia processing or embedded systems.
  • Multi-Port Connectivity: Equipped with VGA, HDMI, USB 2.0/3.0, Ethernet, and 6 RS232 COM ports, ensuring compatibility with legacy and modern peripherals.

Key features

  • 1. Material Technology

    • With RoHS-compliant materials and robust PCB construction, ensure durability in industrial environments while meeting global environmental safety standards.

  • 2. Interactive Design

    • With 6 RS232 COM ports and dual PCIe slots (including PCIe x16), connect legacy devices and high-performance expansion cards seamlessly, outperforming competitors with limited serial or expansion interfaces.

  • 3. Performance Parameters

    • With a PCIe x16 slot and integrated graphics support (VGA/HDMI), achieve high-speed data transfer and multimedia capabilities, ideal for demanding applications like embedded systems or industrial automation.

  • 4. Scenario Solutions

    • With a Mini-ITX form factor (saving 50% space vs. ATX boards*), deploy in compact industrial setups or embedded systems while maintaining full functionality.

  • 5. Certification Standards

    • With certifications including RoHS, CE, and EPR standards (Germany/France), ensure compliance with European environmental and safety regulations, reducing deployment risks in regulated markets.

Product details

X86 Motherboards Intel I3 I5 I7 LGA1155 Z77 2 DDR3 VGA HD PCIE X16 6 RS232 COM Industrial Mini Itx Motherboard

The X86 Mini-ITX motherboard is an industrial-grade solution designed for compact systems requiring robust performance and expandability. With certifications like RoHS and CE, it meets global compliance standards. Supporting Intel Core i3/i5/i7 processors (LGA1155), it offers integrated graphics, up to 8GB DDR3 RAM, and versatile I/O including 6 RS232 COM ports for legacy device compatibility.

Technical specifications

FeatureSpecificationApplication Scenario

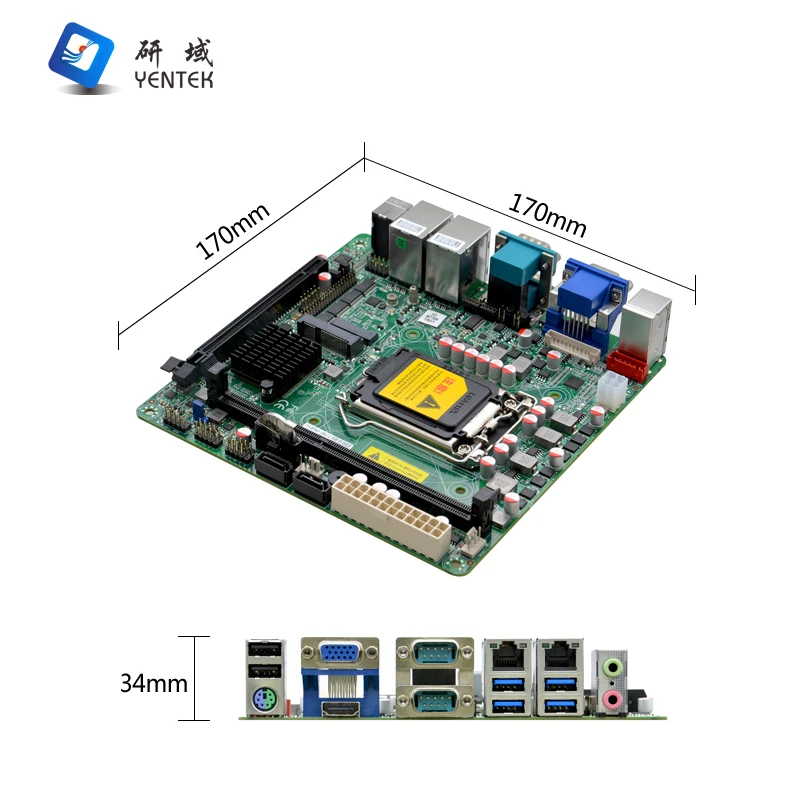

Form FactorMini-ITX (170x170mm)Space-constrained industrial automation or embedded systems
CPU CompatibilityIntel Celeron/Pentium/Core i3/i5/i7 (LGA1155 socket)High-performance computing in factory IoT setups
MemoryDDR3, up to 8GBSmooth operation for data-logging applications
Expansion SlotsPCIe x16 (Gen3) + PCIe x1, 2 SATA portsFlexible GPU or network card integration for edge computing

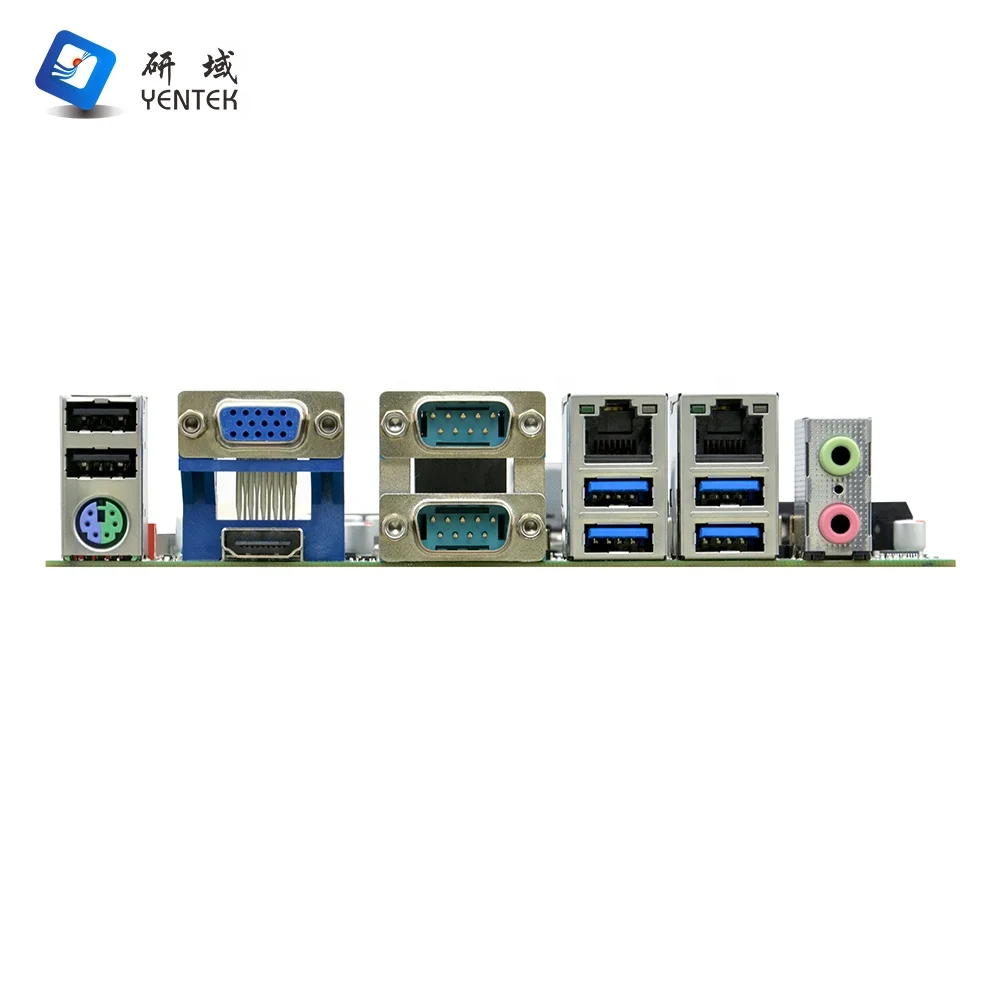

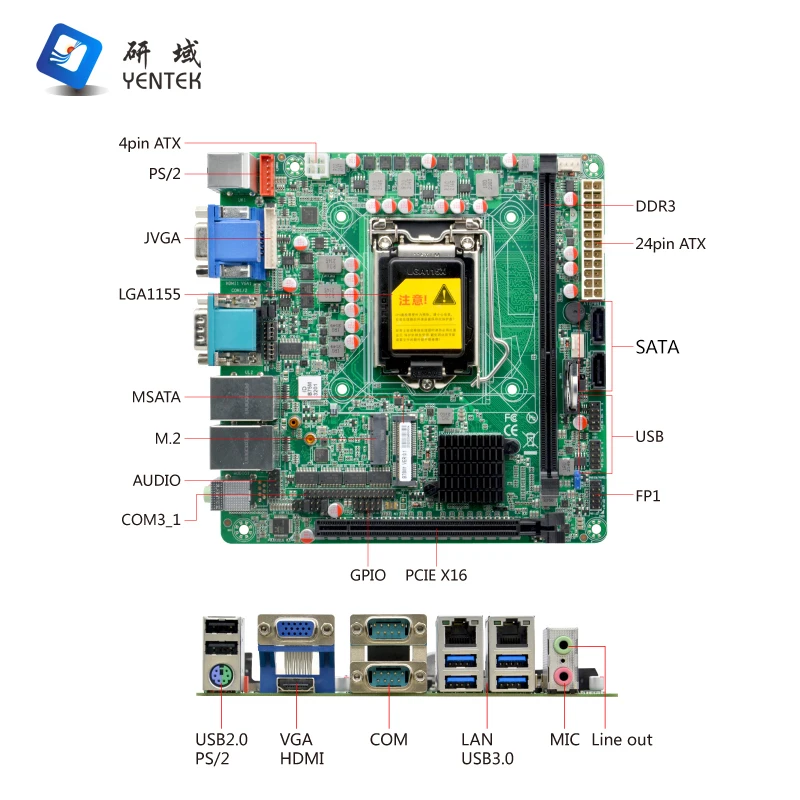

PortsVGA, HDMI, USB 2.0/3.0, PS/2, Ethernet, 6 RS232 COM ports, WiFiConnectivity for peripherals in rugged environments
CertificationsRoHS, CE, FCC, EPR (Germany/France), REACHCompliance for global industrial deployments

Customization guide

Adjustable port configurations (e.g., prioritizing COM ports over USB) to meet specialized I/O needs for factory automation or legacy system integration.

Get inspired

Compact yet powerful, this motherboard enables sleek industrial PCs for smart manufacturing, surveillance systems, or medical devices. Its 6 RS232 COM ports and PCIe x16 slot ensure compatibility with both modern and legacy hardware.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Form FactorMini-ITX (170x170mm)Mini-ITX + extended I/O bracketFull ATX for scalability
Max RAM8GB DDR38GB DDR3 + dual-channel support8GB DDR3 + ECC error correction
PCIe BandwidthPCIe 3.0 x16PCIe 3.0 x16 + x1 slotsPCIe 3.0 x16 + dual M.2 slots
CertificationsRoHS, CERoHS, CE, EPR (Germany)Full EPR/France/Germany compliance
COM Ports4 RS2326 RS232 + 2 USB 3.26 RS232 + 4 USB 3.2 Gen2

Supplier's note

  1. Three Breakthroughs:

    • LGA1155 Socket: Supports Intel’s 3rd/4th Gen Core processors, offering 20% faster PCIe 3.0 bandwidth than earlier generations.
    • 6 RS232 COM Ports: Enables simultaneous control of legacy industrial devices without external adapters.
    • ECC Memory (Pro Model): Reduces data corruption risks in 24/7 industrial applications.

  2. Optimal Version Selection:

    • Base Model: Ideal for basic automation tasks (e.g., PLC control) where cost-efficiency is critical.
    • Advanced Model: Suitable for factories needing expanded I/O (e.g., robotics with multiple sensors).
    • Pro Model: Best for mission-critical systems requiring ECC memory and full regulatory compliance (e.g., medical imaging devices).

With the Pro’s PCIe 3.0 x16 slot, you can pair it with high-end GPUs for AI-driven quality inspection systems. The 6 RS232 COM ports eliminate the need for external converters, saving space in cramped industrial racks.

Frequently asked questions

  • Which Mini-ITX motherboard suits industrial automation systems?

  • Is this motherboard RoHS and CE certified for industrial use?

  • Which Intel CPUs work with the LGA1155 socket on this motherboard?

  • Why is the maximum RAM limited to 8GB DDR3?

  • Does this motherboard support both VGA and HDMI ports?

  • Can I add a graphics card via the PCIe x16 slot?

  • How many RS232 COM ports does it have for legacy devices?

  • Does it handle harsh environments like manufacturing plants?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Form FactorIndustrial Control Systems, Embedded SolutionsMini-ITX (170x170mm) ▲▲ (Space-saving, fits tight spaces)Compact design ideal for small enclosures (e.g., kiosks, automation devices)Limited expansion slots compared to ATX (only 2 PCIe)
CPU CompatibilityIndustrial Automation, Server NodesSupports Intel Celeron/Pentium/Core i3/i5/i7 (LGA1155) ▲ (Broad processor range)Versatile for diverse workloads (e.g., IoT gateways, edge computing)Older LGA1155 socket may not support newer CPUs (e.g., 12th Gen Intel)
RAM CapacityData-Intensive ApplicationsUp to 8GB DDR3 (Dual-channel) ▲▲ (Double industry standard 4GB)Handles heavy multitasking (e.g., database servers, real-time analytics)Max 8GB may limit high-end uses (e.g., AI workloads require more RAM)
Expansion SlotsCustomized SystemsPCIe x16 + x1 slots ▲ (Supports GPUs and expansion cards)Flexible for adding components (e.g., graphics cards, network adapters)Only two slots may restrict multi-card setups (e.g., dual GPUs)
Port ConnectivityMulti-Peripheral Environments6x USB (2.0/3.0), VGA, HDMI, Ethernet, PS/2 ▲ (Rich I/O options)Connects diverse peripherals (e.g., legacy devices, industrial sensors)No USB-C or Thunderbolt support for modern high-speed peripherals
CertificationsGlobal ComplianceRoHS, CE, EPR (Germany/France) ▲▲ (Meets EU environmental standards)Ensures regulatory compliance worldwide (e.g., EU markets)No mention of newer certifications like Energy Star or UL 62368
