XHC Brand 2MHZ MACH4 3 Axis Card Ethernet Motion Controller Card Breakout Board Hobby Version Support Stepper Motor Servo Motor
Ready to Ship
In stock Fast dispatch

XHC Brand 2MHZ MACH4 3 Axis Card Ethernet Motion Controller Card Breakout Board Hobby Version Support Stepper Motor Servo Motor

  • 1 - 4 Pieces
    $154
  • >= 5 Pieces
    $123

Customization:

Customized logo（Min.Order: 50 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

XHC Brand 2MHZ MACH4 3 Axis Card Ethernet Motion Controller Card Breakout Board Hobby Version Support Stepper Motor Servo Motor

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Motion Control: The XHC Brand 2MHZ MACH4 3 Axis Card is designed to control multiple motion axes in CNC machines, robotics, and other automation systems.
  • Interface Design: It connects to a computer via USB or Ethernet, facilitating real-time control and monitoring of motion axes.

Key features

  • 1. Advanced Material Technology

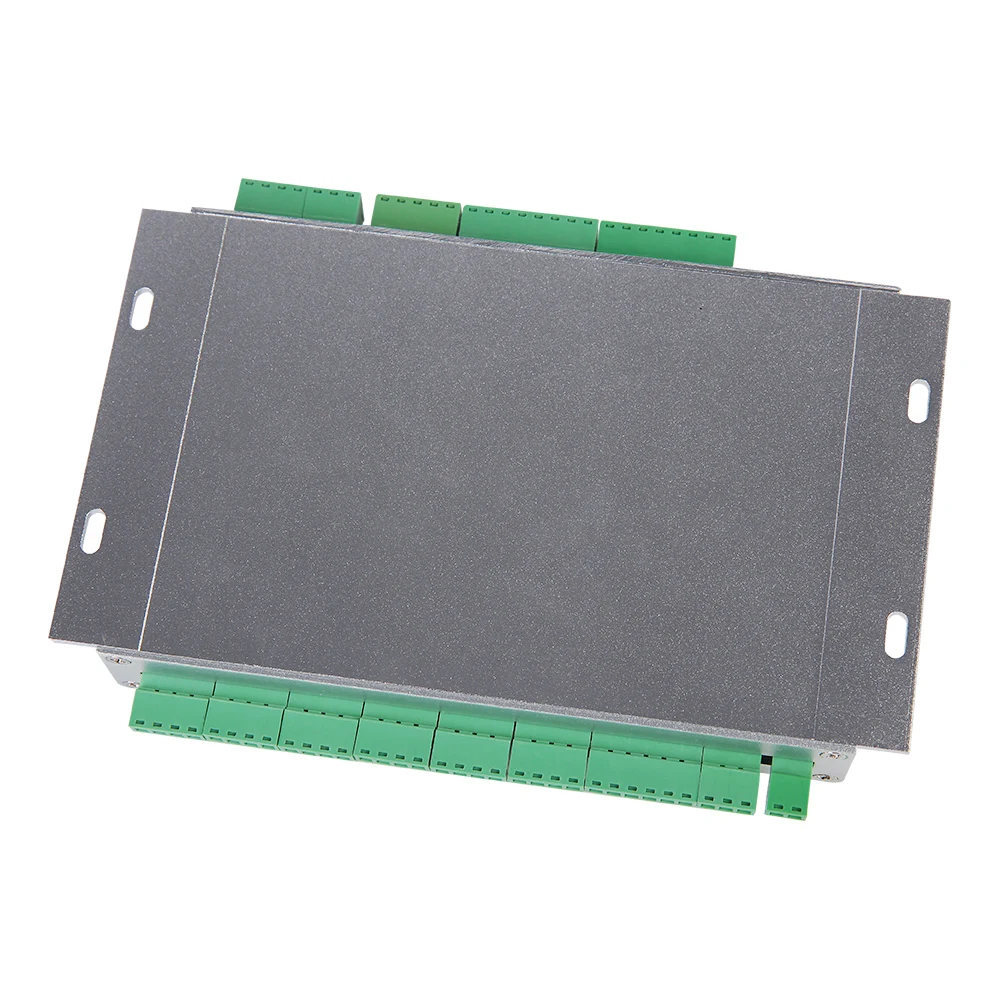

    • With a durable aluminum metal casing, the XHC Brand 2MHZ MACH4 3 Axis Card ensures excellent heat dissipation and protection against electromagnetic interference, enhancing longevity and performance in demanding environments.

  • 2. Interactive Design

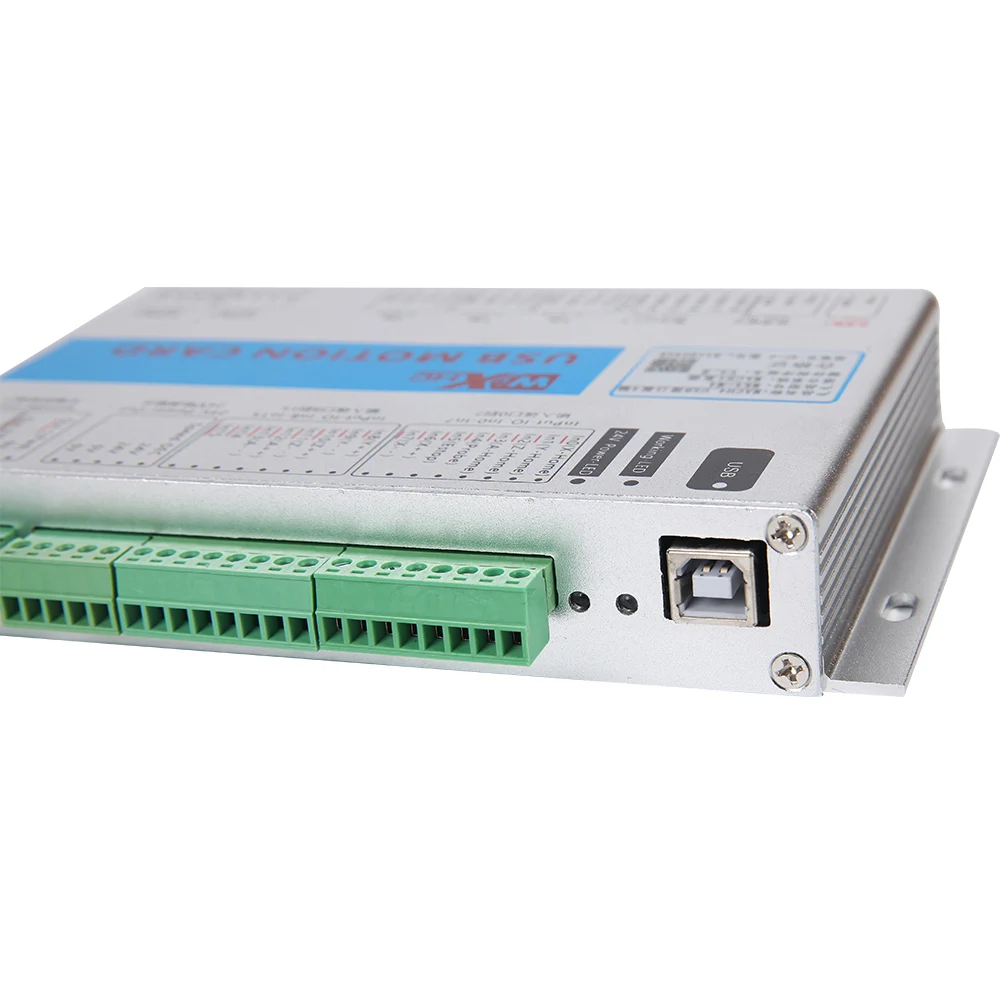

    • With a USB interface, you can achieve seamless and reliable data transfer, essential for real-time control and monitoring of CNC machines and robotics, simplifying connectivity for users.

  • 3. Enhanced Performance Parameters

    • With the ability to control multiple motion axes simultaneously, this motion controller card optimizes performance for complex automation systems, supporting both stepper and servo motors for versatile applications.

  • 4. Versatile Scenario Solutions

    • With its capability to support various motion control software, the card provides customizable motion profiles, perfect for applications ranging from jade carving to woodworking and stone engraving.

  • 5. Certification Standards

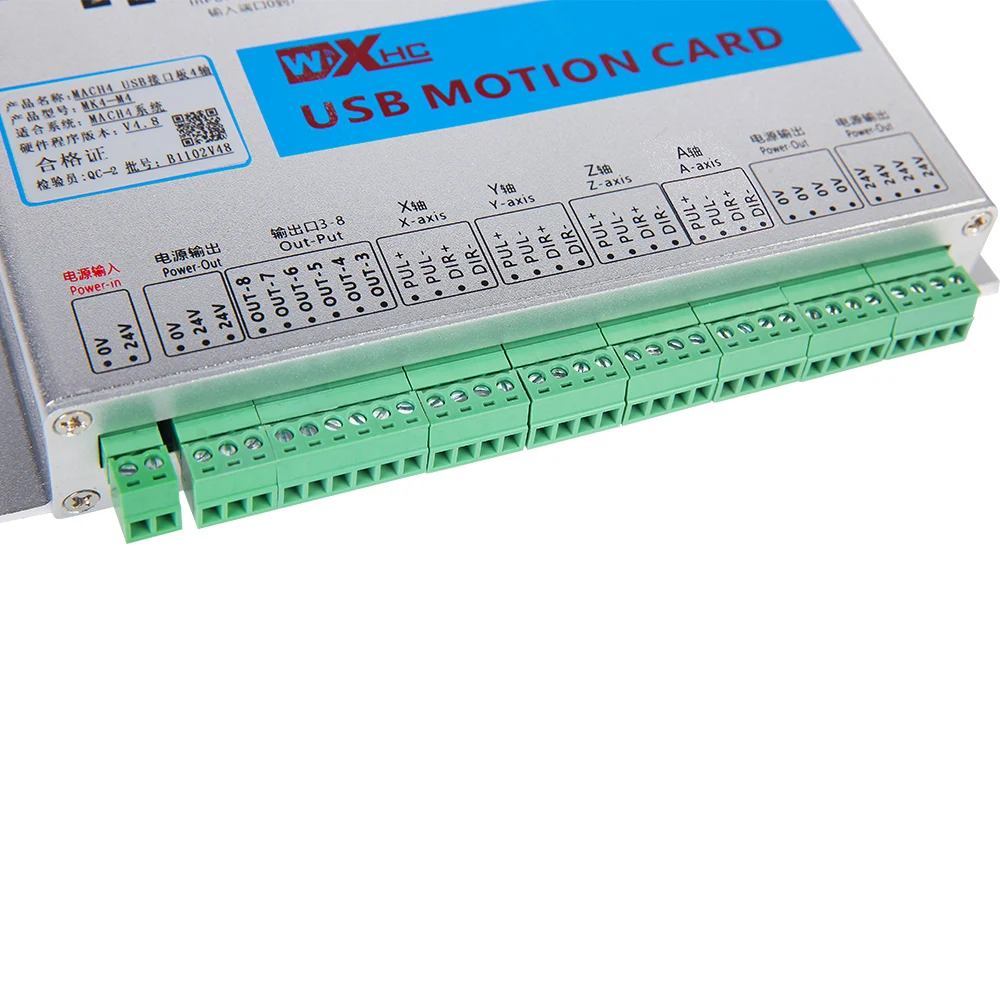

    • With secure screw terminals and clear labeling, the XHC Brand motion card ensures stable and reliable connections, meeting high-quality standards for safety and operational efficiency.

Product details

XHC Brand 2MHZ MACH4 3 Axis Card Ethernet Motion Controller Card Breakout Board Hobby Version Support Stepper Motor Servo Motor

The XHC Brand 2MHZ MACH4 3 Axis Card is a high-performance Ethernet Motion Controller Card designed for CNC systems. It supports stepper and servo motors, making it ideal for applications like jade carving, woodworking, and stone engraving. This hobby version is compatible with the MACH4 system and offers robust motion control capabilities.

Technical specifications

FeatureSpecificationBenefit
MaterialAluminum CasingProvides durability and EMI shielding
ConnectivityUSB & Ethernet InterfaceEnsures reliable real-time data transfer
Motion ControlControls 3 AxesEnables complex motion systems
Power SupplyIntegrated OutputsEliminates need for external power supplies
CompatibilityMACH4 SoftwareEasy integration with CNC systems

Customization guide

Adjustable parameters such as acceleration, deceleration, and speed profiles can be tuned to meet specific application needs, ensuring optimal performance for your CNC projects.

Get inspired

With the XHC 3 Axis Motion Controller, you can take your CNC projects to the next level, whether you're carving intricate jade designs or engraving detailed woodworking patterns. Its robust features and customizable settings make it a versatile tool for any hobbyist or professional.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Axis Control3 Axes4 Axes6 Axes
InterfaceUSBUSB & EthernetUSB & Ethernet
Speed ProfileStandardEnhancedPremium

Supplier's note

The XHC 3 Axis Motion Controller's integration with MACH4 software and USB & Ethernet interfaces represents a significant advancement, allowing for seamless control and flexibility in CNC operations. Its aluminum casing not only ensures durability but also provides superior EMI shielding, enhancing operational stability.

For those seeking precision and adaptability, the Pro Model's ability to control up to 6 axes and its premium speed profiles make it ideal for complex and demanding CNC applications. Meanwhile, the Base and Advanced Models offer excellent value for less intensive projects.

Frequently asked questions

  • Which USB motion card model is best for CNC machines in small workshops?

  • How do I maintain and care for my USB motion controller card?

  • What is the difference between using this motion card with stepper motors versus servo motors?

  • Can I customize motion profiles on the XHC 3 Axis Card for specialized tasks?

  • Is the USB motion card material suitable for industrial environments?

  • Does the XHC Brand motion control card support open-loop control systems?

  • How can I ensure compatibility with existing CNC router systems?

  • What unique features does the XHC Ethernet Motion Controller offer for stone engraving?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
USB Motion CardCNC Machines, RoboticsControls multiple axes simultaneouslyEasy USB connectivity (plug and play)Limited to USB data transfer rates
Ethernet Motion ControllerHigh-Speed Automation SystemsSupports Ethernet connectivity for faster data transferEnhanced real-time monitoring and controlRequires network setup and configuration
Stepper Motor Support CardPrecision Machining, 3D PrintingCompatible with stepper motors for accurate positioningHigh precision control (0.9° per step)Less torque compared to servo motors
Servo Motor Support CardRobotics, CNC RoutersSupports servo motors for dynamic motion controlHigh torque and speed (quick response)More complex setup and tuning required
Customizable Motion CardSpecialized Automation TasksProgrammable for specific motion profilesTailored to application needs (custom motion algorithms)Requires programming expertise
Aluminum Cased Motion CardEMI Sensitive EnvironmentsDurable aluminum casing for EMI shieldingProtects internal components (prevents interference)Heavier than plastic alternatives
