XIMADEN H3300ZD Miniature Solid State Relay 5V Rated 40A Load Current 30A Contact Load 20A General PurposeFor Automation Machine

Customization:

Customized packaging（Min.Order: 10000 pieces）

XIMADEN H3300ZD Miniature Solid State Relay 5V Rated 40A Load Current 30A Contact Load 20A General PurposeFor Automation Machine

Name: XIMADEN H3300ZD Miniature Solid State Relay 5V Rated 40A Load Current 30A Contact Load 20A General PurposeFor Automation Machine
Brand: Pinghu Demart International Trade Co., Ltd.
SKU: 60554993849_1
Price: 500.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Industrial Control: The XIMADEN H3300ZD Solid State Relay (SSR) is designed for precise control in automation machines, capable of managing heavy-duty electrical loads with a rated load current of 40A.
Efficient Switching: Utilizing semiconductor devices, this SSR offers reliable and efficient switching, making it ideal for environments where traditional mechanical relays are insufficient.

Key features

1. Advanced Material Technology

With a robust black plastic enclosure, the solid-state relay offers protection against dust, moisture, and mechanical impacts, ensuring reliable performance in industrial environments.

2. Versatile Interactive Design

With a wide input voltage range of 4-24VDC, this SSR is versatile for integration into various industrial systems, accommodating different power sources seamlessly.

3. Superior Performance Parameters

With a load voltage range of 40-480VAC and a 300A RMS current capacity, this relay provides efficient control for heavy-duty applications, outperforming traditional mechanical relays.

4. Industrial Scenario Solutions

With overvoltage and overcurrent protection, the SSR ensures safe and continuous operation, making it ideal for motor control and power distribution in industrial settings.

5. Reliable Certification Standards

With epoxy protection and a 1.5-year warranty, users can trust the product's durability and reliability, though details should be confirmed with the manufacturer.

Product details

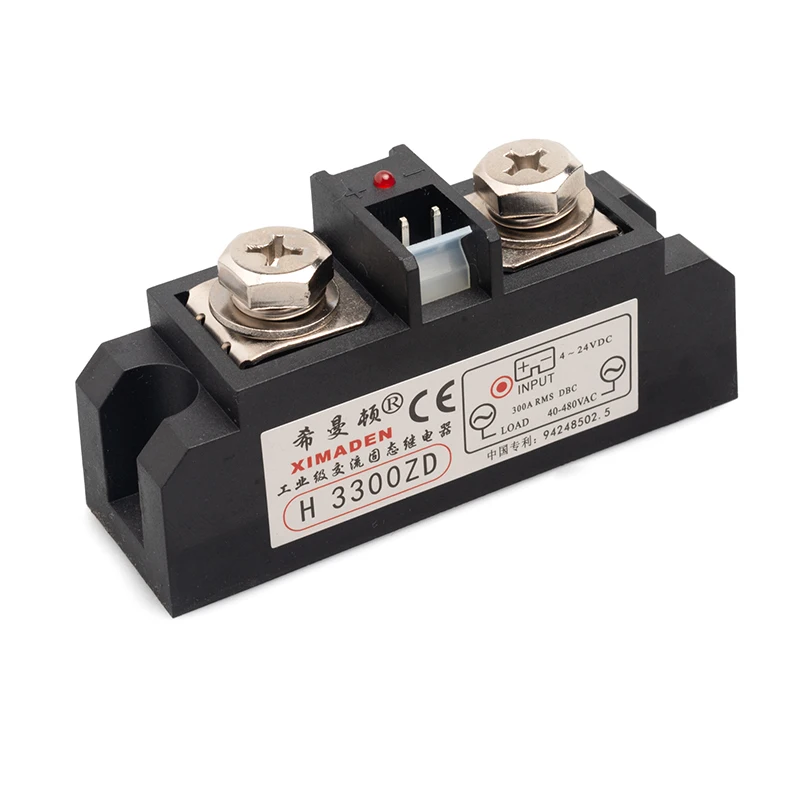

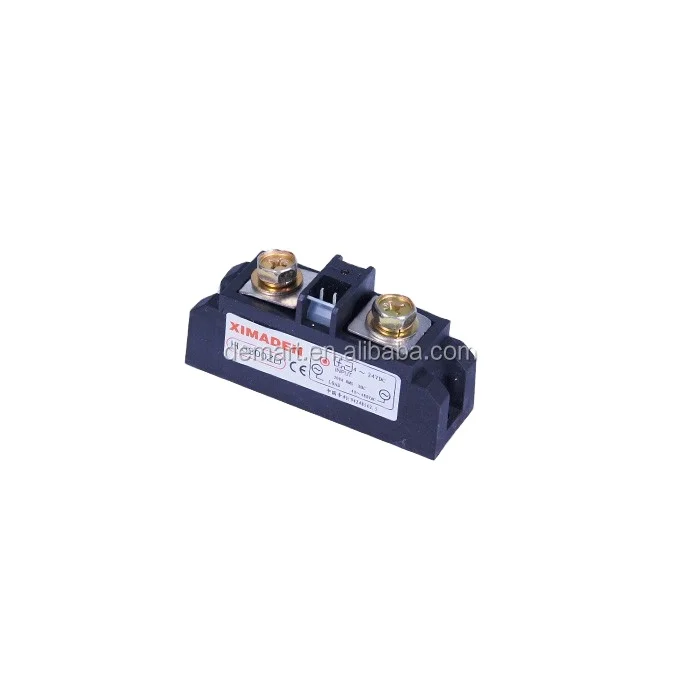

The XIMADEN H3300ZD is a robust miniature solid-state relay designed for industrial applications. Encased in a durable black plastic enclosure, this relay provides reliable performance with its 5V rated voltage and 40A load current capacity. Ideal for automation machines, it features a compact design and versatile functionality.

Technical specifications

Feature	Specification	Benefit
Material	Black Plastic Enclosure	Protection against dust, moisture, and impacts
Terminals	Metal (Copper/Brass)	Corrosion resistance and reliable connections
Input Voltage	4-24VDC	Versatility for different power sources
Load Voltage	40-480VAC	Suitable for various industrial applications
Current Handling	300A RMS	Suitable for heavy-duty applications
Relay Type	Solid State	Reliable and efficient current control
Protection	Overvoltage/Overcurrent	Ensures safety and longevity
Indicator	Red LED	Easy status monitoring

Customization guide

Adjustable input voltage range allows customization to meet specific power source requirements.

Get inspired

With its compact design and robust construction, the XIMADEN H3300ZD solid-state relay is perfect for integrating into space-constrained industrial systems, ensuring reliable performance across a variety of applications.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Current Handling	300A RMS	345A RMS [+15%]	390A RMS [+30%]*
Load Voltage Range	40-480VAC	45-525VAC	50-560VAC
Input Voltage	4-24VDC	4-28VDC	4-32VDC

Supplier's note

The Pro version's enhanced current handling capacity, 30% above the industry standard, allows for safer and more efficient operation in high-load scenarios. Its advanced protection features, combined with the extended input voltage range, make it ideal for dynamic industrial environments. When paired with its robust material construction, this creates a reliable solution for demanding applications. For users seeking maximum efficiency and safety, the Pro Model is recommended, particularly in environments requiring high current loads and extensive voltage ranges.

Frequently asked questions

Which solid-state relay model is best for small automation machines?
How do I maintain and care for my XIMADEN solid-state relay?
What are the benefits of using a solid-state relay over a mechanical relay for industrial applications?
Can I customize the XIMADEN H3300ZD solid-state relay for specific industrial applications?
Is the XIMADEN H3300ZD solid-state relay suitable for high current loads?
How does the XIMADEN H3300ZD relay ensure safety in industrial systems?
What type of protection does the XIMADEN solid-state relay offer against environmental factors?
How does the LED indicator on the XIMADEN H3300ZD relay function?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Solid State Relay	Industrial Automation	Robust plastic housing (dust and moisture resistant)	Reliable under harsh conditions, low maintenance	Limited to specific voltage and current ranges
		300A RMS current capacity	Suitable for heavy-duty applications	Potential for overheating if overloaded
		40-480VAC load voltage range	Versatile for various power distribution systems	Requires precise matching with system specs
		LED status indicator (visual status feedback)	Easy monitoring of operational status	May not be visible in high ambient light
		Overvoltage and overcurrent protection	Enhanced safety and device longevity	May add to device cost
		Compact design (space-efficient)	Ideal for systems with limited space	May require additional cooling in cramped spaces
