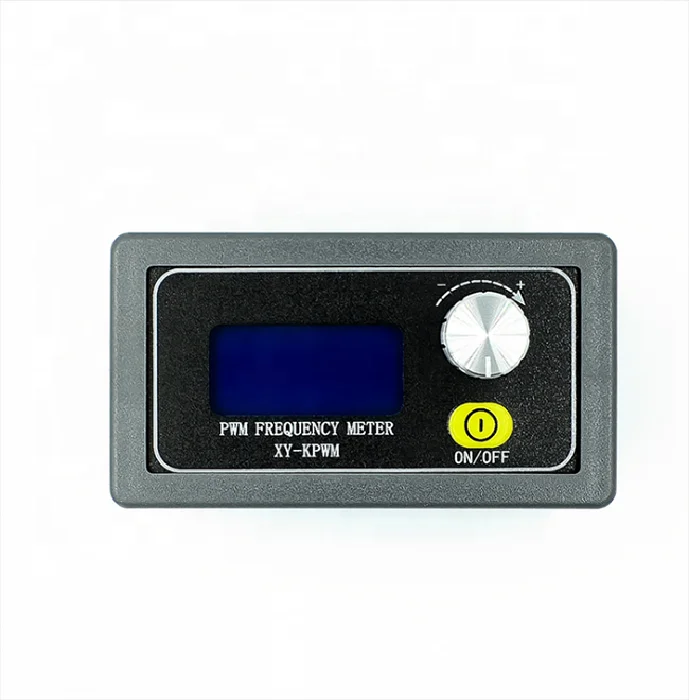

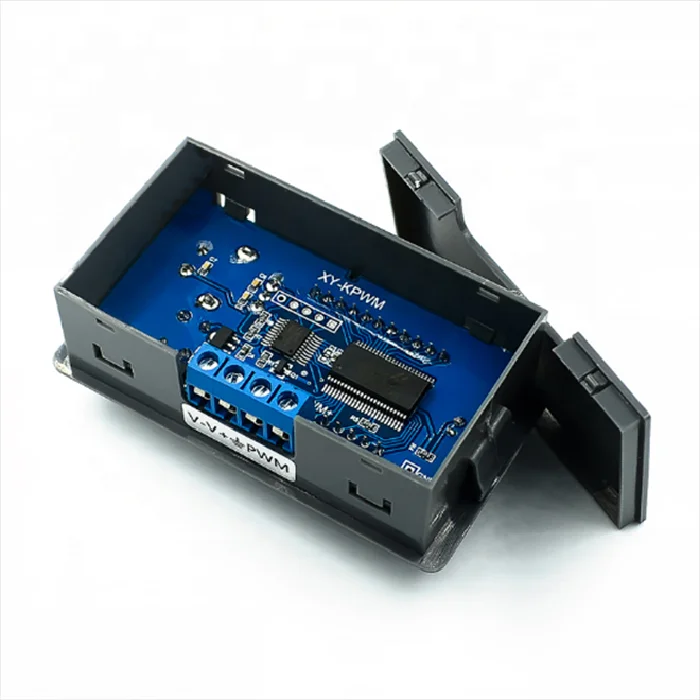

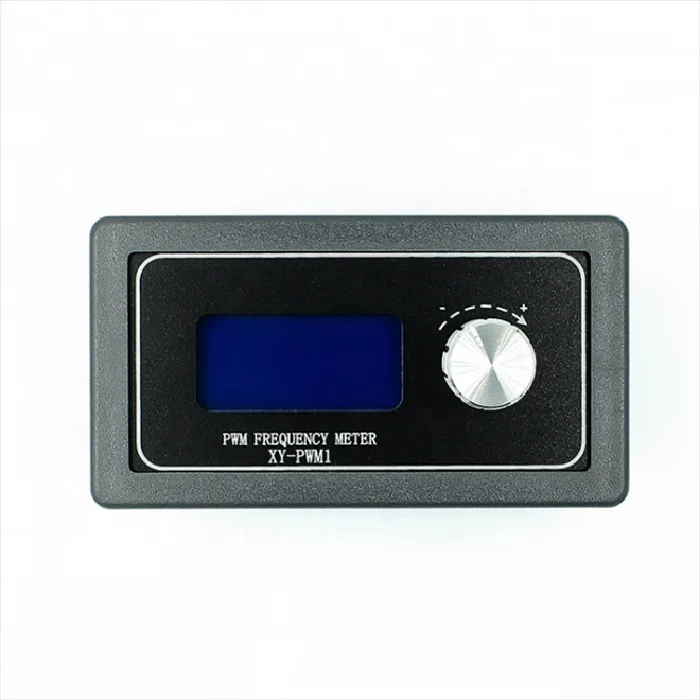

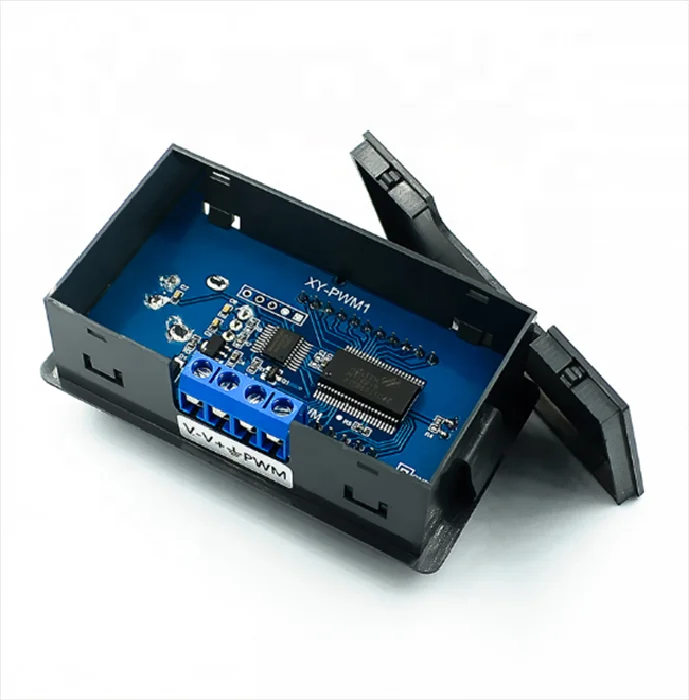

XY-PWM Signal Generator 1 Channel 1Hz-150KHz PWM Adjustable Digital Display Module PWM Signal Generator Pulse Frequency

Technical specifications

Customization guide

Adjustable parameters include frequency (1Hz-150KHz), duty cycle (1%-99%), and output voltage (adjustable via V-V connector) to meet specialized needs. The open enclosure design allows easy component additions or modifications for tailored solutions.

Get inspired

With its modular design and precise PWM control, the XY-PWM Signal Generator is perfect for prototyping robotics systems, testing motor performance, or developing IoT devices requiring adjustable pulse signals.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Expanded Frequency Range: The Pro Model’s 200KHz capability outperforms industry benchmarks, enabling high-speed motor control.
   • Precision Duty Cycle: The Advanced Model’s 0.1% resolution ensures minimal error in medical or industrial sensors.
   • Enhanced Compliance: Pro Model certifications (CE/UL) meet global safety standards for commercial deployments.

2. Optimal Version Selection:

   • Base Model: Ideal for hobbyists or low-current applications (e.g., LED dimming).
   • Advanced Model: Suitable for researchers needing fine duty cycle control (e.g., biomedical devices).
   • Pro Model: Best for industrial users requiring high-current output and global certifications (e.g., factory automation).

With the Pro Model’s 5A output, you can power heavy-duty actuators while maintaining signal integrity. Its UL certification ensures safe integration into commercial systems. Pair the Advanced Model’s 0.1% duty cycle with its FR4 PCB for stable operation in temperature-sensitive environments.
