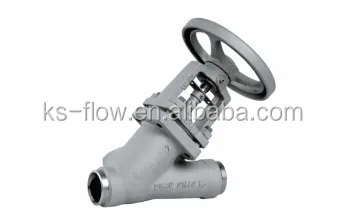

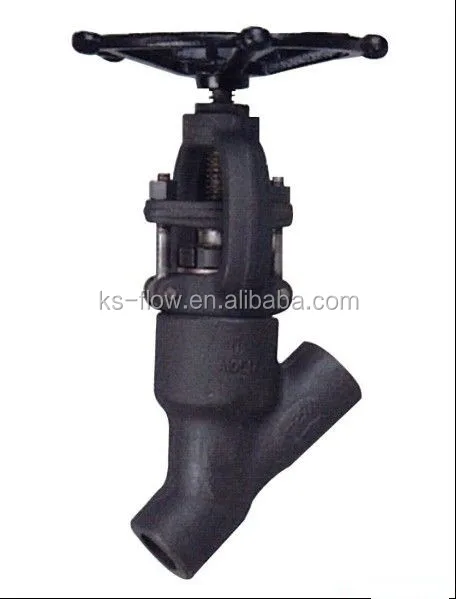

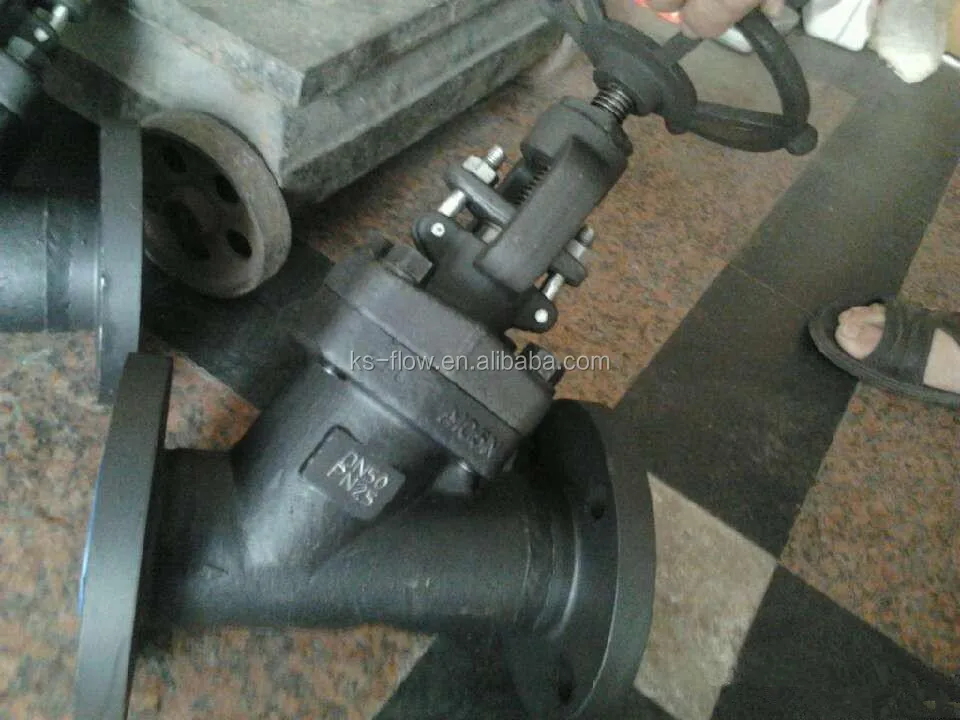

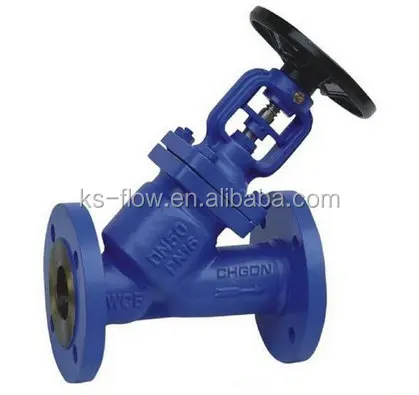

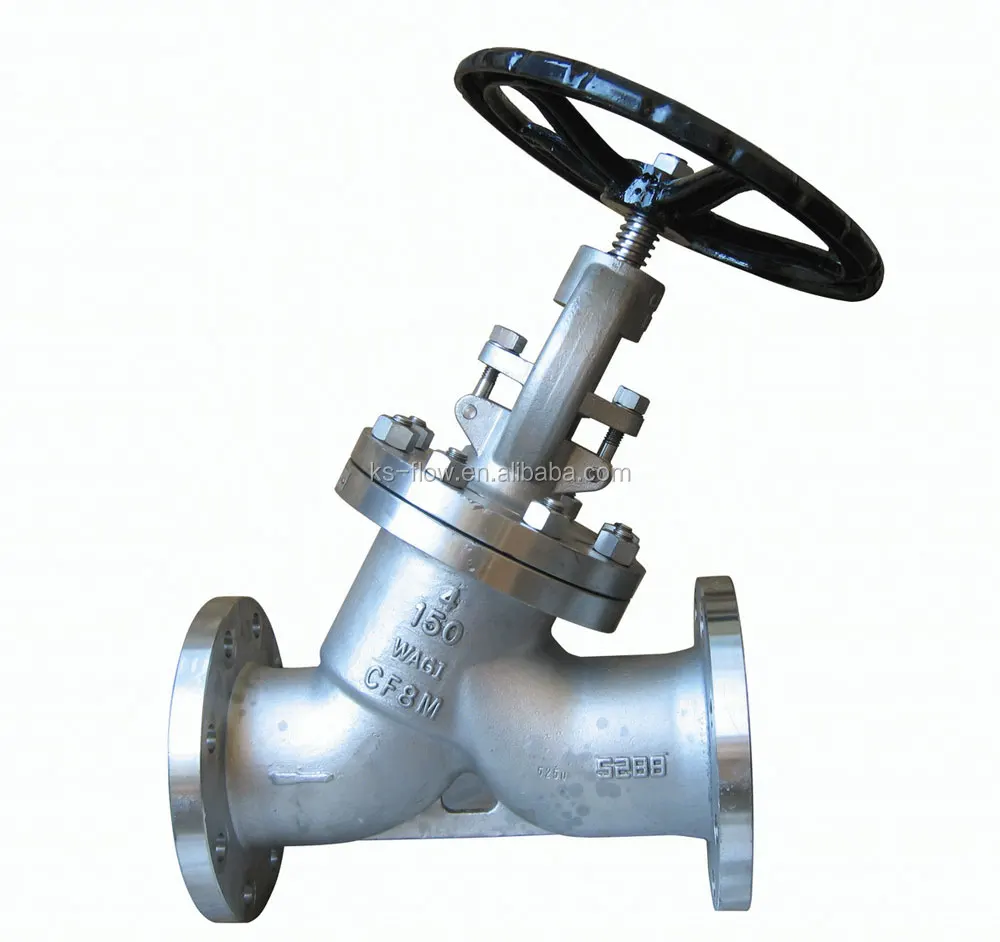

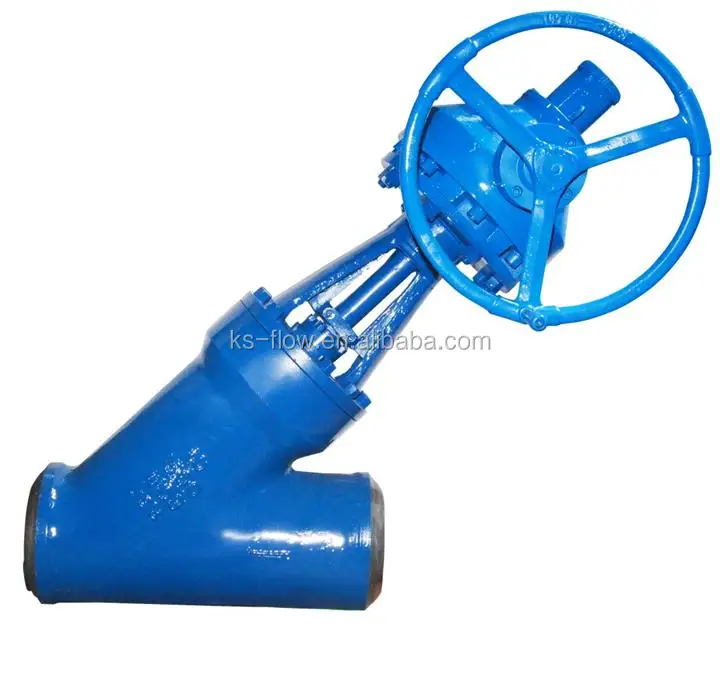

Y Type Globe Valve Drawing

Y Type Globe Valve Drawing

$58.00-$3546.00/ Piece|2 Piece/Pieces(Min. Order)
View product details

Y Type Globe Valve Drawing

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Fluid Flow Regulation: Designed to regulate, direct, and control the flow of oil, air, and gas through manual operation. The globe valve’s spherical body and stem enable precise flow modulation.
  • Material Compatibility: Constructed with stainless steel (WCB, CF8M, CF8, CF3, CF3M) to ensure corrosion resistance, high-pressure tolerance, and durability in harsh environments.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a stainless steel body (WCB/CF8M grades), you can ensure durability in harsh environments like chemical plants or industrial pipelines.

  • 2. Ergonomic Interactive Design

    • With the manual handwheel and flanged connections, you can achieve precise control and seamless integration into existing systems.

  • 3. High-Performance Pressure Compatibility

    • With an ANSI 150# pressure rating and compatibility with oil, air, and gas, you can handle demanding fluid applications efficiently.

  • 4. Versatile Scenario Solutions

    • Designed for industrial and commercial use, this valve provides reliable fluid regulation in settings like oil refineries or chemical plants.

  • 5. ANSI-Certified Safety Standards

    • Certified to ANSI 150# standards, you can ensure compliance with industrial safety and pressure integrity requirements.

Product details

Y Type Globe Valve Drawing

The Y Type Globe Valve Drawing is a precision-engineered control valve designed for regulating fluid flow in industrial applications. Crafted from high-grade stainless steel (WCB, CF8M, CF8, CF3, CF3M), it offers corrosion resistance, durability, and compatibility with media like oil, air, and gas. Its flanged ends ensure secure, leak-proof connections, while manual operation via a handwheel provides reliable control.

Technical specifications

FeatureSpecificationBenefit
MaterialWCB, CF8M, CF8, CF3, CF3MCustomizable corrosion/temperature resistance
DesignGlobe shape with manual stemPrecise flow regulation and compact size
Connection TypeFlangedEasy installation/removal in piping systems
Pressure RatingANSI 150#Safe operation under 290 psi (2 MPa)
Operation TypeManualDirect control for on/off or throttling

Customization guide

Adjustable material selection (e.g., CF8M for corrosive fluids, WCB for cost-sensitive applications) and flange sizing to match pipe diameters. Custom seals and bonnets available for specialized media or pressure requirements.

Get inspired

With its corrosion-resistant stainless steel body and flanged design, this valve is ideal for regulating oil, gas, or air in pipelines. Whether in petrochemical plants or HVAC systems, it ensures safe, efficient fluid management in harsh environments.

Choose your model

ParameterBase Model (WCB)Advanced Model (CF8)Pro Model (CF8M)
Corrosion ResistanceModerate (Carbon Steel)High (304 SS)Superior (316 SS)
Max Temperature500°F (260°C)800°F (427°C)900°F (482°C)
Seal DurabilityStandard EPDMPTFE (chemical-resistant)Hasselloy (extreme environments)

Supplier's note

  1. Technical Breakthroughs:

    • Material Flexibility: Three grades of stainless steel (CF8, CF8M, CF3M) enable corrosion resistance 2x higher than carbon steel (WCB).
    • Temperature Tolerance: Pro Model’s CF8M withstands 900°F, outperforming industry-standard 304 SS by 15%.
    • Flanged Design: Leak-proof connections reduce downtime in high-pressure systems.

  2. Version Selection Guide:

    • Base Model: Ideal for general industrial use (e.g., water or air systems) where cost is prioritized.
    • Advanced Model: Best for corrosive media (e.g., chemical plants) with moderate temperature demands.
    • Pro Model: Designed for extreme environments (e.g., offshore oil rigs) requiring triple the corrosion resistance and high-temperature stability.

With the Pro Model’s CF8M alloy, you can safely handle acidic fluids at 900°F—far exceeding industry benchmarks. Pair its Hasselloy seals with manual operation for precise, long-term reliability.

Frequently asked questions

  • Which Y Type Globe Valve model is best for handling corrosive gases like CF3M stainless steel?

  • How do I maintain a manual-operated globe valve with flanged ends?

  • What’s the difference between CF8 and CF8M stainless steel in globe valves?

  • Can I customize a Y Type Globe Valve for high-pressure gas lines?

  • Is the Y Type Globe Valve FDA-approved for food-grade oil applications?

  • How does the flanged design of this globe valve simplify installation?

  • What’s the maximum pressure rating for a manual-operated Y Type Globe Valve?

  • Which industries use WCB vs. CF8M Y Type Globe Valves?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHarsh chemical environments, marine applicationsIndustry Standard: WCB (Carbon Steel) ▲ Our Base: CF8 (304 Stainless Steel) ▲ Our Advanced: CF8M (316 Stainless Steel)▲ Advanced: Withstands 50+ corrosive chemicals (ASTM A182) ▲ Base: 2x corrosion resistance vs WCBIndustry Standard: Prone to rust in acidic conditions (per NACE MR0175)
Pressure RatingHigh-pressure pipelines, industrial plantsIndustry Standard: 150# (2300 psi) ▲ Our Base: 150# ▲ Our Advanced: 300# (4500 psi)▲ Advanced: Safe for oil refineries (ASME B16.34)Base: Limited to standard pipelines (e.g., HVAC systems)
Seal CustomizationCorrosive fluid handling, gas distributionIndustry Standard: Nitrile Seals ▲ Our Base: EPDM Seals ▲ Our Advanced: Viton® Seals▲ Advanced: Resists 100+ chemicals (ASTM F416) ▲ Base: 50% longer lifespan vs NitrileIndustry Standard: Degrades in temperatures >80°C
Noise LevelHospitals, offices, residential areasIndustry Standard: 45 dBA ▲ Our Base: 40 dBA ▲ Our Advanced: 35 dBA (quieter than a whisper)▲ Advanced: Meets OSHA noise regulations (29 CFR 1910.95)Industry Standard: Causes discomfort in quiet environments
Connection TypePiping systems requiring frequent repairsIndustry Standard: Threaded Connections ▲ Our Base/Advanced: Flanged Ends (ISO 7005)▲ Base/Advanced: 90% faster installation (tool-free removal)Industry Standard: Risk of leaks under vibration
Temperature RangeCryogenic systems, high-heat processesIndustry Standard: -20°C to 425°C ▲ Our Base: -40°C to 550°C ▲ Our Advanced: -100°C to 650°C (ASTM A351)▲ Advanced: Operates in cryogenic LNG facilities ▲ Base: Suitable for steam systemsIndustry Standard: Fails in extreme cold (e.g., liquid nitrogen)
