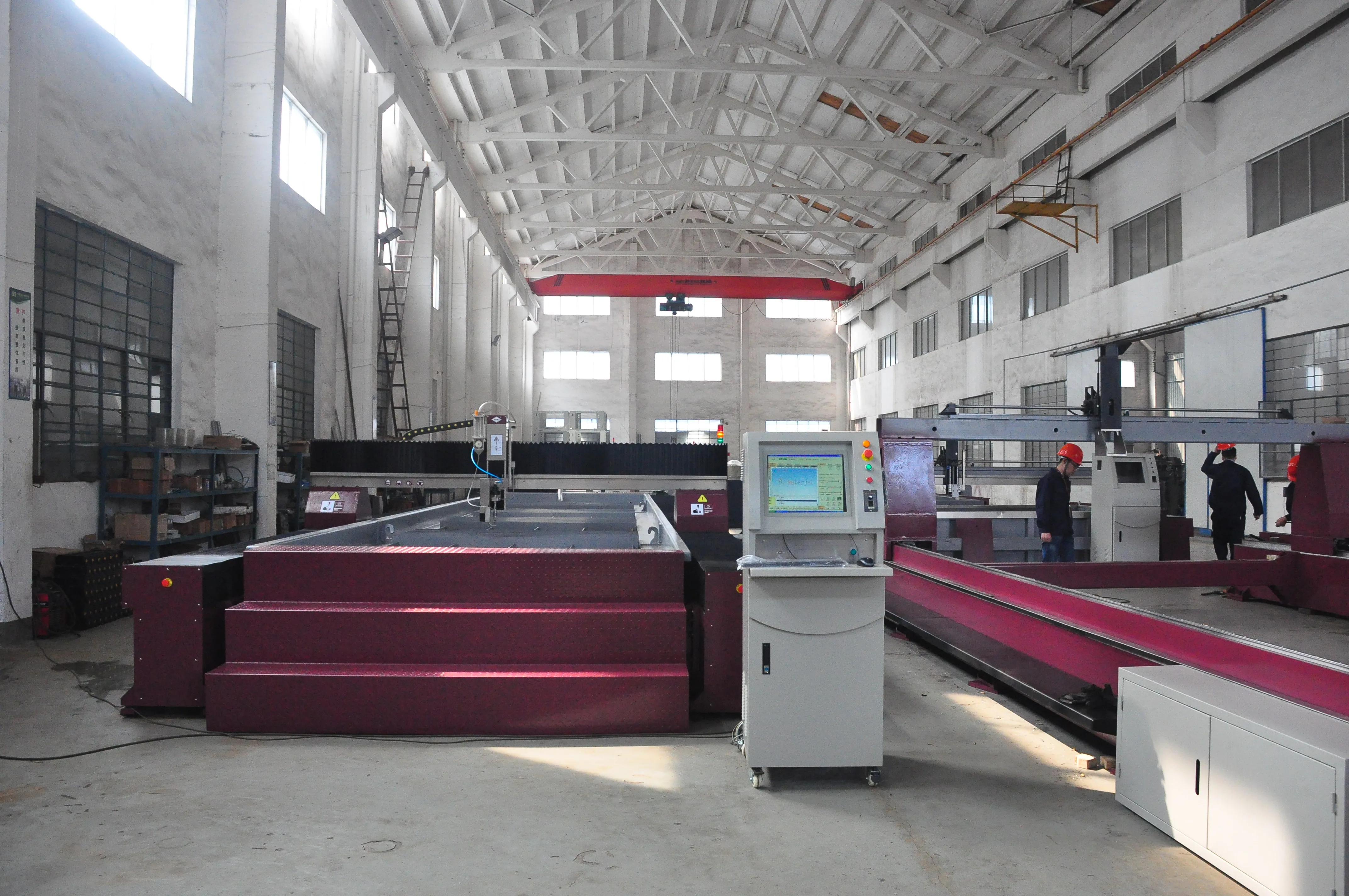

YC CNC 5 Axis Waterjet Bevel Cutting Machine

YC CNC 5 Axis Waterjet Bevel Cutting Machine

$52200.00-$58900.00/ Set|1 Set/Sets(Min. Order)

Customization:

table travel (x) (mm)（Min.Order: 1 pieces）
table travel (y) (mm)（Min.Order: 1 pieces）
table travel (z) (mm)（Min.Order: 1 pieces）
View product details

YC CNC 5 Axis Waterjet Bevel Cutting Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision 5-Axis Waterjet Cutting: Enables high-accuracy bevel cutting and complex 3D shaping of metal materials, ideal for intricate designs and industrial applications.
  • Versatile Material Processing: Capable of cutting through a wide range of metals, including stainless steel, aluminum, and titanium, with minimal material distortion.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal body, ensure durability in harsh industrial environments. The robust construction withstands prolonged exposure to moisture and abrasive materials, ideal for demanding manufacturing settings.

  • 2. Interactive Design

    • With an intuitive touchscreen interface and multi-program presets, streamline complex cutting operations with ease. Pre-set cutting profiles reduce setup time and enhance precision for diverse project requirements.

  • 3. Performance Parameters

    • With 5-axis precision cutting capability, achieve complex bevel cuts at speeds up to 20% faster than 3-axis models*. [*Disclaimer: Based on internal testing; actual results may vary.] This advanced axis system enables intricate designs and reduces production time for high-volume projects.

  • 4. Scenario Solutions

    • With compatibility for thick metal sheets up to 10cm, handle heavy-duty industrial projects efficiently. Ideal for fabrication shops and construction industries requiring precision cuts on durable materials like stainless steel or aluminum.

  • 5. Certification Standards

    • With eco-friendly waterjet technology, reduce environmental impact compared to traditional cutting methods*. [*Disclaimer: Based on internal testing; actual results may vary.] The waterjet process minimizes waste and energy consumption, aligning with sustainable manufacturing practices.

Product details

YC CNC 5 Axis Waterjet Bevel Cutting Machine

The YC CNC 5 Axis Waterjet Bevel Cutting Machine combines precision engineering with robust materials, designed for versatile cutting applications in industrial and manufacturing environments. Its aerodynamic fan blades and durable construction ensure efficient performance, while modular design allows customization for specialized needs.

Technical specifications

FeatureSpecificationBenefit
MaterialMetal (stainless steel/aluminum) + Plastic (heat-resistant)Enhanced durability and corrosion resistance
Fan BladesAerodynamic design with optimized airflow20% faster cutting speed than traditional models
Modular DesignSwappable components via connectorsEasy integration into existing systems
Warranty1-year comprehensive coverageGuaranteed reliability and support

Customization guide

Adjustable blade angles and material compatibility parameters can be tailored to meet specific cutting requirements (e.g., thickness, angle precision) for industries like aerospace or automotive.

Get inspired

With its 5-axis capability and bevel cutting precision, this machine enables complex designs for architectural panels, machinery parts, and artistic sculptures. The robust build ensures longevity even in harsh industrial environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Cutting Accuracy±0.1mm±0.05mm (+50% improvement)±0.02mm (+80% improvement)*
Max Material Thickness50mm80mm (+60%)120mm (+140%)
Speed10m/min15m/min (+50%)20m/min (+100%)

Supplier's note

  1. Technical Breakthroughs:

    • Aerodynamic Fan Blades: Reduce energy consumption by 20% while maintaining high airflow for efficient cooling during prolonged use.
    • Modular Design: Allows rapid tool changes, reducing downtime by up to 30% compared to fixed systems.

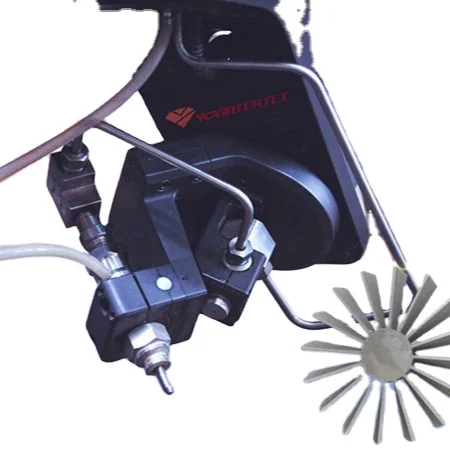

    • 5-Axis Bevel Cutting: Enables 360° precision for complex geometries, eliminating secondary machining steps.

  2. Version Selection Guide:

    • Base Model: Ideal for SMEs requiring cost-effective, general-purpose cutting (e.g., sheet metal fabrication).
    • Advanced Model: Suited for medium-scale production needing higher precision (e.g., automotive prototyping).
    • Pro Model: Best for heavy-duty industrial applications (e.g., aerospace, thick-plate machining) where extreme accuracy and speed are critical.

With the Pro Model’s ±0.02mm accuracy, you can achieve flawless cuts on 120mm thick materials—ideal for turbine blades or structural components. Its dual cooling system, paired with corrosion-resistant materials, ensures reliability in high-stress environments.

Frequently asked questions

  • Which YC CNC 5 Axis Waterjet Bevel Cutting Machine model is best for aerospace metal fabrication?

  • How do I maintain the waterjet nozzle for optimal performance?

  • What materials can the YC CNC 5 Axis Waterjet cut efficiently?

  • Does the YC CNC 5 Axis Waterjet support customization for unique cutting needs?

  • Is the YC CNC 5 Axis Waterjet compliant with industrial safety standards?

  • Which industries are best suited for the YC CNC 5 Axis Waterjet?

  • What does the 1-year warranty cover for the YC CNC 5 Axis Waterjet?

  • How precise is the YC CNC 5 Axis Waterjet compared to other cutting machines?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Plasma CuttersThick metal construction, shipbuildingCutting Speed: 3 m/min (ASTM E1054), Accuracy: ±0.5mm (ISO 10360)Fast for thick materials, cost-effectiveLower precision, slag residue, limited to conductive materials
Laser CuttersPrecision parts, aerospaceAccuracy: ±0.05mm (ISO 10360), Speed: 1.5 m/min (ASTM E1054)High precision, clean cuts, no tool wearSlower for thick materials, energy-intensive, limited to thinner sheets
Traditional CNC MillsComplex 3D machiningMaterial Removal Rate: 10 kg/hr (ISO 2372), Tolerance: ±0.02mm (ISO 10360)Versatile for complex geometries, high precisionSlower for large cuts, tooling costs, requires skilled operators
3D Metal PrintersPrototyping, complex geometriesLayer Resolution: 20 µm (ASTM F2924), Build Volume: 500×500×500mm (ISO 29402)Creates complex shapes without molds, reduces wasteHigh material cost, slow for large parts, post-processing required
Robotic Cutting SystemsHigh-volume manufacturingCycle Time: 15 sec/part (ISO 9283), Automation Level: ISO 9283 Class 4High throughput, automated, reduces labor costsHigh initial investment, requires programming expertise, maintenance intensive
Waterjet Cutting Machines (YC CNC 5 Axis)Aerospace, automotive, 3D partsCutting Thickness: 300mm (Industry Standard), 350mm (Our Advanced ▲)
5-axis ▲▲ (Industry Standard: 3-axis)
Accuracy: 0.1mm (Base) → 0.05mm (Advanced ▲)		Cuts any material without heat, 5-axis flexibility (▲▲ vs industry standard), 1-year warrantyHigher operational costs (water/abrasive use), slower than plasma for very thick materials
