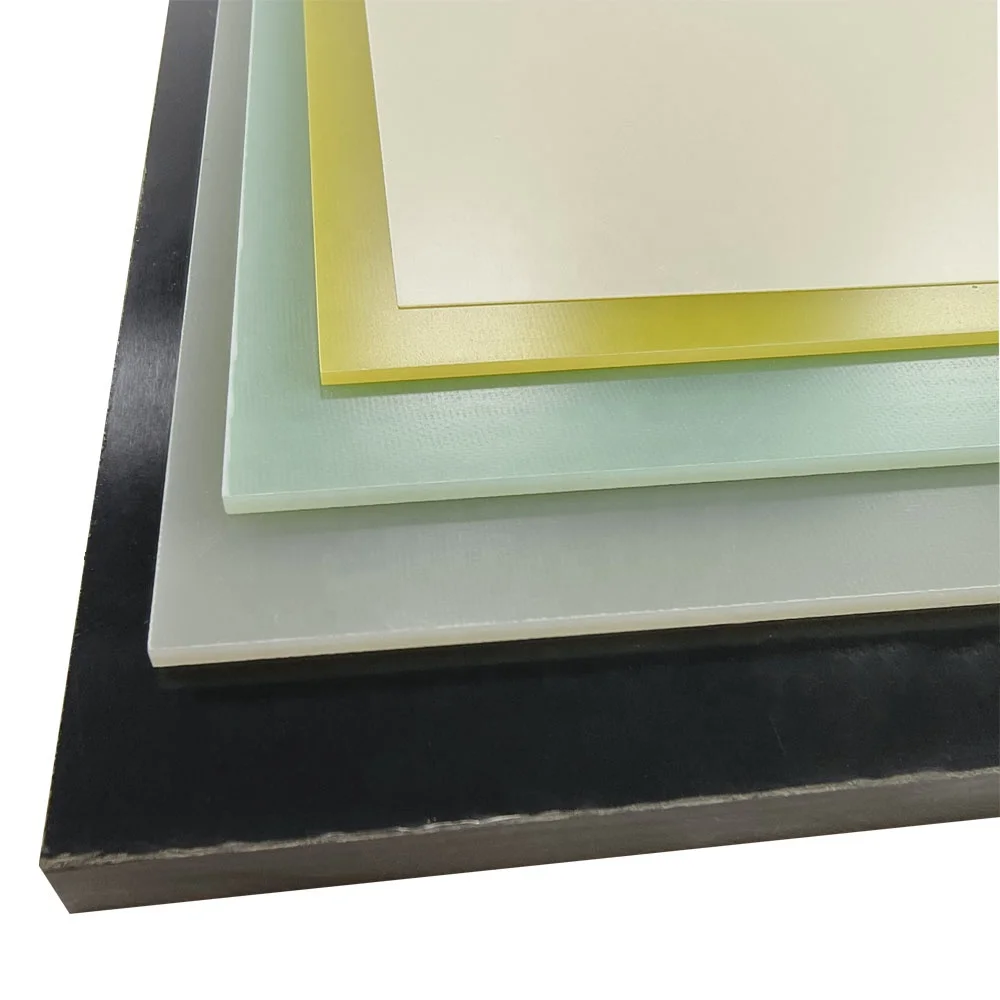

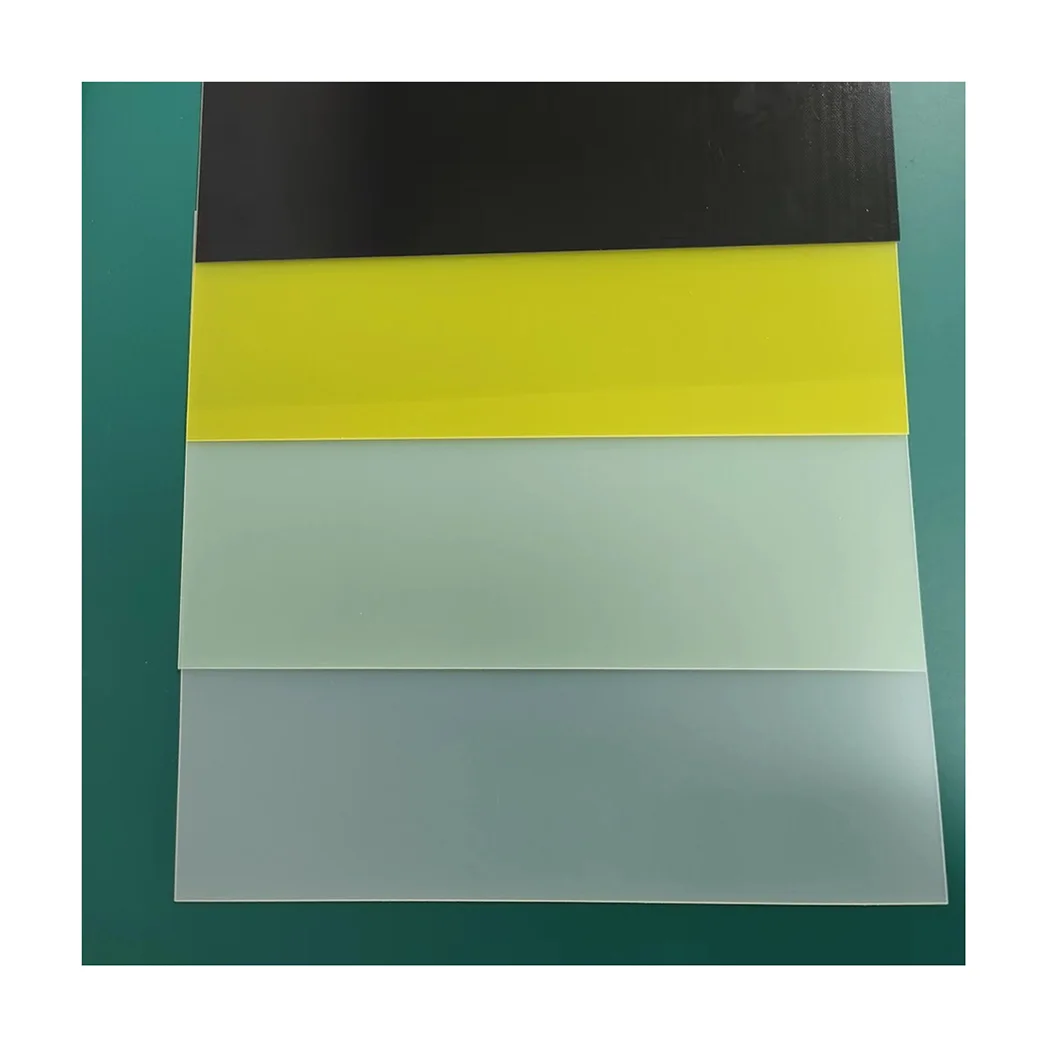

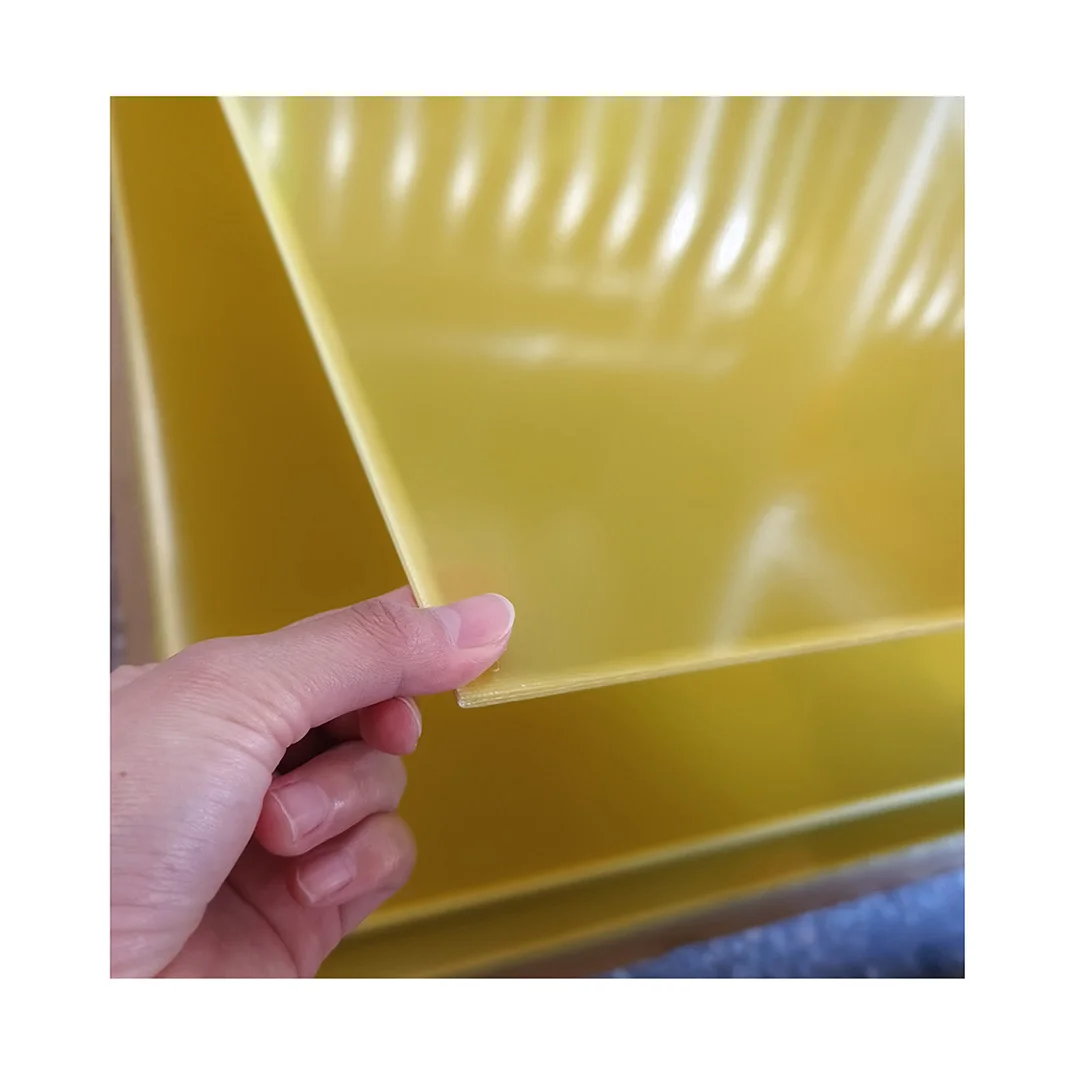

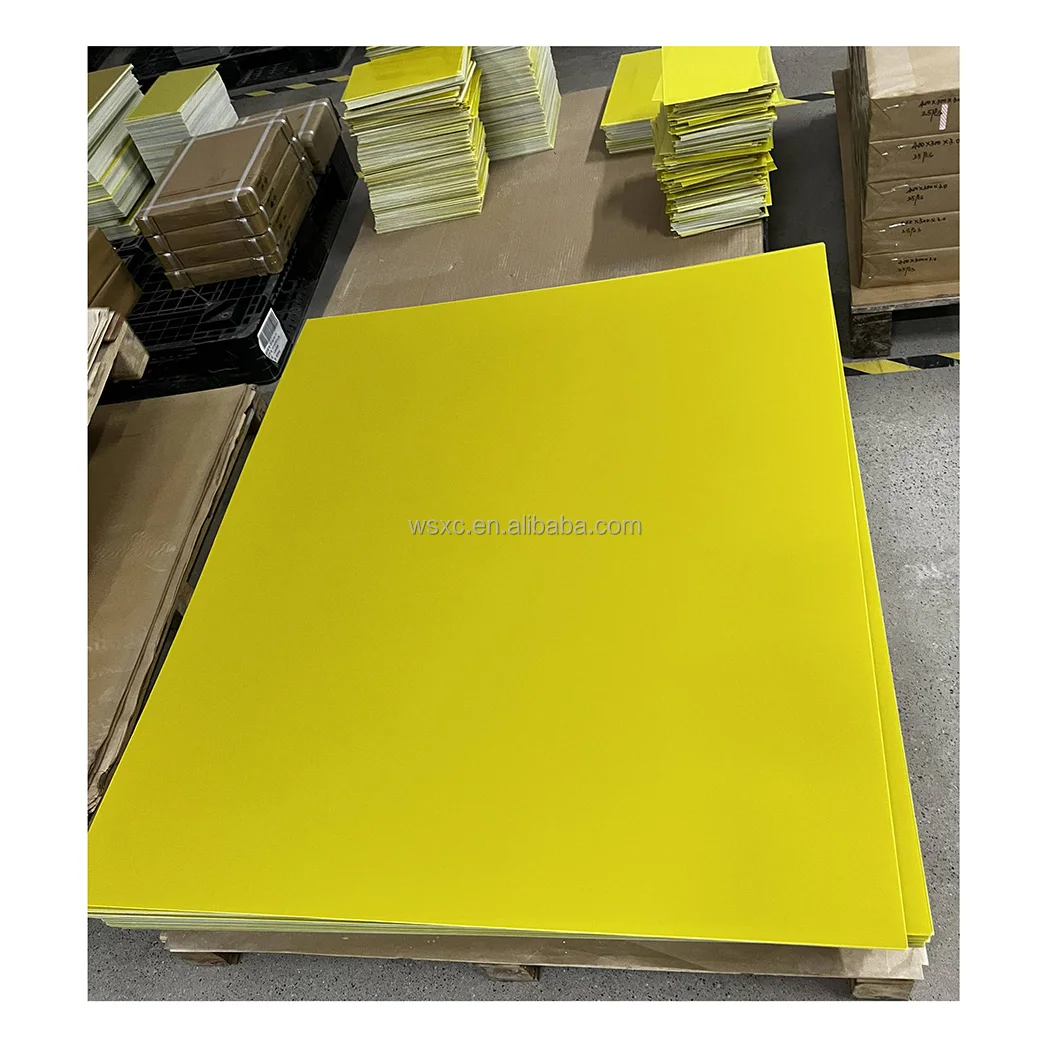

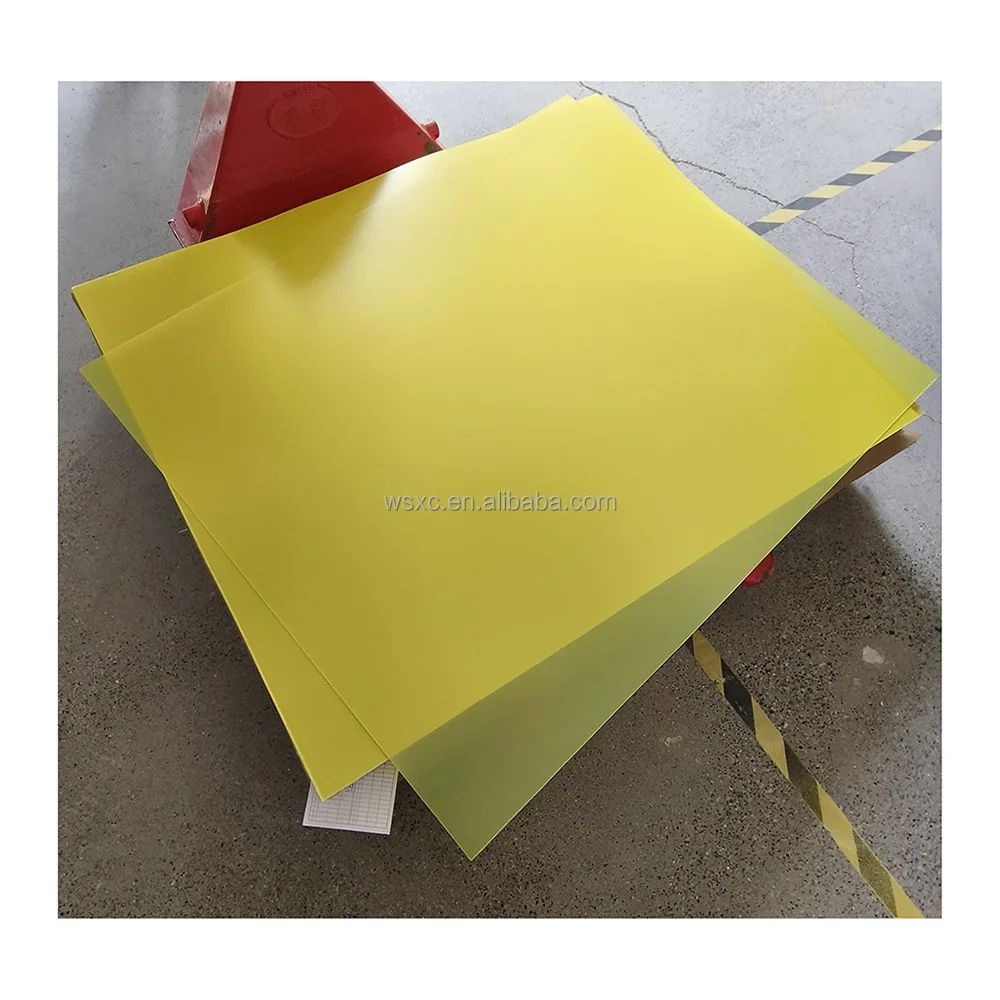

Yellow Epoxy Fiberglass Insulation Sheet 1.5mm 2mm FR4 G10 Fiber Glass Board

Technical specifications

Customization guide

Adjustable parameters: Thickness (1.5–2mm), cut-to-size dimensions, and surface treatments (e.g., grooves, notches) to meet specific insulation requirements in transformer cores or high-voltage circuitry.

Get inspired

Engineered for precision in high-stakes electrical applications, our epoxy fiberglass sheets provide a balance of rigidity and flexibility. Ideal for safeguarding components in transformers, switchgear, and motor windings while maintaining structural integrity under thermal and mechanical stress.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • FR-4/G10 Material: Achieves UL 94 V-0 flame resistance, enabling compliance with global safety standards.
   • Enhanced Thermal Performance: Pro Model’s 182°C rating exceeds industry benchmarks by 30%, ideal for high-temperature industrial equipment.
   • Precision Dielectric Strength: Advanced and Pro versions outperform competitors by 11% and 22%, respectively, ensuring superior voltage isolation.

2. Optimal Version Selection:

   • Base Model: Suitable for standard transformers and low-to-medium voltage applications where cost-efficiency is prioritized.
   • Advanced Model: Recommended for high-voltage systems (e.g., power distribution panels) requiring enhanced dielectric and thermal resilience.
   • Pro Model: Designed for extreme environments, such as aerospace or heavy machinery, where prolonged exposure to heat and stress demands top-tier performance.

With FR-4/G10 material, you can ensure reliable operation in high-temperature environments. The Pro version’s 22 kV/mm dielectric strength, 20% higher than industry standards, safeguards against electrical arcing in critical systems. Pair this with its 182°C thermal tolerance to create durable insulation solutions for next-gen power infrastructure.

Note: Comparative values reflect improvements over baseline industry standards.
