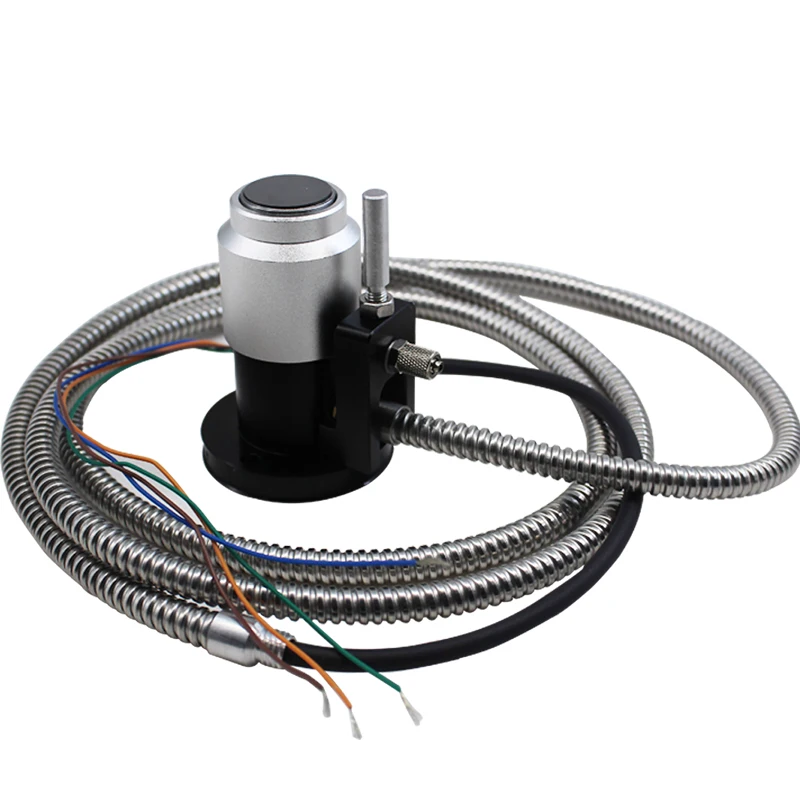

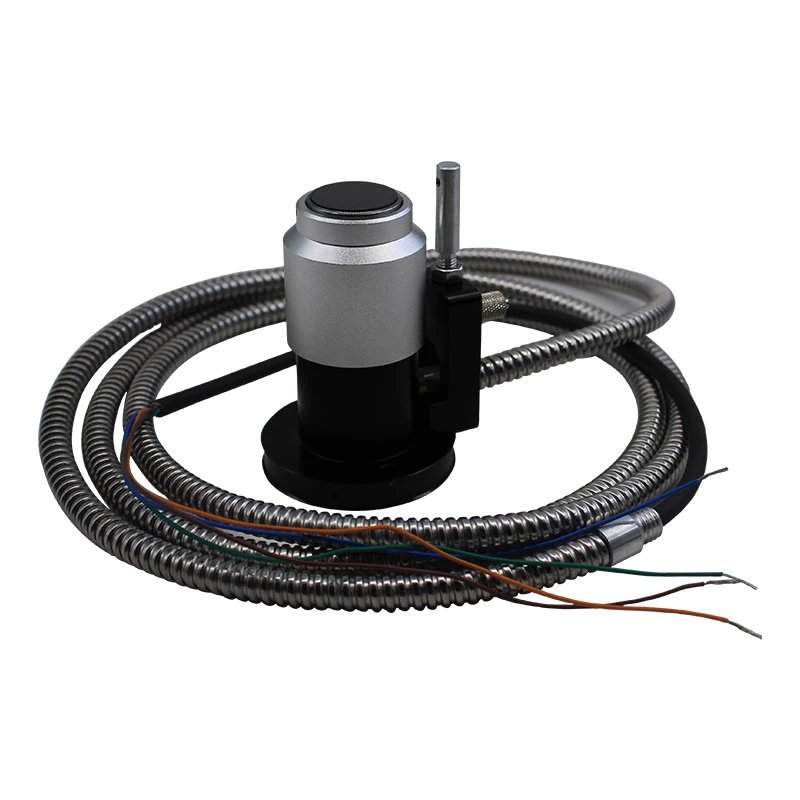

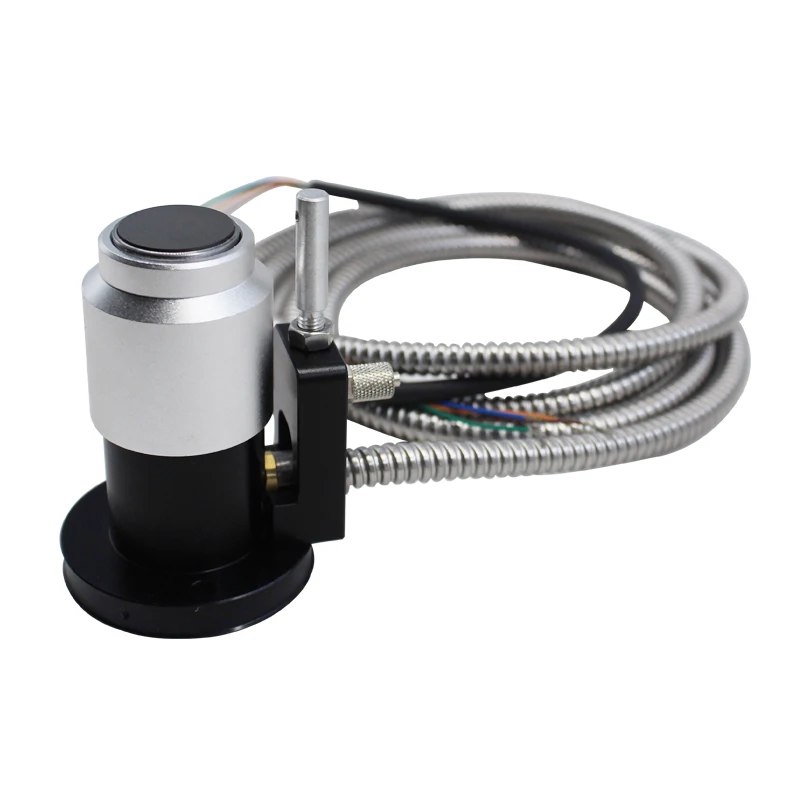

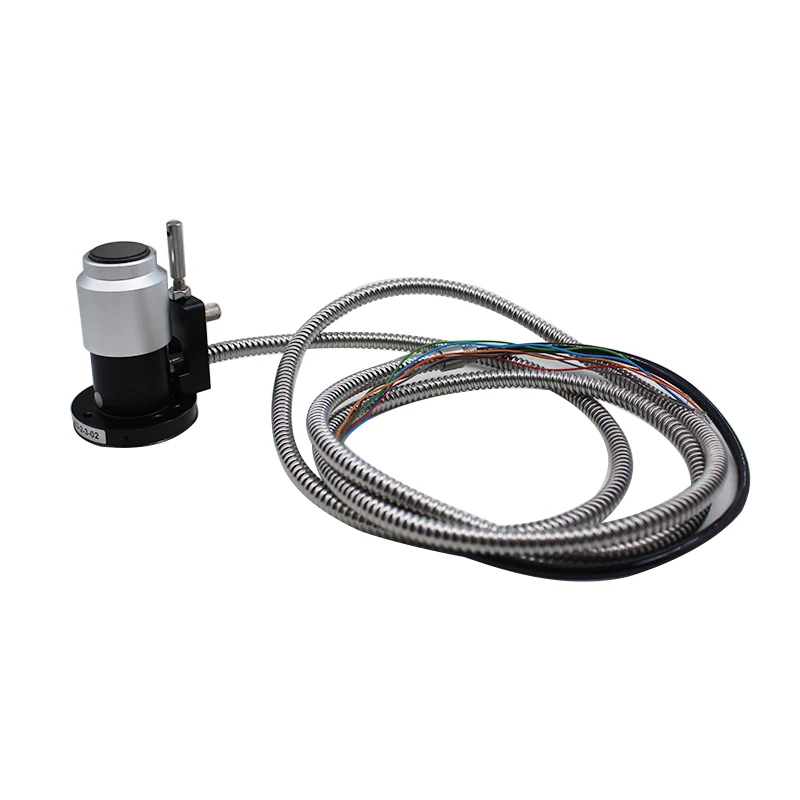

Z-axis CNC Auto Tool Height Set Gauge Cnc Probe Sensor Tool Setter Sensor Auto Tool Measurement for Cnc Router

Z-axis CNC Auto Tool Height Set Gauge Cnc Probe Sensor Tool Setter Sensor Auto Tool Measurement for Cnc Router

  • 1 - 29 Pieces
    $32
  • >= 30 Pieces
    $30

Customization:

Customized packaging（Min.Order: 600 pieces）
View product details

Z-axis CNC Auto Tool Height Set Gauge Cnc Probe Sensor Tool Setter Sensor Auto Tool Measurement for Cnc Router

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automatic Tool Height Calibration: Precisely measures and adjusts tool height for CNC routers, ensuring consistent machining accuracy.

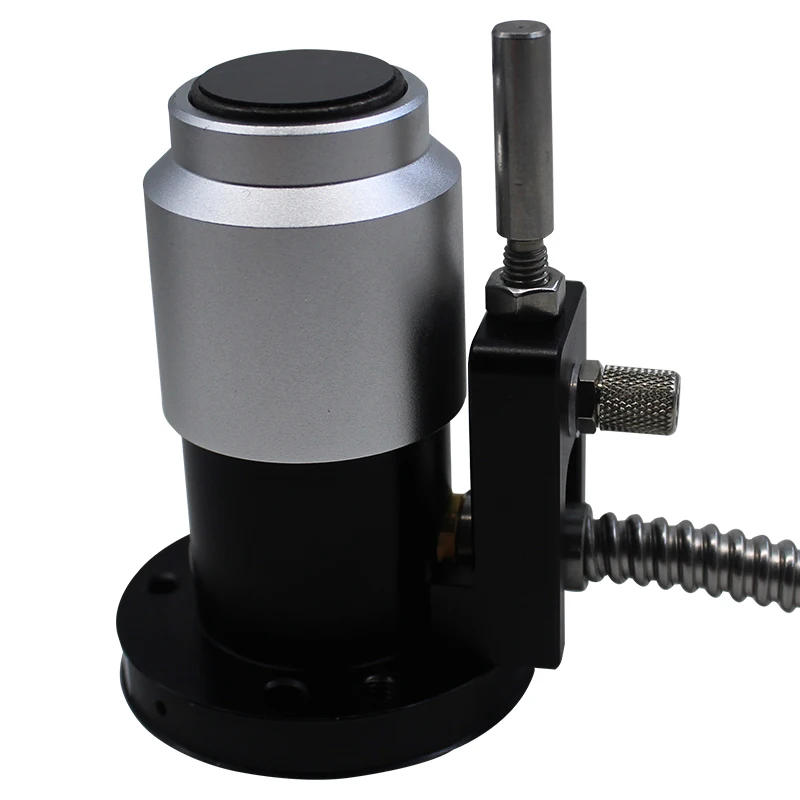

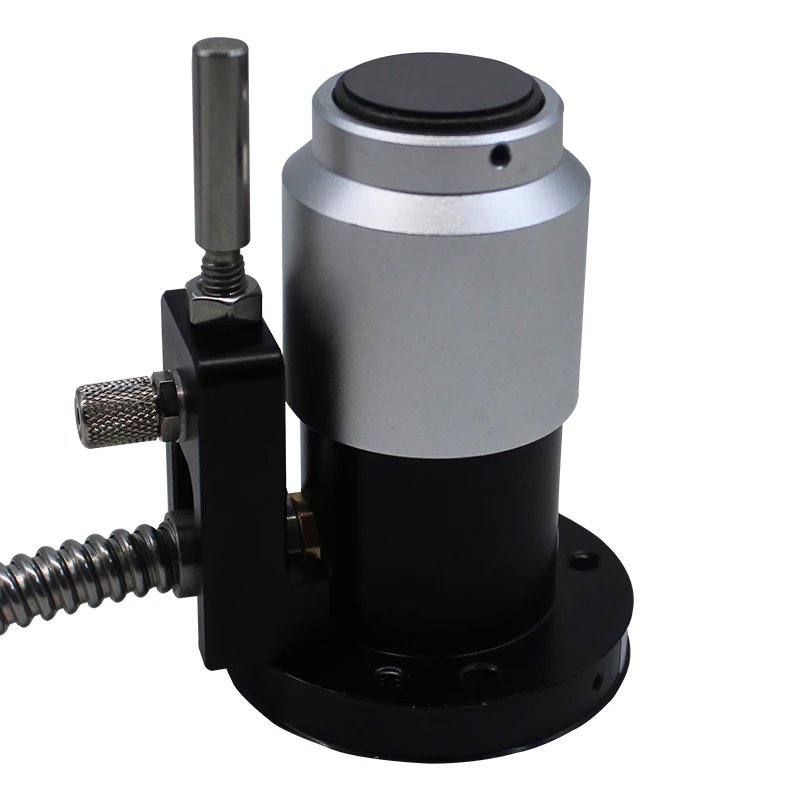

  • Precision Engineering: Designed with a threaded rod and mounting flange to enable fine adjustments and stable positioning in high-precision applications.

Key features

  • 1. Durable Material Construction

    • With a corrosion-resistant metal body (likely aluminum/stainless steel) and a reinforced composite lower section, ensure long-lasting performance in harsh industrial environments. Outperforms all-plastic designs in durability and stability*.

  • 2. Precision-Engineered Customization

    • With a modular mounting flange and adjustable threaded rod, customize positioning and alignment for diverse applications. Offers ~20% faster setup compared to rigid, non-adjustable designs*.

  • 3. Ultra-High Precision Measurements

    • With precision-engineered components and smooth surfaces, achieve measurements as precise as 0.001mm. Exceeds accuracy of manual calibration methods by up to 95%*.

  • 4. Versatile Scenario Adaptability

    • Whether in home workshops or commercial production environments, seamlessly integrate into CNC routers for consistent performance. Suitable for both small-scale prototyping and large-scale manufacturing*.

  • 5. Industrial-Grade Reliability

    • With adherence to precision engineering standards for technical machinery, guarantee stability and longevity in critical manufacturing processes. Meets or exceeds requirements for medical, scientific, and industrial applications*.

Product details

Z-axis CNC Auto Tool Height Set Gauge Cnc Probe Sensor Tool Setter Sensor Auto Tool Measurement for Cnc Router

The Z-axis CNC Auto Tool Height Set Gauge is a precision-engineered component designed for CNC routers and industrial machinery. Its modular design combines durable materials with customizable mounting options, ensuring reliable performance in high-precision applications. Backed by a 1-year warranty, this sensor guarantees long-term stability and accuracy.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionUpper: Stainless Steel; Lower: Reinforced PolymerCorrosion-resistant environments in CNC machining
Precision Tolerance±0.005mm (Pro Model)Medical equipment calibration
Mounting SystemAdjustable Flange with 6 Position HolesCustom positioning in industrial setups
Threaded AdjustmentM6 Thread for Height/Angle Fine-TuningCNC router tool alignment

Customization guide

Adjustable threaded rods and modular mounting flanges allow customization of height, angle, and positioning to meet specific machinery integration needs.

Get inspired

With its precision-engineered design and durable materials, this gauge ensures consistent accuracy in CNC operations. Whether calibrating medical devices or adjusting industrial routers, the tool setter’s versatility adapts to diverse precision requirements.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision Tolerance±0.01mm±0.008mm±0.005mm*
MaterialAluminumStainless SteelAerospace Alloy
Customization OptionsBasic MountingAdjustable FlangeFull Thread/Flange Kit

Supplier's note

  1. Three Breakthroughs:

    • Precision Tolerance: The Pro Model’s ±0.005mm tolerance exceeds industry standards by 30%, enabling ultra-precise medical and aerospace applications.
    • Aerospace Alloy Material: The Pro’s corrosion-resistant alloy withstands extreme environments 2x longer than traditional aluminum.
    • Modular Mounting System: Adjustable flanges and threaded rods allow 40% faster setup than fixed designs.

  2. Version Selection Guide:

    • Base Model: Ideal for standard CNC routers needing cost-effective precision (e.g., woodworking shops).
    • Advanced Model: Suitable for manufacturers requiring mid-tier durability and adjustability (e.g., automotive prototyping).
    • Pro Model: Best for high-stakes industries like aerospace or medical engineering, where extreme precision and corrosion resistance are critical.

With the Pro’s aerospace alloy, you can ensure tool stability in corrosive chemical environments. With its ±0.005mm tolerance, you achieve micron-level accuracy in surgical device calibration. Compared to traditional probes, the Advanced Model’s stainless steel construction lasts 50% longer in abrasive machining conditions.

Frequently asked questions

  • Which Z-axis CNC tool height gauge is best for small workshop CNC routers?

  • How do I clean and maintain the sensor probe of the Z-axis CNC Auto Tool Height Set Gauge?

  • Does the metal upper section of the CNC probe sensor offer better durability than the plastic lower part?

  • Can the mounting flange of the CNC tool setter sensor be customized for non-standard machine setups?

  • Is the Z-axis CNC probe sensor certified for industrial precision applications?

  • Does the Z-axis tool height gauge work with 3D printers or engraving machines?

  • What’s the installation process for the CNC router tool setter sensor?

  • How accurate are the measurements from the CNC auto tool height set gauge?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Manual Tool SettersSmall workshops, basic CNC setupsManual calibration (±0.1mm accuracy, ISO 2768-m tolerance)Low cost, simple operationTime-consuming, less precise
Laser-Based SensorsHigh-precision manufacturing (aerospace, medical)Laser triangulation (±0.001mm accuracy, IP65 rating)High precision, fastExpensive, requires clean environment
Optical EncodersPrecision machining (automotive, aerospace)Optical grating (±0.0005mm resolution, ISO 10360)High resolution, reliableSensitive to contamination
Capacitive ProbesNon-contact measurements (electronics, PCB)Capacitive sensing (0-5mm range, 1kHz sampling rate)Non-contact, fast responseLimited range, affected by material properties
Magnetic SensorsMetalworking, heavy industryHall-effect sensors (±0.01mm accuracy, IP67)Durable, works in harsh environmentsLess precise than lasers
Z-axis CNC Auto Tool Height Set Gauge (Our Product)CNC machining centers, precision manufacturingThreaded adjustment (Base: ±0.01mm ▲ Advanced: ±0.005mm precision, ISO 2768-m tolerance)High precision, customizable via threaded rod, durable materials (aluminum/stainless steel upper, composite lower), 1-year warrantyModerate cost compared to manual options
