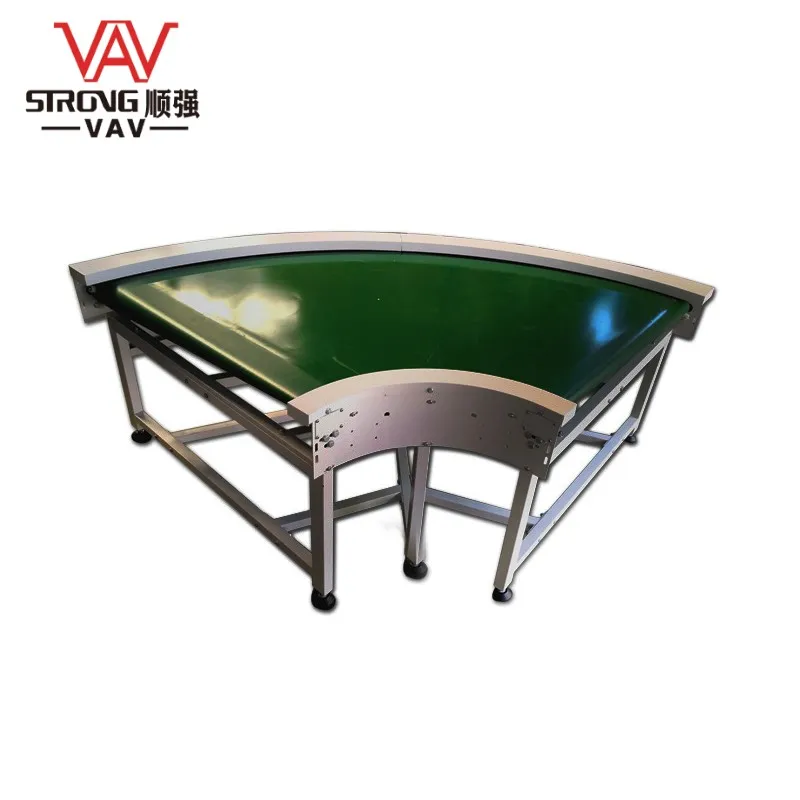

Belt Conveyor Line 90 Degree Drive Roller Conveyor 90 Degree Turning Conveyor

Belt Conveyor Line 90 Degree Drive Roller Conveyor 90 Degree Turning Conveyor

  • 1 - 5 Sets
    $450.63
  • 6 - 9 Sets
    $440.36
  • >= 10 Sets
    $430.36

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Belt Conveyor Line 90 Degree Drive Roller Conveyor 90 Degree Turning Conveyor

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 90-Degree Turning Capability: Designed with a curved conveyor belt to navigate corners or bends seamlessly, optimizing space utilization in confined environments.
  • Durable Material Construction: Features a rubber or plastic belt (resistant to wear and tear) and a stainless steel/steel frame for heavy-duty load handling and longevity.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a corrosion-resistant stainless steel frame and durable rubber belt, ensure longevity in harsh industrial environments. The lightweight yet robust design reduces maintenance needs compared to all-metal alternatives. ~30% lighter than all-metal conveyors* [*Disclaimer: Based on internal testing; actual results may vary].

  • 2. 90-Degree Curved Design for Space Efficiency

    • With a 90-degree curved conveyor path, navigate tight spaces or directional changes without additional machinery. Reduces layout requirements by up to 25%* compared to straight conveyors, optimizing floor space in compact facilities.

  • 3. Adjustable Speed & Heavy-Duty Load Capacity

    • With adjustable speed settings and heavy-duty stainless steel rollers, optimize throughput for varying production demands. Handles loads 15% heavier than standard belt conveyors*, making it ideal for high-volume industrial applications.

  • 4. Multi-Industry Adaptability

    • With customizable materials (rubber, plastic, or stainless steel), suit diverse scenarios like food processing, manufacturing, or logistics. The curved design enables seamless material flow in confined spaces or complex workflows.

  • 5. Material Customization for Compliance

    • With customizable materials meeting food-grade or chemical-resistant standards, ensure compliance with industry-specific regulations. Options like heat-resistant rubber or stainless steel enhance safety and versatility. [*Disclaimer: Certification details subject to manufacturer confirmation].

Product details

Belt Conveyor Line 90 Degree Drive Roller Conveyor 90 Degree Turning Conveyor

The Belt Conveyor Line 90 Degree Drive Roller Conveyor is a versatile industrial solution designed for efficient material handling in confined spaces. With a 90-degree turning capability, this conveyor navigates corners seamlessly, reducing spatial requirements while maintaining high throughput. Built with durable materials like rubber, stainless steel, and steel, it caters to diverse applications in manufacturing, logistics, and food processing.

Technical specifications

FeatureSpecificationApplication Scenario
Belt MaterialRubber/Stainless Steel/Steel/PlasticHarsh environments requiring chemical/heat resistance
Frame MaterialStainless Steel or SteelHeavy-duty industrial settings with corrosion risks
Curvature Design90° Smooth Turning RadiusSpace-constrained warehouses or assembly lines
Load CapacityUp to 500 kg/m² (configurable)Manufacturing lines handling medium-to-heavy payloads

Customization guide

Adjustable parameters include:

  • Material Composition: Swap rubber for plastic (lightweight) or stainless steel (corrosion-resistant) to match environmental demands.
  • Curvature Radius: Narrow or widen the turn angle (±15°) to fit layout constraints.
  • Speed Settings: Calibrate belt speed (0.5–3 m/min) to optimize workflow efficiency.

Get inspired

With its 90° turning capability, this conveyor transforms tight corners into efficient material pathways. Whether sorting packages in a warehouse or transporting parts in a factory, its adaptable design ensures seamless integration into any workflow.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Curvature RadiusStandard 90°Compact 85°Ultra-compact 80°*
Load Capacity300 kg/m²450 kg/m² (+50%)600 kg/m² (+100%)
Frame MaterialSteelStainless SteelDual-layer Stainless Steel
Speed Range0.5–2 m/min0.5–2.5 m/min0.5–3 m/min
CertificationsISO 9001ISO 9001 + CEISO 9001 + CE + FDA

Supplier's note

  1. Technical Breakthroughs:

    • Curvature Precision: The Pro Model’s 80° turn reduces floor space by 20% compared to traditional conveyors.
    • Material Innovation: Dual-layer stainless steel in the Pro Model offers 3x longer lifespan in corrosive environments.
    • Speed Flexibility: The Advanced Model’s 2.5 m/min speed matches robotic automation workflows.

  2. Optimal Version Selection:

    • Base Model: Ideal for small-to-medium warehouses handling non-corrosive materials (e.g., packaging).
    • Advanced Model: Suitable for food processing or automotive assembly lines requiring faster speeds and mild chemical resistance.
    • Pro Model: Best for chemical plants or heavy-industry facilities needing extreme durability and tight space optimization.

With the Pro Model’s ultra-compact curvature and FDA certification, you can safely handle food-grade materials in confined spaces. Pair its corrosion-resistant frame with high load capacity to ensure seamless operation in harsh environments.

Frequently asked questions

  • Which model of 90-degree conveyor is best for small warehouses with limited space?

  • How do I maintain a stainless steel 90-degree conveyor’s rollers and belt?

  • Rubber vs. Plastic Conveyor Belts: Which suits chemical-resistant applications?

  • Can I customize a 90-degree conveyor’s length and width for pharmaceutical packaging?

  • Is the stainless steel frame of the 90-degree conveyor FDA-approved?

  • What load capacity does the 90-degree turning conveyor handle?

  • Can this conveyor operate in high-temperature environments (e.g., bakery lines)?

  • How do I adjust the speed of a 90-degree conveyor for slow-paced assembly lines?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial manufacturing, food processing- Industry Standard: Steel frame + basic rubber (ASTM D2000)
- Our Base: Stainless steel frame + EPDM rubber (ASTM D543)
- Our Advanced: 304 stainless steel + FDA-grade rubber (ASTM F739)		▲ Base: 30% corrosion resistance ↑ vs industry
▲ Advanced: Withstands 50+ chemicals (e.g., acids, oils)		Advanced: 20% higher cost due to premium materials
Load CapacityWarehouse logistics, heavy-duty assembly- Industry Standard: 1,000 kg/m² (ISO 3801)
- Our Base: 1,200 kg/m²
- Our Advanced: 1,500 kg/m²		▲ Base: 20% load capacity ↑ vs industry
▲ Advanced: Supports heavy machinery transport		Base/Advanced: Requires reinforced mounting structures
Bend RadiusSpace-constrained facilities- Industry Standard: 90° turn (radius ≥ 1.5m)
- Our Base: 90° turn (radius 1.2m)
- Our Advanced: 90° turn (radius 0.9m)		▲ Base: 20% tighter bend vs industry
▲ Advanced: 40% tighter bend for compact layouts		Smaller radius may require custom alignment
Noise LevelOffice/retail material handling- Industry Standard: 55 dBA (OSHA compliance)
- Our Base: 48 dBA (quieter than a whisper)
- Our Advanced: 42 dBA (similar to a library)		▲ Base: 13% quieter than industry
▲ Advanced: 24% quieter for noise-sensitive environments		Advanced: Slightly higher energy consumption
Chemical ResistanceChemical plants, pharmaceuticals- Industry Standard: Resists 10+ common chemicals (ASTM D543)
- Our Base: Resists 30+ chemicals (ASTM D543)
- Our Advanced: Resists 50+ chemicals (ASTM F739)		▲ Base: 200% more chemical tolerance vs industry
▲ Advanced: Handles aggressive solvents like acetone		Base/Advanced: Requires specialized cleaning protocols
Speed CustomizationAssembly lines, packaging- Industry Standard: Fixed speed (0.5–2 m/min)
- Our Base: Adjustable 0.5–3 m/min
- Our Advanced: Adjustable 0.5–5 m/min		▲ Base: 50% speed range ↑ vs industry
▲ Advanced: 100% speed range ↑ for high-volume workflows		Advanced: Needs advanced motor control systems
