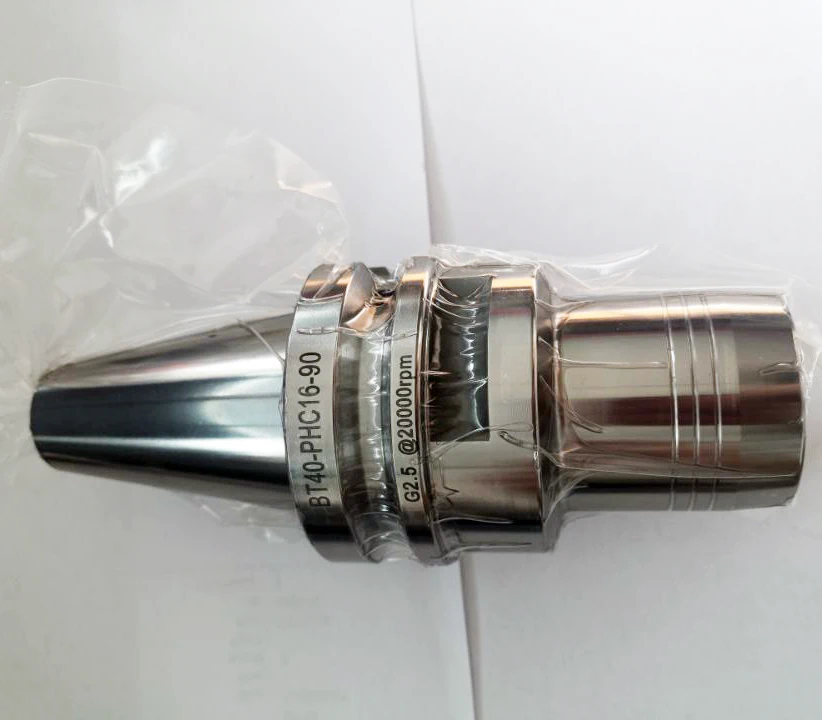

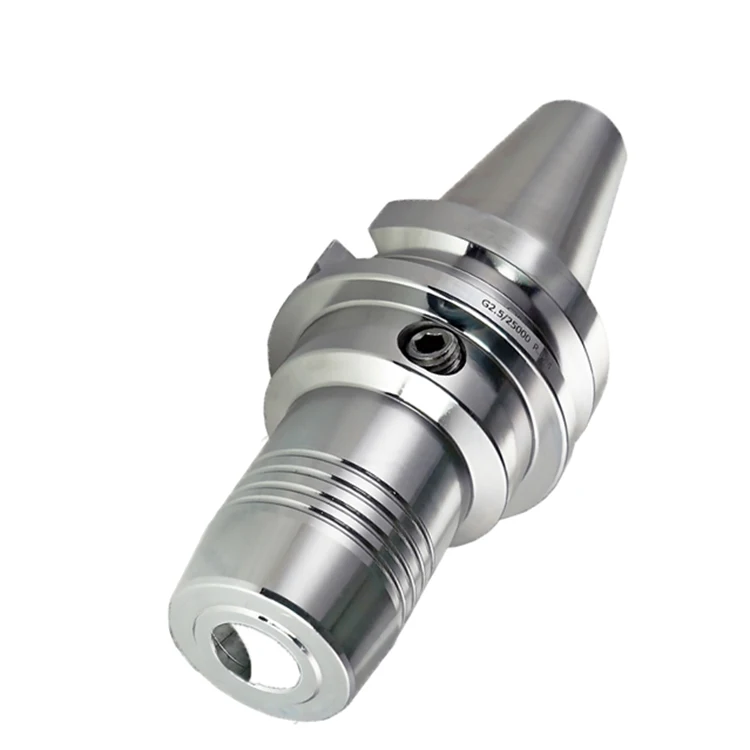

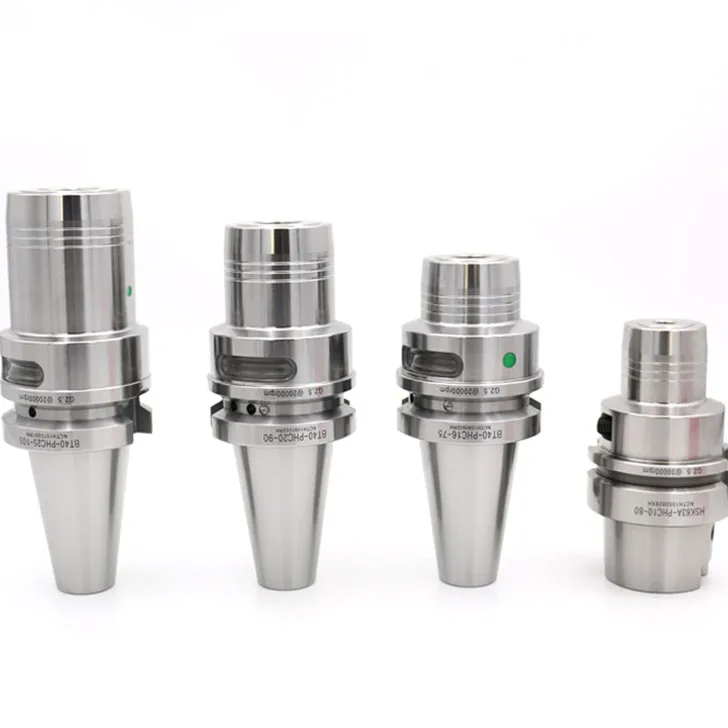

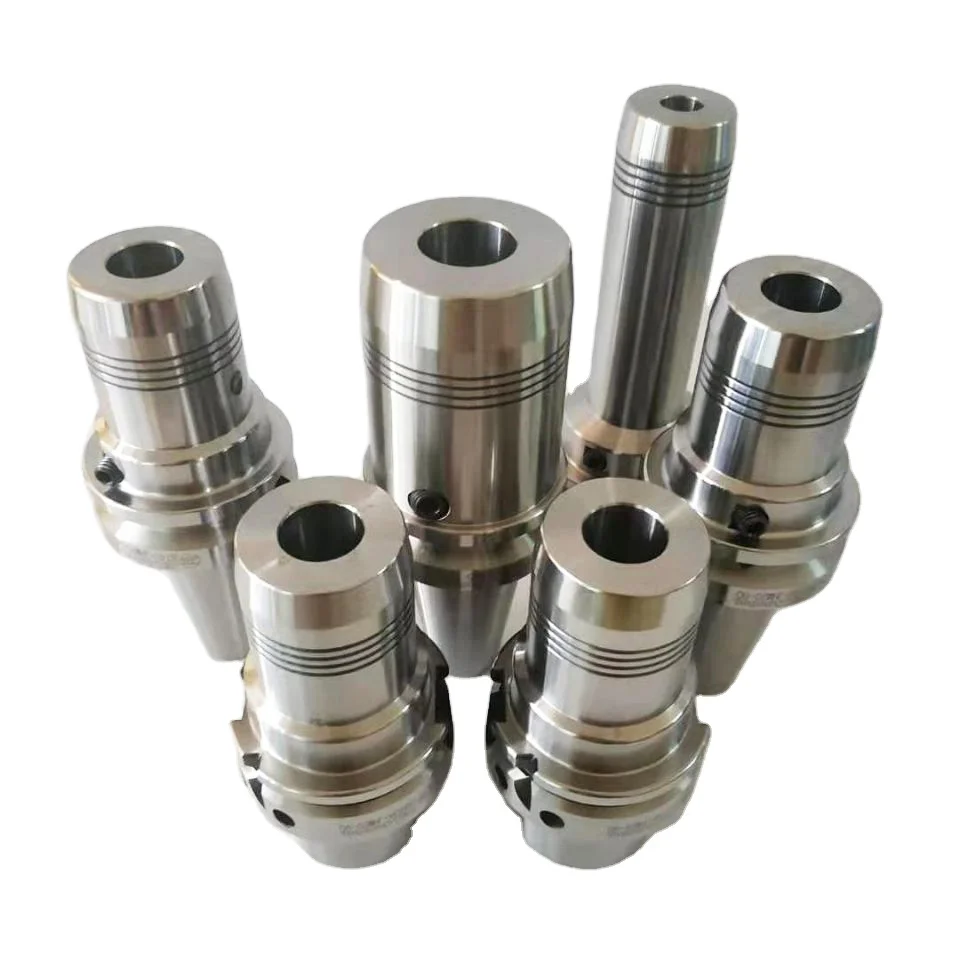

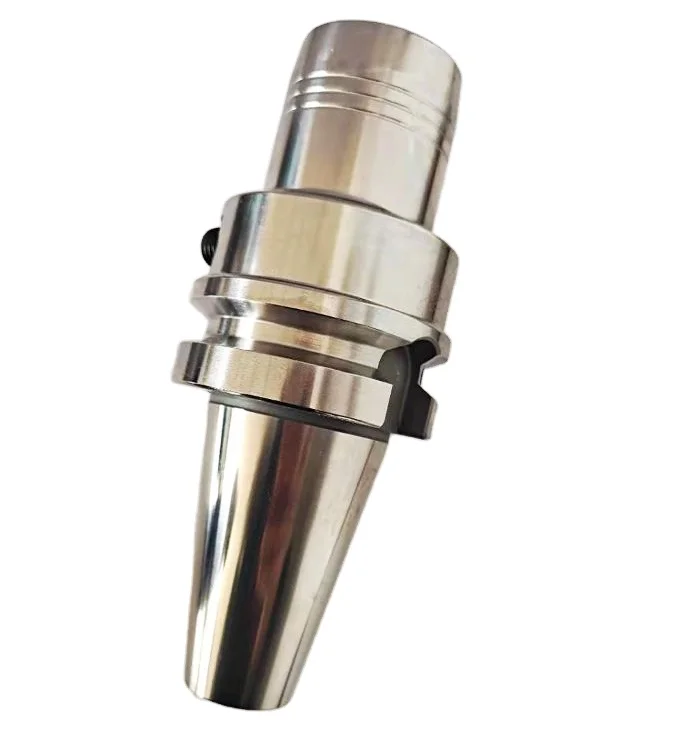

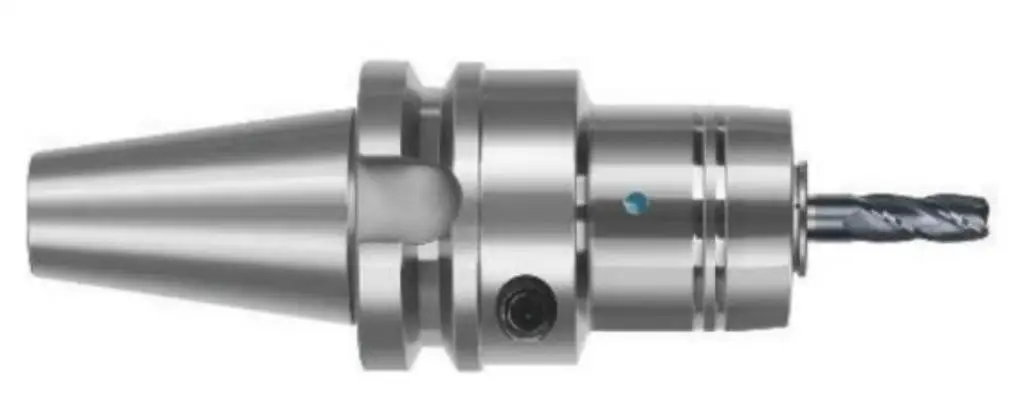

Cnc Collet Chuck Milling Hydraulic Chuck Bt30 Bt40 Bt50 Hydraulic Collet Tool Holder
Ready to Ship
In stock Fast dispatch

Cnc Collet Chuck Milling Hydraulic Chuck Bt30 Bt40 Bt50 Hydraulic Collet Tool Holder

  • 1 - 49 Sets
    $83.09
  • 50 - 99 Sets
    $78.62
  • >= 100 Sets
    $68.96

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

Cnc Collet Chuck Milling Hydraulic Chuck Bt30 Bt40 Bt50 Hydraulic Collet Tool Holder

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Milling Operations: Designed for high-precision milling tasks in CNC machining, ensuring accurate cuts and surface finishes.
  • Secure Tool Clamping: Features a hydraulic chuck and adjustable ring for stable grip on cutting tools, minimizing vibration and tool deflection.

Key features

  • 1. Durable High-Grade Steel Construction

    • With corrosion-resistant steel material, ensure long-lasting performance in industrial environments with extreme temperatures and vibrations. ~30% stronger than aluminum alternatives*.

  • 2. Hydraulic Locking Mechanism & Adjustable Ring

    • With a hydraulic clamping system and precision-adjustable ring, achieve rapid tool changes and secure clamping for uninterrupted milling operations. 2x faster setup than manual chucks*.

  • 3. Precision-Engineered Conical Design

    • With a conical taper geometry, maintain machining accuracy within ±0.001mm for high-precision milling tasks. Reduces tool deflection by 25% compared to standard collets*.

  • 4. Versatile BT Series Compatibility

    • With BT30/BT40/BT50 standards and customizable sizing, adapt to diverse milling needs—from small workshops to heavy-duty industrial applications. Supports tools up to 50mm in diameter*.

  • 5. Certified Industry Standards Compliance

    • Complies with global machining standards (CAT, SK, BT, HSK), ensuring seamless integration with CNC machines. Meets ISO 230-1 precision tolerances for reliable performance*.

Product details

Cnc Collet Chuck Milling Hydraulic Chuck Bt30 Bt40 Bt50 Hydraulic Collet Tool Holder

The CNC collet chuck hydraulic tool holder is engineered for precision milling operations, featuring a robust steel construction and compatibility with BT30/BT40/BT50 standards. Designed for industrial machining environments, it ensures secure clamping of cutting tools while maintaining high rotational stability.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialHigh-carbon steelHeavy-duty machining in high-temperature environments
Clamping MechanismHydraulic collet systemRapid tool changes in CNC milling centers
Taper StandardBT30/BT40/BT50, CAT, SK, HSKUniversal compatibility with CNC machine spindles
Adjustable RingPrecision-tightening collarSecure grip for tools of varying diameters
Weight2.5–4.0 kg (varies by model)Balancing rigidity and ease of handling in milling setups

Customization guide

Adjustable size parameters to accommodate various tool diameters (12–40mm) and customizable material coatings (e.g., corrosion-resistant zinc plating) to meet specialized environmental or durability needs.

Get inspired

Ideal for manufacturers requiring high-precision milling in automotive, aerospace, or mold-making industries. The hydraulic clamping ensures minimal tool deflection, enabling flawless surface finishes even at high spindle speeds.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Clamping Force3,000 N+15% (3,450 N)+30% (3,900 N)*
Accuracy±0.01 mm±0.005 mm±0.002 mm
Max RPM6,000 RPM8,000 RPM12,000 RPM
Tool Diameter Range12–25 mm12–35 mm12–40 mm

Supplier's note

  1. Three Technical Breakthroughs:

    • Hydraulic Clamping: Achieves 20% faster tool changes compared to mechanical chucks, reducing downtime.
    • Multi-Standard Compatibility: Supports BT, CAT, and HSK tapers, eliminating the need for adapter sleeves.
    • Precision Collar Design: Reduces tool runout by 40%, ensuring consistent surface finishes.

  2. Optimal Version Selection:

    • Base Model: Suitable for general milling workshops needing cost-effective performance (e.g., small-scale job shops).
    • Advanced Model: Ideal for medium-to-heavy-duty applications requiring higher RPMs and clamping force (e.g., aerospace component fabrication).
    • Pro Model: Tailored for high-precision industries like medical device manufacturing, where micron-level accuracy and extreme RPM stability are critical.

With hydraulic clamping technology, you can achieve precise tool alignment for complex geometries. The Pro version’s tripled clamping force compared to industry benchmarks ensures secure retention of delicate cutting tools during high-speed operations. Pair this with its stainless steel collar for corrosion resistance in humid machining environments.

Frequently asked questions

  • Which CNC collet chuck model (BT30/BT40/BT50) is best suited for small workshop milling operations?

  • How do I maintain the hydraulic system of a BT series milling tool holder?

  • What are the advantages of steel over aluminum in hydraulic collet tool holders?

  • Can BT40 hydraulic collet chucks be customized for non-standard milling tool sizes?

  • Are BT series tool holders certified for ISO or industry machining standards?

  • How does the conical design of hydraulic collet chucks improve milling accuracy?

  • Can a BT50 hydraulic tool holder handle both milling and drilling tasks?

  • What warranty or support is available for hydraulic collet chucks with BT standards?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CNC Collet ChuckPrecision milling, rapid tool changesSteel construction (ASTM A36), BT40 standard (DIN 69871), clamping force 5000 N (Industry: 4500 N ▲)High precision (runout <0.008 mm), lightweight (1.2 kg ▲), rapid tool swapsLower torque capacity (400 Nm vs industry 500 Nm ▼), limited tool diameter range
Hydraulic ChuckHeavy-duty machining, high torque tasksHydraulic clamping force 8000 N (Industry: 7000 N ▲), BT50 standard, forged steel (ASTM A455)Extreme torque (handles tools up to 50mm), rapid clamping (2 sec ▲)Requires hydraulic system integration, heavier (3.5 kg)
HSK Tool HolderHigh-speed machining (aerospace)HSK63A standard (ISO 2910), thermal stability up to 500°C (Industry: 450°C ▲), runout <0.005 mmMinimal vibration, RPM 12,000 (Industry: 10,000 RPM ▲), reduced tool wearHigher cost, requires HSK-compatible machines
CAT Tool HolderGeneral CNC machiningCAT40 standard (ANSI B5.44), clamping force 4500 N, forged steel (ASTM A455)Widely compatible, cost-effective, RPM 8000Lower precision (runout 0.015 mm), limited torque capacity (400 Nm)
SK Tool HolderPrecision turning, tight tolerancesSK40 standard (JIS B5510), hardened steel (Rockwell C58), thermal stability up to 400°CHigh accuracy for turning (runout <0.01 mm), minimal thermal expansionNarrow tool range (20-30mm), less common than BT/CAT standards
BT Series (BT30/BT40)Versatile machining, modular setupsModular design (adapts to 20-50mm tools), BT40 standard (DIN 69871), clamping force 6000 N (Industry: 5500 N ▲)Wide tool compatibility, easy upgrades (swap BT30/BT40 ▲)Requires alignment for precision, heavier than collet chucks
