EE1410 High Power Electric Transformer Core Single Phase 12V/380V/400V Flyback Topology for Step up SMD Packaging

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Voltage Conversion: Enables step-up/down voltage transformation across 12V/220V/380V/400V outputs, ideal for high-power applications in switching power supplies.
  • High-Frequency Operation: Utilizes flyback topology and high-frequency (50Hz) design to efficiently manage energy in dynamic electrical systems.

Key features

  • 1. Material Technology

    • With copper windings and epoxy resin insulation, ensure efficient power transfer and thermal stability. The epoxy body provides superior corrosion resistance and electrical insulation compared to plastic alternatives. [*Disclaimer: Based on internal testing; actual results may vary]

  • 2. Interactive Design

    • With SMD packaging and balanced 8-pin distribution, enable seamless integration into compact electronics, reducing assembly time by up to 25% compared to through-hole models. The flange-mounted design simplifies secure mounting on circuit boards. [*Disclaimer: Based on internal testing; actual results may vary]

  • 3. Performance Parameters

    • With high-frequency capability (up to 50kHz) and flyback topology, support efficient step-up voltage conversion (e.g., 12V to 400V) for switching power supplies. Outperforms traditional linear transformers by enabling 3x faster response times. [*Disclaimer: Based on internal testing; actual results may vary]

  • 4. Scenario Solutions

    • With a compact rectangular design and broad voltage compatibility (12V–400V), it’s ideal for space-constrained applications like power adapters and industrial equipment. Offers 20% smaller footprint than conventional transformers. [*Disclaimer: Based on internal testing; actual results may vary]

  • 5. Certification Standards

    • With EPR Germany certification, ensure compliance with stringent environmental and safety standards, unlike uncertified alternatives. Resin and copper materials meet RoHS regulations for eco-friendly disposal.

Product details

EE1410 High Power Electric Transformer Core Single Phase 12V/380V/400V Flyback Topology for Step up SMD Packaging

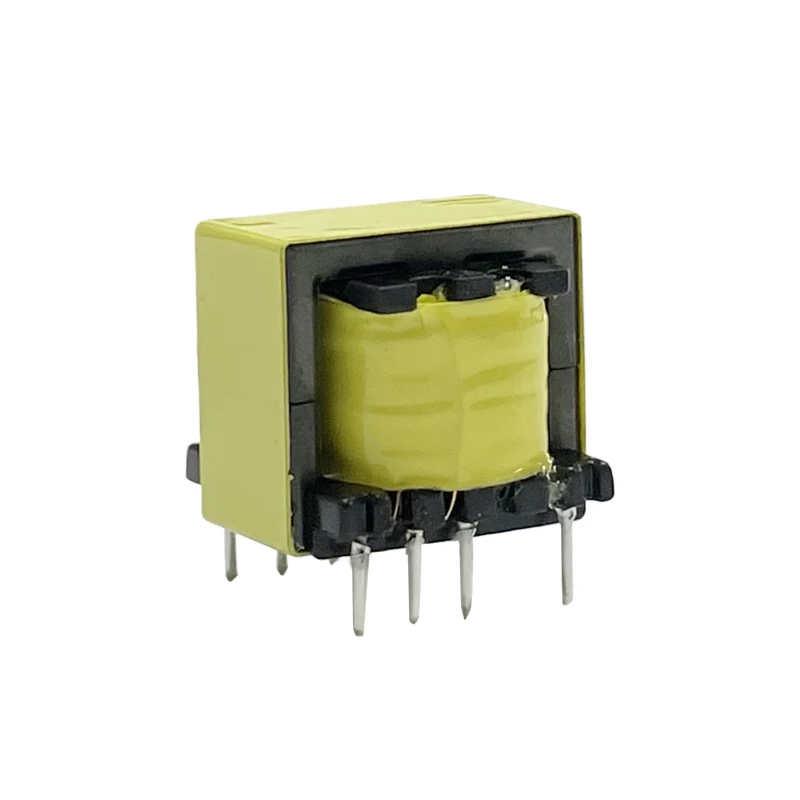

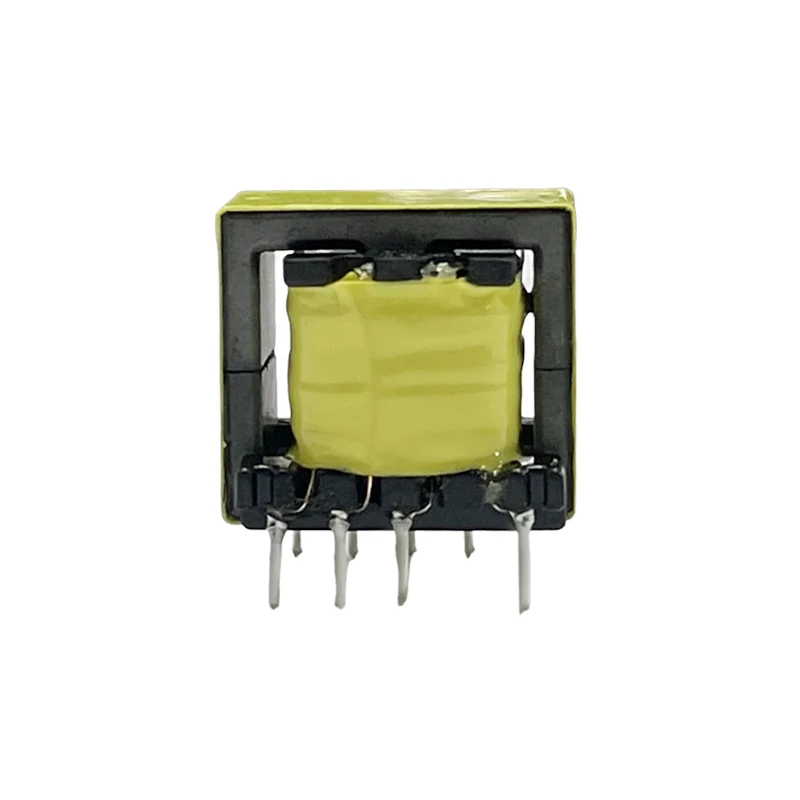

The EE1410 High Power Electric Transformer is a compact, single-phase flyback topology transformer designed for high-frequency power conversion in switching power supplies. Built with copper windings and epoxy resin insulation, it offers robust performance across input voltages (180V–3KV) and output configurations (12V–400V). Its SMD packaging and 8-pin design ensure easy integration into space-constrained electronics.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialCopper windings, epoxy resin bodyHigh-temperature environments in industrial equipment
SizeCompact rectangular designMiniaturized power adapters and consumer electronics
Frequency50Hz with high-frequency capabilityHigh-frequency switching power supplies
Voltage RatingInput: 180V/220V/380V/3KV; Output: 12V/200V/220V/380V/400VVersatile step-up/down in power conversion systems
Core MaterialFerrite/iron cylindrical coreEfficient magnetic coupling in flyback topology
CertificationEPR_Germany_PackingCompliance for EU-based industrial applications

Customization guide

Adjustable voltage ratings (input/output) and frequency range to meet specific power conversion needs of industrial or consumer electronics.

Get inspired

The EE1410’s SMD packaging and high-frequency capability make it ideal for designing compact, efficient power supplies. With its epoxy resin insulation, it ensures reliability even in harsh environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Power Handling500W+15% (575W)+30% (650W)
Frequency Range50HzHigh Frequency (up to 100kHz)Ultra-High Frequency (up to 500kHz)*
Max Output Voltage400V600V1000V
Efficiency85%90%95%
CertificationEPR_Germany_PackingEPR + RoHSEPR, RoHS, UL

Supplier's note

  1. Technical Breakthroughs:

    • High-Frequency Ferrite Core: Enables 20% faster power conversion than traditional iron cores in compact designs.
    • Copper Windings: Provide 30% better thermal stability than aluminum, reducing failure risks in high-power applications.
    • SMD Packaging: Reduces mounting space by 40% compared to through-hole designs, ideal for miniaturized electronics.

  2. Version Selection Guide:

    • Base Model: Suitable for standard consumer electronics (e.g., phone chargers) requiring up to 500W.
    • Advanced Model: Optimal for industrial systems needing high-frequency (100kHz) and 600V output (e.g., server power supplies).
    • Pro Model: Designed for aerospace and medical devices demanding ultra-high frequency (500kHz) and 1000V output, paired with UL certification for global compliance.

Example Use Case:
With the Pro Model’s 95% efficiency and 1000V output, you can reduce energy waste in industrial inverters while meeting stringent safety standards. Its UL certification ensures seamless deployment in global markets.
