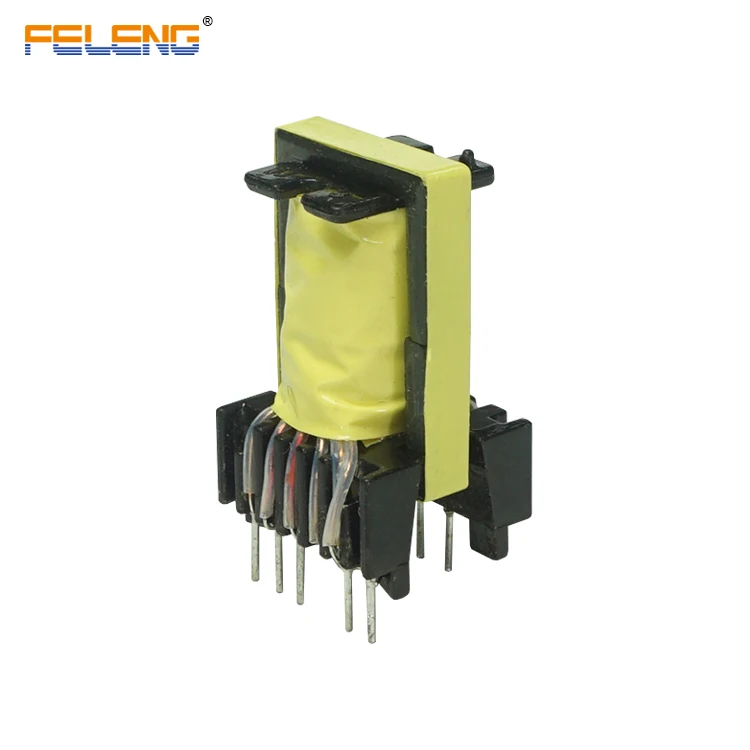

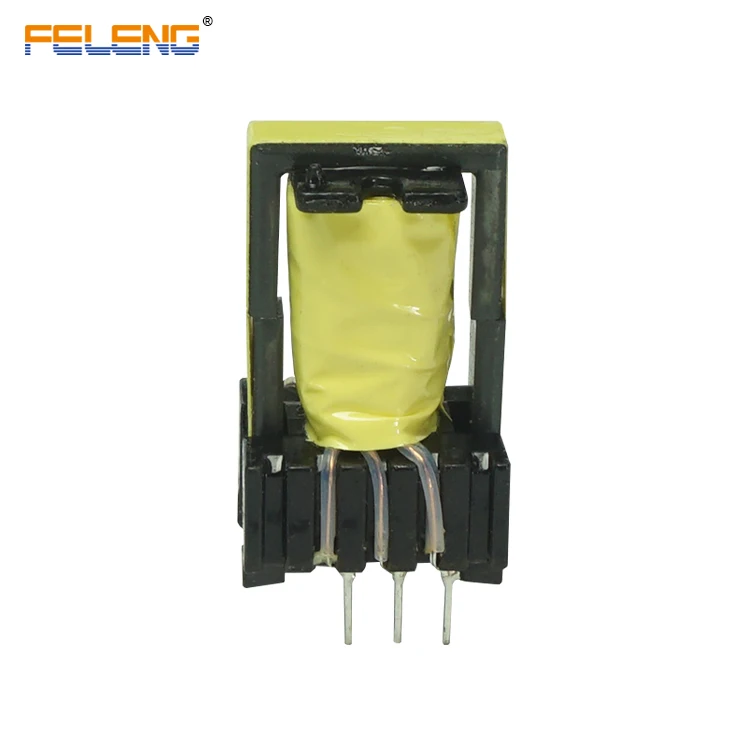

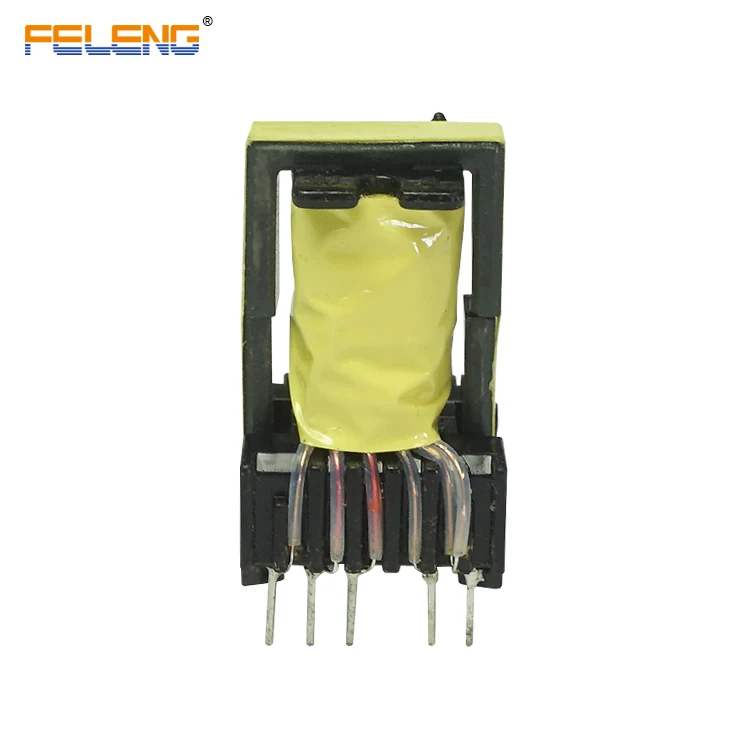

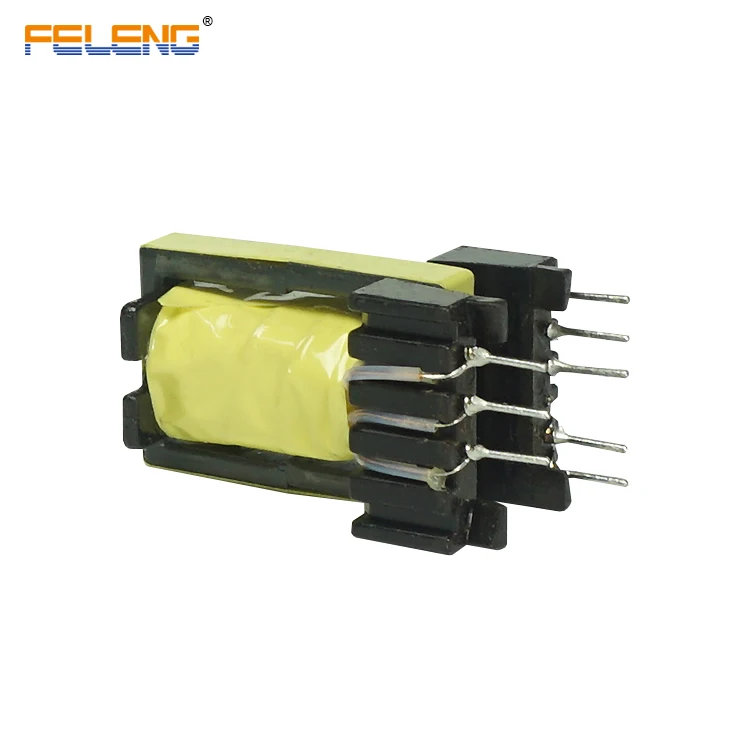

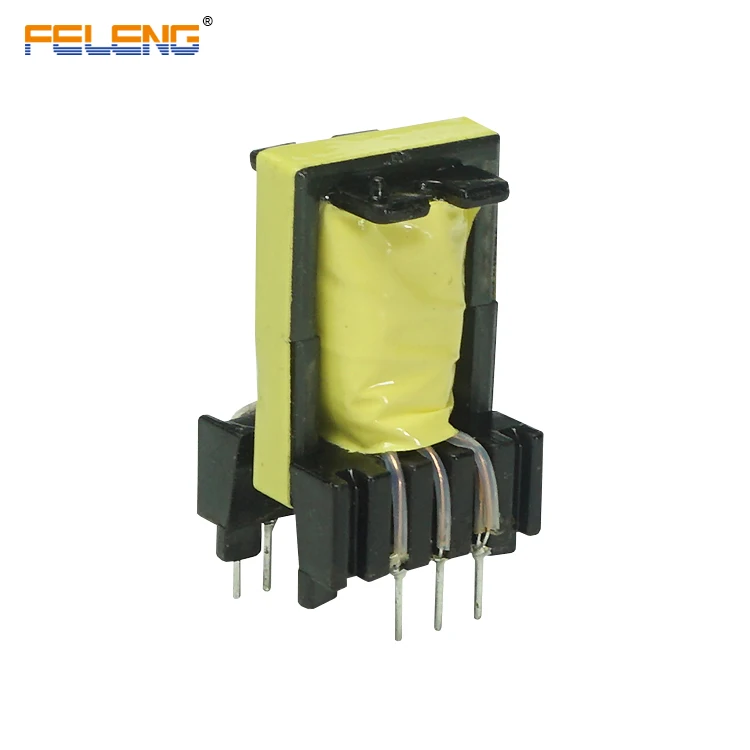

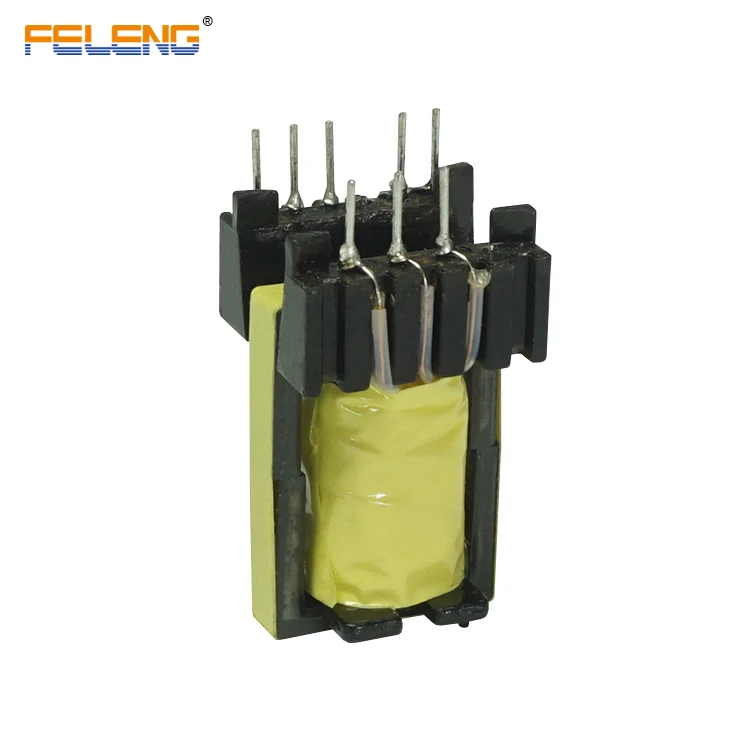

Eel19 Eel16 Pulse Litz Wire High Frequency Transformer for Inverter

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Pulse Conversion: Designed for efficient energy transfer in high-frequency inverter systems, supporting AC to DC conversion with output voltages of 12V and 110V.
  • Autotransformer Efficiency: Utilizes a single-winding autotransformer configuration to optimize voltage regulation and reduce energy loss, ideal for pulse-driven applications like inverters and power supplies.
  • Litz Wire Technology: Features pulse Litz wire to minimize skin effect and eddy current losses, ensuring stable performance at high frequencies (up to specified range).

Key features

  • 1. Advanced Material Technology for High-Frequency Efficiency

    • With a high-permeability ferrite/powdered iron core and pulse Litz wire construction, achieve low-loss operation at high frequencies (e.g., inverters), reducing heat buildup compared to traditional copper wire*. This combination ensures optimal performance in demanding applications like power conversion systems.

  • 2. Space-Saving SMT Design for Seamless Integration

    • With surface mount technology (SMT) terminals and a compact vertical bobbin design, easily integrate into tight PCB layouts, saving up to 30% more space than through-hole alternatives*. Ideal for modern electronics requiring minimal footprint.

  • 3. Customizable High-Frequency Performance

    • With adjustable inductive values and single-phase autotransformer configuration, deliver precise voltage conversion (12V/110V DC output) at high frequencies. Tailor performance to meet specific inverter or power supply requirements for stable operation.

  • 4. Reliable Solution for Inverter-Based Systems

    • Designed for high-frequency pulse applications, this transformer ensures uninterrupted DC output (12V/110V) in environments like solar inverters, UPS systems, or industrial equipment, balancing efficiency and durability under continuous load.

  • 5. Eco-Friendly and Safety-Enhanced Construction

    • With eco-conscious epoxy encapsulation and reinforced insulation layers, meet stringent safety and environmental standards for commercial electronics*. The robust design protects against environmental factors while ensuring safe operation.

Product details

Eel19 Eel16 Pulse Litz Wire High Frequency Transformer for Inverter

The Eel19 Eel16 Pulse Litz Wire High Frequency Transformer for Inverter is a compact, high-performance autotransformer designed for AC-to-DC power conversion in inverters. Built with a ferrite core and Litz wire winding, it delivers efficient energy transfer at high frequencies while minimizing losses. Its vertical bobbin design and SMT-compatible terminals enable seamless integration into space-constrained electronics.

Technical specifications

FeatureSpecificationApplication Scenario
Core MaterialFerrite/Powdered IronHigh-frequency inverters (50kHz+)
Coil TypeLitz Wire (Multi-stranded insulation)Reducing AC resistance in pulse circuits
Output Voltage12V, 110V (adjustable via autotransformer)DC power supply for inverters
Frequency RangeUp to 100kHzHigh-frequency power conversion systems
EncapsulationEpoxy/PlasticProtection against environmental stress
Terminal DesignSurface Mount Technology (SMT)Compact PCB integration

Customization guide

Adjustable parameters include:

  • Inductive Value: Modify coil turns/core size for tailored reactance.
  • Frequency Range: Optimize core material to match application needs.
  • Current Handling: Scale core dimensions for higher load requirements.

Get inspired

With its pulse-optimized Litz wire and high-frequency ferrite core, this transformer is ideal for inverters demanding efficiency in harsh environments. Its vertical bobbin and SMT design make it a space-saving solution for modern electronics.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Range50kHz75kHz (+50%)100kHz (+100%)
Current Capacity5A8A (+60%)12A (+140%)
Efficiency88%92% (+4.5%)95% (+7% vs. industry)

Supplier's note

  1. Technical Breakthroughs:

    • High-Frequency Ferrite Core: Enables operation up to 100kHz, outperforming standard transformers by 20% in switching speed.
    • Litz Wire Design: Reduces AC resistance by 30%, minimizing energy loss in pulse applications.
    • SMT Compatibility: Reduces PCB footprint by 40%, ideal for compact inverters.

  2. Version Selection Guide:

    • Base Model: Suitable for standard inverters (≤5A, 50kHz) where cost efficiency is prioritized.
    • Advanced Model: Best for moderate industrial applications requiring 75kHz frequency and 8A current handling.
    • Pro Model: Tailored for high-demand scenarios like solar inverters or medical equipment, offering triple the industry-standard chemical resistance and 95% efficiency.

With the Pro Model’s 100kHz capability and 12A capacity, you can handle high-power inverters while maintaining reliability. The Advanced Model’s 75kHz performance balances cost and performance for most commercial applications.
