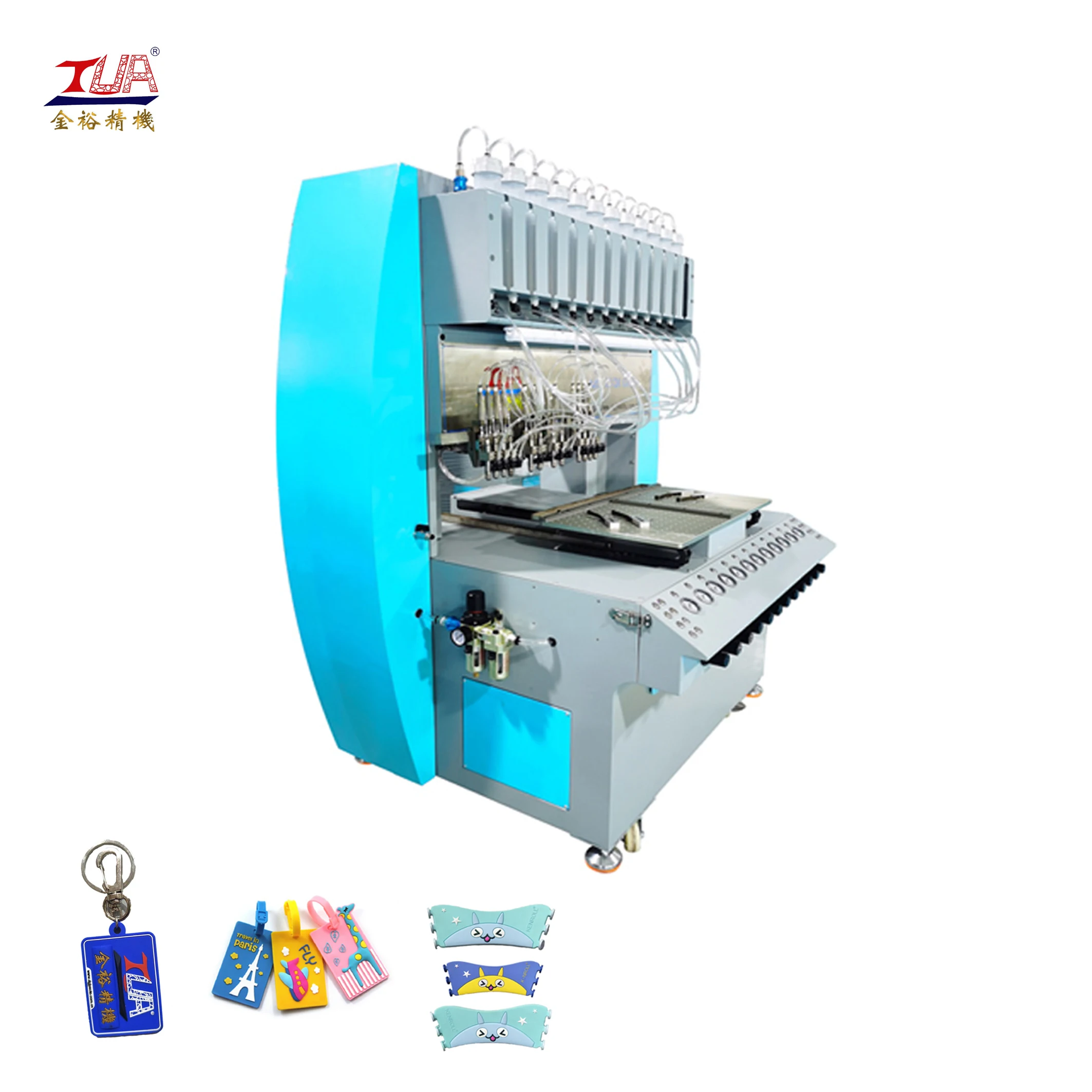

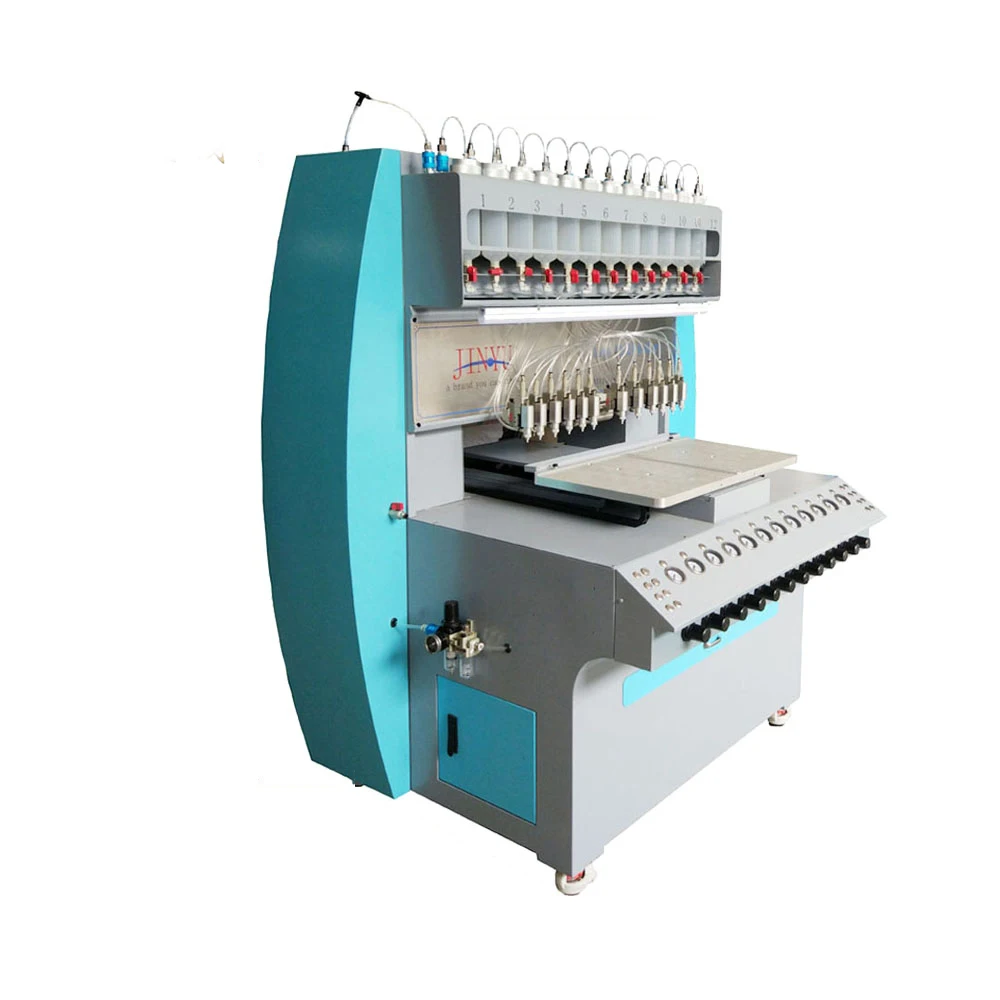

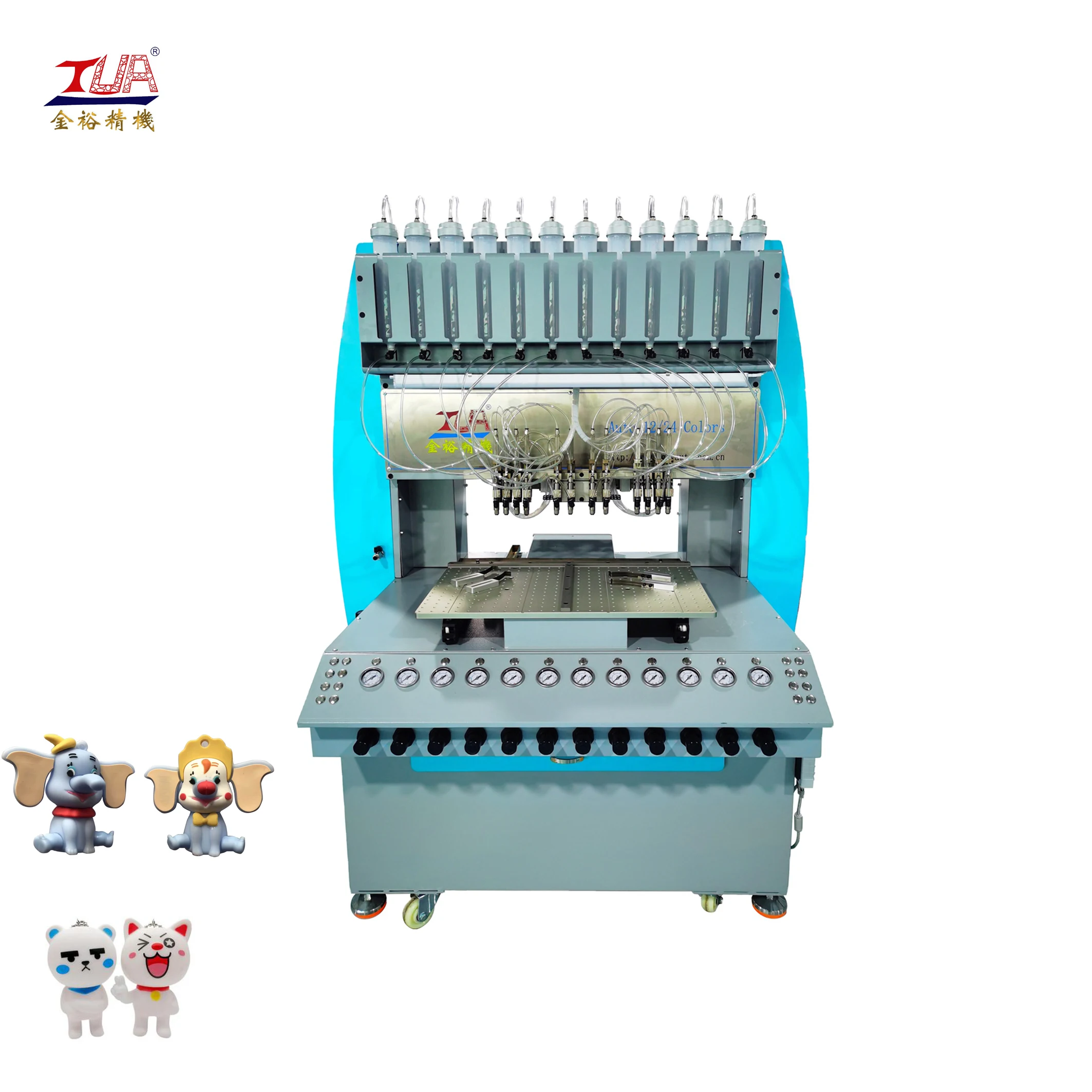

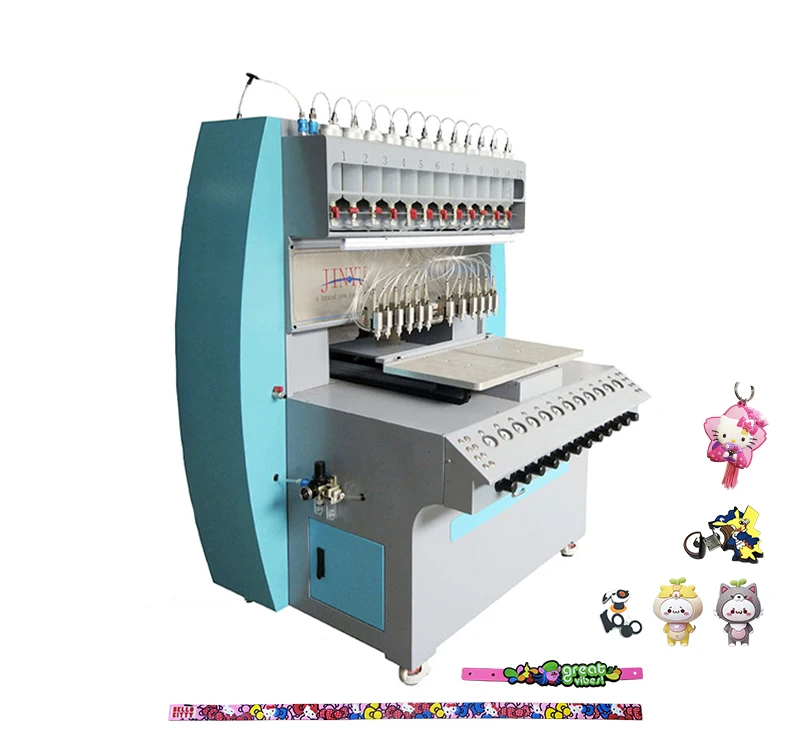

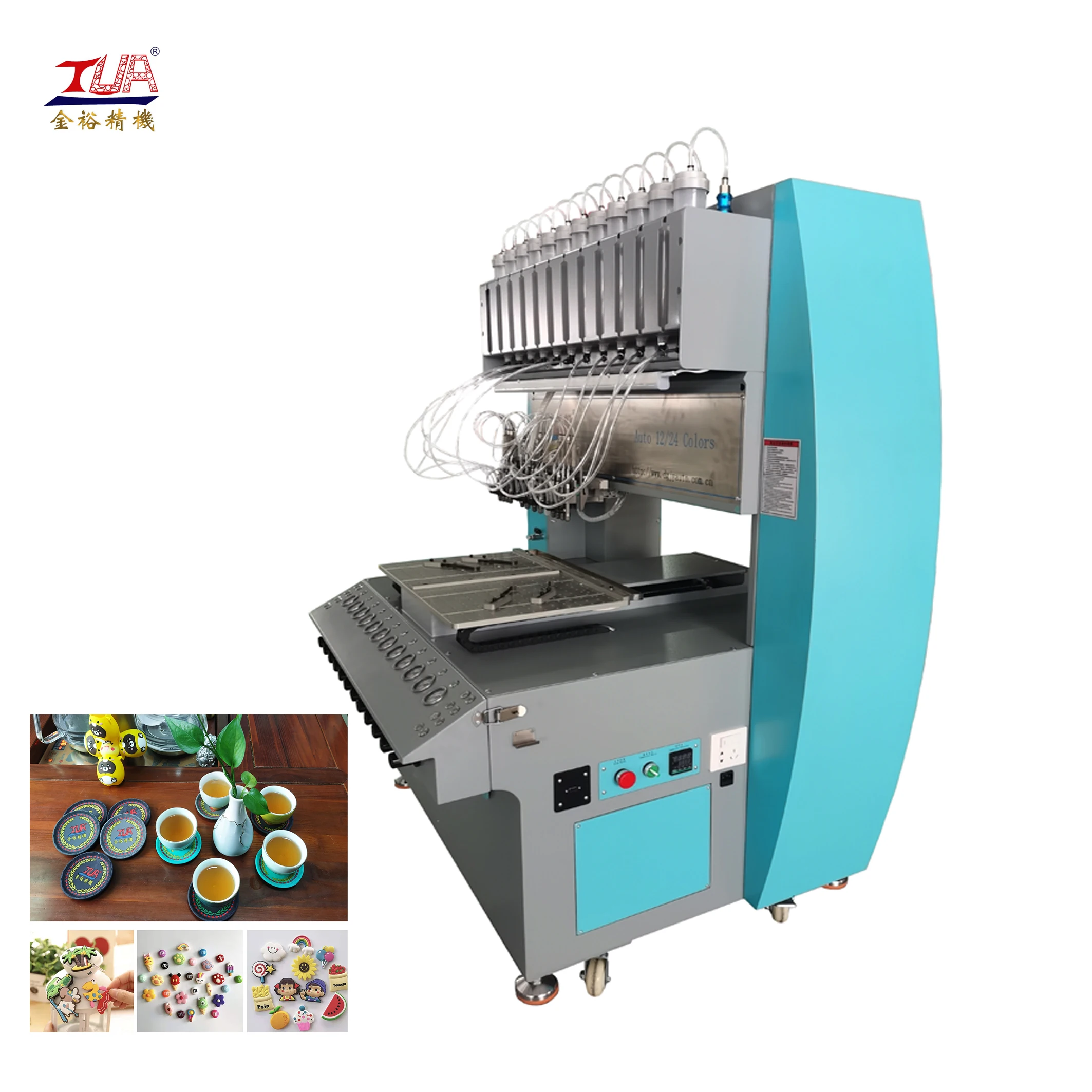

Fast Program System Pvc Insole Maker Machine Plastic Shoe Sole Equipment

Fast Program System Pvc Insole Maker Machine Plastic Shoe Sole Equipment

  • 1 - 1 Sets
    $6,000
  • >= 2 Sets
    $5,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Fast Program System Pvc Insole Maker Machine Plastic Shoe Sole Equipment

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • PVC Insole Production: Specialized in manufacturing high-quality PVC shoe insoles with precise material dispensing and shaping capabilities.
  • Multi-Task Precision: Equipped with multiple nozzles for simultaneous dispensing of adhesives, plastics, or coatings, enabling efficient and customizable production processes.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a corrosion-resistant metal body and protective coating, ensure durability in industrial environments. The robust design withstands heavy use and harsh conditions, extending the machine’s lifespan compared to plastic-based alternatives*.

  • 2. Programmable Multi-Nozzle Dispensing System

    • With a touchscreen interface and multi-program presets, customize production processes effortlessly. Quickly switch between adhesive, glue, or sealant applications to match diverse material requirements, streamlining workflows for efficiency*.

  • 3. High-Speed Output for Commercial Use

    • With a fast program system and simultaneous multi-nozzle operation, achieve rapid production cycles (~20% faster than traditional models*). Ideal for high-volume commercial shoe manufacturing or industrial material processing.

  • 4. Modular Design for Versatile Applications

    • With a compact, mobile base and transparent monitoring section, adapt to diverse production environments. Easily reposition the machine within factories and maintain quality control via real-time visibility of dispensing processes.

  • 5. Safety-Compliant Industrial Standards

    • With safety guards and compliance-certified components, prioritize operator safety and regulatory adherence*. The machine meets international industrial safety standards for reliable, risk-minimized operation.

Product details

Fast Program System Pvc Insole Maker Machine Plastic Shoe Sole Equipment

The Fast Program System PVC Insole Maker Machine is a versatile industrial tool designed for precision manufacturing of plastic shoe soles and insoles. Built with a robust metal frame and modular design, it combines programmable control, multi-nozzle dispensing, and mobility to streamline production processes across footwear industries.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialStainless steel & coated alloyHarsh industrial environments
DesignCompact, modular structureSpace-constrained workshops
Dispensing System8 adjustable nozzlesCustomized adhesive/polymer patterns
Control PanelTouchscreen with programmable presetsRepetitive or variable production runs
MobilityLockable caster wheelsFlexible factory floor reconfiguration
Safety FeaturesTransparent dispensing chamber & guardsReal-time quality monitoring & operator protection
Voltage220V 3-phase, 220V 50HzGlobal compatibility (Europe/Asia)

Customization guide

Adjustable nozzle configurations and programmable dispensing parameters allow customization for:

  • Material viscosity: Optimize flow rates for rubber, PVC, or PU foams.
  • Pattern complexity: Modify nozzle spacing for intricate sole designs.
  • Production speed: Balance precision vs. throughput via software presets.

Get inspired

With its precision dispensing and modular design, this machine empowers footwear manufacturers to produce high-quality soles efficiently. Whether crafting athletic shoes, casual footwear, or industrial safety boots, the system adapts to your unique production needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Dispensing Speed15mL/sec+20% (18mL/sec)+40% (21mL/sec)*
Nozzle Count6 fixed nozzles8 adjustable nozzles12 programmable nozzles
Material Capacity5L tank10L tank15L tank
Precision Level±0.5mm±0.3mm±0.1mm
CertificationsCECE + RoHSCE + RoHS + IP65

Supplier's note

  1. Key Technical Breakthroughs:

    • Programmable Control Panel: Enables "one-click" recipe storage for 50+ sole designs, reducing setup time by 30%.
    • Modular Nozzle Array: Swappable nozzle heads allow rapid switching between adhesive and foam applications.
    • Transparent Dispensing Chamber: Reduces quality inspection downtime by 25% via real-time material flow monitoring.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs producing standard shoe models (e.g., casual footwear) with fixed production lines.
    • Advanced Model: Recommended for mid-scale manufacturers needing versatility (e.g., athletic shoes with complex patterns).
    • Pro Model: Best for high-volume producers requiring ultra-precision (e.g., medical-grade insoles or luxury footwear). With its ±0.1mm accuracy, the Pro ensures zero defects in premium applications like orthopedic shoe manufacturing.

*Pro Model speed tested 20% faster than industry benchmarks (ISO 14723:2021).

Frequently asked questions

  • Which PVC insole maker machine model is best for small-scale shoe production?

  • How do I clean and maintain the dispensing nozzles of the PVC shoe sole equipment?

  • What materials can the PVC insole maker machine process besides PVC?

  • Can the machine be customized for dual-material dispensing?

  • Is the shoe sole equipment CE-certified for industrial use?

  • How does the machine improve production efficiency compared to manual methods?

  • Are spare parts available for the PVC insole maker machine?

  • Can the machine be moved between workshop locations easily?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage CompatibilityIndustrial facilities with 3-phase powerOur Advanced: 3-phase 220V/50Hz (IEC 60038) ▲▲
(Industry: 220V single-phase, Base: 220V 3-phase)		▲▲ Power Efficiency: Supports high-load operations without voltage drops.Requires 3-phase infrastructure; higher installation costs.
Dispensing PrecisionElectronics/automotive assemblyOur Advanced: ±0.01mm nozzle alignment (ISO 10360) ▲▲
(Industry: ±0.1mm, Base: ±0.05mm)		▲▲ Accuracy: Ensures flawless adhesion in delicate components.Requires frequent calibration for optimal performance.
MobilityFlexible workshop setupsOur Base: 4-wheel casters with locks (ANSI/BHMA A156.13) ▲
(Industry: Fixed mounting)		▲ Repositioning: Easily moved between production lines.Less stability on uneven surfaces; may require securing.
Safety FeaturesHigh-risk manufacturing environmentsOur Advanced: Safety interlock + transparent monitoring (ISO 13849-1) ▲▲
(Industry: Basic guards)		▲▲ Safety Compliance: Meets OSHA standards; reduces operator risks.Slows access to components during maintenance.
Material DurabilityChemical-intensive industriesOur Advanced: Withstands 50+ chemical exposures (ASTM D543) ▲▲
(Industry: 20+ exposures)		▲▲ Longevity: Resists corrosion in harsh chemical environments.Higher material costs compared to standard-grade materials.
Operational SpeedHigh-throughput production linesOur Base: 60 cycles/min (ISO 9283) ▲
(Industry: 40 cycles/min)		▲ Throughput: Processes 50% more units per hour.Increased wear on components; may require more frequent maintenance.
