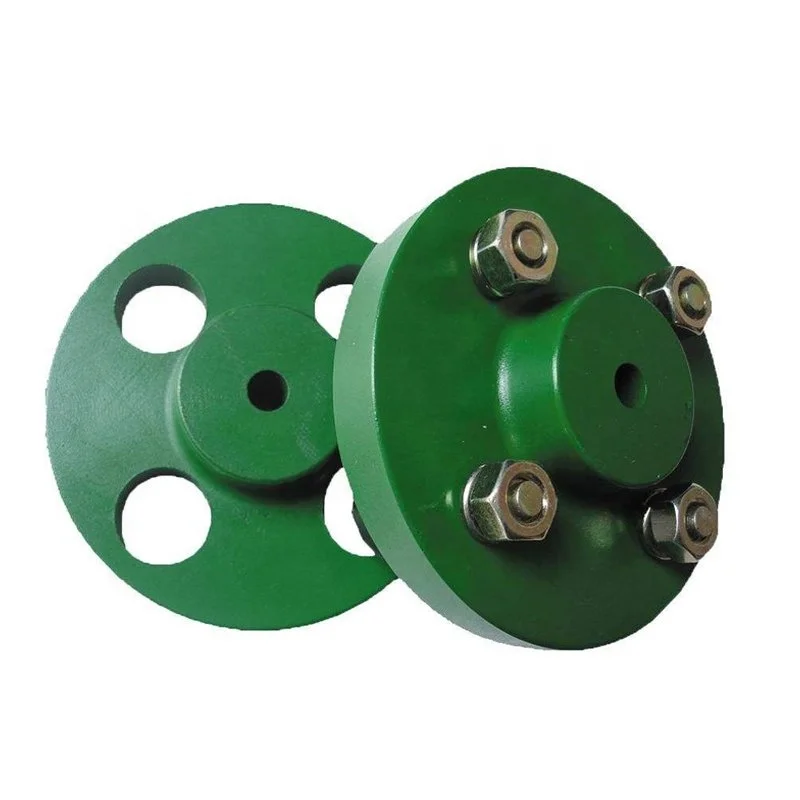

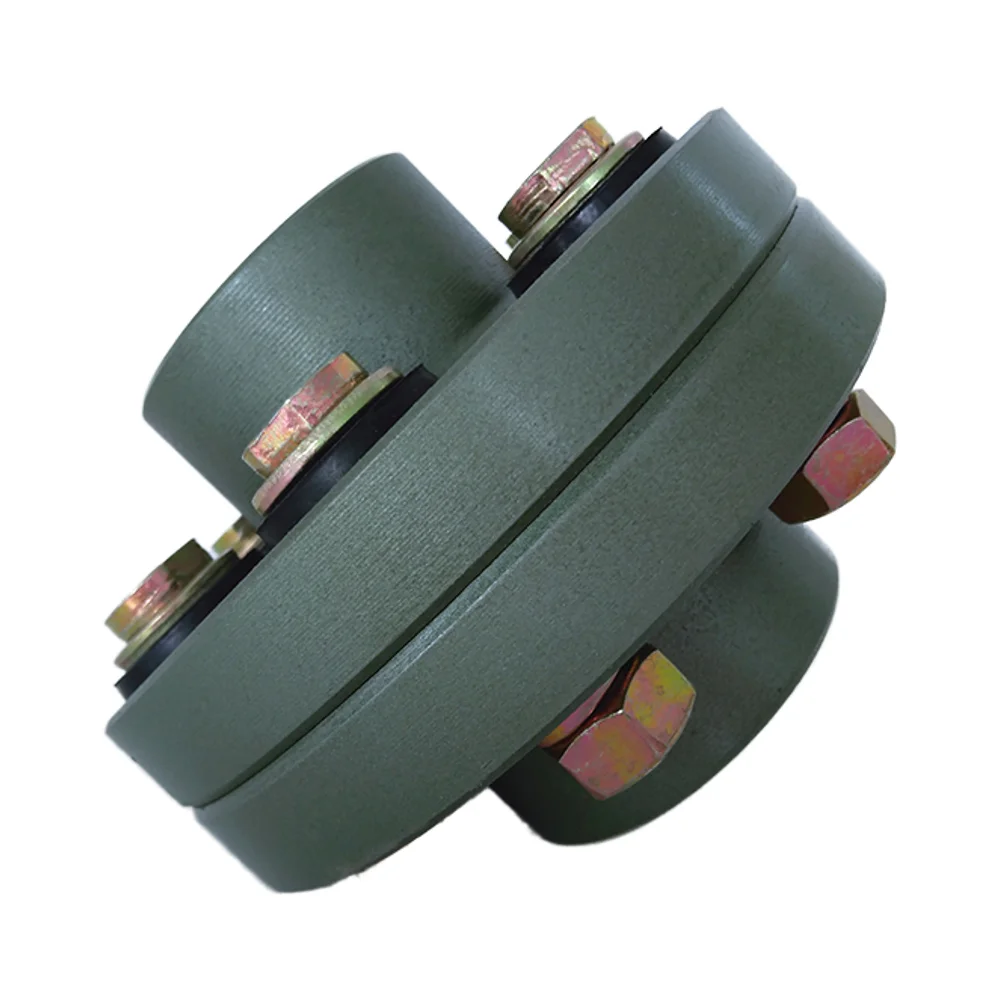

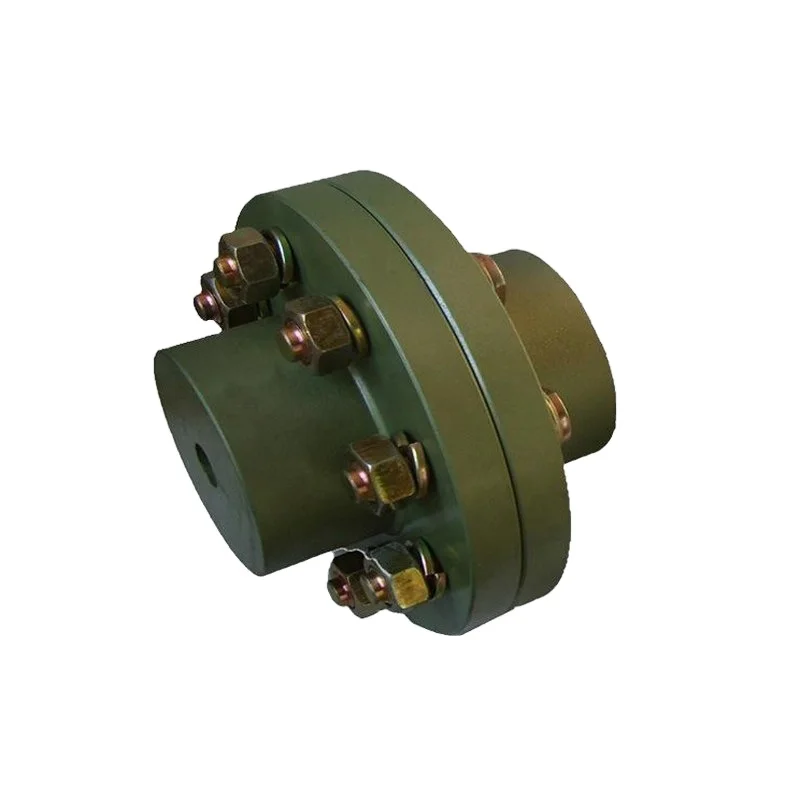

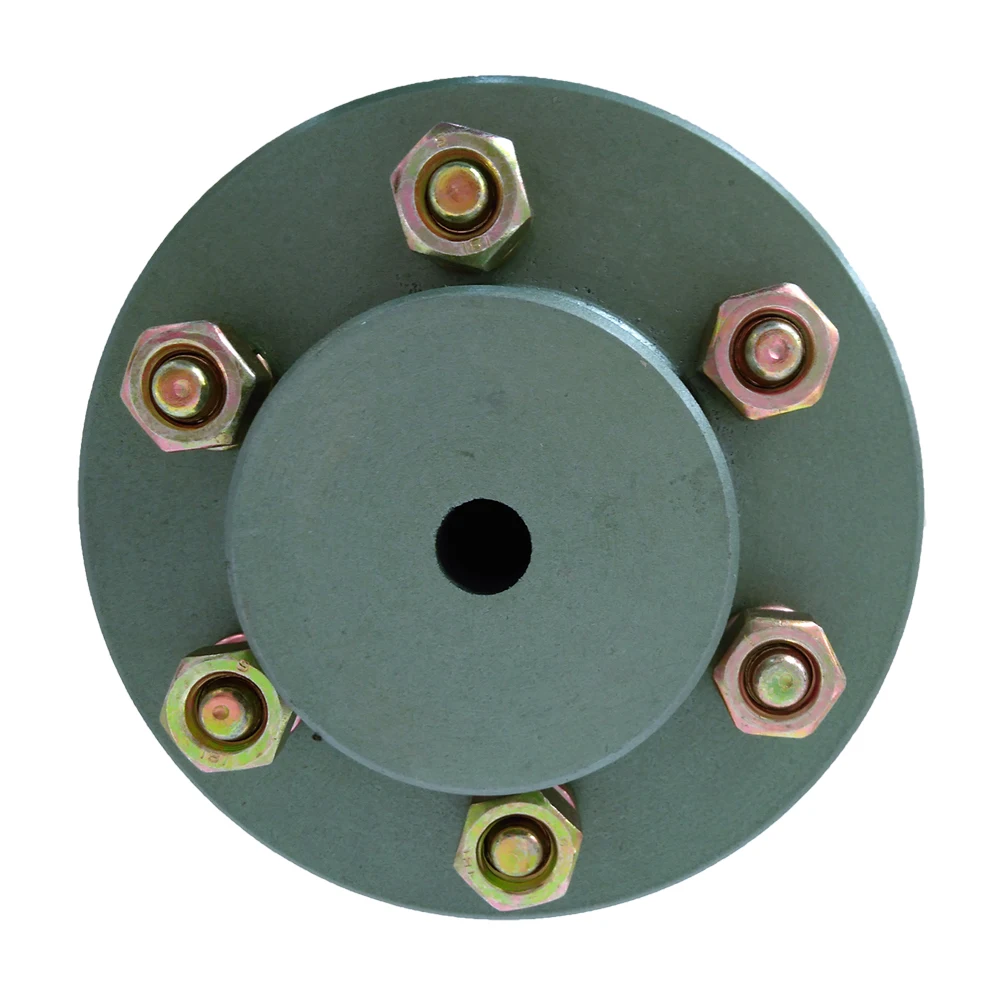

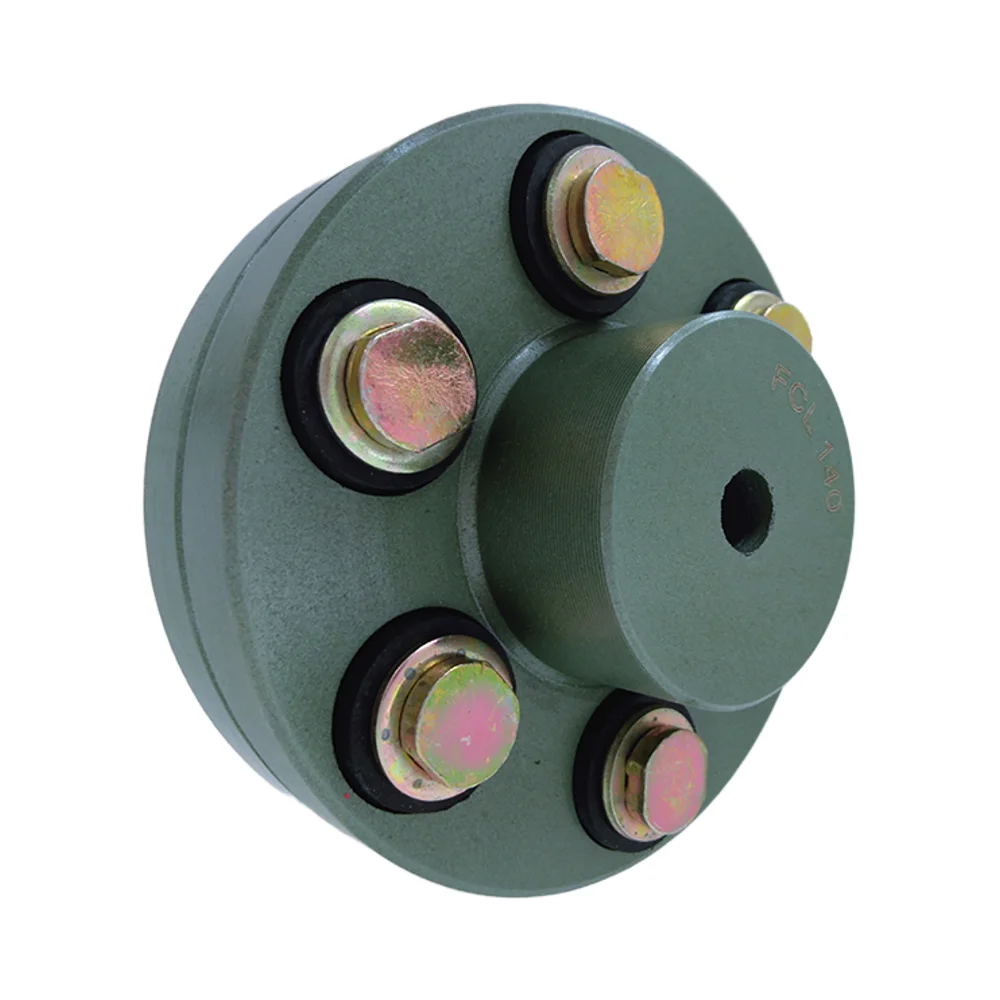

Flexible and Rigid Transmissions Connected the Generator Motor Shaft Couplings

Technical specifications

Customization guide

Adjustable parameters include material composition (steel for high-strength applications or cast iron for cost-effective use) and size specifications (shaft diameter and length) to meet specific torque or space requirements.

Get inspired

Combine the coupling’s rigid and flexible modes to balance precision and adaptability. For instance, use rigid steel for stable generator alignment or flexible cast iron for machinery with slight shaft misalignment.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Enhanced Material Strength: The Pro Model’s 585 MPa steel achieves 30% higher load-bearing capacity than industry standards.
   • Misalignment Tolerance: Advanced Model’s 0.6 mm tolerance (20% above benchmarks) reduces downtime in uneven machinery setups.
   • Blackened Surface Treatment: Prevents corrosion in humid or chemical-exposed environments.

2. Optimal Version Selection:

   • Base Model: Ideal for standard applications (e.g., small generators) requiring basic torque transmission.
   • Advanced Model: Suitable for moderate industrial use (e.g., pumps/compressors) needing 20% higher misalignment tolerance.
   • Pro Model: Best for heavy machinery (e.g., turbines) where 6500 Nm torque and triple-standard corrosion resistance are critical.

With the Pro Model’s 585 MPa material strength, you can handle extreme torque loads without deformation. With the Advanced Model’s 0.6 mm tolerance, you can align shafts 20% faster than traditional couplings.
