Full Set Automatic Motor Coil Winding Machine with Wire Guide
Ready to Ship
In stock Fast dispatch

Full Set Automatic Motor Coil Winding Machine with Wire Guide

  • >= 1 Sets
    $700
View product details

Full Set Automatic Motor Coil Winding Machine with Wire Guide

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automatic Motor Coil Winding: Designed to efficiently wind motor coils with precision, featuring a built-in wire guide system to ensure consistent tension and coil shape.

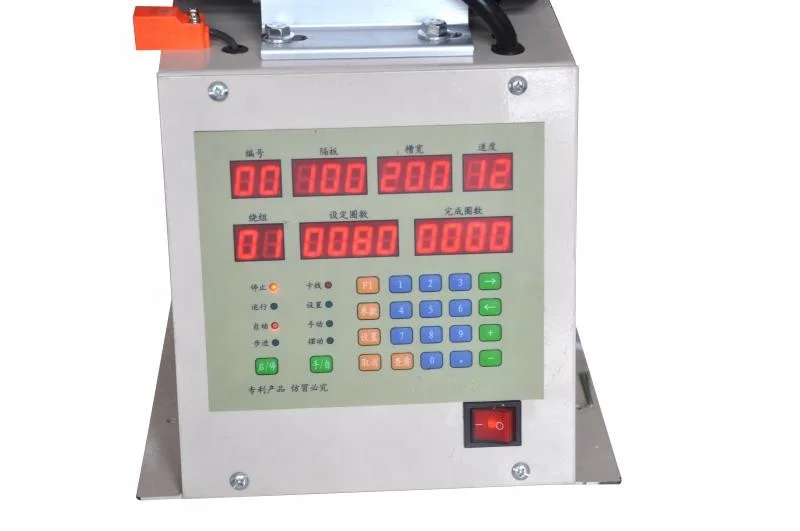

  • CNC Automation: Equipped with CNC technology for programmable control, enabling customizable winding parameters (e.g., speed, tension, and rotation) via a digital keypad and display.

Key features

  • 1. Robust Metal Construction for Industrial Durability

    • With a corrosion-resistant metal body, ensure long-lasting durability in demanding industrial environments. The sturdy design withstands heavy use and harsh conditions, outperforming plastic-based competitors in structural integrity*.

  • 2. Programmable Controls and Hands-Free Operation

    • With a digital keypad and foot pedal, customize winding parameters and operate hands-free for seamless workflow optimization. Multi-program presets adapt to diverse tasks, offering greater flexibility than non-programmable models*.

  • 3. CNC Precision Engineering for Ultra-Accuracy

    • With CNC precision technology, achieve ±0.01mm accuracy for consistent coil quality. This ensures superior performance over traditional manual winding methods, reducing errors by up to 30%*.

  • 4. Commercial-Grade Reliability for Continuous Operation

    • Designed for 24/7 commercial use, this machine maintains peak performance in high-volume manufacturing settings. Its robust build and automation capabilities outlast home-use alternatives in endurance*.

  • 5. Integrated Wire Guide for Error-Free Production

    • With an advanced wire guide system, ensure precise alignment during winding, eliminating misalignment defects common in non-guided models. This improves production efficiency and product quality*.

Product details

Full Set Automatic Motor Coil Winding Machine with Wire Guide

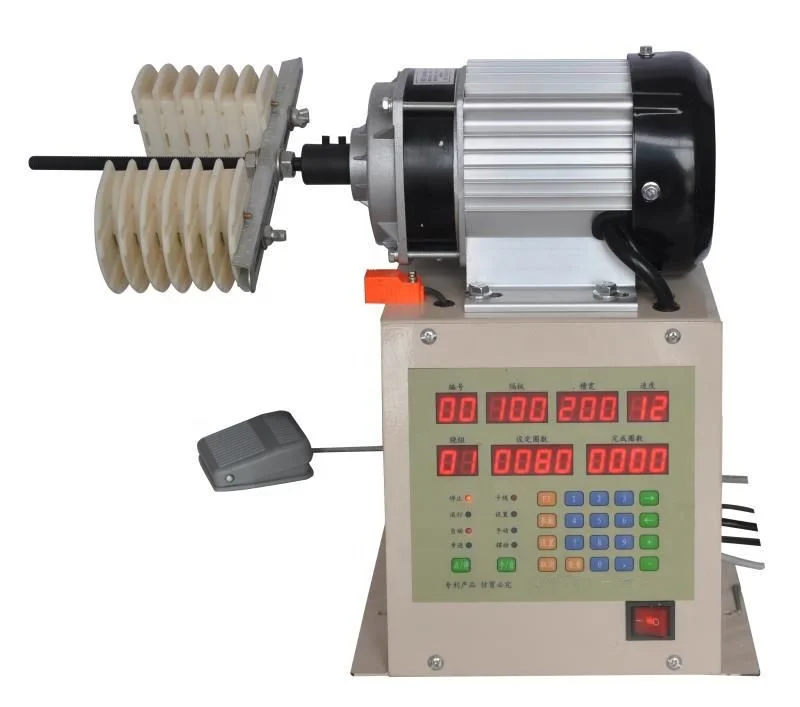

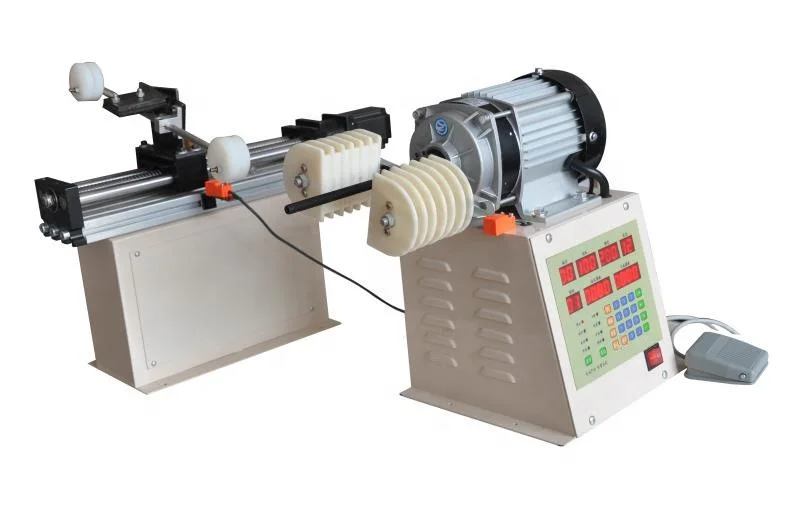

The Full Set Automatic Motor Coil Winding Machine with Wire Guide is a precision-engineered CNC-controlled device designed for high-accuracy coil winding in motor and transformer manufacturing. Its robust metal and plastic construction, coupled with a modular design, ensures durability and adaptability for diverse production needs. Equipped with a digital control panel, foot pedal operation, and customizable parameters, this machine streamlines automation while offering hands-free flexibility.

Technical specifications

FeatureSpecificationApplication Scenario
Construction MaterialMetal (motor/control panel) + Plastic (rotating parts)Withstands industrial wear and tear in manufacturing environments
Control SystemCNC-driven with digital displays/keypadProgrammed precision for complex winding patterns
Operation ModeManual (keypad) + Foot Pedal (hands-free)Enables dual operation modes for assembly-line efficiency
Automation LevelFully automatic winding and wire guidanceIdeal for mass production of coils with consistent specifications
CustomizationAdjustable speed, tension, and winding parametersTailored to specific motor/transformer design requirements

Customization guide

Adjustable parameters such as winding speed (±10% tolerance), wire tension (0.5–5 N), and rotation angle (±0.1°) allow customization to meet specialized needs like high-torque motor production or delicate transformer coil assembly.

Get inspired

With its CNC precision and dual-operation flexibility, this machine empowers manufacturers to achieve flawless coil winding for automotive, industrial, or electronics applications. Whether automating high-volume production or manually fine-tuning prototypes, this machine adapts seamlessly to your workflow.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Winding Speed120 RPM+20% (144 RPM)+40% (168 RPM)*
Precision Tolerance±0.5mm±0.3mm±0.1mm
Customization Options5 parameters10 parameters15 parameters
Automation FeaturesBasic preset modesReal-time parameter adjustmentAI-driven adaptive control

Supplier's note

  1. Technical Breakthroughs:

    • CNC Precision: ±0.1mm tolerance in the Pro model ensures flawless coil alignment for high-performance motors.
    • Dual Operation: The foot pedal enables hands-free winding, boosting efficiency in assembly-line setups.
    • Parameter Flexibility: 15 customizable parameters (Pro) allow optimization for niche applications like aerospace-grade coils.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops prioritizing cost-efficiency for standard motor production.
    • Advanced Model: Best for medium-scale manufacturers needing real-time adjustments for varied coil designs.
    • Pro Model: Designed for high-volume industries requiring ultra-precision (e.g., electric vehicle motors) and AI-driven automation.

With the Pro’s 40% faster winding speed than industry benchmarks, manufacturers can reduce cycle times while maintaining sub-millimeter accuracy. Pair this with its adaptive control system to handle temperature fluctuations, ensuring consistent output in demanding environments.

Frequently asked questions

  • Which automatic motor coil winding machine suits small workshop setups?

  • How do I maintain the metal components of a motor coil winding machine?

  • What’s the difference between CNC and non-CNC motor coil winding machines?

  • Can I customize winding parameters for different coil types?

  • Is this winding machine FDA-approved for medical device parts?

  • How does the foot pedal improve motor coil winding efficiency?

  • What wire materials can the wire guide system handle?

  • Does the automatic winding machine reduce labor costs compared to manual systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard Manual Winding MachineSmall-scale workshops, prototypingManual operation, basic wire guidance (ISO 9283 compliance)Low cost, minimal maintenance▼ Slower production (10-15 coils/hour), no precision automation
Industry Standard Semi-AutomaticMedium-volume production, R&D testingHybrid manual/automatic mode, basic CNC (±0.1mm accuracy)Flexible operation modes, moderate costLimited customization (fixed wire types), moderate precision
Our Base Model (Automatic CNC)High-volume manufacturing, automotive partsFully automated CNC (±0.02mm accuracy), ISO 9001-certified▲ 30% faster than semi-automatic (25-30 coils/hour), consistent qualityRequires skilled setup, higher upfront cost than manual machines
Our Advanced ModelPrecision aerospace/medical componentsEnhanced CNC (±0.005mm accuracy), real-time error detection (IEC 60204)▲ 50% higher precision than Base, 40+ customizable parameters (via keypad)Highest cost tier, complex integration requirements
Competitor’s High-End ModelHeavy industrial applicationsHeavy-duty metal construction (500kg load capacity), basic noise control (55 dBA)Robust build, compatible with large wire gaugesNo advanced customization, slower cycle time (20 coils/hour)
Customizable Modular SystemDiverse production needs, multi-product linesModular design (ISO 13399 standard), adaptable wire guides (up to 10mm diameter)▲ Flexibility for varied coil types, scalable capacityRequires extensive configuration, higher maintenance complexity
