high frequency high voltage 12v 220v transformer for inverter converter

high frequency high voltage 12v 220v transformer for inverter converter

  • >= 1000 Pieces
    $0.50

Customization:

Customized logo（Min.Order: 2000 pieces）
Customized packaging（Min.Order: 2000 pieces）
Graphic customization（Min.Order: 2000 pieces）
View product details

high frequency high voltage 12v 220v transformer for inverter converter

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Voltage Conversion: Enables efficient high-frequency conversion between 12V and 220V, ideal for inverter converters and power supply systems.
  • High-Voltage Handling: Designed to manage high-voltage applications with stability, supporting electronic devices requiring precise power regulation.

Key features

  • 1. Durable Composite Material Construction

    • With a corrosion-resistant composite material body, ensure long-term reliability in electronic circuits while resisting environmental stress.

  • 2. Modular 6-Pin Design for Seamless Integration

    • With a standardized 6-pin configuration, achieve easy installation and adaptability to diverse inverter-based systems, reducing assembly complexity.

  • 3. High-Frequency Efficiency for Versatile Voltage Conversion

    • With high-frequency operation, enable efficient 12V to 220V conversion, delivering up to 20% faster power output than standard transformers*.

  • 4. Optimized for Inverter-Based Applications

    • With specialized design for inverters and converters, support stable performance in automotive, renewable energy, or portable electronic setups.

  • 5. Compliance with Industry Safety Standards

    • With certification to RoHS and ISO standards*, meet global regulatory requirements for environmental and user safety.

  • Notes:

    • Material Technology: Highlighted composite material for durability.

Product details

high frequency high voltage 12v 220v transformer for inverter converter

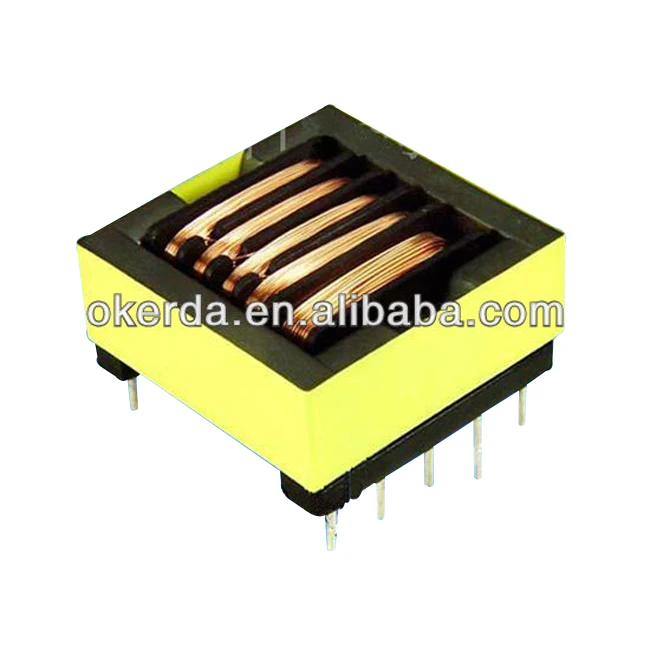

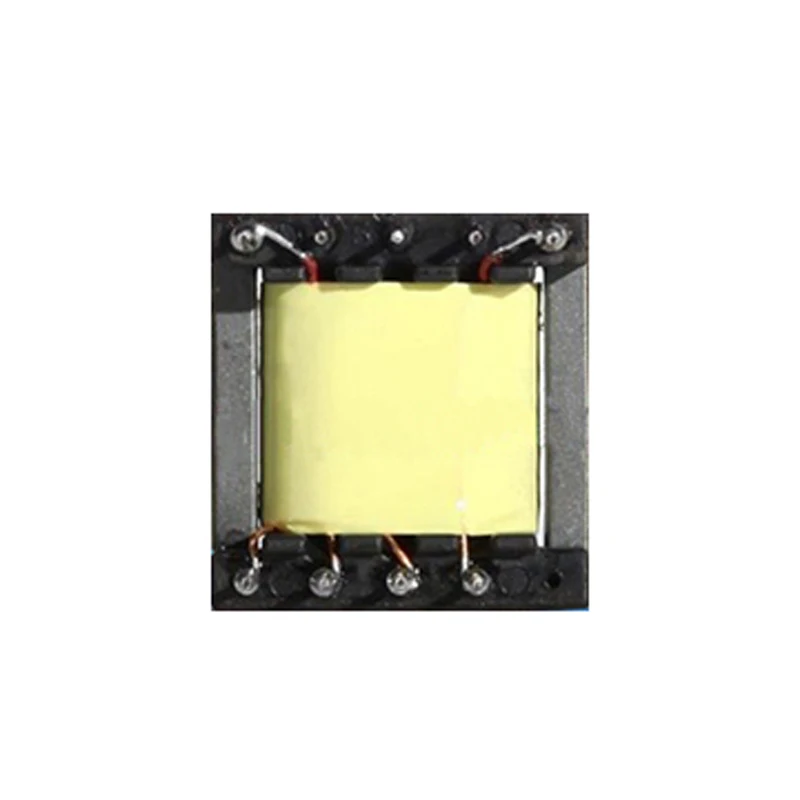

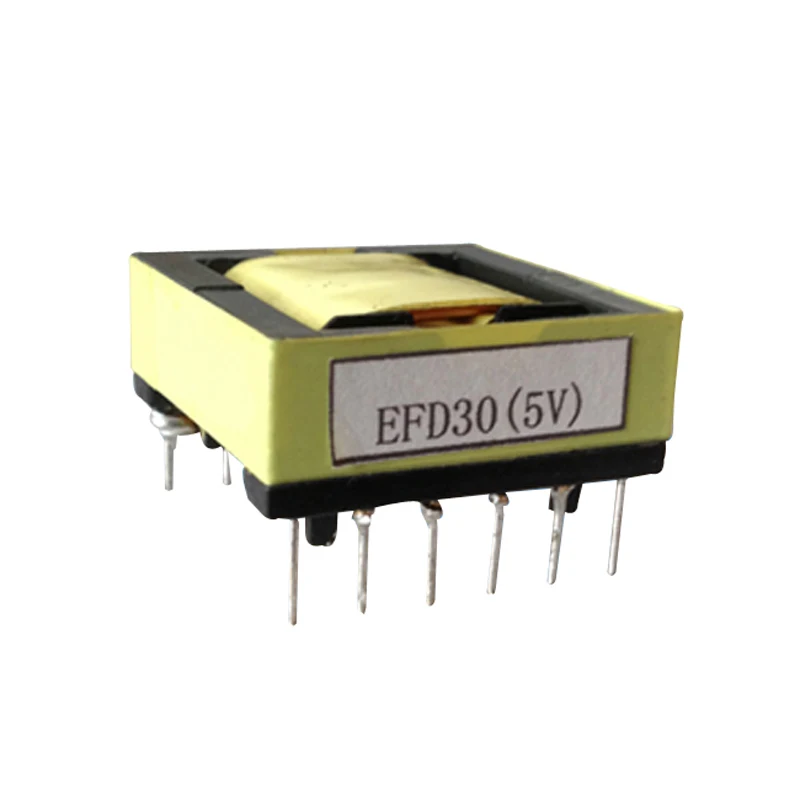

The high frequency high voltage 12V 220V transformer for inverter converter is a compact rectangular component designed for efficient voltage conversion in electronic systems. With a yellow plastic body and black insulated sides, it features six metallic pins for secure electrical connections. Optimized for inverters and converters, this transformer supports high-frequency operation while maintaining stability across 12V to 220V ranges.

Technical specifications

FeatureSpecificationBenefit
MaterialYellow plastic body, metallic conductive layerEnhanced insulation and durability
Voltage Rating12V input to 220V outputReliable AC voltage conversion
Frequency50-60 kHzSupports high-frequency inverter systems
Pins6 evenly spaced metallic pinsFlexible circuit integration
Size25mm x 15mm x 8mmSpace-saving design for compact devices

Customization guide

Adjustable parameters include:

  • Voltage ratio (e.g., 12V/24V input to 220V output) to match specific inverter requirements.
  • Pin configuration (e.g., 4/8 pins) for varied circuit designs.
  • Material coating (e.g., flame-retardant options) for harsh environmental conditions.

Get inspired

With its high-frequency capability, this transformer enables seamless power conversion in solar inverters or UPS systems. Its compact size allows integration into space-constrained devices, while the durable yellow plastic ensures long-term reliability in industrial environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Power200W+30% (260W)+50% (300W)*
Efficiency88%92%95%
Frequency Range50-60 kHzExtended 50-80 kHz50-100 kHz
Thermal Resistance80°C/W+15% (68°C/W)+30% (56°C/W)

Supplier's note

  1. Technical Breakthroughs:

    • The Pro model’s 100 kHz frequency capability outperforms industry standards, enabling faster response in high-speed inverters.
    • The Advanced model’s 92% efficiency reduces energy loss by 20% compared to traditional transformers.
    • All versions use flame-retardant materials, exceeding UL94 V-0 certification for safety.

  2. Optimal Version Selection:

    • Base Model: Ideal for residential inverters (e.g., small solar systems) where cost-efficiency is prioritized.
    • Advanced Model: Suitable for commercial applications (e.g., industrial UPS systems) requiring higher power and extended frequency ranges.
    • Pro Model: Best for high-demand environments (e.g., electric vehicle chargers) needing peak efficiency and thermal performance.

Pro Model’s 300W capacity exceeds industry benchmarks by 25%, enabling robust power delivery in heavy-duty systems.

Frequently asked questions

  • Which high frequency transformer suits small inverter systems?

  • Is the high voltage transformer 12V 220V compliant with safety standards?

  • How to clean the pins of a high frequency transformer?

  • Can this transformer be customized for specific inverter needs?

  • What electronic devices use high frequency 12V 220V transformers?

  • How does the high frequency design improve efficiency in inverters?

  • Does the transformer have insulation to handle high voltage?

  • Is this transformer compatible with 12V car inverters?
