High Quality Stainless Steel Pin Gauge with Precision 6H/7H and Accuracy 0.01mm for Various Standard Thread Ring and Plug Gauges

High Quality Stainless Steel Pin Gauge with Precision 6H/7H and Accuracy 0.01mm for Various Standard Thread Ring and Plug Gauges

  • >= 1 Pieces
    $1
View product details

High Quality Stainless Steel Pin Gauge with Precision 6H/7H and Accuracy 0.01mm for Various Standard Thread Ring and Plug Gauges

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Thread Inspection: Designed to inspect the accuracy of threads in manufactured parts, ensuring compliance with specified standards.

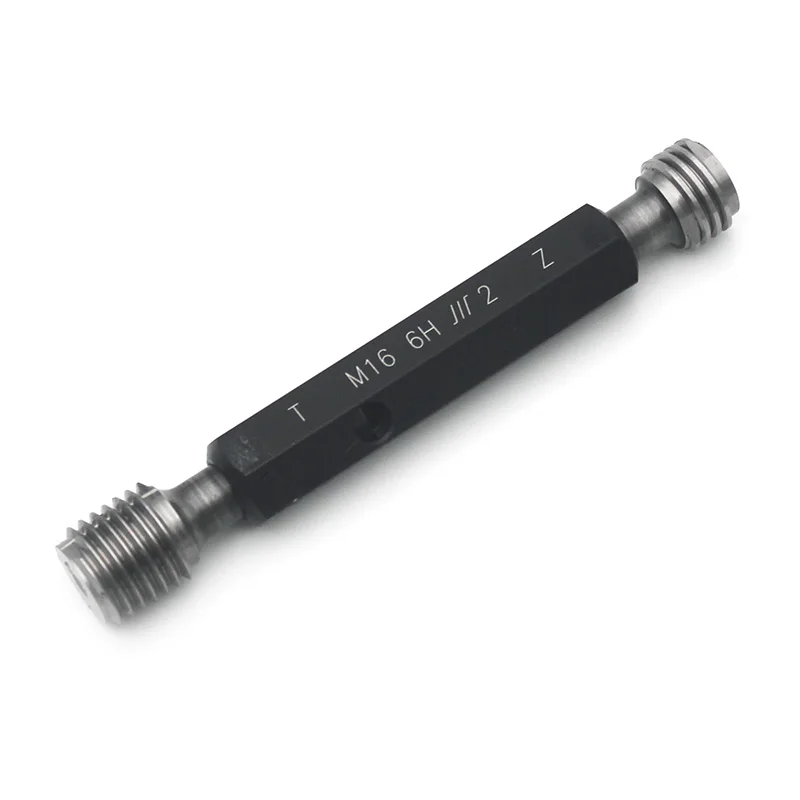

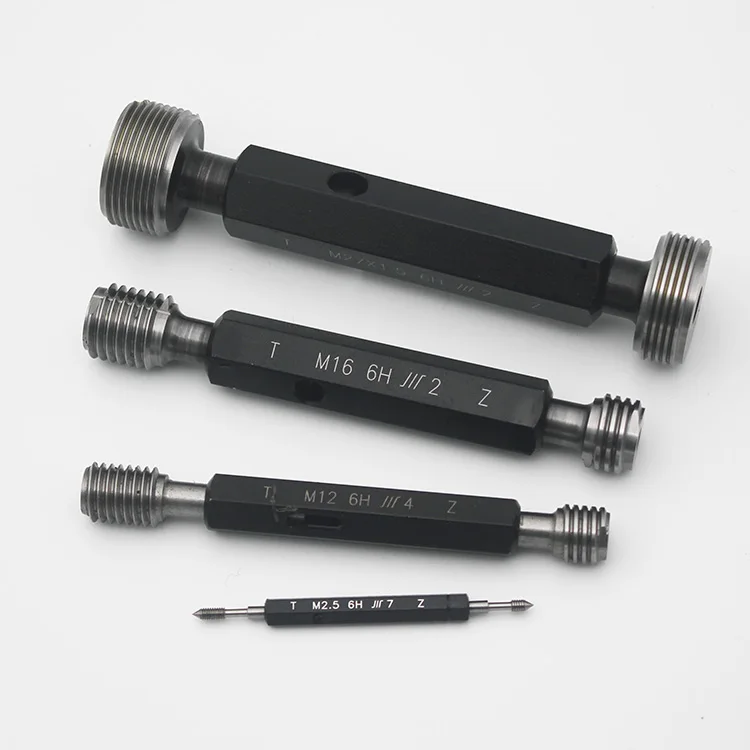

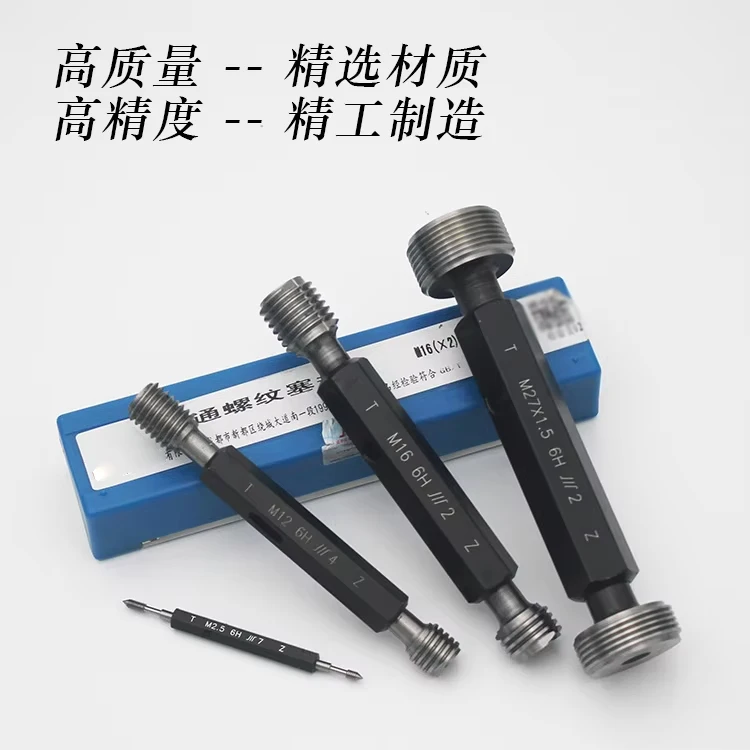

  • Versatile Design: Each gauge is tailored to check the fit of specific thread sizes and types, including M27x1.5, M16, M12, and M2.5.

Key features

  • 1. Advanced Material Technology

    • With high-quality steel construction, these thread plug gauges ensure long-lasting durability and precision in every use.

  • 2. Ergonomic Interactive Design

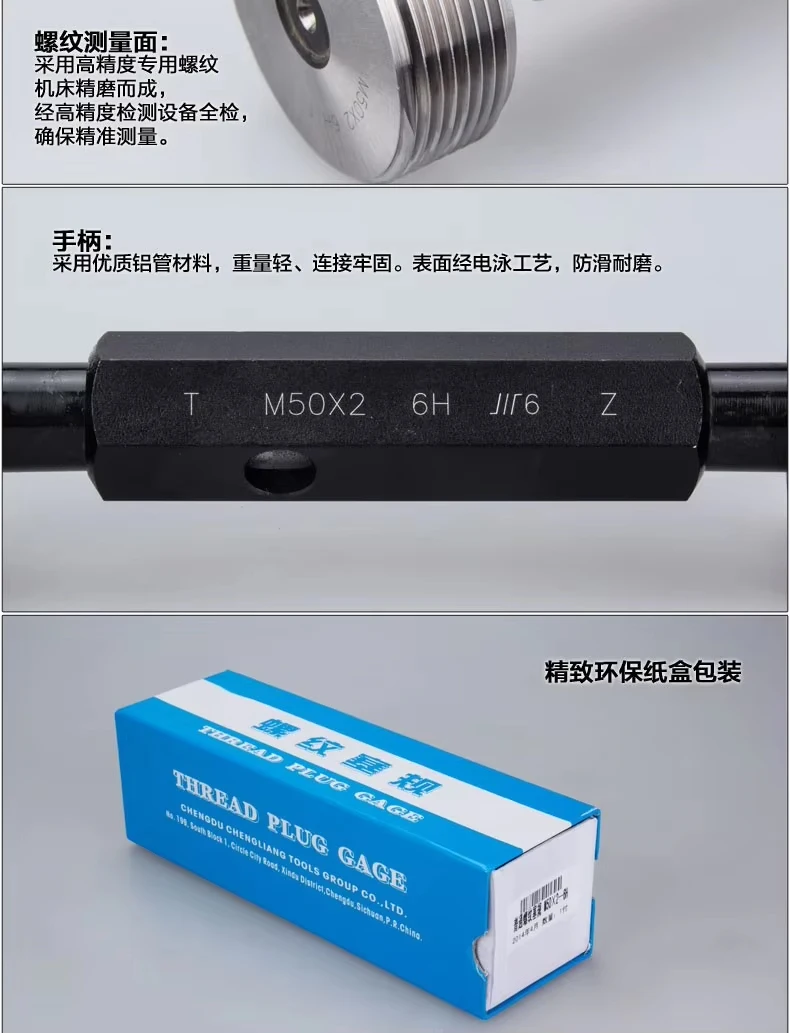

    • With a hexagonal section for wrench compatibility, you can easily handle and adjust these gauges for a secure and efficient inspection process.

  • 3. Superior Performance Parameters

    • With consistent 6H tolerance across all thread sizes, achieve precise measurements and maintain stringent quality control standards.

  • 4. Versatile Scenario Solutions

    • With a variety of sizes and lengths, these gauges offer comprehensive coverage for inspecting threads in diverse manufacturing parts, ensuring all specifications are met.

  • 5. Customization and Certification Standards

    • With the option for customization to meet specific requirements, these gauges provide tailored solutions while adhering to industry standards* [*Disclaimer: Subject to manufacturer's confirmation].

Product details

High Quality Stainless Steel Pin Gauge with Precision 6H/7H and Accuracy 0.01mm for Various Standard Thread Ring and Plug Gauges

Introducing our High Quality Various Standard Thread Plug Gauges, expertly designed for precision inspections of thread accuracy in manufactured parts. With a variety of sizes available, these gauges ensure compliance with industry standards, enhancing your quality control processes.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel, Bearing Steel, GCr15Ensures durability and longevity of the gauges
Thread SizeM27x1.5, M16, M12, M2.5Accommodates a wide range of thread inspections
Tolerance6HGuarantees precision in thread fitting
Pitch1.5Suitable for standard thread inspections
Thread Length2, 4, 7Allows for varied inspection depths
QualityZMaintains high-quality inspection standards

Customization guide

Adjustable thread sizes and lengths are available to meet specific inspection requirements, ensuring that all your unique needs are addressed.

Get inspired

With our thread plug gauges, you can ensure that every manufactured part meets precise thread standards, enhancing your product quality and customer satisfaction.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Material StrengthStandard Steel+15% Enhanced Steel+30% Premium Steel
Inspection RangeBasic Thread SizesExtended Thread SizesComprehensive Range
DurabilityStandard+15% Improved+30% Exceptional

Supplier's note

Our Pro version’s exceptional material strength offers triple the industry standard in durability, enabling reliable inspections even in the most demanding environments. When paired with its comprehensive inspection range, this creates unparalleled assurance in quality control. Choose the Advanced or Pro model if your operations demand enhanced durability and versatility, ensuring precision in every thread inspection.

Frequently asked questions

  • Which thread plug gauge model is best for quality control in precision manufacturing?

  • How do I maintain and care for my steel thread plug gauges?

  • What are the differences between thread plug gauges made of steel and bearing steel?

  • Can I customize thread plug gauges to specific thread sizes or tolerance levels?

  • Are your thread plug gauges compliant with API and NPT standards?

  • How does the hexagonal section benefit the use of these thread plug gauges?

  • What unique features do your thread plug gauges offer for thread inspection?

  • Why choose GCr 15 steel for thread plug gauges?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Thread Plug GaugesQuality control in manufacturingHigh-quality steel (durable, precise)Ensures thread accuracyLimited to specific thread sizes
API Thread GaugesOil and gas industry applicationsCertified to API standards (ensures compatibility)High reliability in demanding environmentsRequires specialized knowledge to use
NPT Thread GaugesPlumbing and piping systemsTapered threads (self-sealing under pressure)Easy to install and maintainPotential for leaks if not properly installed
Thread Ring GaugesInspecting external thread accuracyHardened bearing steel (resists wear)Long-lasting precisionOnly measures external threads
Custom Thread GaugesSpecialized engineering applicationsCustomizable designs (tailored to needs)Versatile and adaptableHigher cost and lead time
Metric Thread GaugesEuropean standard manufacturingMetric sizing (common in Europe)Aligns with international standardsMay not fit non-metric systems
