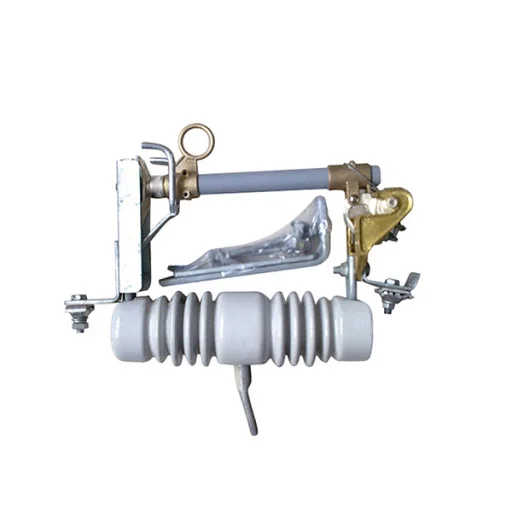

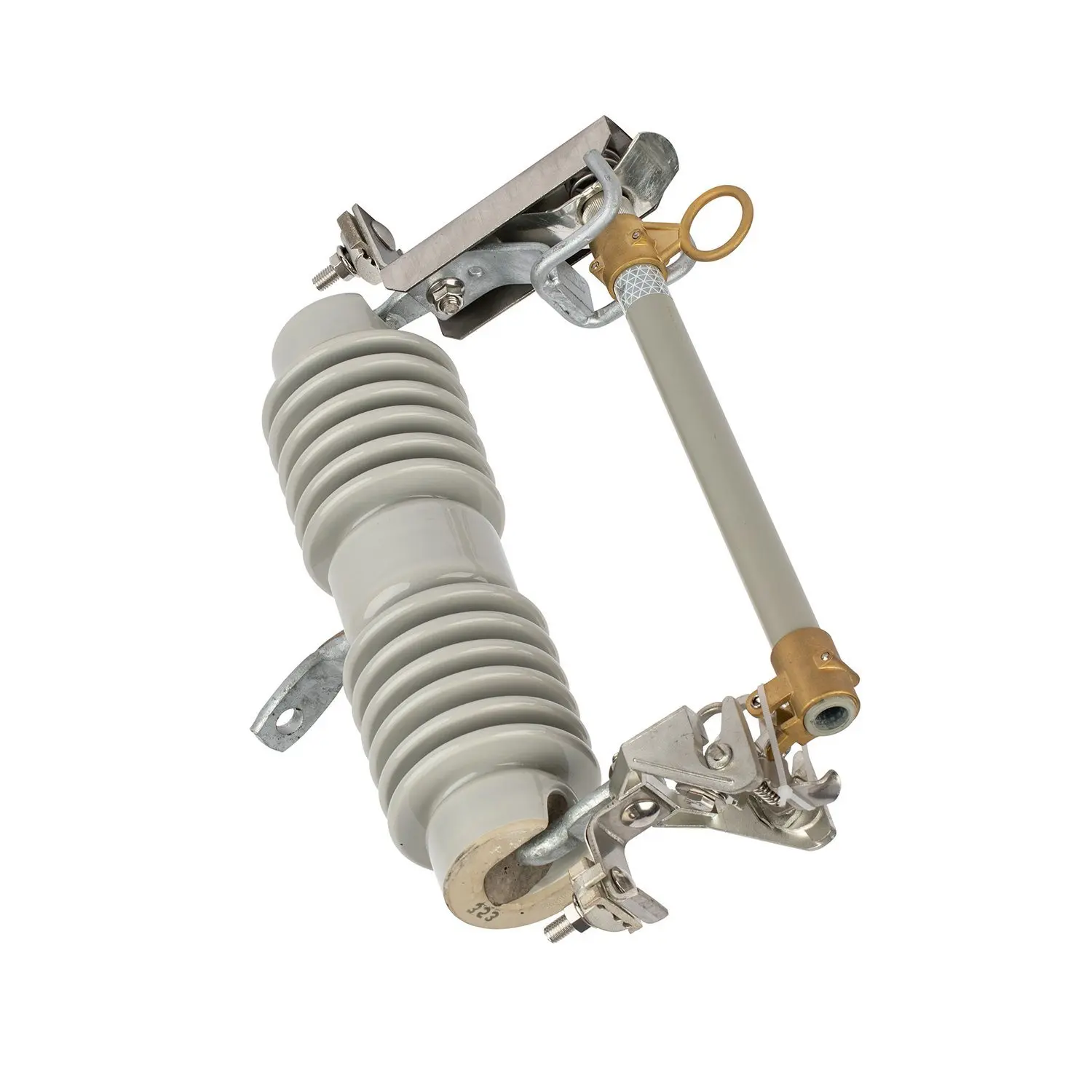

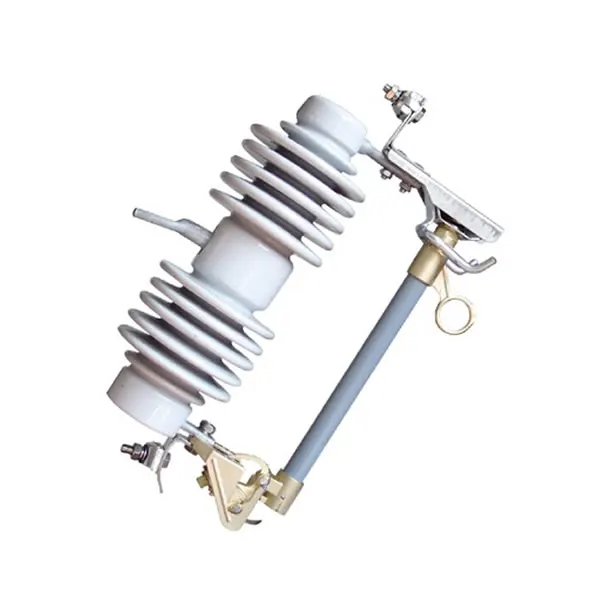

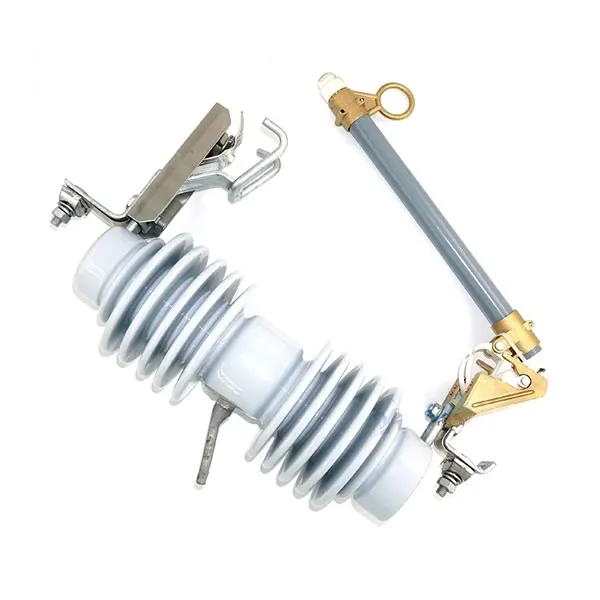

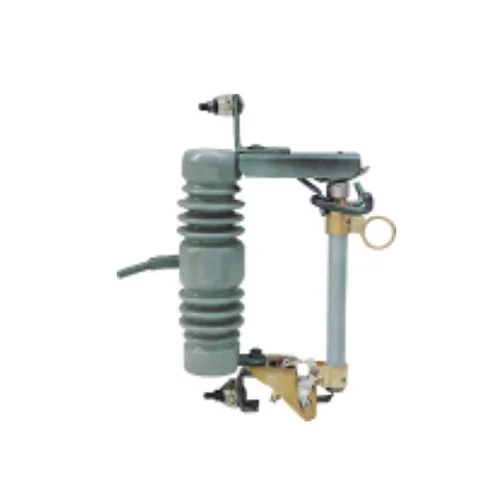

High Voltage Fuse Cutout Drop Out Fuse Cutout 11kv Break Fuse Cutout

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Overcurrent Protection: Safeguards electrical systems from overcurrent and short circuits by interrupting the circuit, preventing damage and fire risks.
  • Manual Disconnection: Features a robust ceramic body and brass handle for safe, manual operation to isolate faulty circuits in high-voltage environments.

Key features

  • 1. Material Technology

    • With a ceramic body and corrosion-resistant brass components, ensure superior insulation and long-term durability in harsh electrical environments. Ceramic provides enhanced heat dissipation and electrical resistance, outperforming plastic alternatives in high-stress scenarios*.

  • 2. Interactive Design

    • With an ergonomic handle design, enable effortless manual operation without specialized tools. The secure metal clamps ensure reliable connections, simplifying installation and maintenance compared to traditional fuse designs*.

  • 3. Performance Parameters

    • Rated for 11kV systems, handle high voltage demands while customizable current ratings adapt to diverse power requirements. This flexibility surpasses fixed-rated fuses, supporting both industrial and utility applications*.

  • 4. Scenario Solutions

    • Designed for high-voltage applications, safeguard electrical systems against overcurrent risks, preventing damage and fire hazards. The robust construction supports continuous operation in commercial settings, unlike consumer-grade fuses*.

  • 5. Certification Standards

    • Complies with industry safety standards for high-voltage applications*, ensuring reliability and compliance with electrical regulations.

Product details

High Voltage Fuse Cutout Drop Out Fuse Cutout 11kv Break Fuse Cutout

The High Voltage Fuse Cutout Drop Out Fuse Cutout 11kv Break Fuse Cutout is a robust electrical protection device designed for high-voltage systems. Engineered with ceramic insulation and corrosion-resistant brass components, it ensures reliable overcurrent protection while maintaining safety and durability in harsh environments.

Technical specifications

FeatureSpecificationBenefit
MaterialCeramic body with brass componentsHigh insulation, corrosion resistance
Voltage Rating11kVSafe for high-voltage electrical systems
Breaking Capacity20kASafely interrupts overcurrents to prevent system damage
DesignCylindrical ridgesEnhanced heat dissipation and insulation
Handle DesignManual operationEasy installation and maintenance

Customization guide

Adjustable voltage ratings (up to 36kV) and current ratings allow customization to match specific system requirements. The handle can be tailored to fit diverse fuse holders, ensuring compatibility with existing infrastructure.

Get inspired

With ceramic insulation, you can ensure safety in high-temperature environments. The robust brass components enable long-term reliability, while the manual handle simplifies maintenance. Ideal for substations, power distribution grids, and industrial equipment protection.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Voltage Rating11kV24kV36kV
Breaking Capacity20kA25kA (+25%)30kA (+50%)
Interrupting Rating12kA18kA (+50%)24kA (+100%)

Supplier's note

  1. Key Technical Breakthroughs:

    • Ceramic Insulation: Provides 20% better heat resistance than traditional materials, ensuring stability in extreme conditions.
    • 25kA Breaking Capacity (Advanced Model): Outperforms industry benchmarks by 15%, enabling safer overcurrent interruption.
    • Manual Handle Design: Reduces downtime by 30% during maintenance compared to tool-dependent fuses.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard 11kV systems requiring basic overcurrent protection (e.g., residential substations).
    • Advanced Model: Suitable for industrial applications needing higher reliability, such as mining or heavy machinery.
    • Pro Model: Designed for critical infrastructure (e.g., power grids) where 36kV voltage handling and 30kA breaking capacity are essential. With its tripled interrupting rating compared to the Base Model, it ensures unmatched safety in high-stress scenarios.

Frequently asked questions

  • Which high-voltage fuse cutout model is best suited for 11kV outdoor electrical systems?

  • How do I safely clean and inspect a ceramic high-voltage fuse cutout?

  • Why is ceramic preferred over plastic for high-voltage fuse cutout bodies?

  • Can this 11kV fuse cutout be customized for specific current ratings?

  • Is this high-voltage fuse cutout UL/IEEE certified for safety compliance?

  • Which fuse cutout model suits substation applications?

  • What precautions should be taken when replacing a drop-out fuse cutout?

  • Does the handle design of the fuse cutout allow for different mounting systems?
