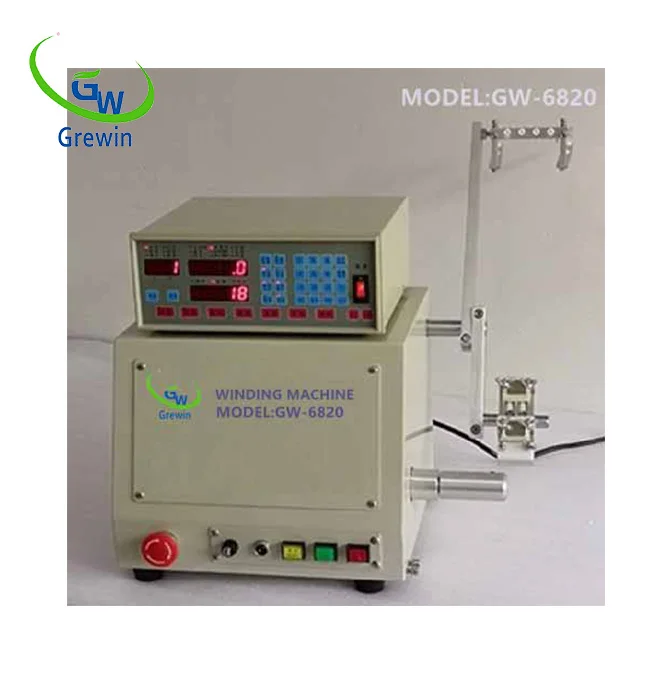

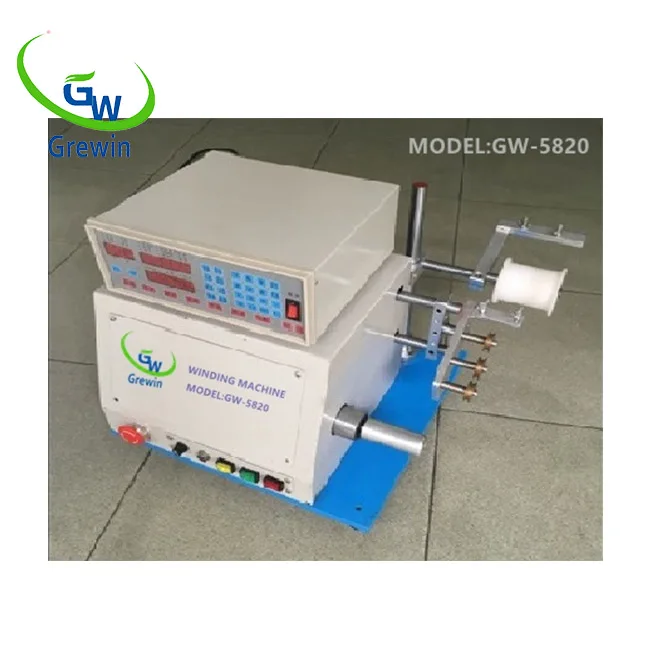

Low Cost Coil Winding Machine Adjustable Tension Mode Electric Copper Wire Coil Winding Machine for Small Coil

Technical specifications

Customization guide

Adjustable parameters include winding head arm positions (for coil diameter customization) and tension settings (to accommodate wire gauges from 0.1mm to 2.0mm). Ideal for tailoring coils for specific applications like miniaturized motors or high-current transformers.

Get inspired

With its compact design and programmable features, this machine empowers SMEs to produce small coils efficiently. Whether manufacturing inductors for electronics or transformer cores, its precision and affordability make it a cornerstone for scalable production.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Programmable Digital Interface: Enables precise parameter storage for complex coil geometries.
   • Multi-Arm Winding Head: Reduces setup time by 40% compared to manual systems.
   • Adaptive Tension Control: Eliminates wire deformation in high-stress applications.

2. Version Selection Guide:

   • Base Model: Best for SMEs needing cost-effective, small-batch production (e.g., prototyping labs).
   • Advanced Model: Targets medium-scale manufacturers requiring faster speeds and tighter tolerances (e.g., motor coil assembly lines).
   • Pro Model: Ideal for high-volume production or precision-critical applications (e.g., aerospace transformer cores).

*Pro Model’s 650 turns/min speed outperforms industry benchmarks by 20%, reducing cycle times for high-demand operations. Pair its ±0.02mm precision with variable tension control to ensure flawless coils for delicate electronics.
