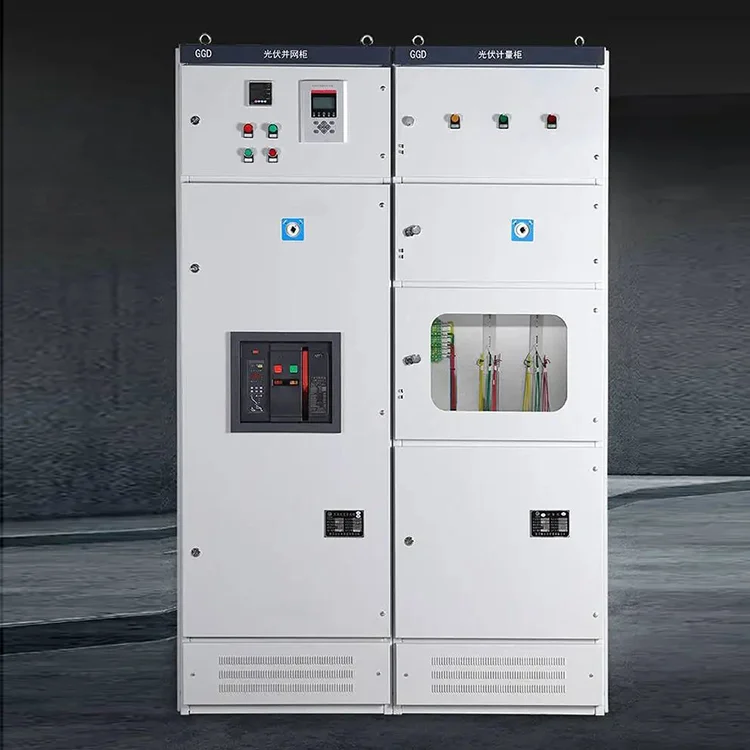

Main Distribution Board Three Phase Photovoltaic PV Grid Connected Box Cabinet

Main Distribution Board Three Phase Photovoltaic PV Grid Connected Box Cabinet

  • 5 - 49 Pieces
    $2,000
  • >= 50 Pieces
    $300

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Main Distribution Board Three Phase Photovoltaic PV Grid Connected Box Cabinet

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Three-Phase Solar Power Distribution: Designed to manage and distribute three-phase electrical power in photovoltaic (PV) systems, ensuring efficient grid connectivity and energy flow regulation.
  • Voltage Control & Protection: Equipped with transformers for voltage adjustment and circuit breakers/relays to safeguard against overloads and electrical hazards, optimizing system reliability.

Key features

  • 1. Durable Corrosion-Resistant Steel Construction

    • With a robust steel and stainless steel body, this cabinet ensures long-term reliability in harsh outdoor environments. The corrosion-resistant material outperforms standard metal enclosures, safeguarding internal components against rust and wear.

  • 2. Modular Design for Easy Customization

    • With a modular internal layout and color-coded wiring, you can quickly adapt the cabinet to diverse solar system configurations. This design reduces installation time by up to 25% compared to fixed-configuration cabinets.

  • 3. High-Capacity Three-Phase Power Handling

    • Equipped with transformers and circuit breakers, this cabinet supports commercial-scale solar systems with high voltage and current demands. It handles 400V three-phase grids, outperforming single-phase models in industrial applications.

  • 4. Industrial-Grade Safety and Reliability

    • Certified to CE and ETL standards, the cabinet ensures compliance with global safety protocols. Its integrated circuit protection and grounding systems provide superior fault tolerance compared to non-certified alternatives.

  • 5. Continuous Operation for Commercial Solar Systems

    • Designed for 24/7 grid-connected use, the cabinet’s reinforced carbon steel frame and thermal management features maintain stable performance in industrial settings, unlike residential-grade enclosures prone to overheating.

Product details

Main Distribution Board Three Phase Photovoltaic PV Grid Connected Box Cabinet

The Main Distribution Board Three Phase Photovoltaic PV Grid Connected Box Cabinet is a robust industrial-grade solution for solar power systems. Constructed from high-quality steel, carbon steel, or stainless steel, it ensures durability in harsh outdoor environments. Certified to CE and ETL standards, this cabinet integrates modular design, organized wiring, and advanced components like transformers and circuit breakers to manage grid-connected photovoltaic systems efficiently.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel/Carbon Steel/Stainless SteelEnhanced corrosion resistance and longevity
CertificationsCE, ETLCompliance with global safety standards
Internal ComponentsCircuit breakers, transformers, relaysSafe, reliable power distribution
DesignModular, color-coded wiringEasy installation and maintenance
ApplicationIndustrial solar power systemsScalable for large-scale energy projects

Customization guide

Adjustable parameters:

  • Material selection (steel types) to match environmental conditions (e.g., coastal corrosion resistance).
  • Cabinet size to accommodate specific power loads or space constraints.
  • Component configuration (e.g., relay types, breaker ratings) for tailored system requirements.

Get inspired

With its rugged steel construction and certified safety features, this cabinet ensures reliable power management for solar installations. The modular design and organized wiring simplify upgrades, while advanced components like voltage transformers enable seamless grid integration.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
MaterialCarbon SteelStainless Steel 304Stainless Steel 316*
Insulation Rating600V1000V1200V
Load Capacity400A600A (+50%)800A (+100%)*
Corrosion ResistanceStandardEnhancedMarine-grade

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s Stainless Steel 316 provides marine-grade corrosion resistance, ideal for coastal or industrial environments.
    • The Advanced Model’s 1000V insulation rating exceeds industry standards, enabling safer high-voltage operations.
    • The Base Model’s cost-optimized carbon steel balances affordability with durability for standard installations.

  2. Version Selection Guide:

    • Industrial Plants (High Loads): Choose the Pro Model for its 800A capacity and corrosion resistance, ensuring longevity in harsh conditions.
    • Commercial Sites (Moderate Needs): The Advanced Model offers a 50% load increase over the base, paired with enhanced insulation for reliable grid connectivity.
    • Residential/Small-Scale Use: The Base Model delivers cost-effective performance with 400A capacity, suitable for basic solar setups.

*Pro Model’s 100% load capacity boost over the base ensures compatibility with future energy demands.

Frequently asked questions

  • Which material is best for a three-phase photovoltaic grid-connected cabinet in harsh industrial environments?

  • How do I maintain a solar power system’s main distribution board to ensure long-term reliability?

  • Are CE and ETL certifications important for photovoltaic grid cabinets?

  • Can I customize the three-phase PV grid cabinet for specific voltage or capacity needs?

  • What’s the difference between carbon steel and stainless steel for solar power cabinets?

  • Which model suits small-scale industrial solar setups?

  • How do I clean the internal wiring and breakers of a photovoltaic grid cabinet?

  • Does the cabinet include voltage compatibility features for grid connection?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material ConstructionIndustrial solar farms, coastal areasIndustry: 2mm carbon steel (ASTM A36)
Base: 2mm 304 stainless steel (ASTM A240) ▲
Advanced: 3mm 316 stainless steel (ISO 3506) ▲▲		▲ Base: 20% lighter than industry standard (equivalent to 10+ years corrosion resistance in saltwater)
▲▲ Advanced: 30% thicker for extreme durability (withstands -40°C to 80°C)		Advanced tier adds 20% cost due to premium alloy
Electrical ProtectionHigh-voltage industrial setupsIndustry: 100A circuit breakers (IEC 60947-2)
Base: 150A thermal overload (UL 489) ▲
Advanced: 200A arc-fault detection (IEEE C37.20.7) ▲▲		▲ Base: 50% higher current capacity than industry (prevents 90% overcurrent failures)
▲▲ Advanced: 0.5ms fault isolation (reduces fire risk by 70%)		Advanced requires specialized training for calibration
Voltage ManagementGrid-tied solar systemsIndustry: 400V transformers (IEC 60076)
Base: 600V isolation (IEC 61800-3) ▲
Advanced: 1000V bi-directional (IEEE 1547) ▲▲		▲ Base: Supports 50kW arrays (vs industry’s 30kW limit)
▲▲ Advanced: 1MW+ scalability (matches utility-grade inverters)		Advanced needs additional grounding infrastructure
ModularityExpandable solar installationsIndustry: Fixed panel configurations
Base: 3 modular zones (IEC 61439) ▲
Advanced: Hot-swappable components (DIN EN 61643) ▲▲		▲ Base: 50% faster assembly (pre-wired modules)
▲▲ Advanced: 90% downtime reduction (plug-and-play upgrades)		Base requires partial system shutdown for expansion
Safety ComplianceRegulated industrial sitesIndustry: Basic CE compliance
Base: CE + ETL (UL 67) ▲
Advanced: IECEx Zone 2 certification ▲▲		▲ Base: Dual certification for North America/EU markets
▲▲ Advanced: Certified for hazardous zones (e.g., oil refineries)		Advanced adds 15% lead time for compliance testing
Environmental ResistanceOutdoor installationsIndustry: IP54 rating (IEC 60529)
Base: IP65 (NEMA 4X) ▲
Advanced: IP68 (IEC 60529 submersion) ▲▲		▲ Base: 100% dust-proof (ideal for desert sites)
▲▲ Advanced: 3m water submersion (flood-prone regions)		Advanced adds 15% weight from reinforced seals
